China suppliers Silver fish lithium battery power wheelchair 12V 24v 36v 10ah to 35ah batteries

Share on (60819009711):


Price:

Quantity:


Product Overview

Description


Product Description

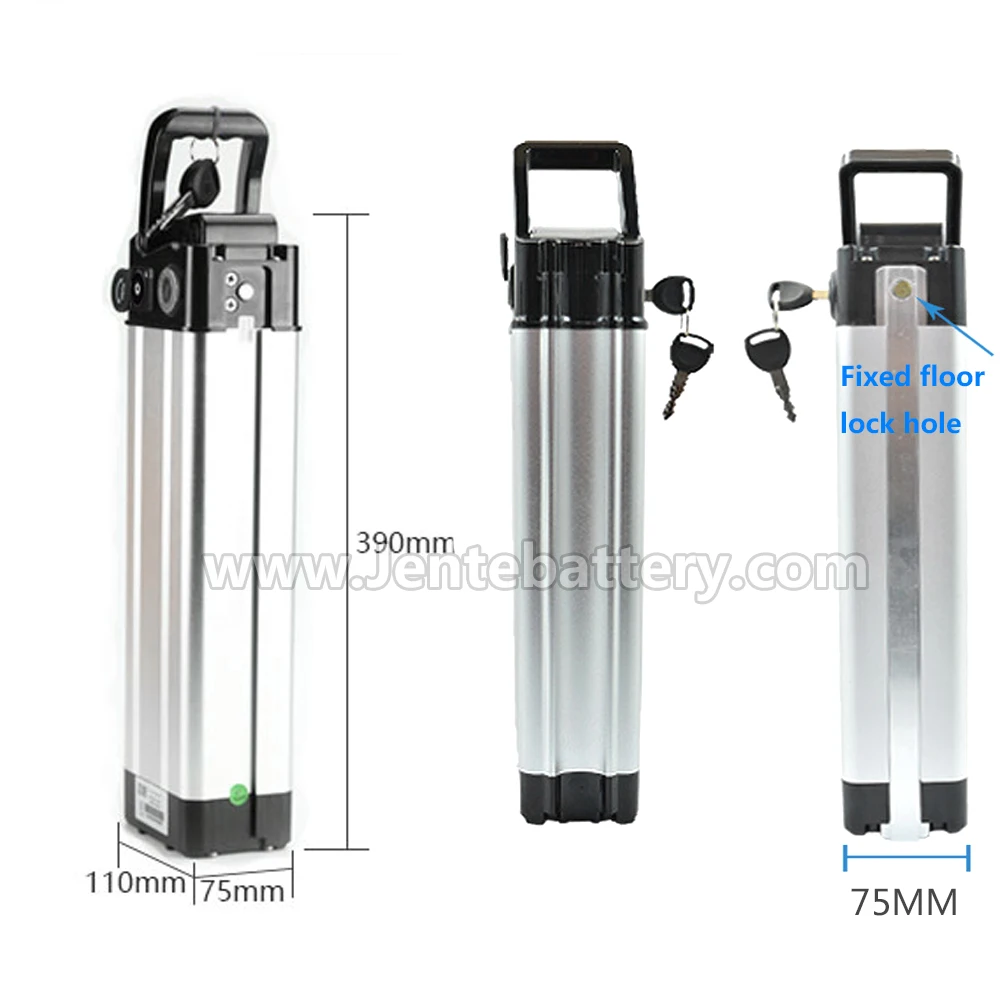

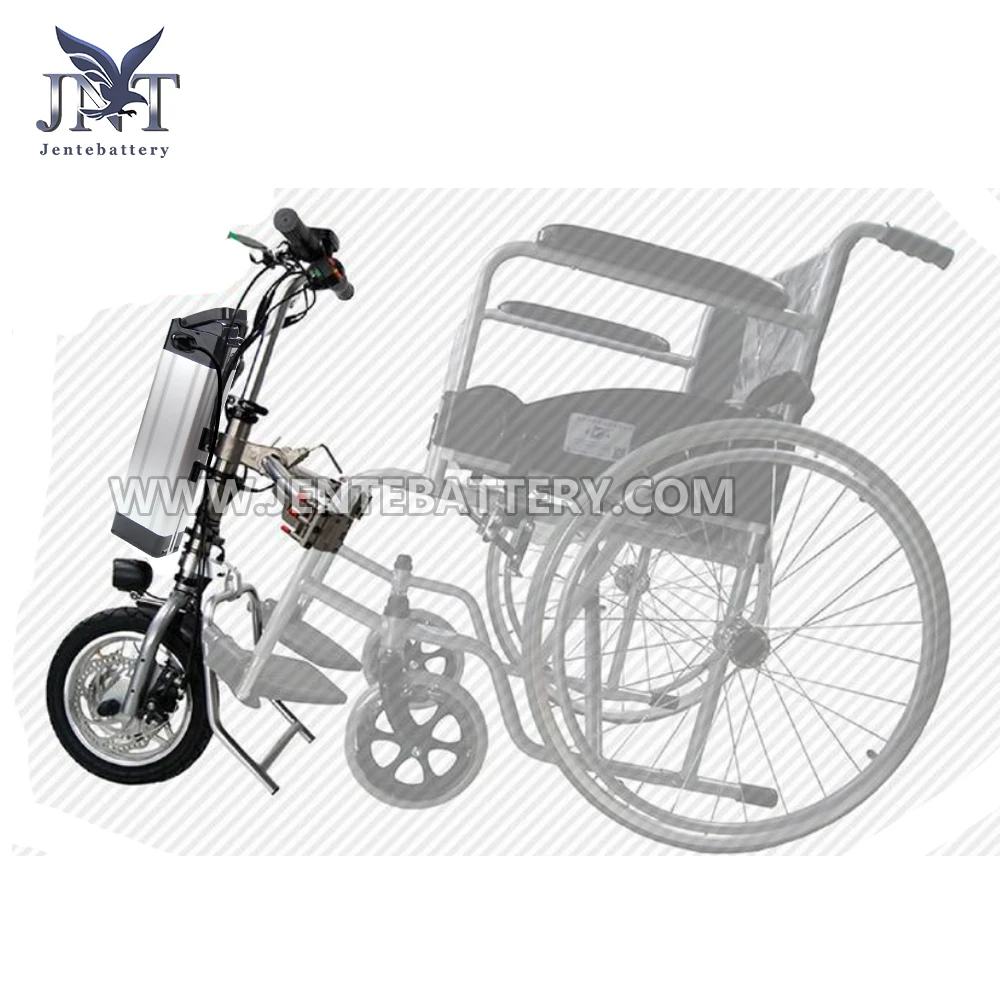

China suppliers Silver fish lithium battery power wheelchair 12V 24v 36v 10ah to 35ah batteries

- It is easy to install batteries and remove batteries.

- With Top discharge port
- Case material with aluminium alloy
- XLR charging socket can afford 5A charging current
- Silver or black color are available


\t
Model
\t
JNT-I013
\t
Type
\t
li-ion battery
\t
Nominal Voltage
\t
12V 24V 36V
\t
Nominal Capacity
\t
10ah to 35ah
\t
Dimension
\t
390*110*75MM
\t
Max Charge Voltage
\t
12.6V to 42V
\t
Discharge Cut-off Voltage
\t
8.4V to 28V
\t
Continuous Discharge Current
\t
5A 10A 15A 20A
\t
Charge method
\t
CC/CV
\t
Battery system
\t
Built-in BMS
\t
Protection function
\t
Over Charge/Discharge,Short Circuit,
Over Current, Cell Balancing
\t
Working Temperature
\t
Charge:0~45°C,45~85%RH
Discharge:-20~60°C,45~85%RH

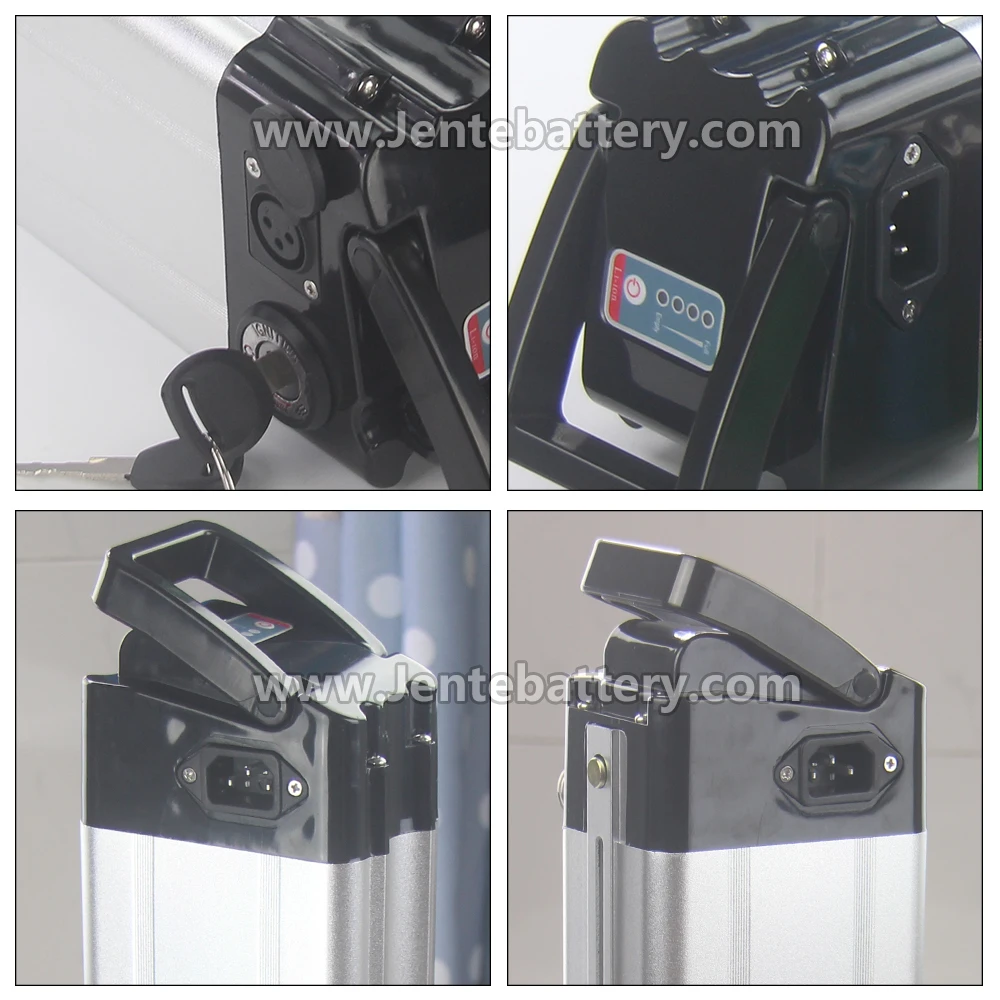

Detailed Images

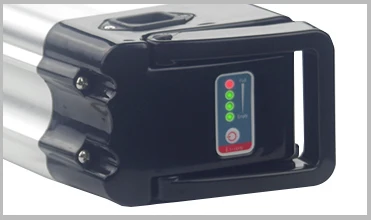

Power display lamp


Total 4 lamps to show Power level
1 red + 3 green means 100% power
One lamp turn off represents
25% capacity decreased

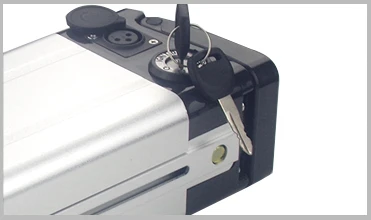

Sliver fish key switch


Lock the Sliver fish battery
to the base, avoid to stolen.

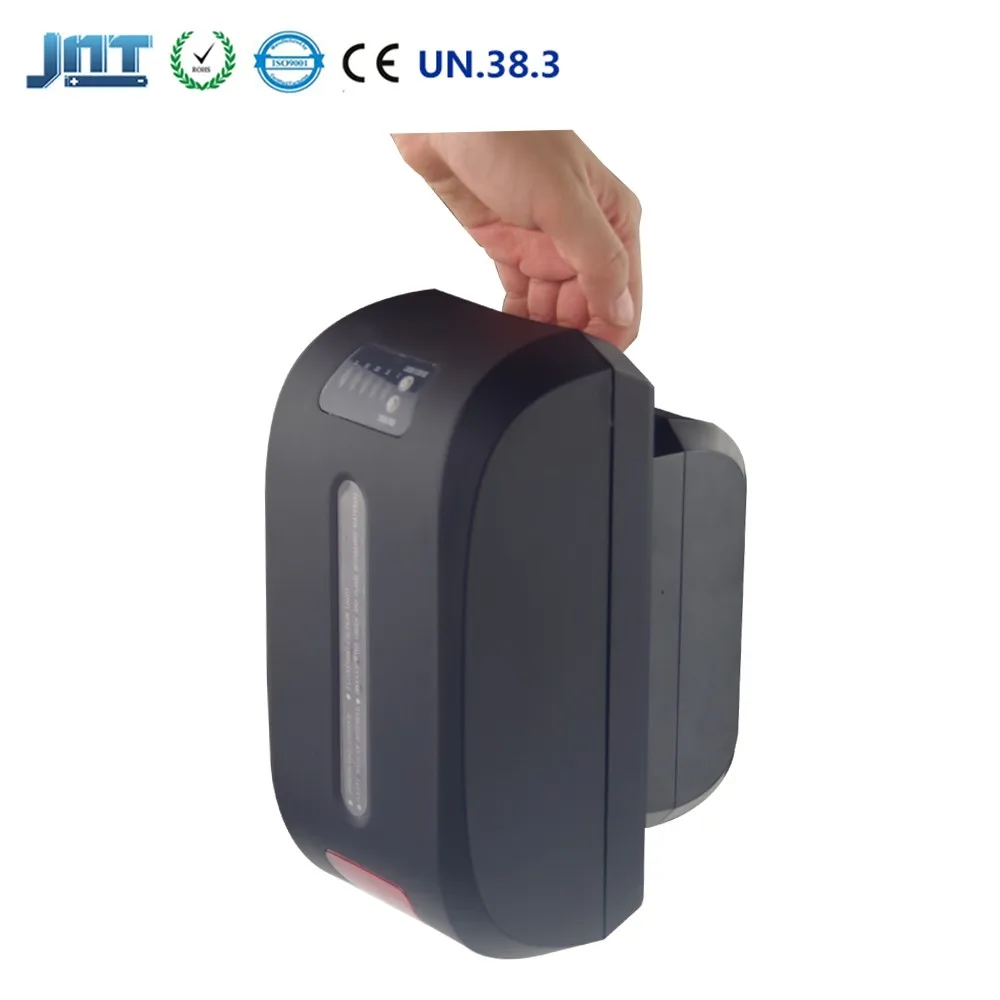

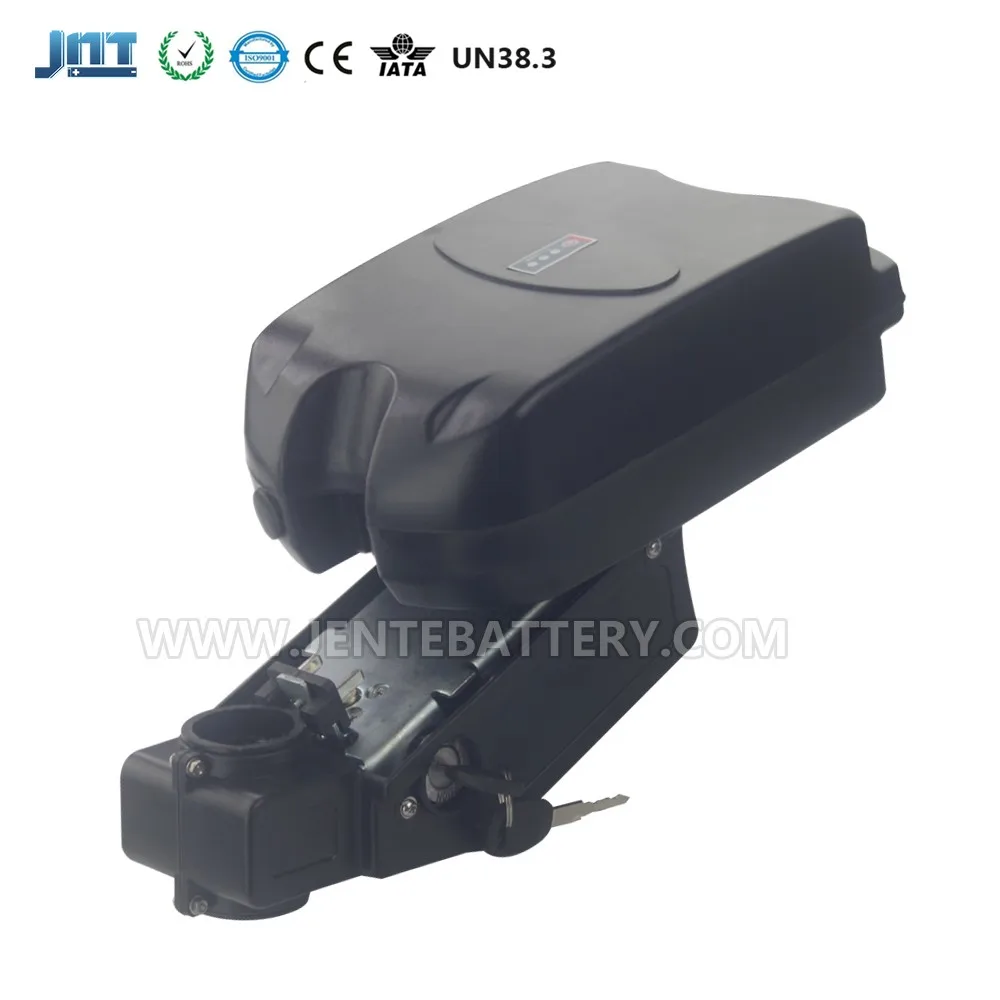

Under seat electric bike battery


Battery charging socket

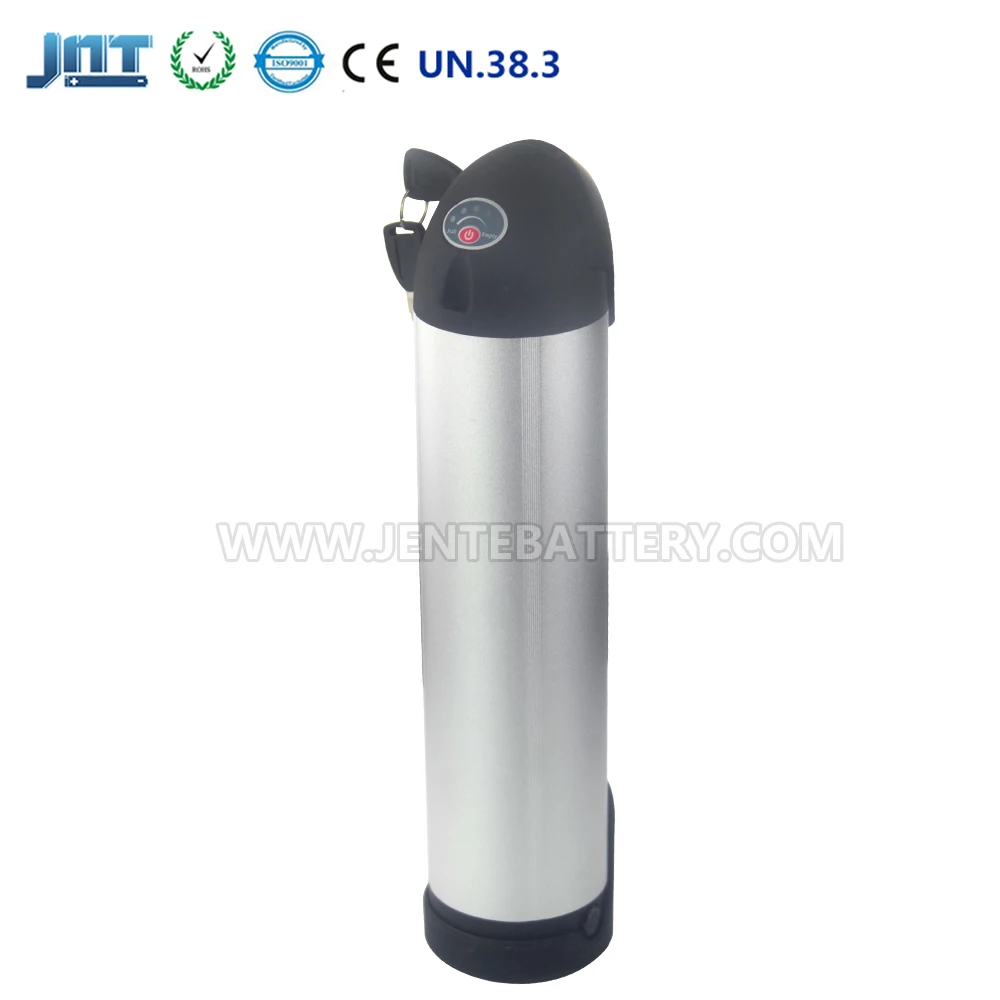

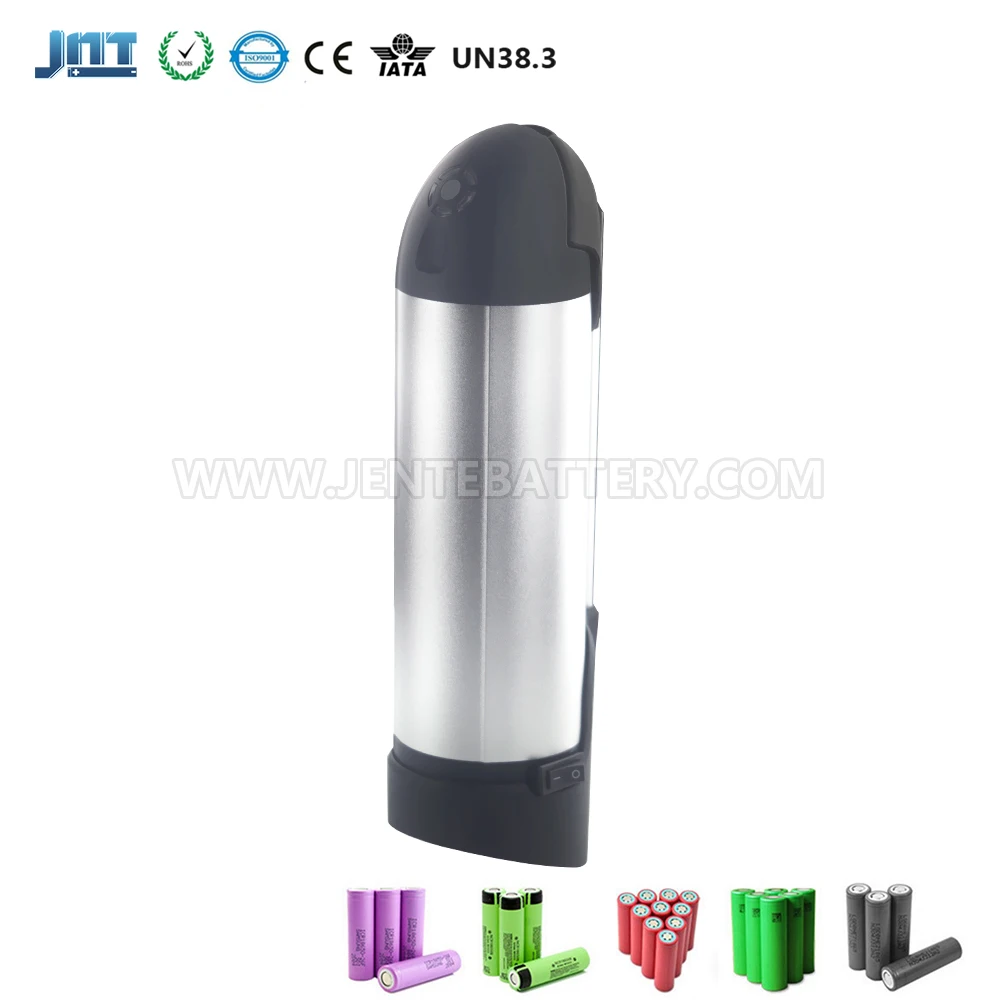

Seat tube Bicycle battery

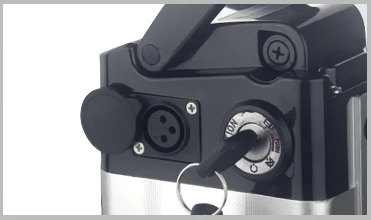

XLR Charging socket

Charging current can't
over 5 Amps

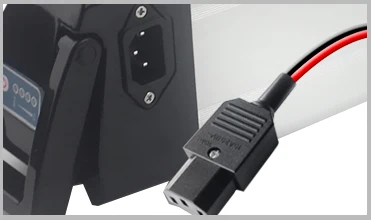

Bicycle battery discharge port


Red cable for Positive "+"

Black cable for Negative"-"

Discharge connector can make different types
to fit your motor connectors.

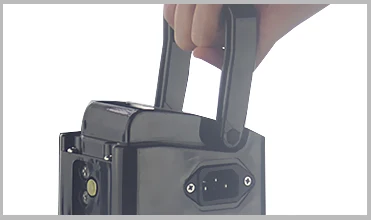

36V/48V Battery handle


Portable battery with handle is convenient
for us to take home and charge it.

Recommend similar products


Certificate
About Us

About us

Our factory have been in this field for about 6 years and have rich experiences in designing and manufacturing lithium battery pack, E Bike Battery, solar storage battery, scooter battery and so on.

In our factory  we have a complete set of production equipment worth more than $3000000 that including battery cell cycle life testing equipment, automatic welding equipment, high temperature testing equipment, low temperature testing equipment, drop testing equipment, vibration testing equipment, whole battery pack  cycle life testing equipment, sample  etc.

Also we have been built a long-term business relationship with the well-known IC and battery cell companies, such as San-yo, Panasonic, Samsung, LG, Sony etc. and most of our products have got CE, RoHs,UN38.3, MSDS certificates.

With full testing equipment &  high quality material we can ensure providing best quality products to all our customers. And we have been exported to America, Europe, South America, Southeast Asia, Etc.

We warmly welcome you to visit our factory.

Our Team

We pay great attention to customer's feedback and improve staff battery knowledge. So battery training and sharing is often in our company. Purpose is to provide better professional service to all customers.

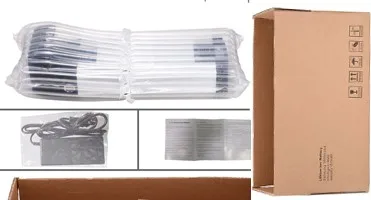

Packing

One battery per Carton with air bag packing to avoid battery damaged in shipping to ensure that all customers can get perfect battery.

Shipping Method

Air Shipment

1. Sample order or quantity less than 10pcs can ship by air.

2. Air shipping time will take about 7-10 working days to Europe Country, 10-12 working days to US, AU Country with door to door service.

3. For Europe country it delivery by UPS; For US country it delivery by FedEx; For AU country it delivery by Post.


Sea Shipment

If quantity over 30pcs, you can choose sea shipment, it will much cheaper than by air.


Sea shipping time is about 15-45 days depending on destination port.




Our Service
Pre-sale Service
1. Have on-line experienced staffs to answer all your esquires within 24 hours.
2. For customized battery, we can design or provide you size information for free.
3. Recommend you the right battery cell or battery type according to your Electric Bicycle and motor equipment power.
4. Help you choose the cheaper and fast shipping company.

After-sale serice
1. We offer 1 year warranty from the day you receive battery.
2. Provide permanent battery technical support.
3. When make re-order or order quantity over 30pcs/order, we will give some discount.
FAQ & Contact US

Q:  How long warranty do you offer?

A:  General speaking, we offer one year warranty for battery. For quality problems, we will send you new one. We will bear the freight.


Q:  How do you ship battery?

A:  We can ship battery by air or sea. For air shipping, shipping time is about 7-10 working day to Europe Country, 10-12 working days to US and AU country. Sea shipping time is about 15-45 days depending on destination port.


Q: How about the quality and safety of your battery?

A:  All batteries we used Brand A grade cell & high quality build-in BMS  and they have 10 steps testing during the whole production to ensure the quality.


Q:  What is your lead time?

A:  It is 3-7 working days for sample order, 15-20 days for bulk order after payment received.


Q: What is your payment method?

A:  T/T, PayPal, Western Union, Alibaba trade Assurance.
