Bitumen Cleveland Open Cup COC Flash Point Tester ASTM D92
- Category: >>>
- Supplier: Chongqing Gold Mechanical & Electrical Equipment Co. Ltd.
Share on (60819098161):
Product Overview
Description

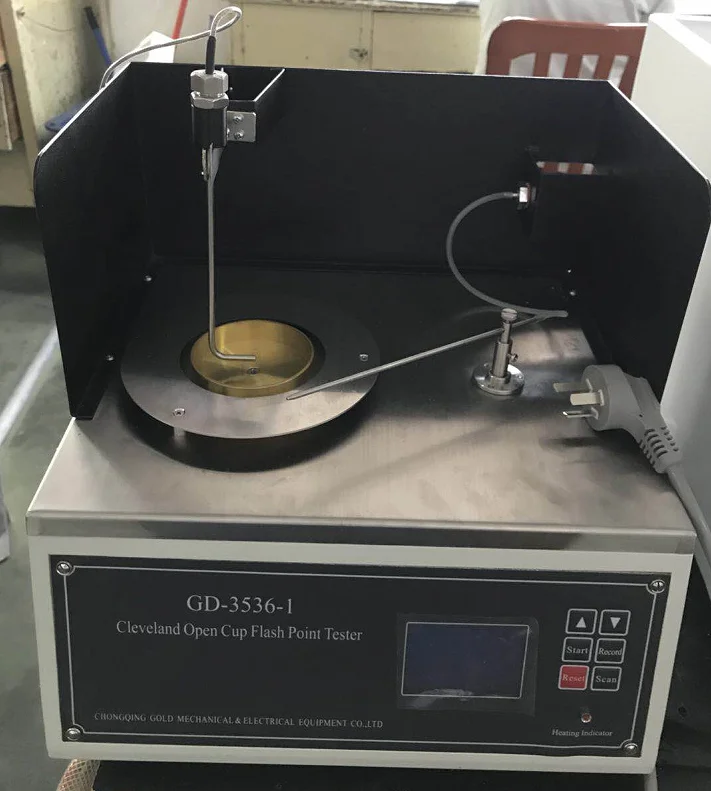

Bitumen Cleveland Open Cup COC Flash Point Tester ASTM D92
Introduction:
Bitumen Cleveland Open Cup COC Flash Point Tester ASTM D92 is designed and made as per ASTM D 92 Standard Test Method for Flash and Fire Points by Cleveland Open Cup Tester. It is designed for testing bitumous materials.
Bitumen Cleveland Open Cup COC Flash Point Tester ASTM D92 is applicable to all petroleum products with flash points above 79℃ and below 400℃ except fuel oils.
Specifications:
Product name | Bitumen Cleveland Open Cup COC Flash Point Tester ASTM D92 |
Power supply | AC (220±10%) V, 50Hz |
Heating device | Electric furnace heating, no naked fire, explosion prevented.The power is adjustable from 0W to 600W. The max heating temperature can reach 400℃ |
Temperature control | Single chip micr℃omputer.The heating rate can meet |
Requirements of standards | GB/T 3536-2008 and ASTM D92 |
Temperature display | LCD shows temperature parameters |
The display range and accuracy | 0℃~ 400℃, 0.1℃ |
Flash point detecting device | It applies the test flame automatically |
Temperature sensor | RTD, PT100 |
Igniting device | (1) Ignition source: coal gas (or civil gas) |
Ambient temperature | (-10 ~ 50)℃ |
Relative humidity | ≤85% |
Maximum power consumption | 650W |
Dimension | 340*320*450mm (Temperature sensor is included) |
Accessories:
| No. | Name | Unit | Quantity | Remark |
| 1 | Main unit | Set | 1 | |
| 2 | Cleveland oil cup | Piece | 1 | We can provide more if you required. |
| 3 | Ignition device | Set | 1 | |
| 4 | Thermometer | Piece | 1 | -6°C~400 °C, graduated scale is 2 °C |
| 5 | Thermometer support | Set | 1 | |
| 6 | Power supply wire (250 V 6 A) | Piece | 1 | |
| 7 | Fuse 5 A (Φ5×20) | Piece | 2 | |
| 8 | Latex tube Φ6 | Meter | 1.5 | Could not be used as coal gas tube |
| 9 | Joint for coal gas tube | Piece | 1 | Connect coal gas tube and latex tube |
| 10 | Extinguishing cover | Piece | 1 |
GD-3536 Series ASTM D92 CLEVELAND OPEN CUP FLASH POINT TESTER
Parameter | GD-3536 | GD-3536-1 | GD-3536A | GD-3536D |
Temperature range | Ambient temperature~400℃ | Ambient temperature~400℃ | Ambient temperature~400℃ | Ambient temperature~400℃ |
Ignition mode | Ignite once manually | Ignite once manually | Ignite once manually | Automatic |
Temperature display | Thermometer | LCD | Color LCD | Color LCD |
Printing | No | No | Yes | Yes |
Communication port | No | No | No | Yes |
Other function | Manually adjust heating rate | Automatically control temperature and display by LCD | Automatic | Automatic, with RS232 communication port |
Dimension | 350*290*350mm | 340*320*450mm | 410*360*420mm | 520*380*310mm |
