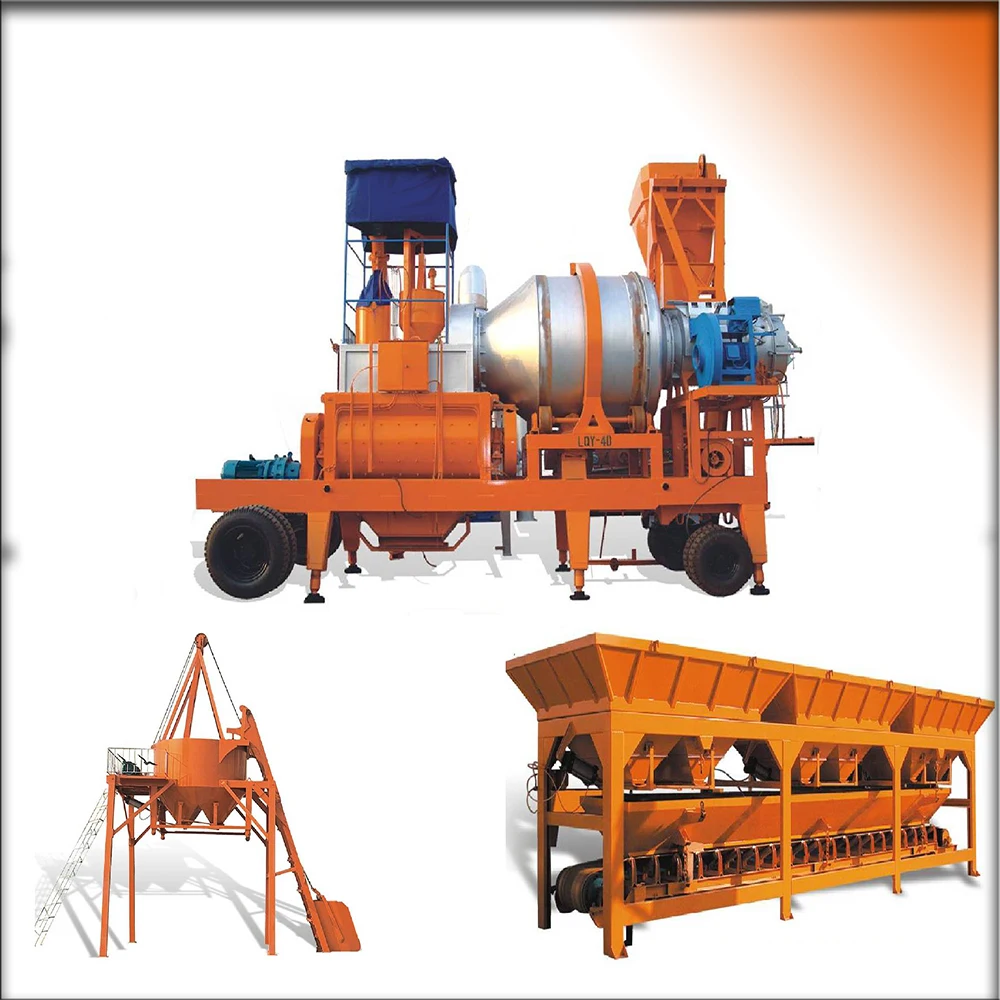

MDHB40 Mobile Asphalt Mixing Plant Manufacturer
- Category: Asphalt Mixers >>>
- Supplier: Henan Cheng Jing Mechanical Electrical Equipment Co. Ltd.
Share on (60819131296):
Product Overview
Description
MRD30 Small Mobile Asphalt Mixer Manufacturer
Key Specifications
Model | MRD30B |
Rated Production Capacity | 30t/h |
Feed cubage | 1m³ |
Feed weight | 1250kg/hopper |
Discharge Temperature | 120-170℃(adjustable) |
Oil Consumption | 5-8kg/t |
Drying Drum Rotate Speed | 16rev/min |
Total Power | 131KW |
Overall Dimension | 8.8×5.8×2.8 (m) |
Movement | The host part can be dragged and moved as a whole |
Weighing accuracy | Filler:±1.0% |
Weighing accuracy Drying & Mixing Type | Stone:±1.0% |
Asphalt:±0.5% | |
Intermittent drum drying, twin horizontal shaft forced mixing | |
Dust Collection System | Dust Cyclone removal |
Operation | Manual / Auto |
Control System | PLC |
Manufacture of MRD30 Small Mobile Asphalt Mixer
Main Features
--Integrated design of drying drum and horizontal twin-shaft mixer.
--Accurate weighing and stable quality.
--Simple structure for easy operation,
--PLC control, touch screen, auto/manual switchable.
--Easy transport and installation.
--Burner is available for coal and oil, at client's option.
--Easy for maintenance.

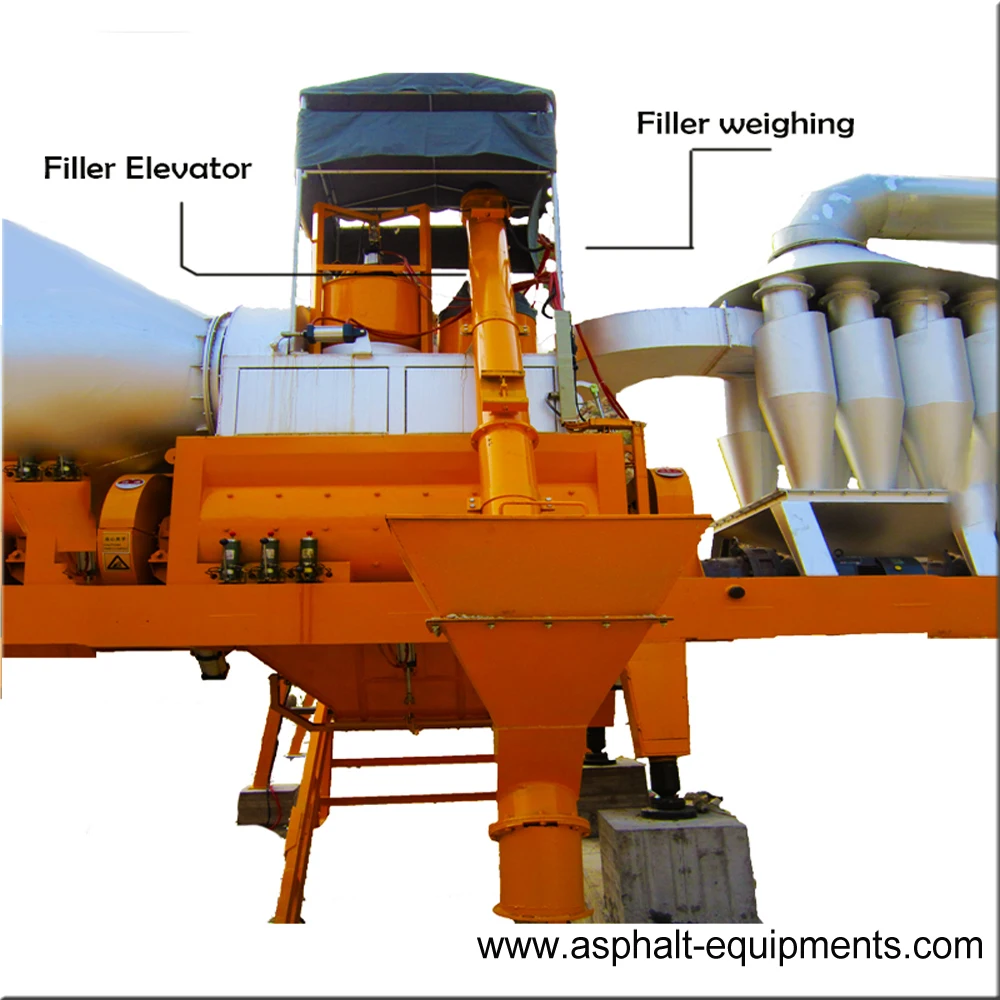

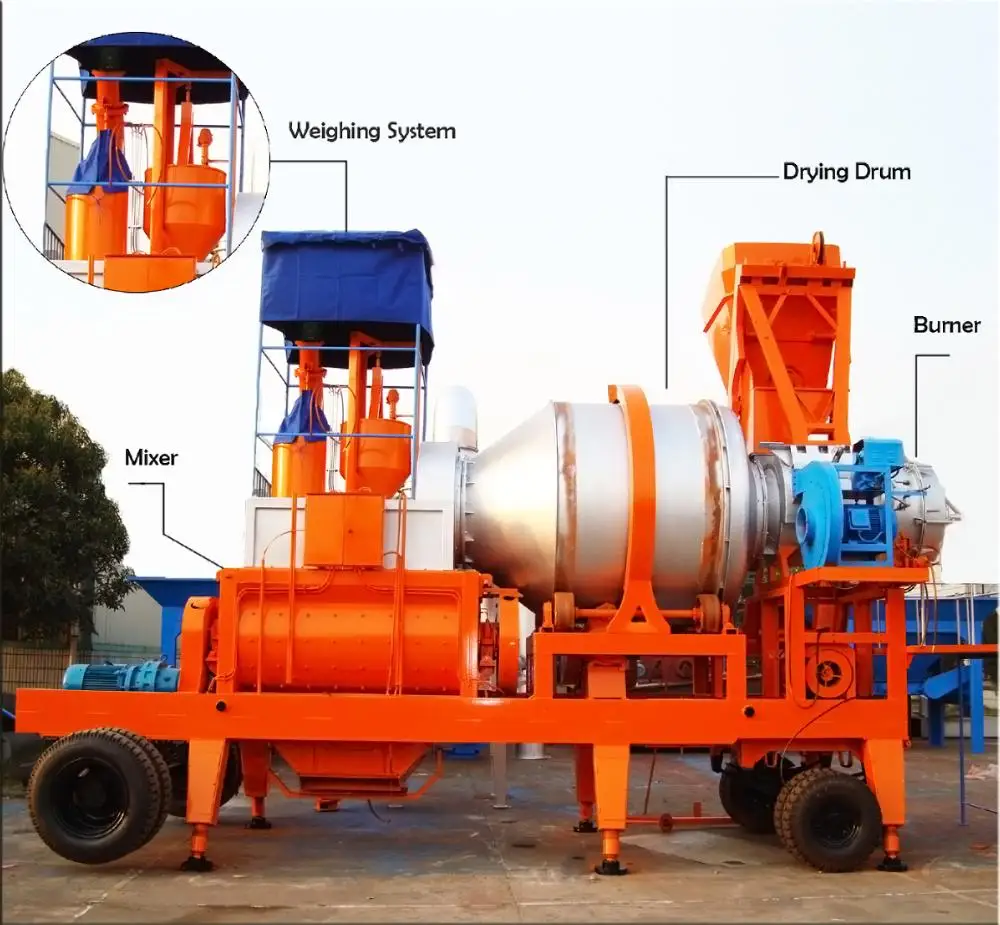

Detailed Images
Manufacture of MRD30 Small Mobile Asphalt Mixer
Packing &Delivery
Manufacture of MRD30 Small Mobile Asphalt Mixer
Packaging details: The spare and accessory parts are packaged by fuming wooden box,but the bulk cargo are packaged by nude packing,for example,the drying drum,bitumen tank,filler silo,control room and so on.
- Port: Shanghai,Qingdao,Tianjian,or other China port
- Lead Time :20-30days after payment
Certifications
Exhibitions
FAQ
Q1. What is the warranty period?
A:12 months,we will provide the technical services for free within this period.
Q2. Can you install the asphalt mixing plant in my country?
A:Sure,we will send engineers to your country for guiding installation and training your works to operate the machine.
Q3.How many works needed for operate the machine?
A. Each one person of bench workers,electrician,welder and opertator.
