Product Overview

Description


Product Description

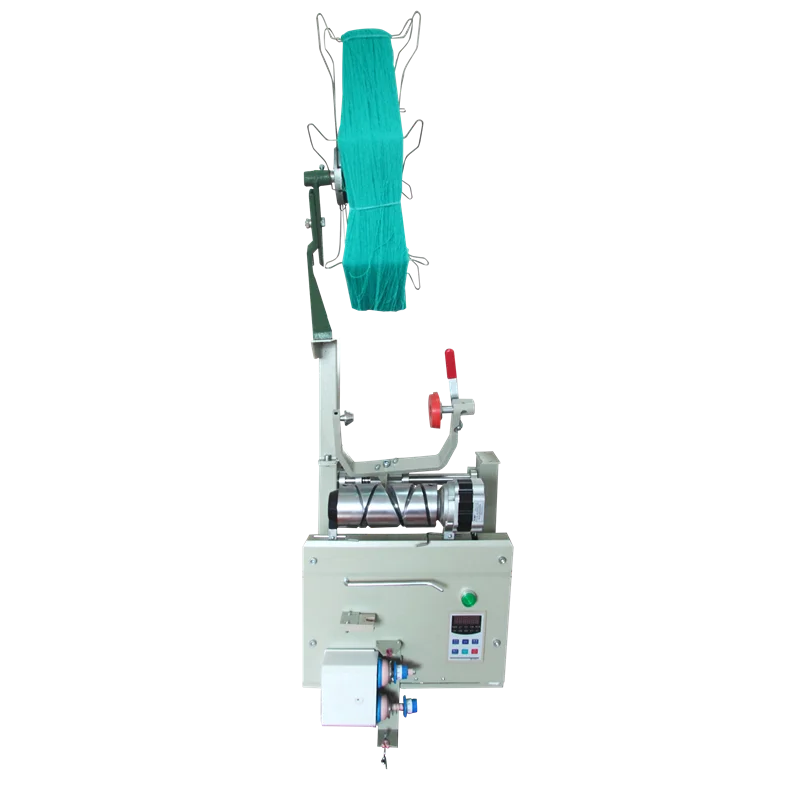

Single Spindle(Unit)

1. Automatic stop at preset diameter and at yarn break, speed up to 1200 mt/min.

2. Special winder for the production of hard cones for dyeing and waxing, for any type of yarns & blends.

3. Slow start and progressive speed increase, adjustable winding tension with frequency variator, mechanical clearers, yarn tensioners and anti-patterning device.

4. Supplied in sections of 1 up to 108 heads ready for opearation.

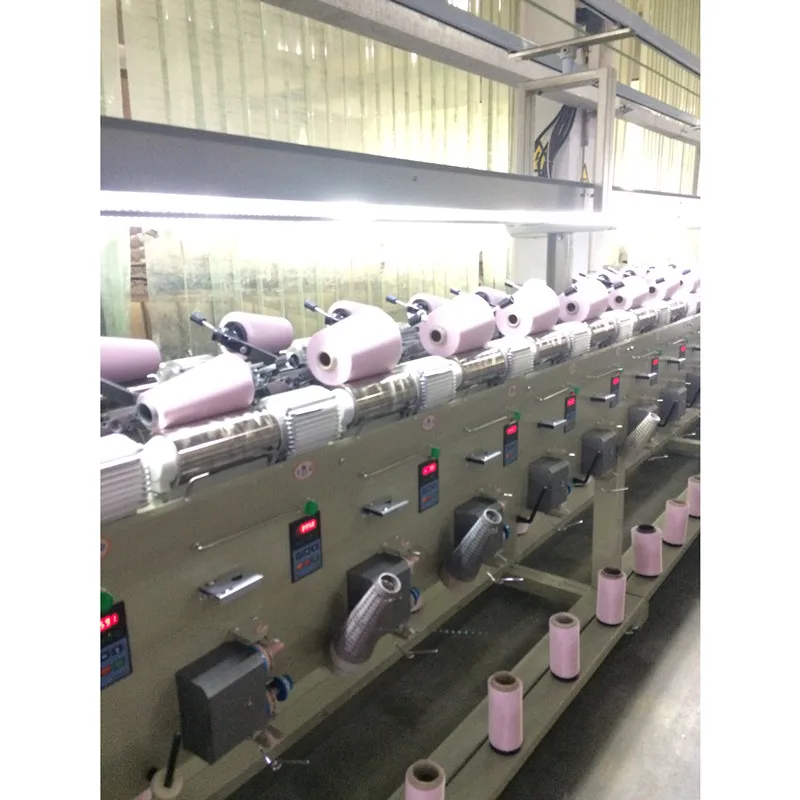

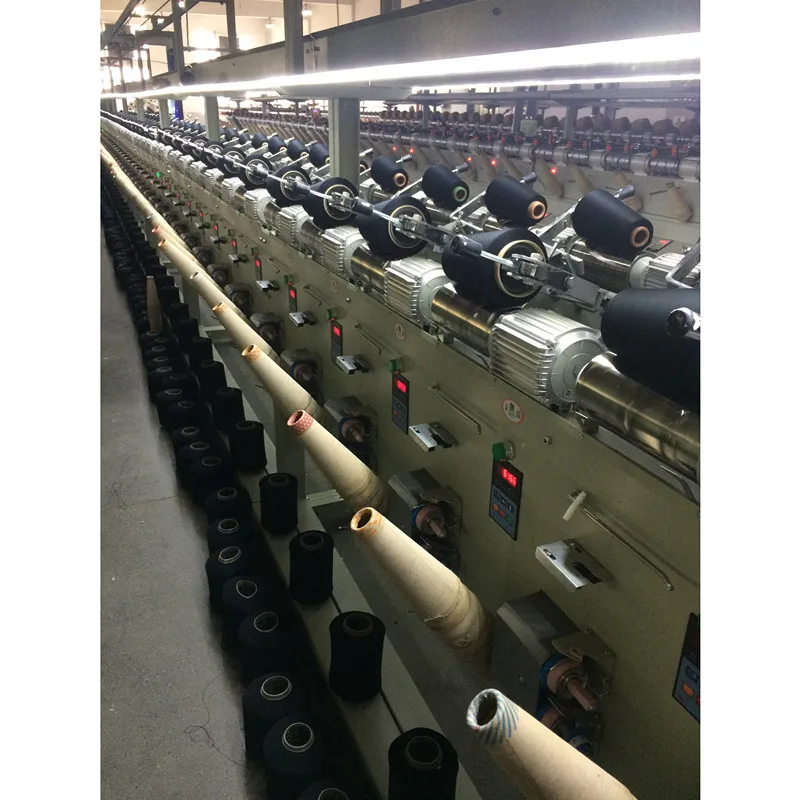

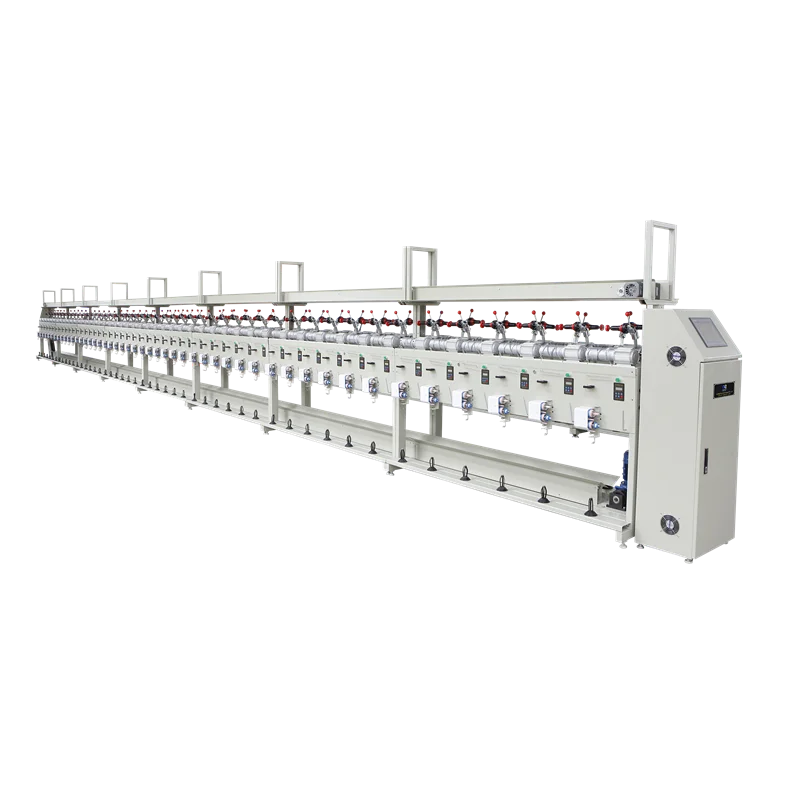

4 or 6 Spindles(Units)

1. Automatic stop at preset diameter and at yarn break, speed up to 1200 mt/min.
2. Special winder for the production of hard cones for dyeing and waxing, for any type of yarns & blends.
3. Slow start and progressive speed increase, adjustable winding tension with frequency variator, mechanical clearers, yarn tensioners and anti-patterning device.
4. Supplied in sections of 1 up to 108 heads ready for opearation.

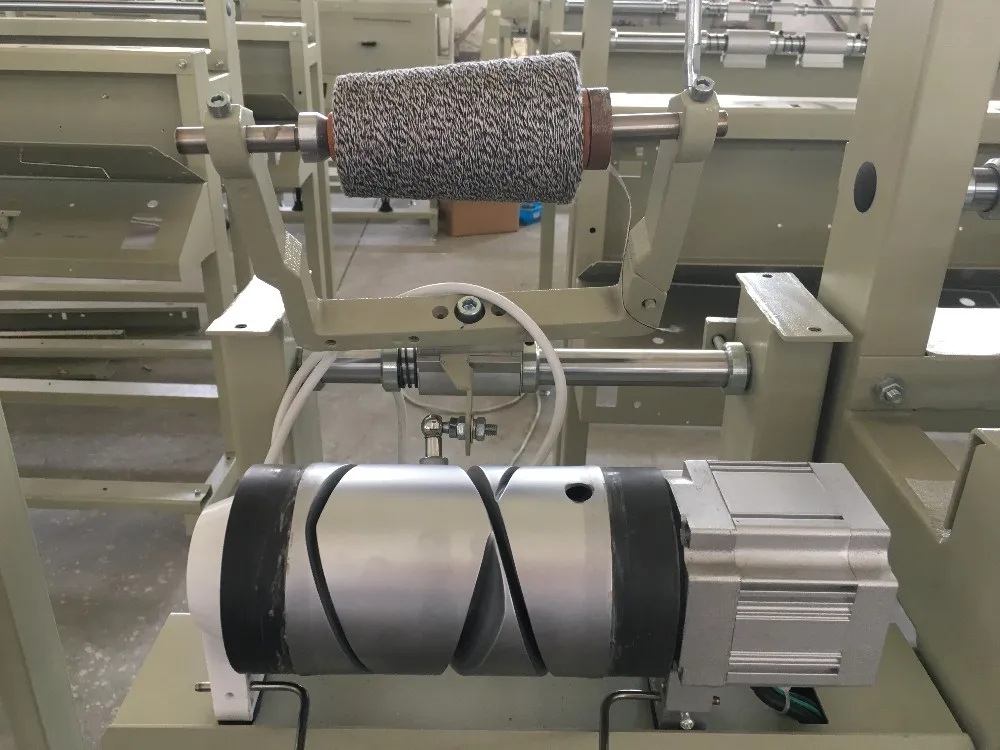

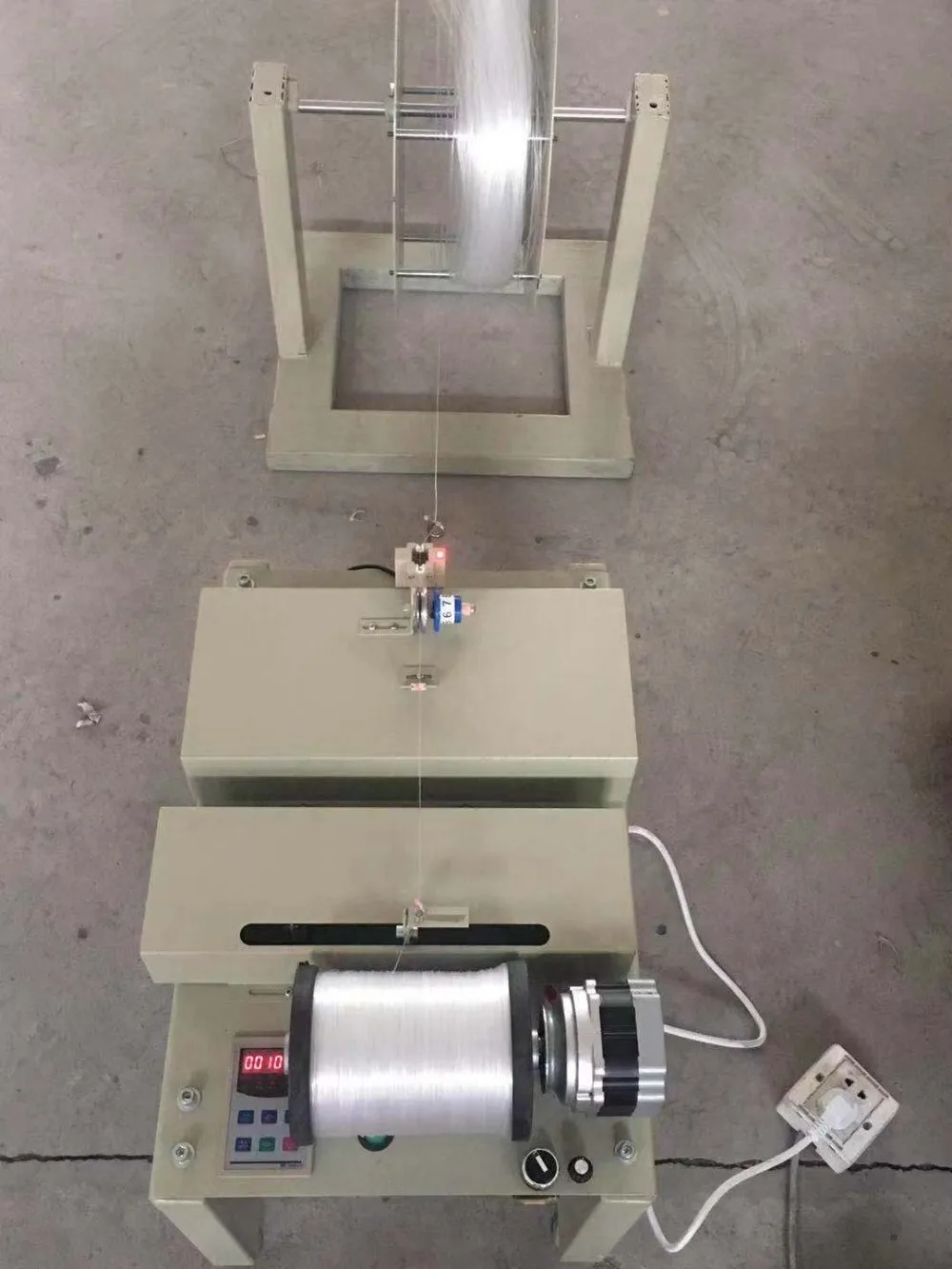

LZ-M-L-H

1. Direct drive by motor ,speed adjustable per section and side.
2.\tTension adjustment via 2 pressure controllers with springs,they also have waxing function.
3.  Auto stop while yarn break.
4.  Automatic length fixing.
5.  Slow start.

Detailed Images
Packing & Delivery
Specifications
\t
Item
\t
Technical parameters
\t
Types of winding
\t
Drum,Random
\t
Mechanical speed
\t
Up to 1200m/min (process speed depending on quality of yarn and feed packages)
\t
Package shape
\t
Cylindrical or conical
\t
Traverse length
\t
147mm,150mm,154mm
\t
Softedges-displacement
\t
2-8mm
\t
Package bobbin
\t
Cylindrical or conical of 3°30'
\t
Package diameter
\t
Up toφ 290 mm
\t
Package density
\t
0.2-0.4g/cm3
\t
Fibre / count
\t
Cotton.flax, wool, silk,chemical fiber /Ne 6...180
\t
Auto stop while yarn break
\t
With electronic yarn detector,the spindle will stop when yarn break
\t
Slow start
\t
For smooth start and better winding quality,supportting individual slow start for each spindle(available on request)
\t
External dimensions
\t
2540mm(length)*816mm(width) ×1560mm(height)
\t
Power supply
\t
3 phased 380V±10% ,50/60HZ
Certifications
Related Products

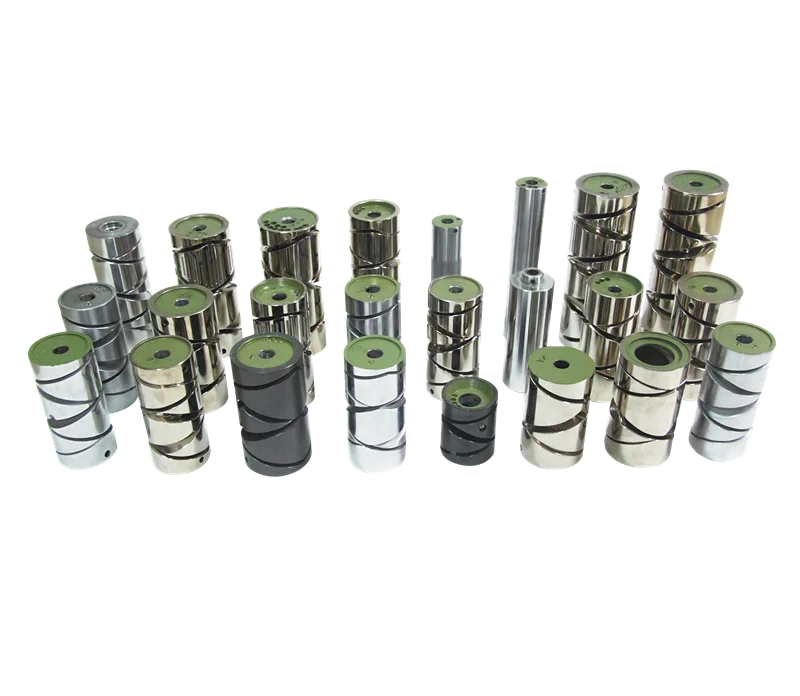

Ni-P Alloy Grooved Drum

Lead: 147mm

Outer diameter: 82mm

Length: 185mm

Turns: 2

Ni-P Alloy Grooved Drum
Lead: 147mm
Outer diameter: 82mm
Length: 176mm
Turns: 2.5

Ni-P Alloy Grooved Drum
Lead: 130mm
Outer diameter: 90mm
Length: 147mm
Turns: 1.5
