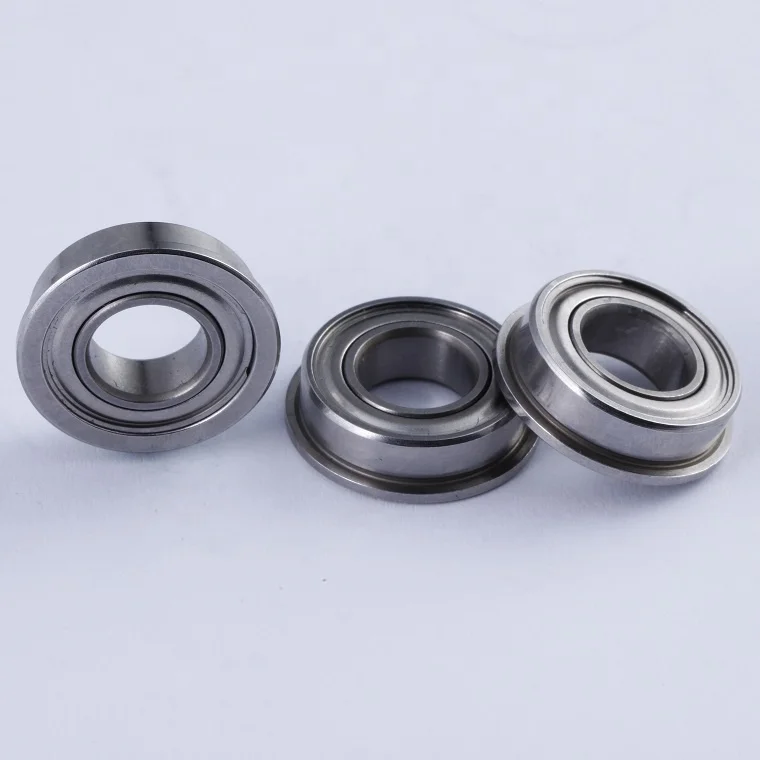

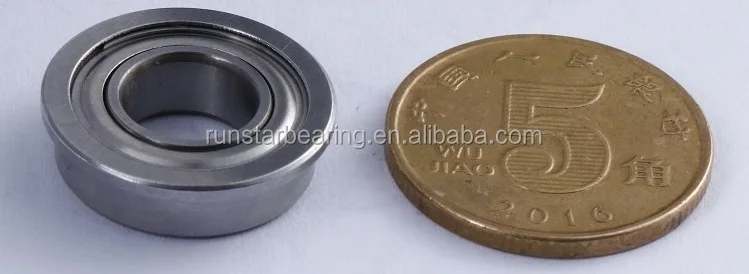

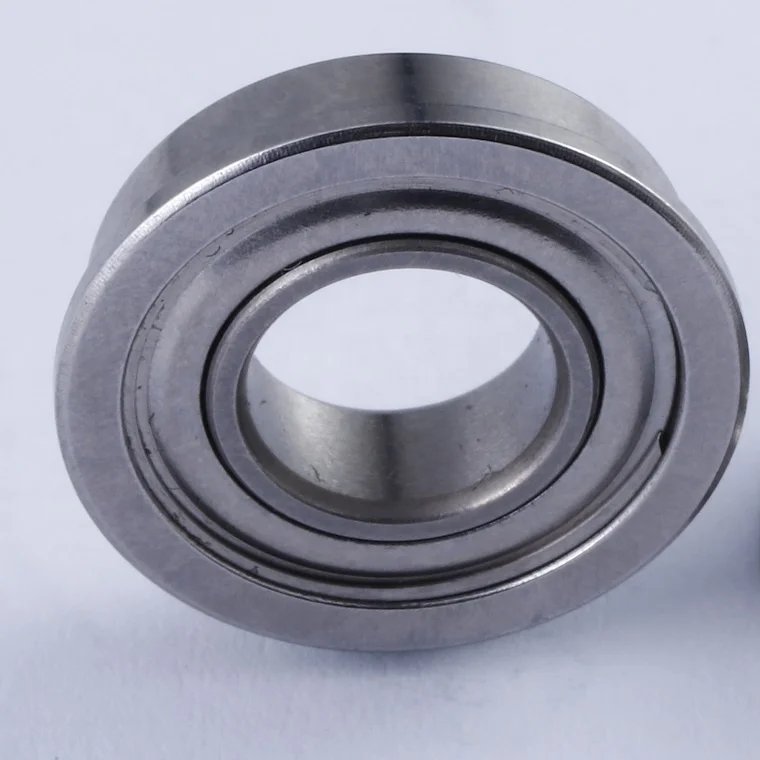

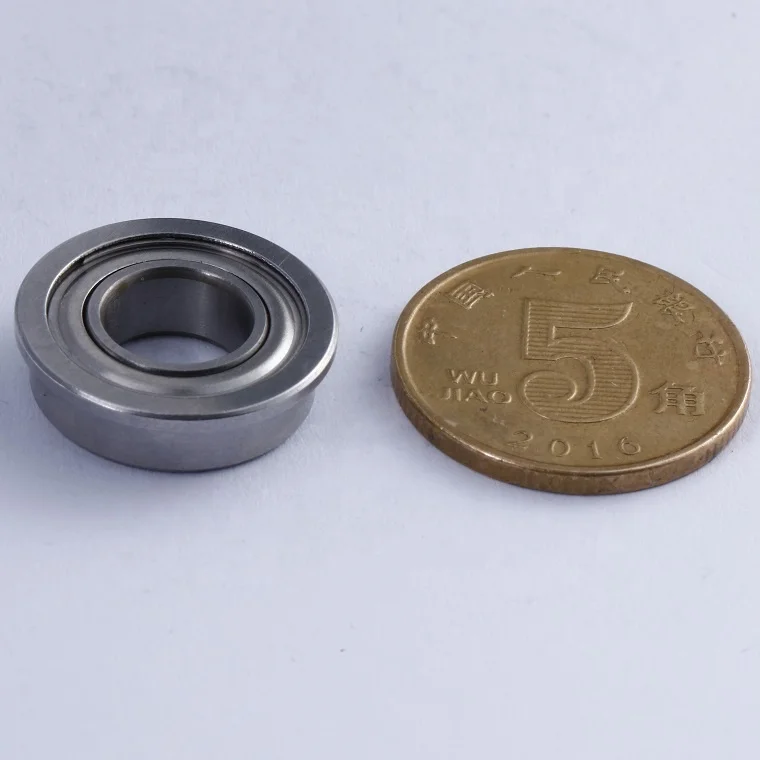

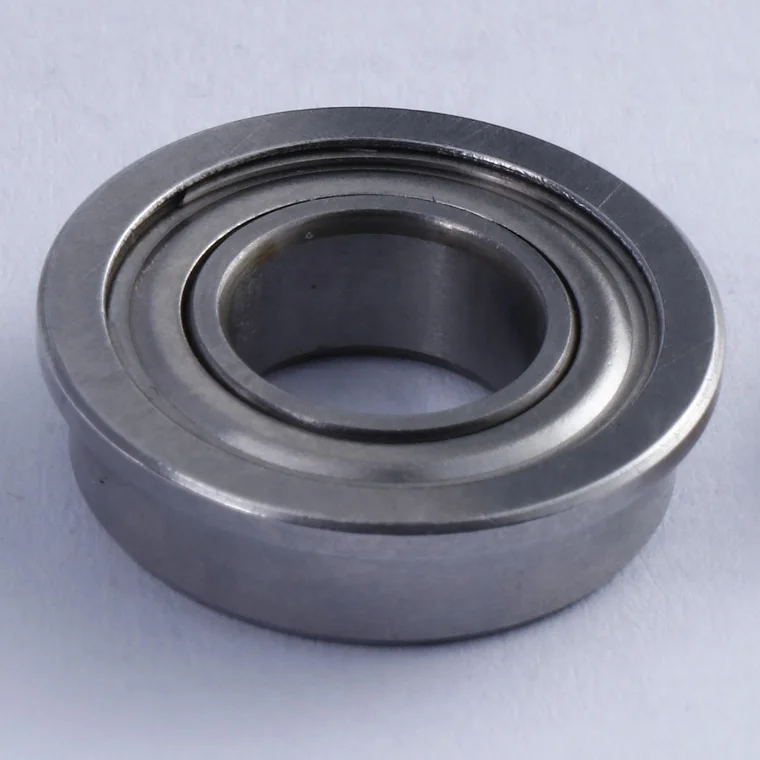

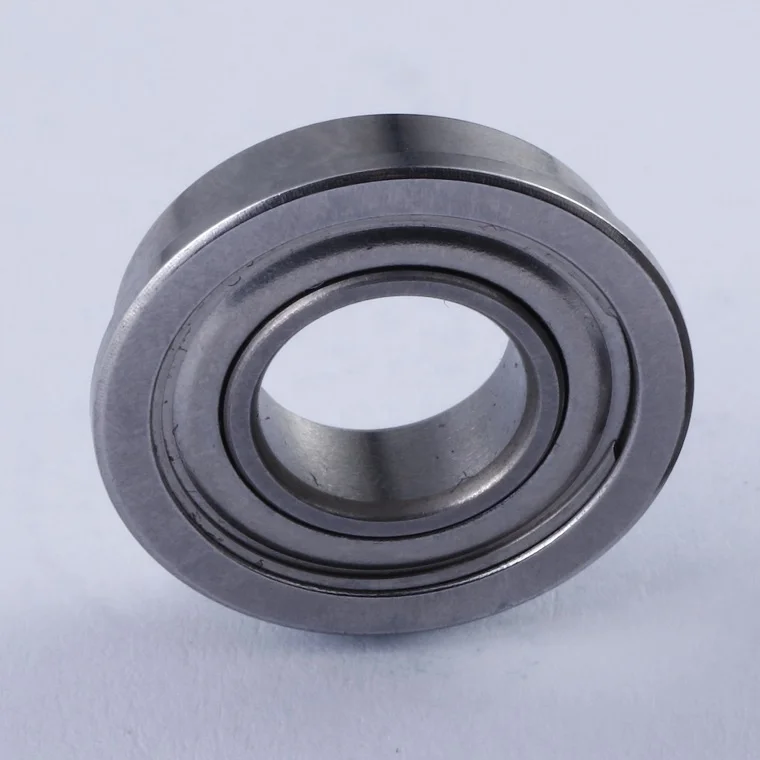

Производитель подшипников ISO9001:2015, 8x16x5 688 688zz, фланцевый подшипник SF688ZZ

Product Overview

Description



ITEM	Sf688zz
bore diameter(d)	8mm
outside diameter(D)	16mm
outer diameter for flange(Df)	18mm
Width(B)	5mm
Width of flange(Bf)	1.1mm
TYPE	zz or rs
MATERIAL	9Cr18(stainless steel)
GREASE
MEMO





we manufacture metric flanged miniature ball bearing for industries,as well as inch sieries.

ITEM	(d)	(D)	outer diameter of flange (D1)		Width		Width of flange
					b	b1	Bf
			OPEN	ZZ	OPEN	ZZ	OPEN	ZZ
F682zz	2	5	6.1		1.5	2.3	0.5	0.6
MF52zz		5	6.2		2	2.5	0.6	0.6
F692zz		6	7.5		2.3	3	0.6	0.8
MF62zz		6	7.2		2.5	2.5	0.6	-
MF72zz		7	8.2		2.8	3	0.6	0.6
F602zz		7	8.5		2.8	3.5	0.7	0.9
F682Xzz	2.5	6	7.1		1.8	2.6	0.5	0.8
F692Xzz		7	8.5		2.5	3.5	0.7	0.9
MF82X		8	9.2		2.5	-	0.6	-
F602Xzz		8	9.5		2.8	4	0.7	0.9
MF63zz	3	6	7.2		2	2.5	0.6	0.6
F683zz		7	8.1		2	3	0.5	0.8
MF83zz		8	9.2		2.5	3	0.6	-
F693zz		8	9.5		3	4	0.7	0.9
MF93zz		9	10.2	10.6	2.5	4	0.6	0.8
F603zz		9	10.5		3	5	0.7	-
F623zz		10	11.5		4	4	1	1
MF74zz	4	7	8.2		2	2.5	0.6	0.6
MF84zz		8	9.2		2	3	0.6	0.6
F684zz		9	10.3		2.5	4	0.6	1
MF104zz		10	11.2	11.6	3	4	0.6	0.8
F694zz		11	12.5		4	4	1	1
F604zz		12	13.5		4	4	1	1
F624zz		13	15		5	5	1	1
F634zz		16	18		5	5	1	1
MF85zz	5	8	9.2		2	2.5	0.6	0.6
MF95zz		9	10.2		2.5	3	0.6	0.6
MF105zz		10	11.2	11.6	3	4	0.6	0.8
MF115zz		11	12.5		-	4	0.8	1
F685zz		11	12.5		3	5	0.8	1
F695zz		13	15		4	4	1	1
F605zz		14	16		5	5	1	1
F625zz		16	18		5	5	1	1
F635zz		19	22		6	6	1.5	1.5
MF106zz	6	10	11.2		2.5	3	0.6	0.6
MF126zz		12	13.2	13.6	3	4	0.6	0.8
F686zz		13	15		3.5	5	1	1.1
F696zz		15	17		5	5	1.2	1.2
F606zz		17	19		6	6	1.2	1.2
F626zz		19	22		6	6	1.5	1.5
MF117zz	7	11	12.2		2.5	3	0.6	0.6
MF137zz		13	14.2	14.6	3	4	0.6	0.8
F687zz		14	16		3.5	5	1	1.1
F697zz		17	19		5	5	1.2	1.2
F607zz		19	22		6	6	1.5	1.5
F627zz		22	25		7	7	1.5	1.5
MF128zz	8	12	13.2	13.6	2.5	3.5	0.6	0.8
MF148zz		14	15.6		3.5	4	0.8	0.8
F688zz		16	18		4	5	1	1.1
F698zz		19	22		6	6	1.5	1.5
F608zz		22	25		7	7	1.5	1.5
F689zz	9	17	19		4	5	1	1.1
F699zz		20	23		6	6	1.5	1.5
F6700zz	10	15	16.5	16.5	3	4	0.8	0.8
F6800zz		19	21		5	5	1	1
F6900zz		22	25		6	6	1.5	1.5
F6701zz	12	18	19.5	19.5	4	4	0.8	0.8
F6801zz		21	23		5	5	0.8	1
F6901zz		24	26.5		6	6	1	1.5





     Established in 2007, Zhangzhou Runstar Bearings Manufacturing Co.,Ltd is a professional manufacturer of thrust ball bearing and miniature ball bearing in Zhangzhou,China.  With a inner diameter from 2mm to 15mm for metric series and from 0.0781" to 0.375" for inch series , the material can be selected with chrome steel(Gcr15) or stainless steel(9Cr18) at your request, our characteristic products are thrust ball bearing with or without groove, miniature ball bearing,flange bearing and  stainless steel bearing,as well as non-standard bearings, we have more than 12 year’s experience in supplying thrust ball bearing and miniature ball bearing for industries.
