Антенна 2,4G 1T1R, беспроводной передатчик realtek rtl8189, модуль wi fi sdio
- Category: WiFi Modules >>>
- Supplier: Shenzhen Ofeixin Technology Limited
Share on (60819199266):
Product Overview
Description
Product Description
Introduction
F89ETSM13-W2 is a highly integrated and excellent performance Wireless LAN (WLAN) SDIO network interface device. High-speed wireless connection up to 150 Mbps.

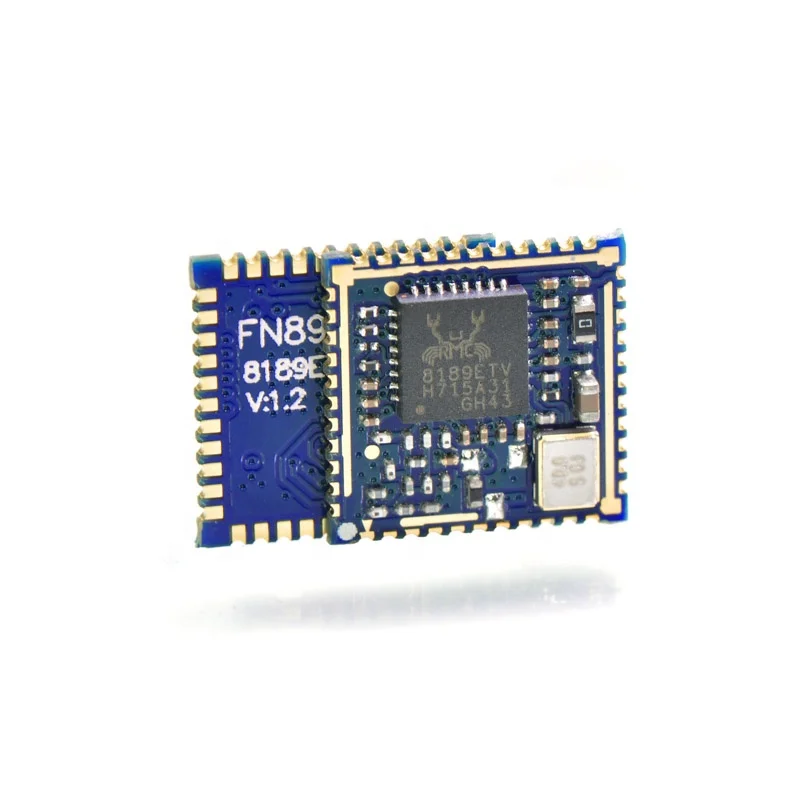

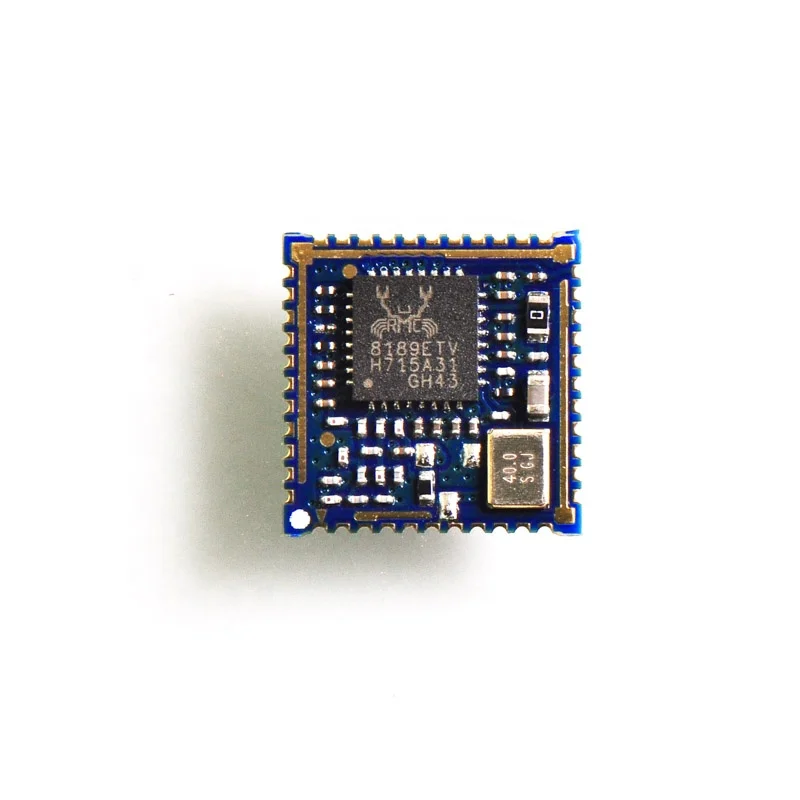

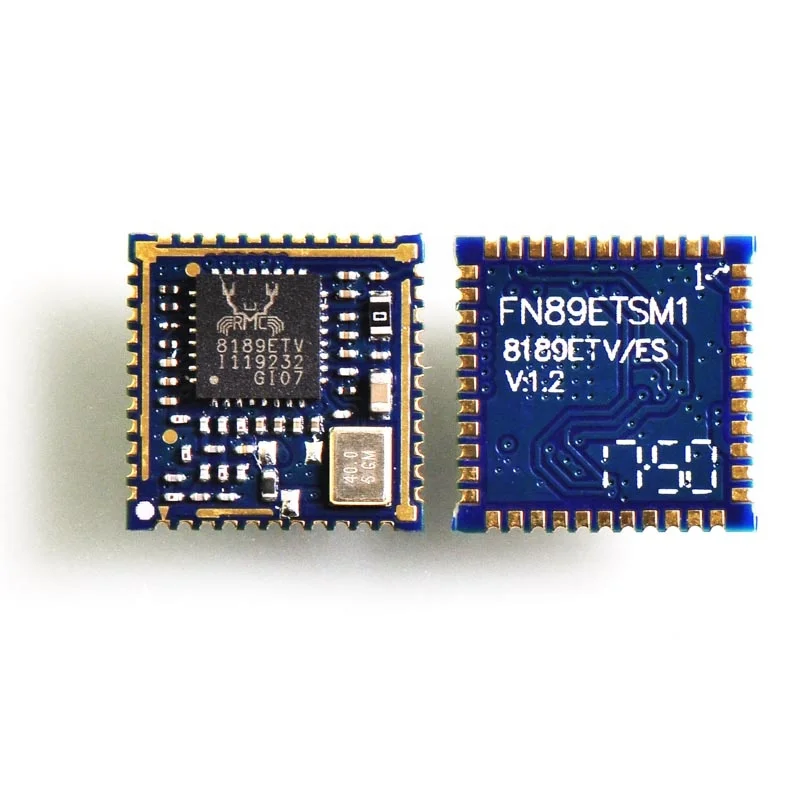

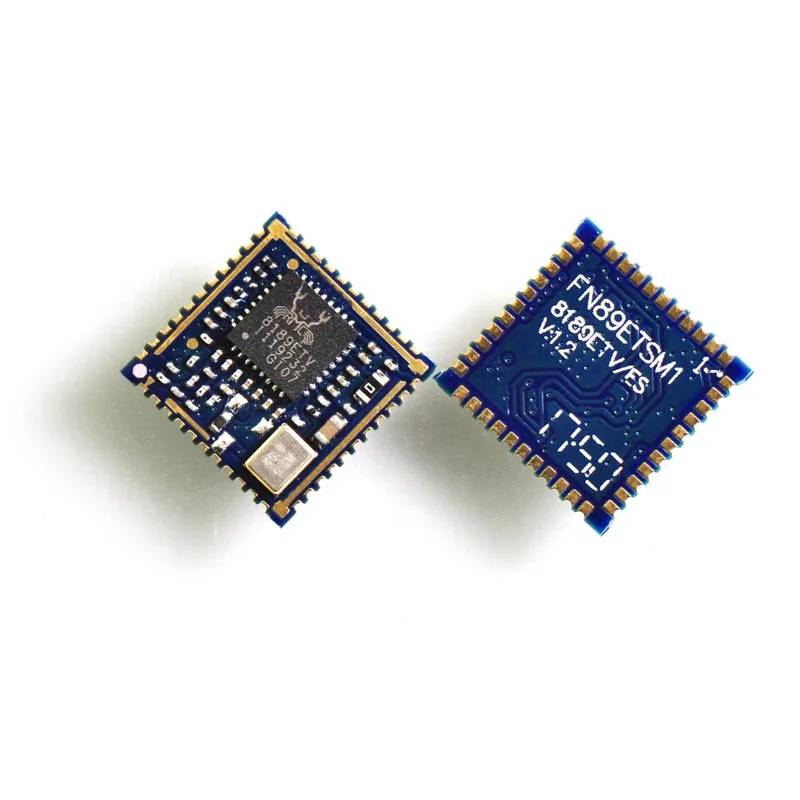

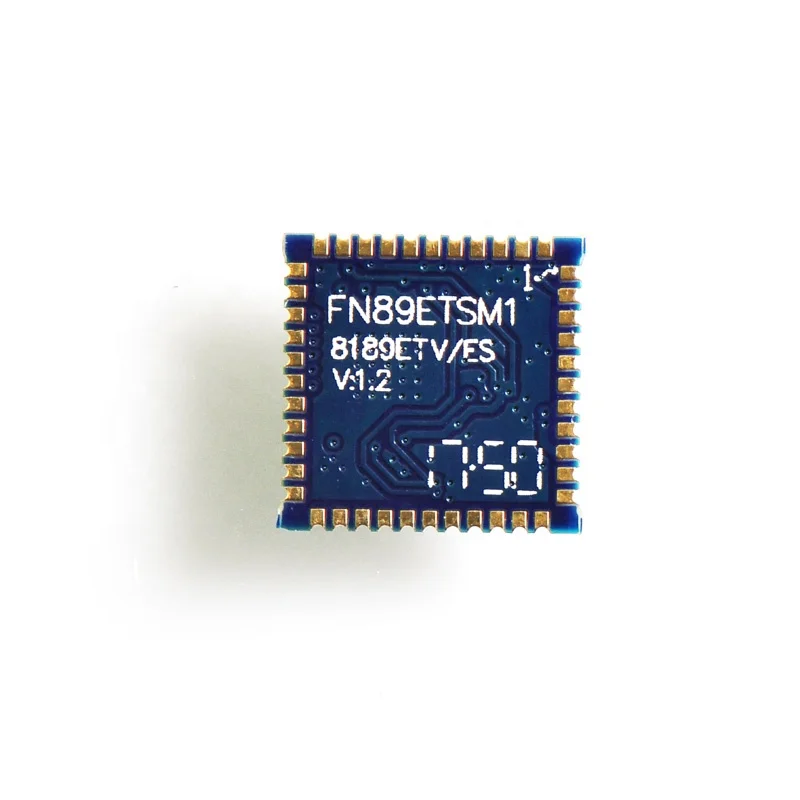

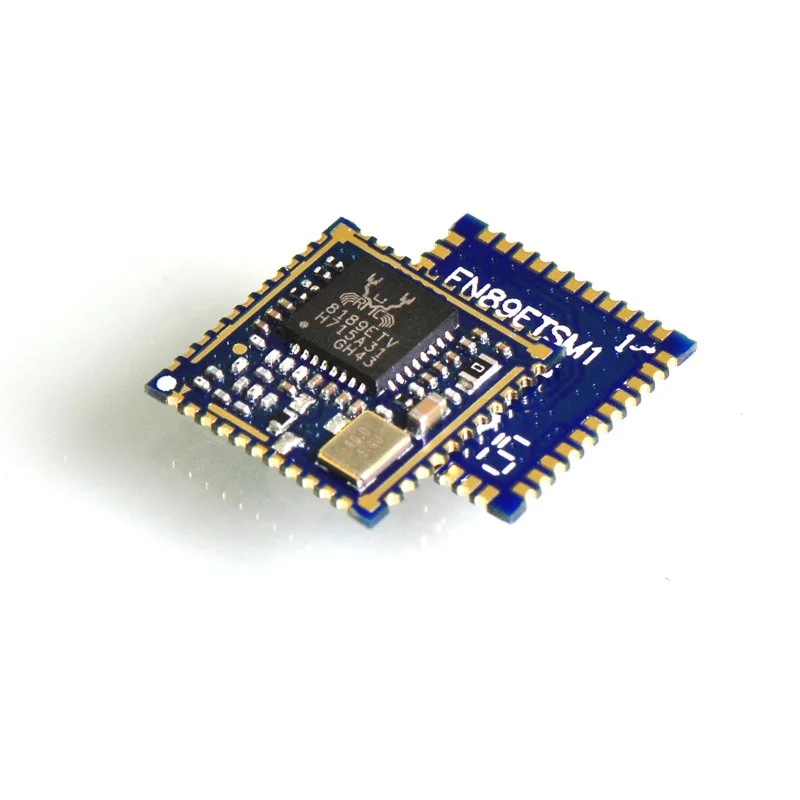

The general hardware for the module is shown in Figure 1. This WLAN Module design is based on Realtek RTL8189ETV. It is a highly integrated single-chip 1*1 MIMO (Multiple In Multiple Out) Wireless LAN (WLAN) SDIO network interface controller complying with the 802.11n specification. It combines a MAC, a 1T1R capable baseband, and RF in a single chip. It is designed to provide excellent performance with low power Consumption and enhance the advantages of robust system and cost-effective. .
Features
Operate at ISM frequency bands (2.4GHz)
SDIO Interface for WiFi
IEEE standards support: IEEE 802.11b, IEEE 802.11g, IEEE 802.11n,
Enterprise level security which can apply WPA/WPA2 certification for WiFi.
WiFi 1 transmitter and 1 receiver allow data rates supporting up to 150 Mbps downstream and 150 Mbps upstream PHY rates
SDIO Interface for WiFi
IEEE standards support: IEEE 802.11b, IEEE 802.11g, IEEE 802.11n,
Enterprise level security which can apply WPA/WPA2 certification for WiFi.
WiFi 1 transmitter and 1 receiver allow data rates supporting up to 150 Mbps downstream and 150 Mbps upstream PHY rates
Application Range:
& Consumer Application
Tablet/Smart TV/IPTV/OTT/IPC/AI Speaker/Security System /Toys
& Commercial And OA Application
Printer/POS Terminal/Projector/Meeting System/Interactive WhiteBoard/Education Equipment
& Industrial And Vehical Application
Instruments/Vehicle before-assembly/ afterassembly/High-speed train/Charging pile
& Medical Application
Medical equipments/Medical instruments
& Other Consumer Electronic Products
Detailed Parameters
Model No | F89ETSM13-W2 | Main Chipset | RTL8189ETV |
WIFI/BT Interface | SDIO | WIFI Standards | IEEE 802.11b/g/n |
Date Rates | 150Mbps | Certification | RoHS,REACH |
RF Antenna | External Antenna | OS Supported | Android /Linux/Windows |
Operating Frequency | 2.4GHz | Operating Voltage | 3.3V |
Dimensions | L12.0*W12. 0mm | RF Chains | 1T1R |
Operating Temperature | 0°C to 70°C | Storage Temperature | -40°C to 85°C |
Layout Recommendation
Note
Respect of the customer,please contact the sales staff before purchasing module to carry out pre-sale consultation.Otherwise,the module may not meet your needs or modules have no inventory.
Detailed specifications docs,please download from the official website or sales.
skype:+86 15982458633
