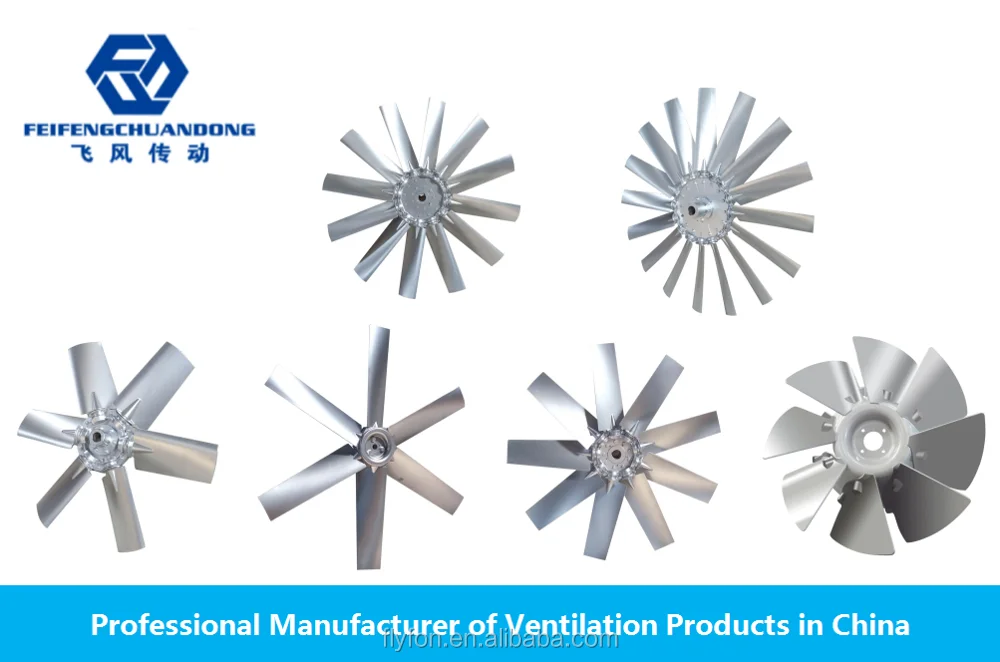

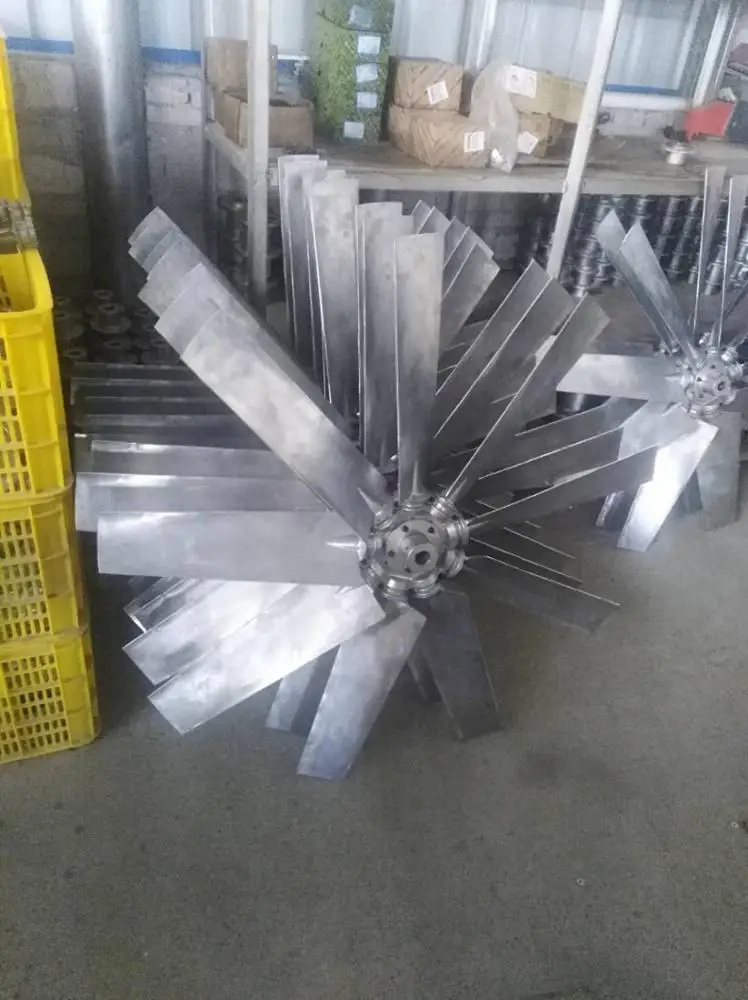

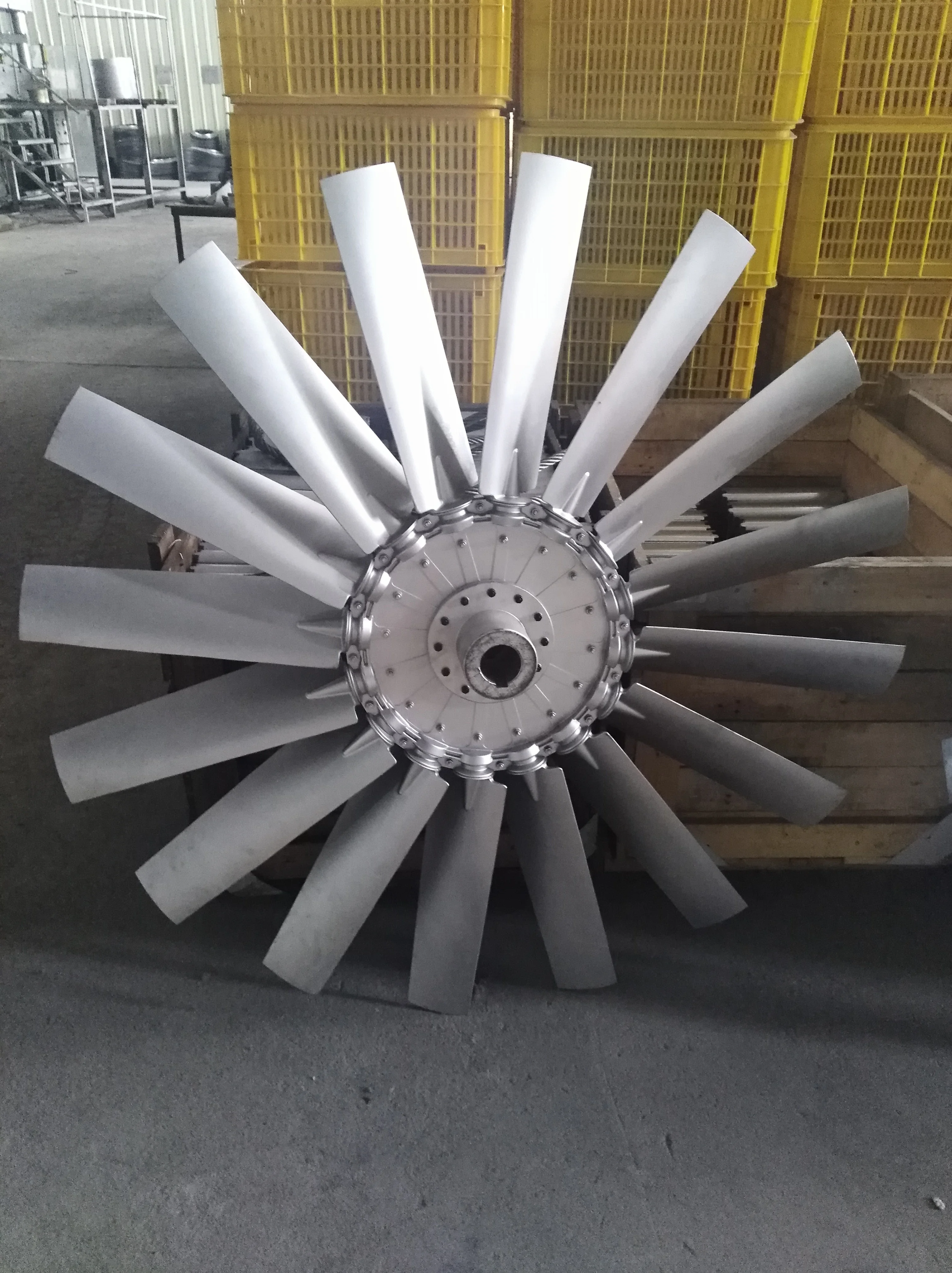

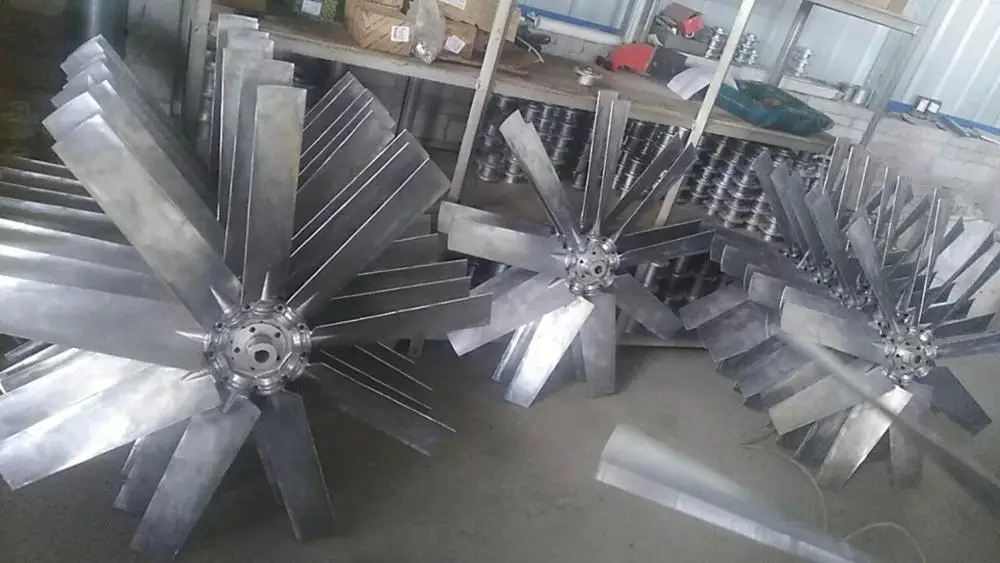

Guangdong factory Adjustable aluminum alloy fan blades
| Impeller Model | Applicable Axial Fan Model | Air Volume (m³/h) | Air Pressure (Pa) |
| 3H/6-6 | 2.8#-4.0# | 1060-4000 | 37-127 |
| 5Z/6-6 | 4.5#-6.3# | 2790-19200 | 81-288 |
| 5Z/9-9 | 7.1#-10# | 8000-70050 | 102-681 |
| 5Z/12-12 | 11.2# | 11400-70400 | 162-375 |
| 5Z/16-16 | 12.5# | 37800-91800 | 193-393 |
| Impeller diameter | Φ280-Φ1250(mm) |
| Air volume range | 1060-91800m³/h |
| Air pressure range | 37-681Pa |
| Power range | 0.06-15kw |
| Noise range | 51-94dB(A) |
| Material | Aluminum alloy |
| Function | Ventilation and fire equipment |
| Features | Adjustable installation angle and qty of blades |
