4 jaw independent chuck C type

Share on (60819215792):


Price:

Quantity:


Product Overview

Description


Product Description

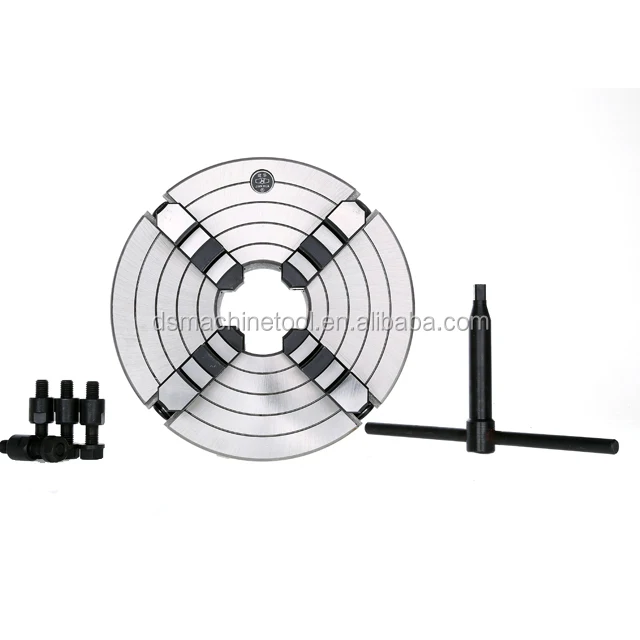

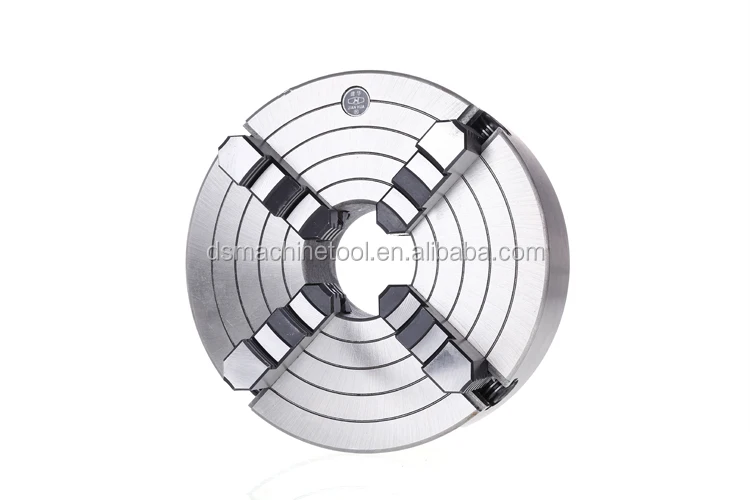

 4 jaw independent chuck C type

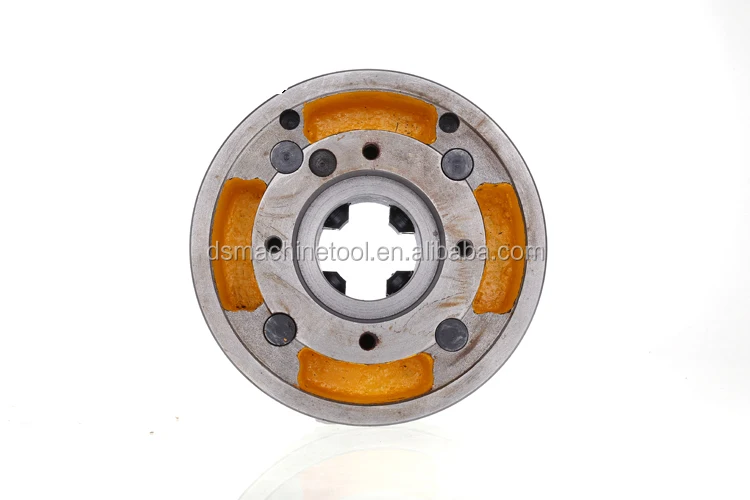

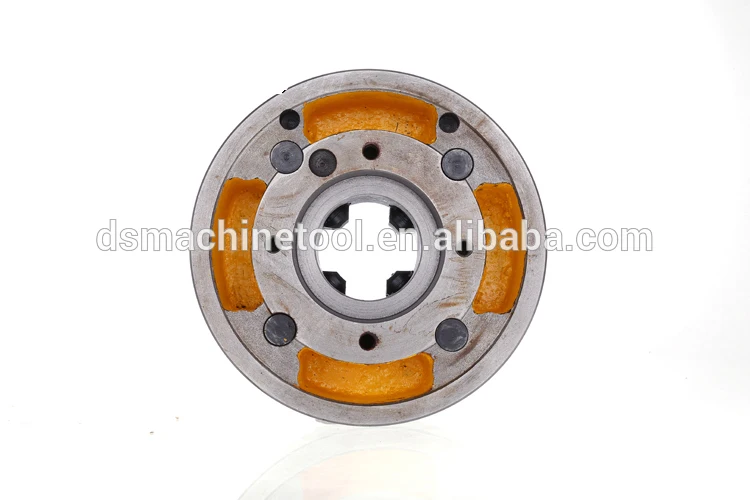

 Four-jaw independent chuck adopts short cylinder and short circular cone shape,Short circular cone shape can be subdivided into two types according to the way of joining with the rod of machine tool:Type A(joined with screw),Type C(bolt locking joint),Type D(pull rod,cam locking joint)

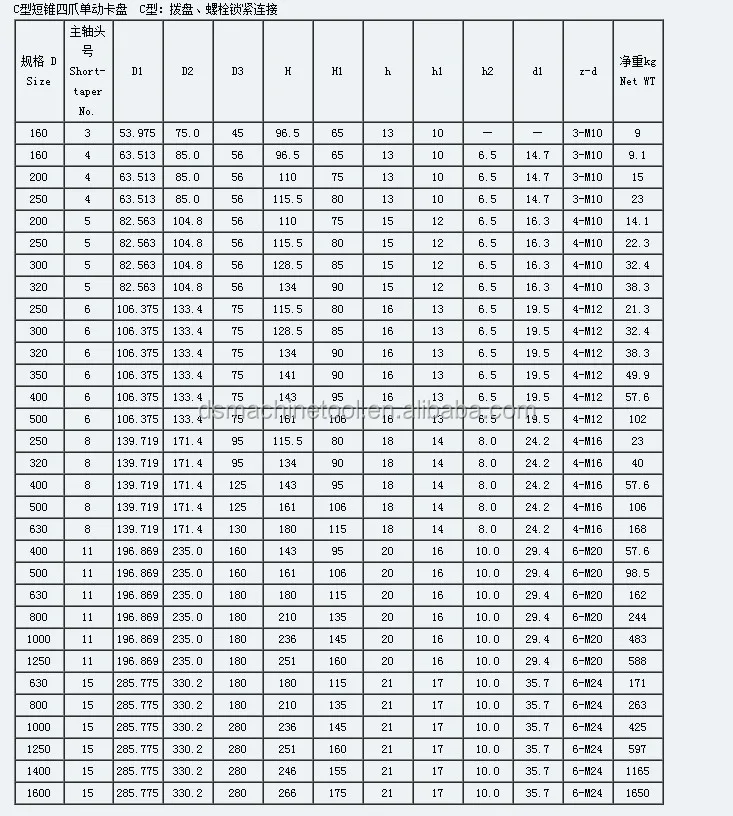

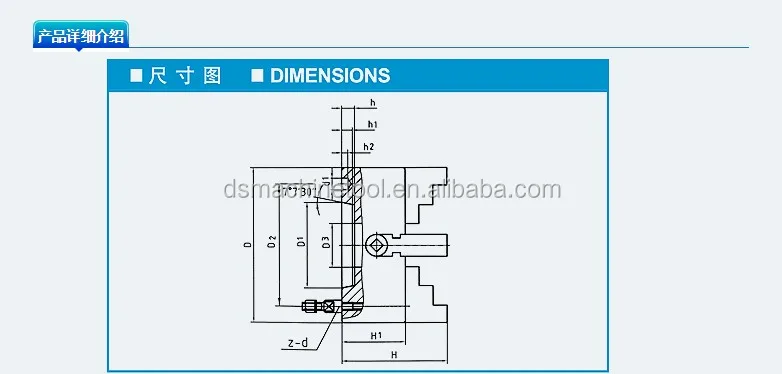

2.jpg3.jpgdimensions.jpgdetial data picture 2.jpg
