12 volt dc to 240 volt ac inverter with 12V 40A Mppt Charger
- Category: >>>
- Supplier: Hefei Gaoneng Power Technology Co. Ltd. [Anhui China]Hefei
Share on (60819225765):
Product Overview
Description
12 volt dc to 240 volt ac inverter
Product Description
| Components | Specifications | Qty |
| Solar panel | 250W mono crystalline | 4 |
| Solar battery | 12v 200ah Lead Acid Gel Battery | 2 |
| Inverter with Controller | MPPT charger 24V 40A Pure sine wave output: 1000W | 1 |
| Functions | ||
| DC outputs | 12V 10A | 3 |
| AC outputs | 220V /50Hz( Adjustable) | 2 |
| USB | 5V/2A | 1 |
| AC charge | 110V-220V | Optional |
| Run your house machine | ||
| LED lights (3W-15W) * 60-1800hours |  | |
| TV (30W) *18 hours | ||
| Fan( 30W)* 20hours | ||
| Radio (10-15W)*20hours | ||
| Phone charger | ||
| Small refrigerator(30W-300W) *24h | ||
 |  |
 |  |
Hot sale
 |  |  |
| 10W Lithium Charge kit | 12Ah-24ah Solar kit | 40AH-50AH DC solar kit |
 |  |  |

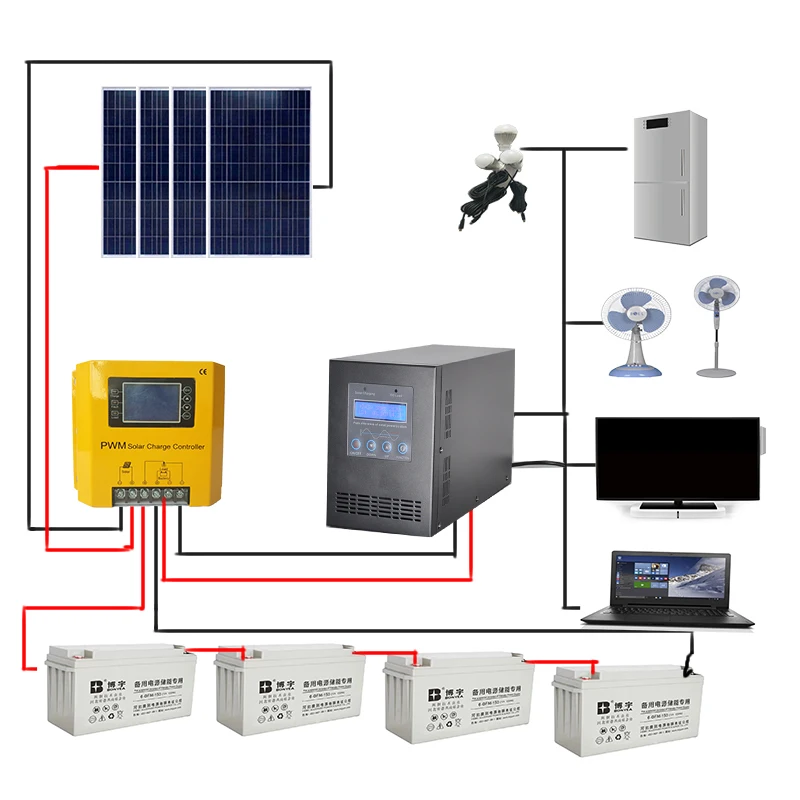

| 300w-500w AC+ DC solar kit | 300w-1KW MPPT controller with Inverter | 1kW Solar System Solutions |
Technical parameters
Model | GNMB-24V-800W-S30A | GNMB-24V-1000W-S40A |
PV input | ||
Rated voltage | 24V | |
PV power | 800W | 1000W |
Solar panel open voltage | <50V | <50V |
Suggest PV voltage | 36V | 36V |
charge starting panel voltage | >30V | >30V |
starting impact power | 1600VA | 2000VA |
Charge control | ||
charging model | MPPT | MPPT |
charging efficiency | >99% | >99% |
battery discharging protect voltage | 21.6V | 21.6V |
low voltage protection recovery voltage | 25.2V | 25.2V |
battery over voltage protection | 32V | 32V |
overvoltage protection recovery | 30V | 30V |
charging protection voltage | 28.8V | 28.8V |
Back to charging voltage | 26.4V | 26.4V |
Output | ||
load power(MAX) | 1000W | 1000W |
Over load power | 125% | 125% |
Output wave form | Sine wave | Sine wave |
Product efficiency | >85% | >85% |
AC output | 220V/230V/240V±3%(selecting match) | 220V/230V/240V±3%(selecting match) |
AC output frequency | 50Hz/60HZ | 50Hz/60HZ |
DC outputs | 12V 10A | 12V 10A |
USB output | 5V 3A | 5V 3A |
Optional function | ||
AC input range | AC120V-AC280V | AC120V-AC280V |
Switch to POWER GRID | 23V | 23V |
Switch to inverter | 28V | 28V |
General parameters | ||
Working temperature | Industrial grade -25℃to +55℃ | Industrial grade -25℃to +55℃ |
Working altitude | <3500M | <3500M |
Weight | 5.5kg | 5.5kg |
Size(L*W*H) | 376*213*85MM | 376*213*85MM |
Company Information
Packaging & Shipping
FAQ
1.Are you factory? Can you OEM for my brand or project?
- Yes, we are factory of solar controller and inverter. Independent engineer team always welcome your OEM request. You will just offer your system design or ideas, we will come solutions for you.
2.How many time you will need for custom made products?
- For logo custom made: 15-20days;
- For product custom made: 30-45 days;
3. How do I make payments?
- We support West union, T/T, aliaba trade assurance, fully protect your quality services.
4. How can I install my inverter for solar system?
- You can install according to our guide book, or contact our technical support team with video or telephone guides.
5. Why you are always expensive than other suppliers?
- Firstly, for solar panel and battery, we choose our supplier strictly, so our price is not so cheap;
- Secondly, we are always do honest business with quality products and decent price;
- Thirdly, we can review more options for you with different prices for reference.
