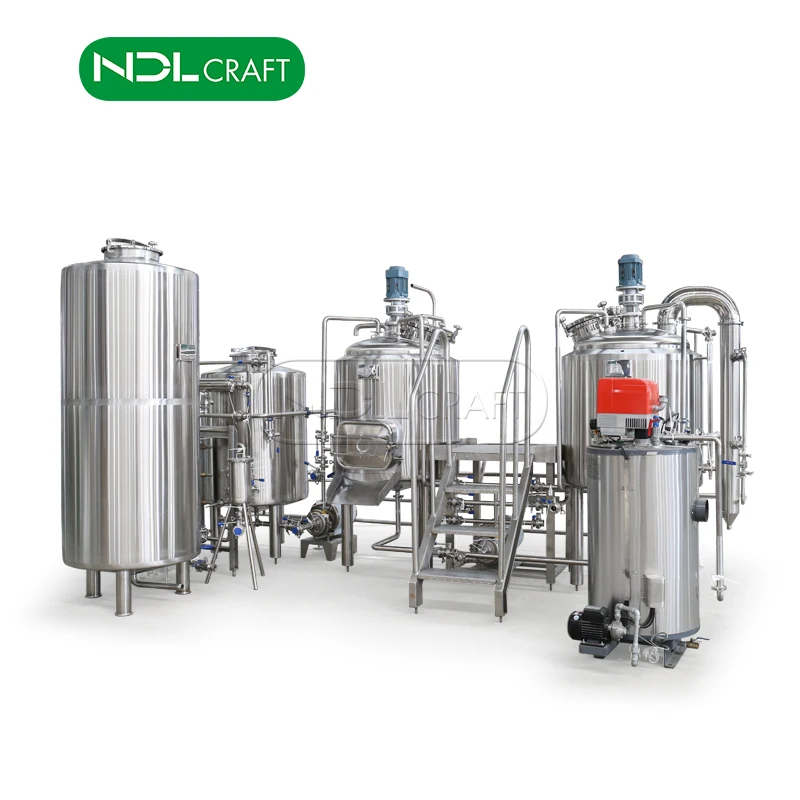

300l stainless steel beer brewing equipment micro brewery

Milling system

Malt miller

150-200kg/h

1pcs

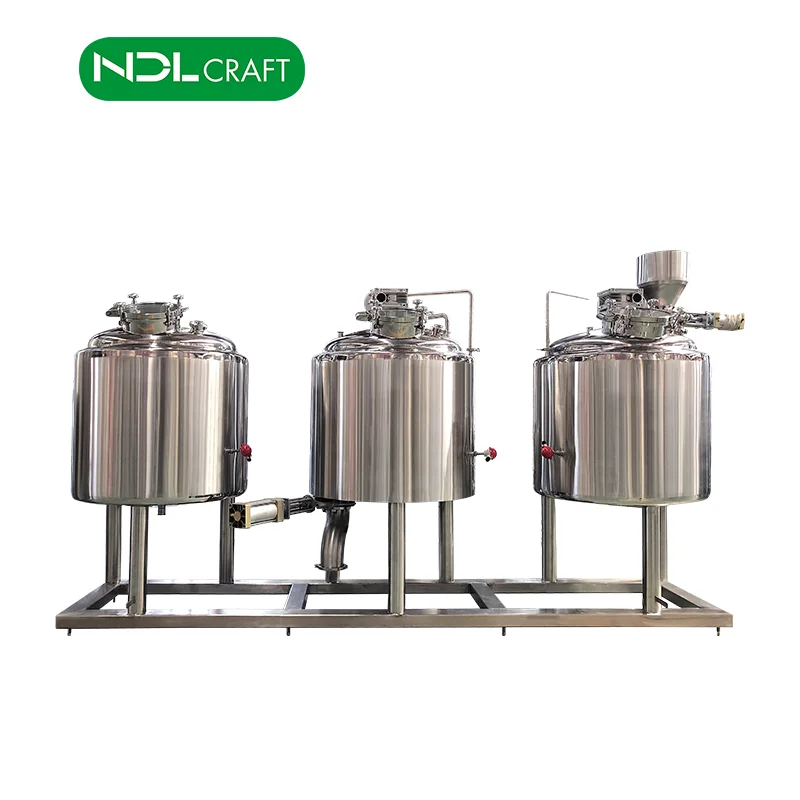

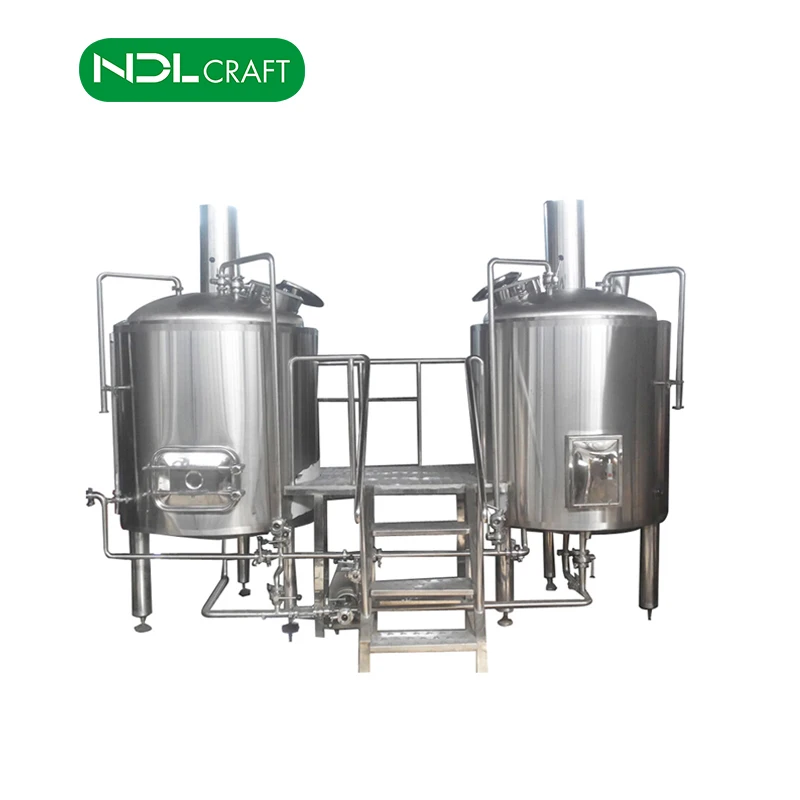

Brewhouse

Mash tun/ Lauter tank

Volume is 300L, with false bottom, grant, raker with motor

1pcs

Kettle/Whirlpool tank

Volume is 300L, electric heating

1pcs

HLT water tank

Volume is 600L, electric heating

1pcs

Includes plate heat exchanger, wort pump, motors, hops filter, yeast adding tank, oxygen device and pipelines

Fermenting

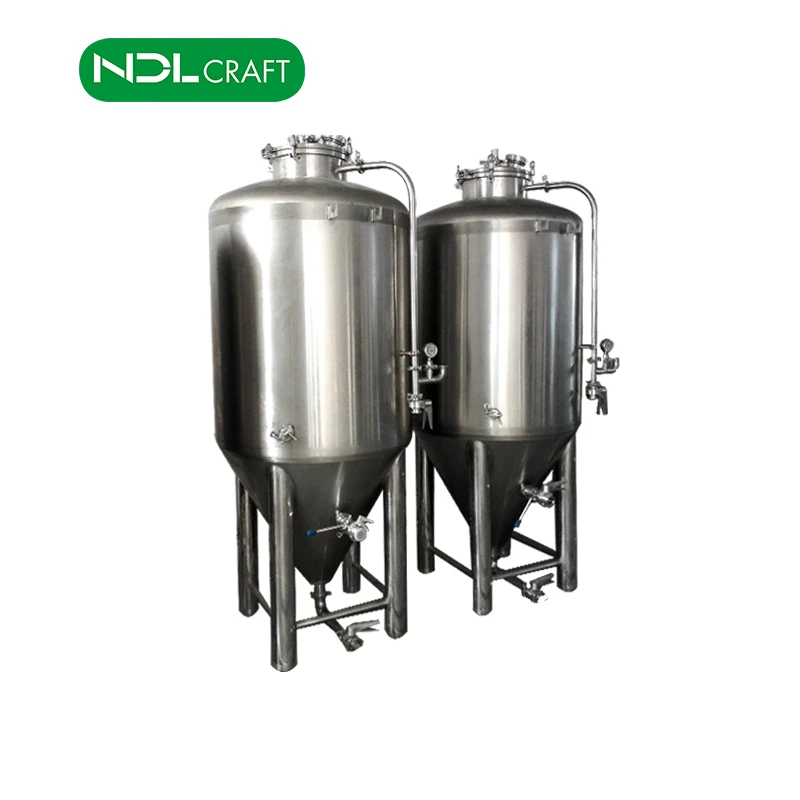

Fermenters

Volume is 300L or 600L (double batches)

6pcs

BBT(option)

Volume is 300L or 600L (double batches)

2pcs

Racking arm, spunding valve, pressure gauge, carbonation stone, sample valve

Cooling system

Glycol tank

Volume 500L or 1000L

1pcs

Cold water tank(option)

Volume 800L, cooled by glycol tank

1pcs

Chiller

5HP, Copeland

1pcs

Cleaning

CIP

50L two tanks, heated by electric, with pump and trolley

1pcs

Controlling

Control cabinet

PLC touch screen or PID controller

1pcs

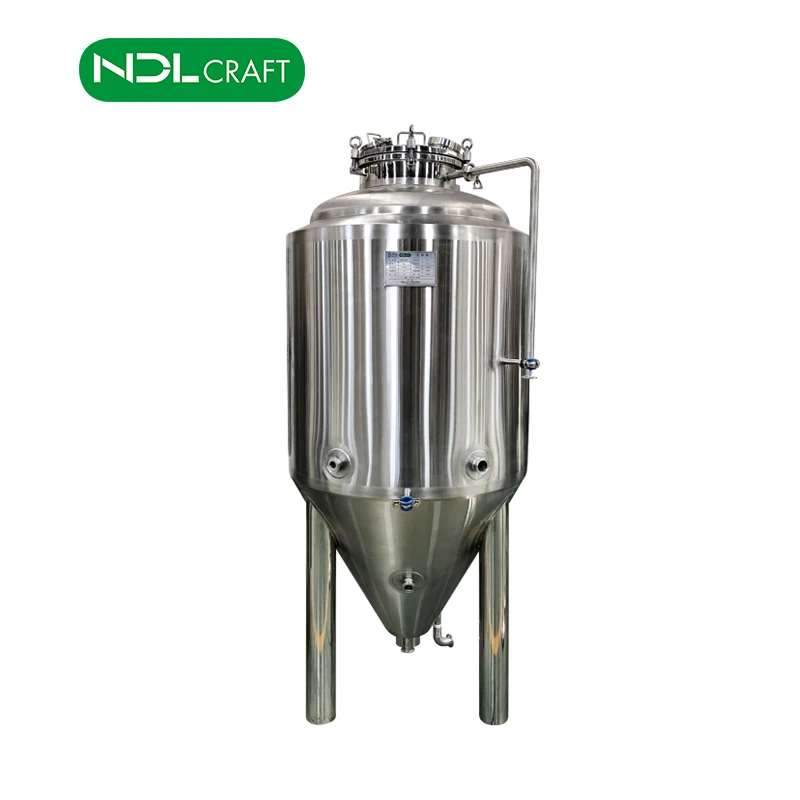

Fermentation tank series

Volume in US Gallon

Diameter

Height

100l Fermentation tank

26US Gallon

640mm

1500mm

200l Fermentation Tank

53US Gallon

760mm

1800mm

300l Fermentation Tank

79US Gallon

860mm

2000mm

500l Fermentation Tank

132US Gallon

960mm

2350mm

1000l Fermentation Tank

264US Gallon

1260mm

2650mm

2000l Fermentation Tank

528US Gallon

1560mm

3150mm

3000l Fermentation Tank

793US Gallon

1800mm

3550mm

5000l Fermentation Tank

1321US Gallon

2000mm

4450mm

No.

Item

Introduction

01

Volume

02

03

Material

Stainless steel 304

04

Insulation

Polyurethane, TH: 80mm

05

Fermentation tank

Glycol jacket: Dimpled jacket on the cone and side

Or single wall with jacketed,or single layer fermentor.

06

Head

Double or single dish head on the top

07

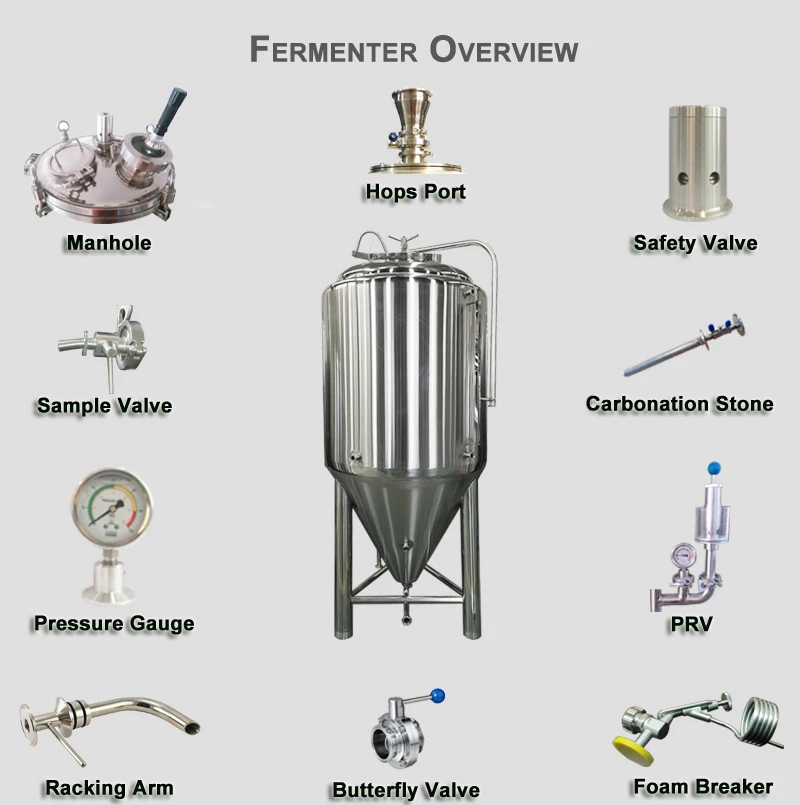

Accessories

Sample valve, pressure gauge, solenoid valve, pressure relief valve, racking arm, CIP arm and Blow off arm, dry hops port and so on.
