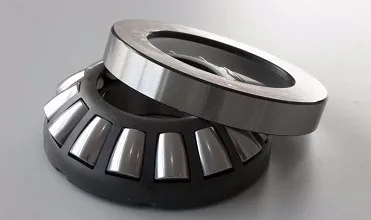

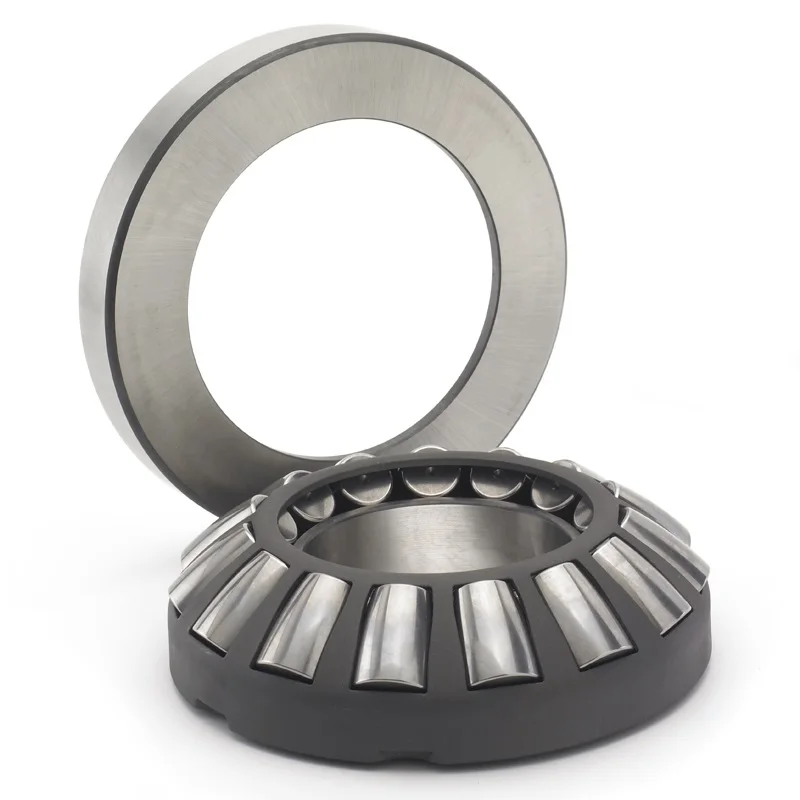

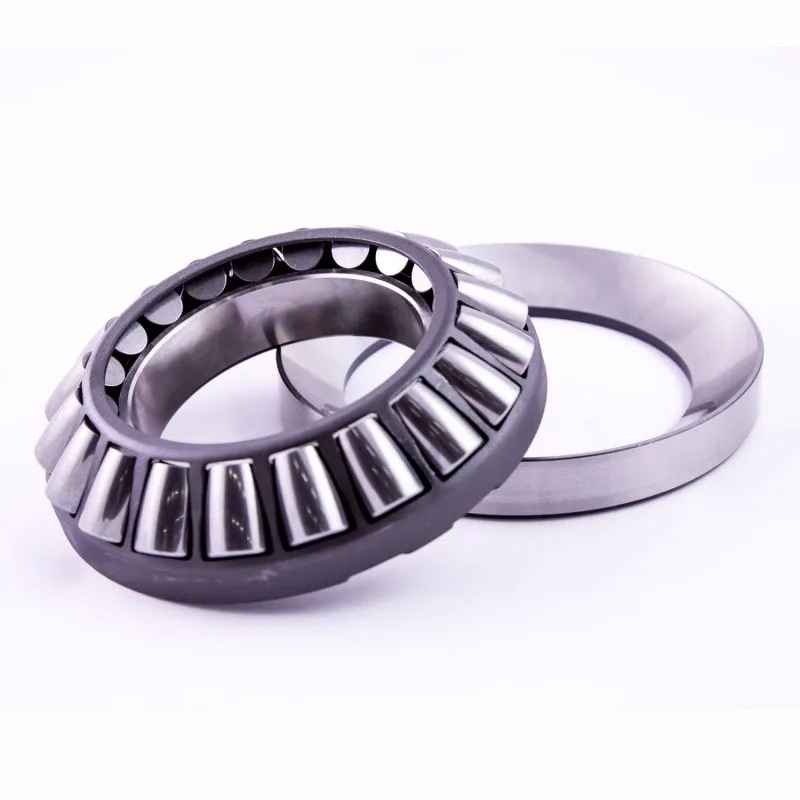

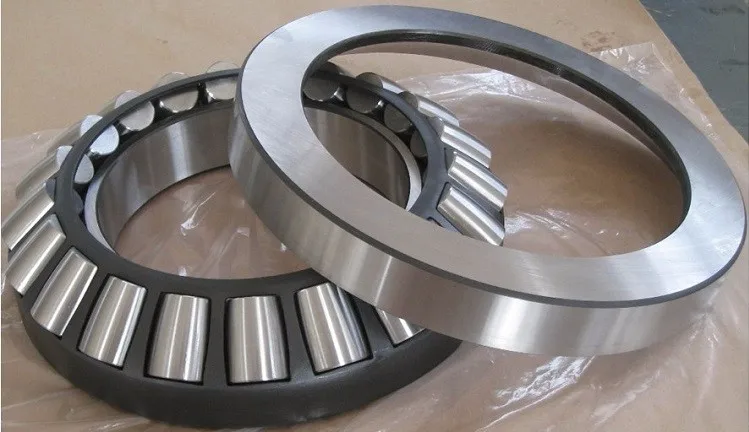

29344 Spherical Thrust roller Bearing

Product Overview

Description









29344 Spherical Thrust roller Bearing

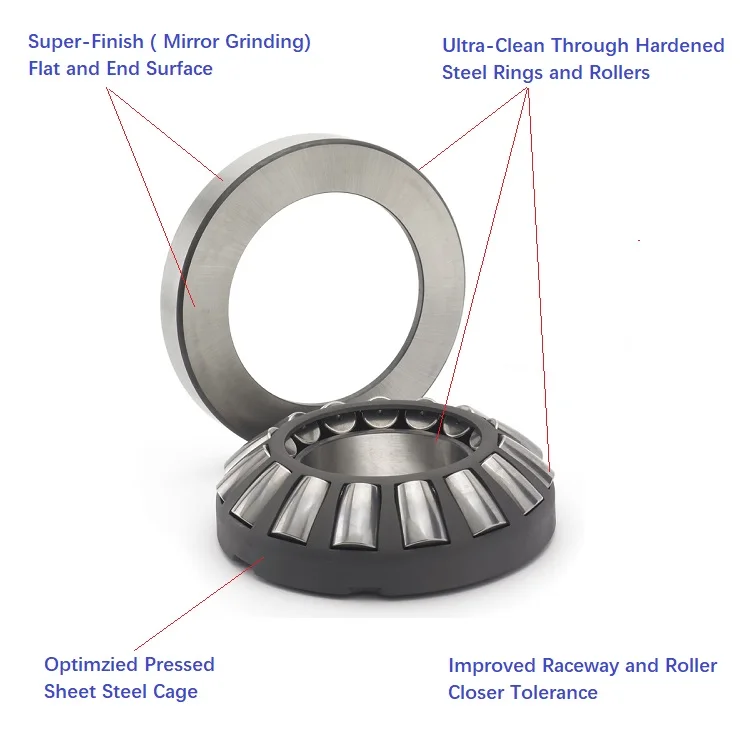

• ultra clean bearing steel with excellent structure that contributes to an optimum stress distribution in the material


• excellent heat treatment processed with Aichelin salt bath quenching and nitrogen protection tempering lines


• advanced grinding line guarantee precision tolerance ( better than P0 )


• super-finish or mirror-gringding surface and end face



Inside diameter (d) (mm):	220
Outside diameter (D) (mm):	360
Overall width (H) (mm):	85
OD of shafte ring (d1) (mm):	326.3
ID of housing ring (D1) (mm);	273.5
Shaft ring width (B) (mm):	55
Housing ring width (C) (mm):	41
S (mm):	125
r1,2 (mm):	4
Weight (kg):	31

Spherical roller thrust bearing is extensively applied on the industries as marine gearbox, marine propeller shaft, industrial gearbox, plastic machinery, rubber machinery, extruders and injection molding machines, rolling mill, crusher, tower crane, engineering machinery, mining and construction equipment, oil rig, vertical motor, hydroelectric generator, pulp and paper processing equipment and so on.

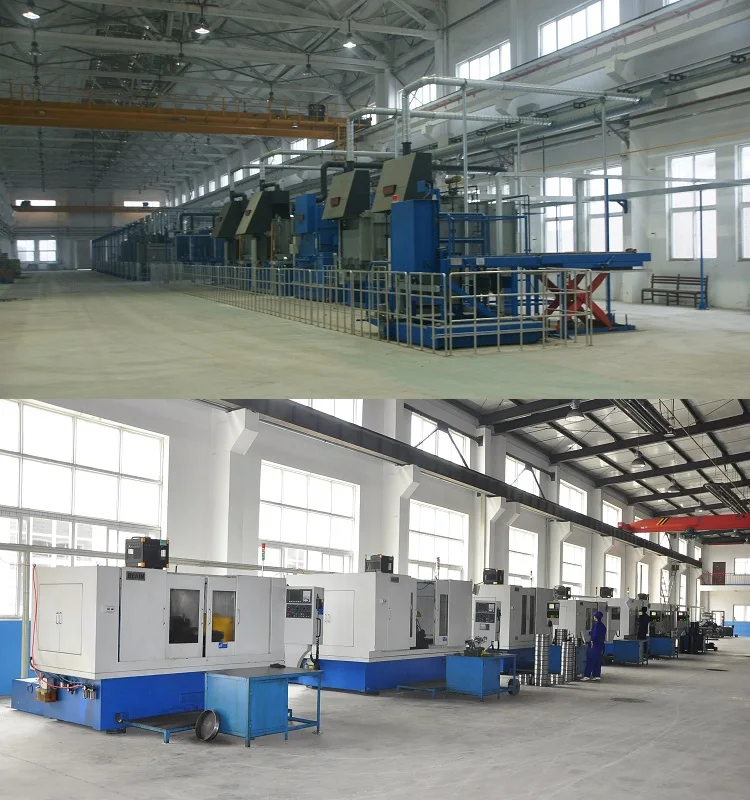

C&H is a hgih quality bearings suppliers. We have skillful and training team. Most of them have over 20 years experience.The quality control covers pre-sales aduit, process control, final product re-inspect and after-sales service. The strict and complete process ability and quality control can guarantee to supply top-class products and service.The skillful engineer team can supply great support in technical and help customers to develop all kinds of new products.
