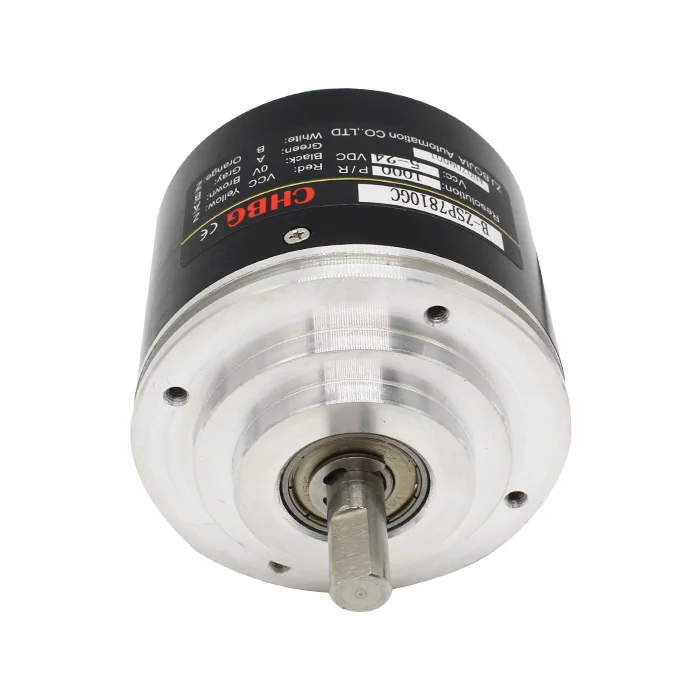

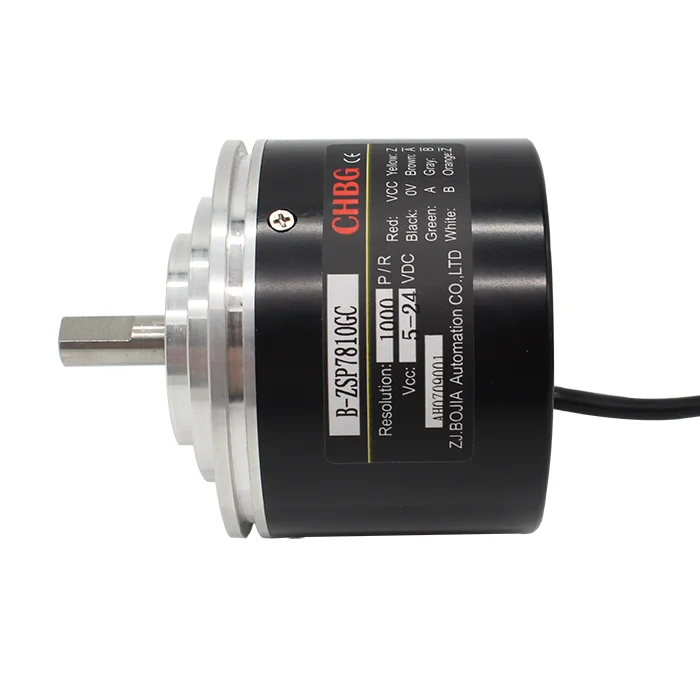

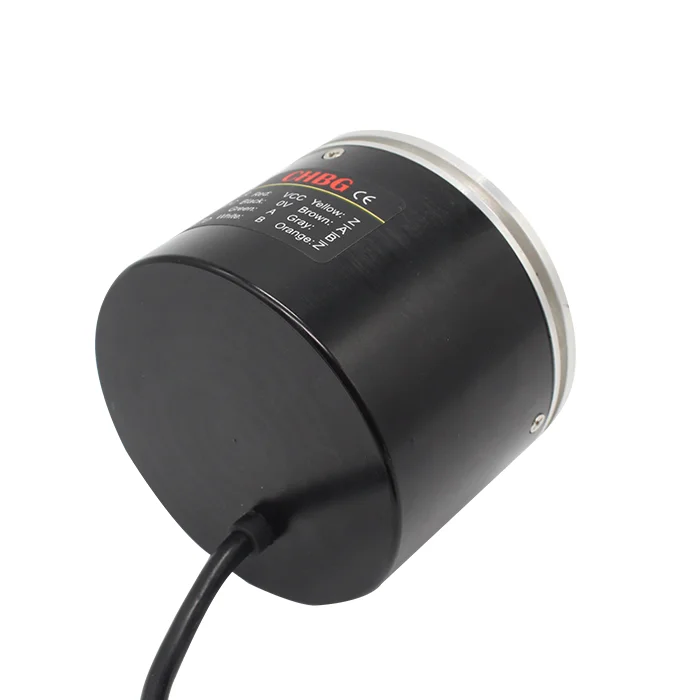

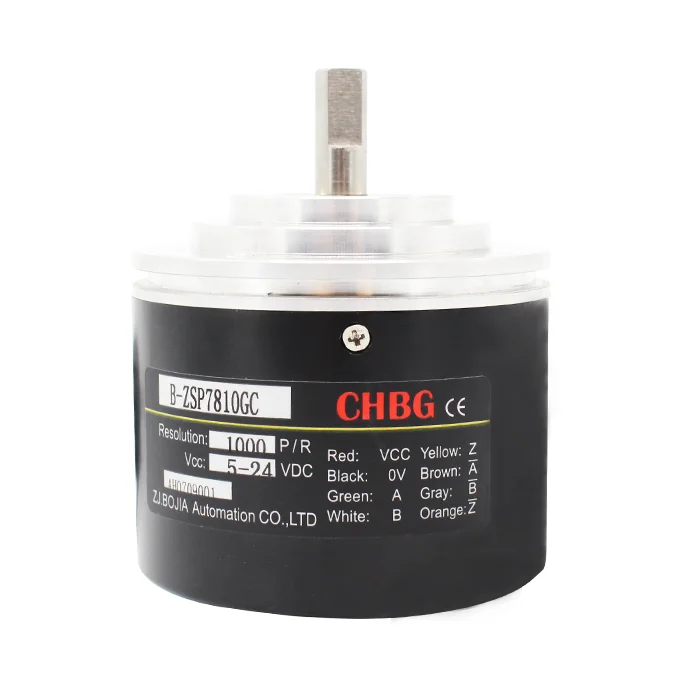

External diameter 78 mm, axis diameter 10 mm electric servo motor photoelectric encoder switch made in China.
- Category: >>>
- Supplier: Zhejiang Bojia Industrial Automation Co. Ltd.
Share on (60819295213):
Product Overview
Description
CHBG ZSP7810 series encoder
Certifications

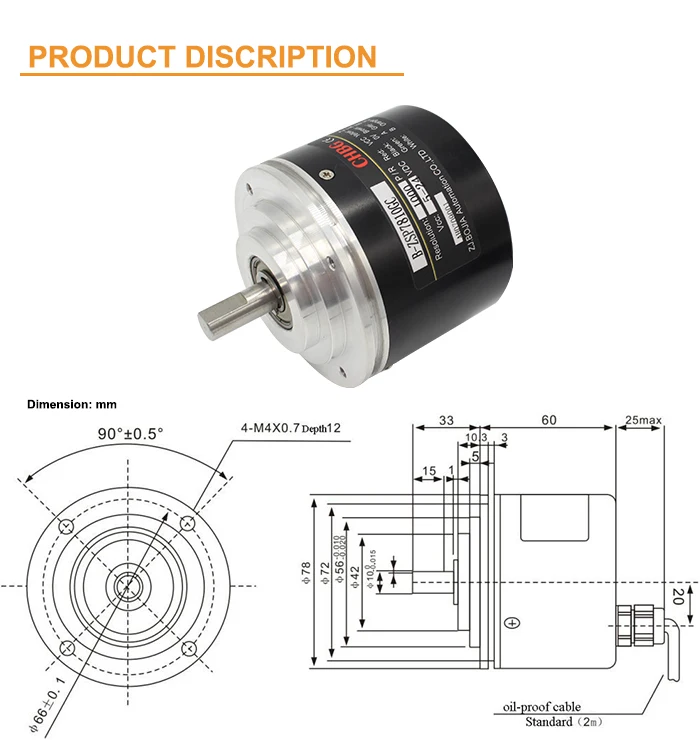

Product Description
Model | B-ZSP7810 Incremental Rotary Encoder | |
External dimension | External diameter | 78mm |
Thickness | 60mm | |
Shaft diameter | 10mm | |
Cable length | 2m | |
Electrical parameter | Resolution | 10-3600P/R |
Power supply | DC5-24V, DC5V | |
Output voltage (VH) | >=3.5, >=Vcc-2.5V | |
Output voltage (VL) | <=0.5V, <=1V | |
Current consumption | <=100mA | |
Output phase | A, B, Z; | |
Frequency response | 0-100kHz | |
Rise / fall time | 24V <1us, 5V driver <=0.1us | |
Mechanical parameter | Starting moment | 3*10^(-3)N.m (+25C) |
Axle allowable load | Axial position: 20N, Radial position: 40N | |
Moment of inertia | 4*10^(-5) Kgm^2 | |
Max revolution | 6000r/min | |
Operating temperature | : -20C-+70C | |
Storage temperature | : -20C-+80C | |
Protection grade | IP54 | |
Anti-vibration | 100m/s^2 (10-200Hz, 2hrs in x, y, z each direction) | |
Shock Resistance | 980m/s^2 (2 times in x, y, z each direction, 6ms per time) | |
Certification | ROHS CE | |
Weight | (with package) | |

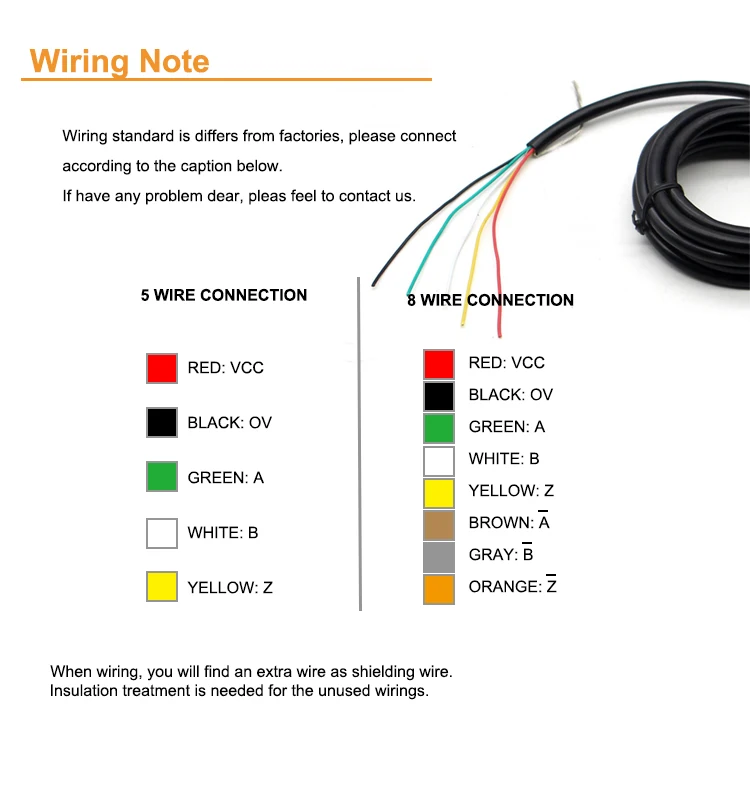

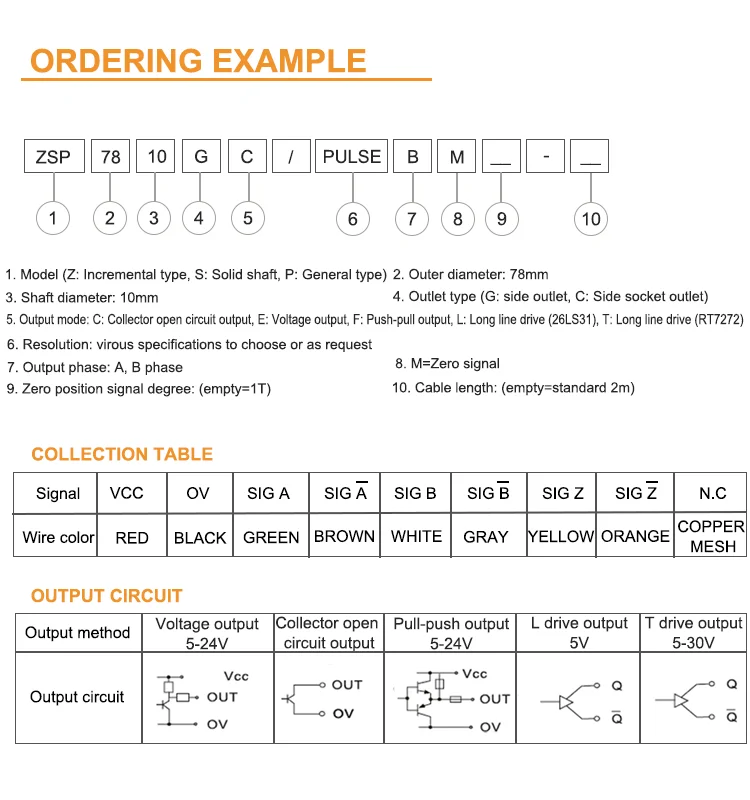

Wiring Note
Company Information
FAQ
Q1:What's the MOQ?
A:MOQ:1 pc.
Q2:How to place the order?
A:Please contact with our sales to get the detall datasheet and confirm the part number of the encoder you need.then you can place the order online or underline.
Q3:What's the payment term?
A:We can accept T/T,Western Union and PayPal etc.
Q4:What's the lead time?
A:Standard encoder within 7 working days.Customized encoder need 15-20 working days.
Our Services
- 12 Month warranty:Free replacement of defecitive products within12 months.
- Questions about encoder will be answered within 24 hours.
- OEM solution will be offered to meet all your requirement.
