Shoe Upper/Insole/Sole Hydraulic Swing Arm Cutting Machine
- Category: >>>
- Supplier: Jiangsu Xianhe Machinery Manufacturing Co. Ltd.
Share on (60819318317):
Product Overview
Description
Product Description
The hydraulic cutting machine is good to cut most kinds of shoe uppers, soles, insoles, leather, rubber, chemical fiber,
cardboard, paper, nylon, canvas, non-woven fabrics, cotton and hemp fabrics, plastic bags, and all kinds of synthetic materials through cutting dies.
cardboard, paper, nylon, canvas, non-woven fabrics, cotton and hemp fabrics, plastic bags, and all kinds of synthetic materials through cutting dies.

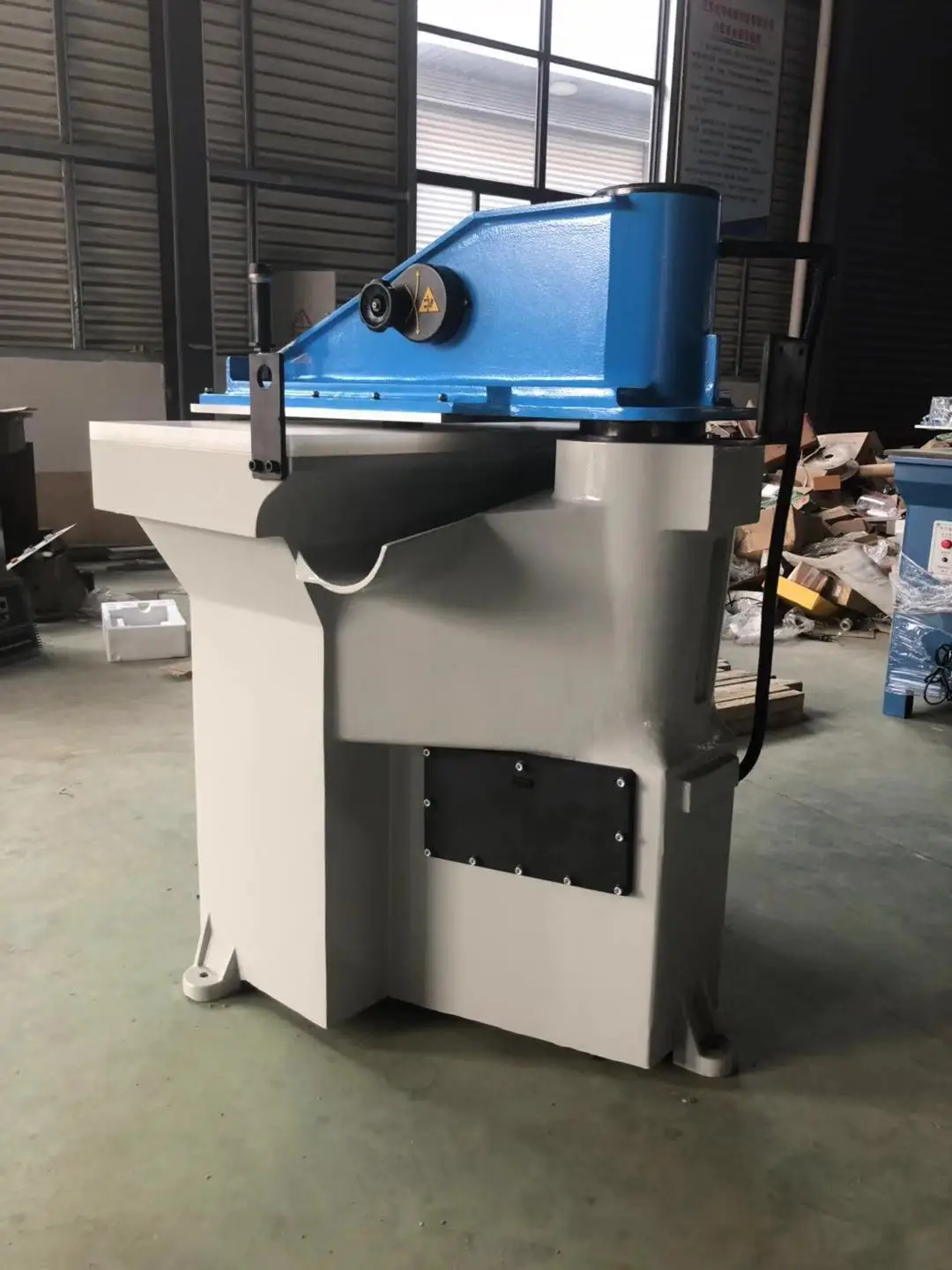

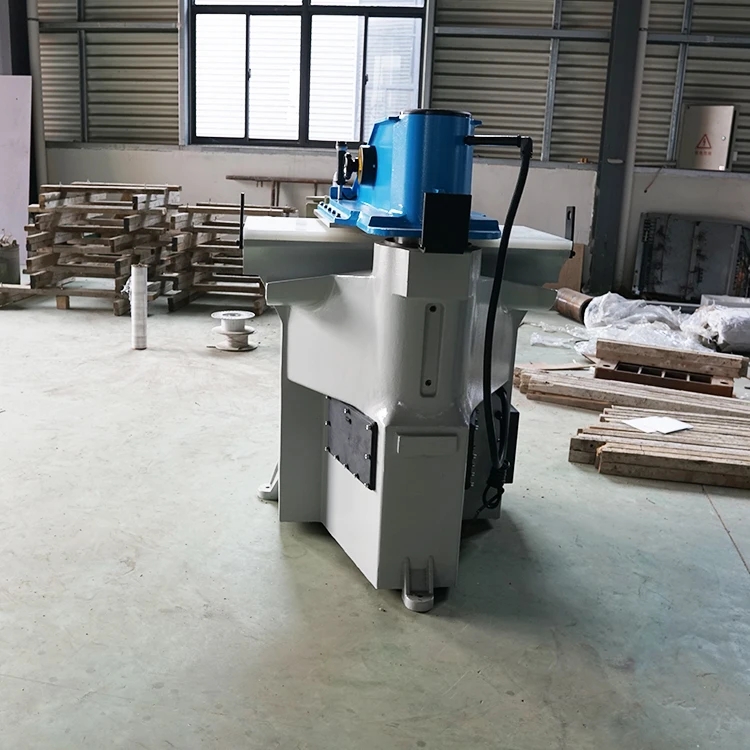

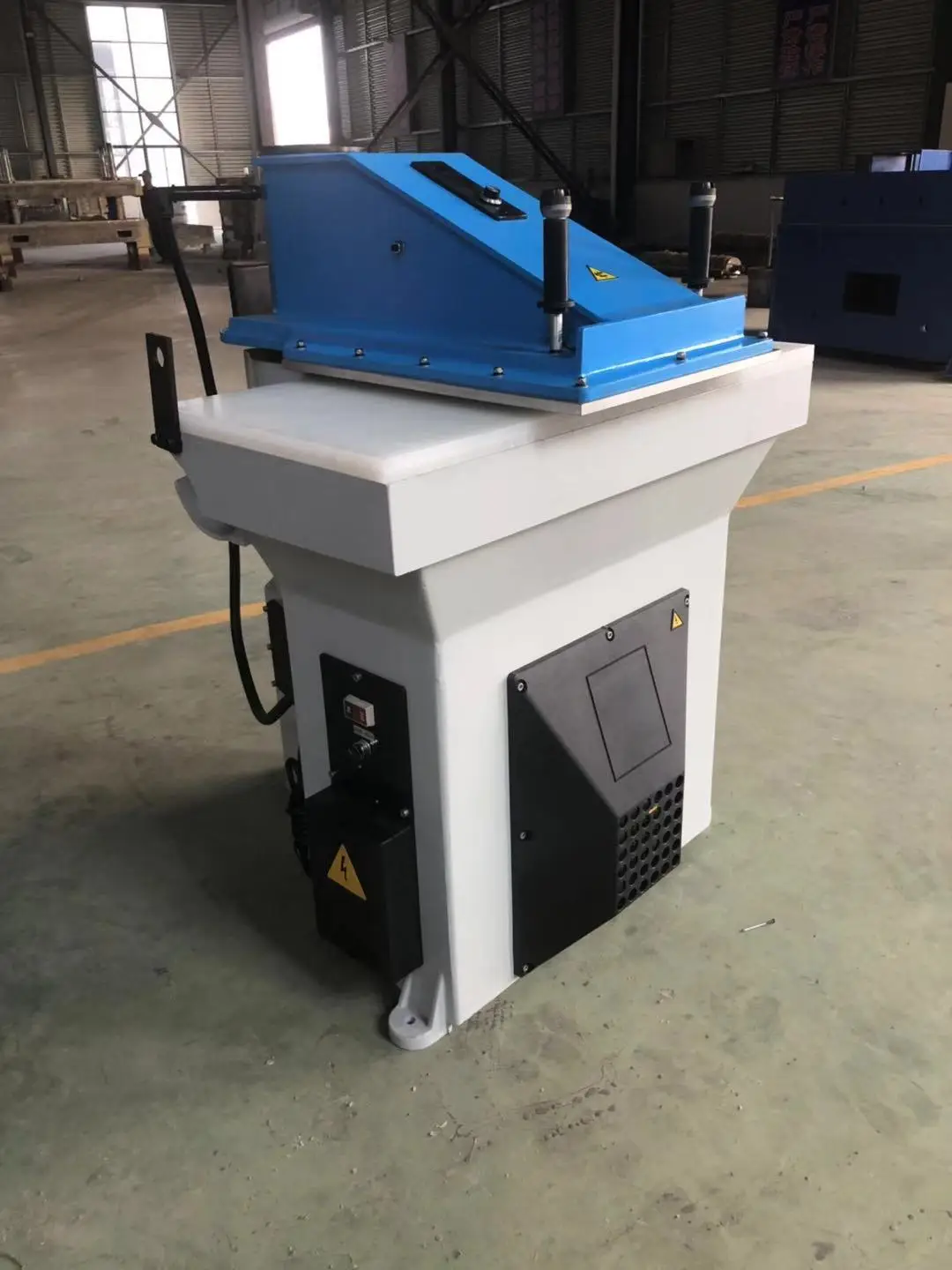

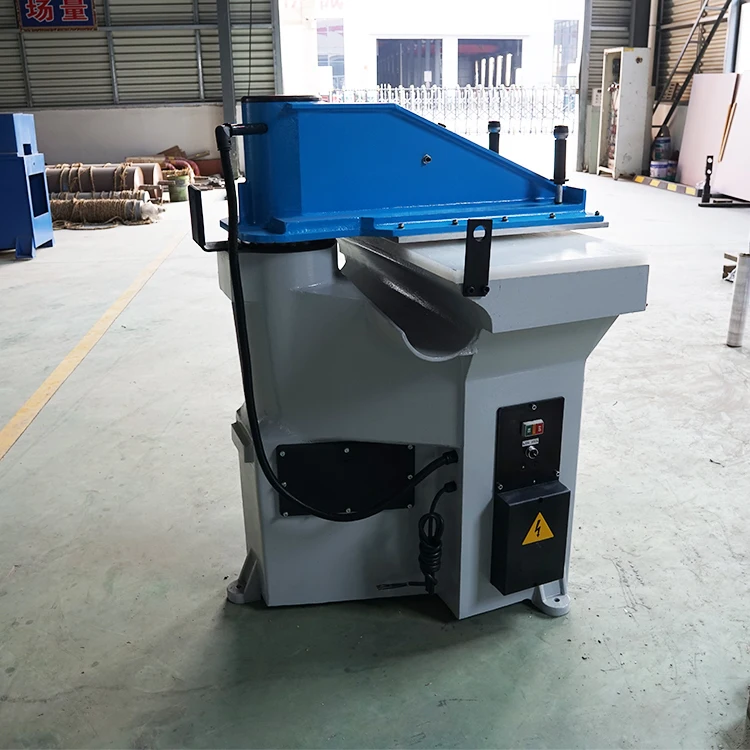

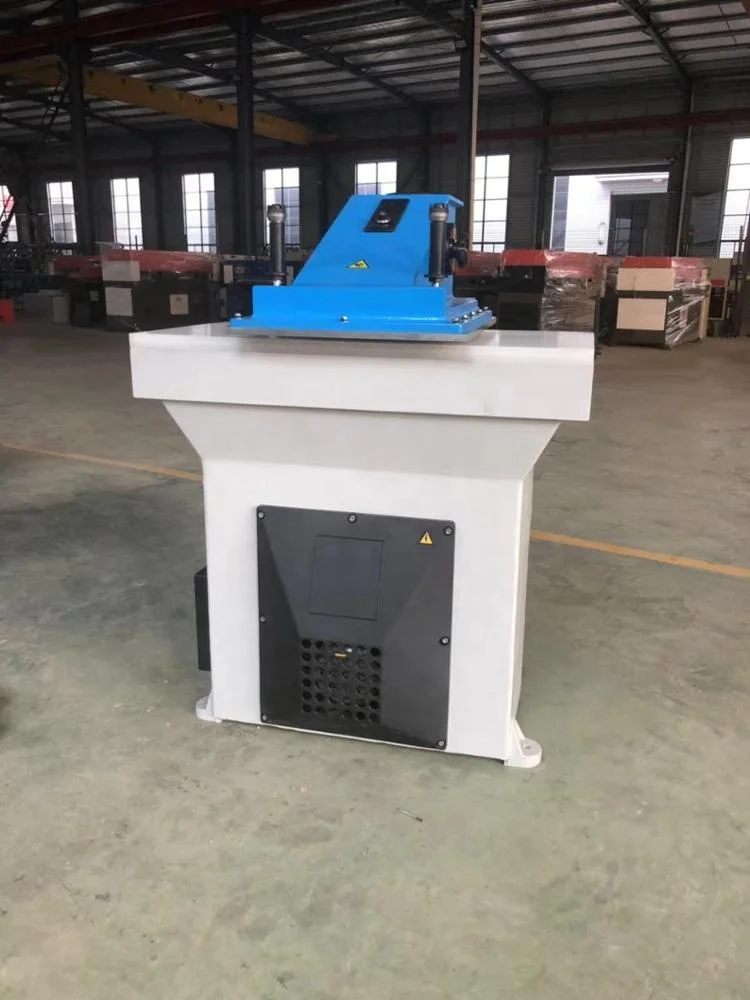

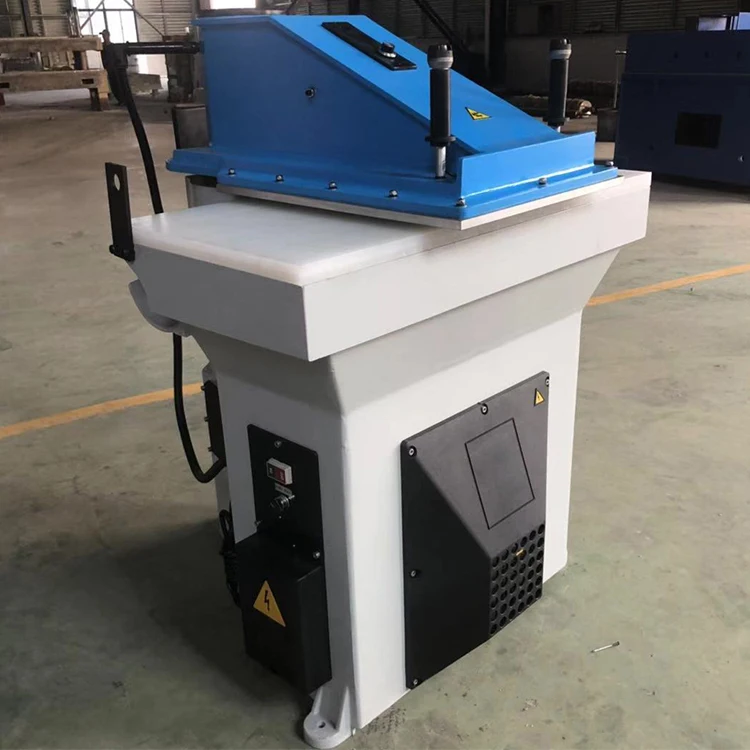

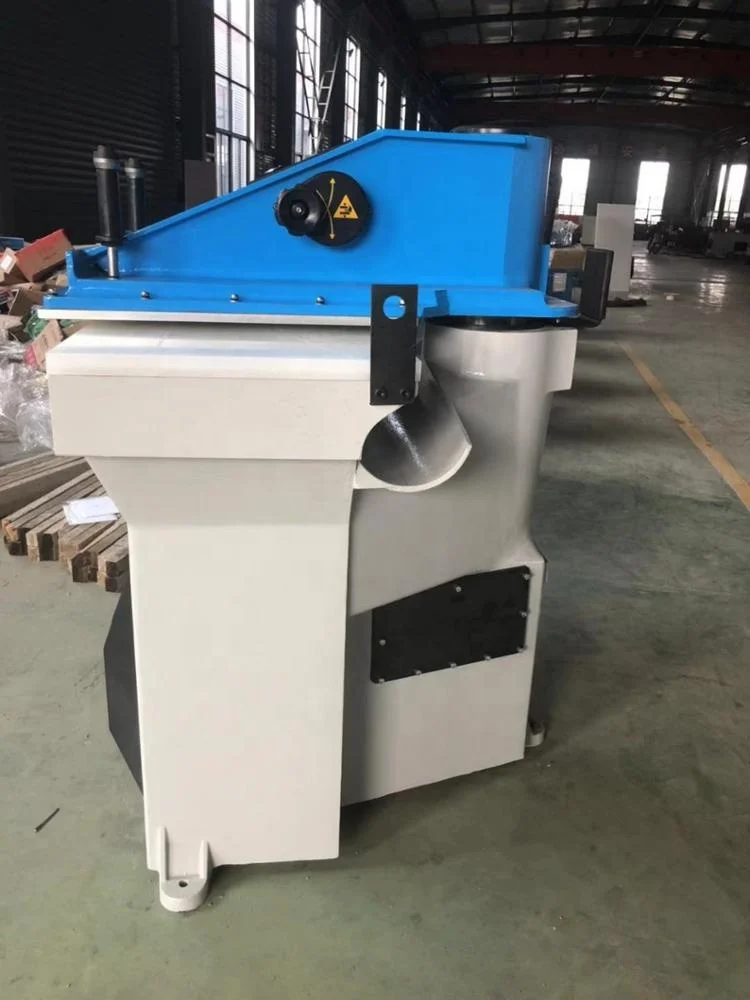

Detailed Images
Size Information
Model | SW/B-22 | SW/B-27 | SW/B-27K | SW/B*27L | |||
Max. cutting force | 22T | 27T | 27T | 27T | |||
Table size | 900*430mm | 1000*500mm | 1000*500mm | 1000*500mm | |||
Swing arm width | 370mm | 370mm | 500mm | 610mm | |||
Cutting stroke | 90mm | 90mm | 90mm | 90mm | |||
Power | 1.1kW | 1.5kW | 1.5kW | 1.5kW | |||
Voltage | 220V/380V, 50Hz/60Hz | ||||||
Package size | 1050*1000*1500mm | 1150*1200*1500mm | 1150*1200*1500mm | 1150*1200*1500mm | |||
N.W. with oil | 650kg | 960kg | 1050kg | 1200kg | |||
Gross weight | 740kg | 1120kg | 1210kg | 1360kg | |||

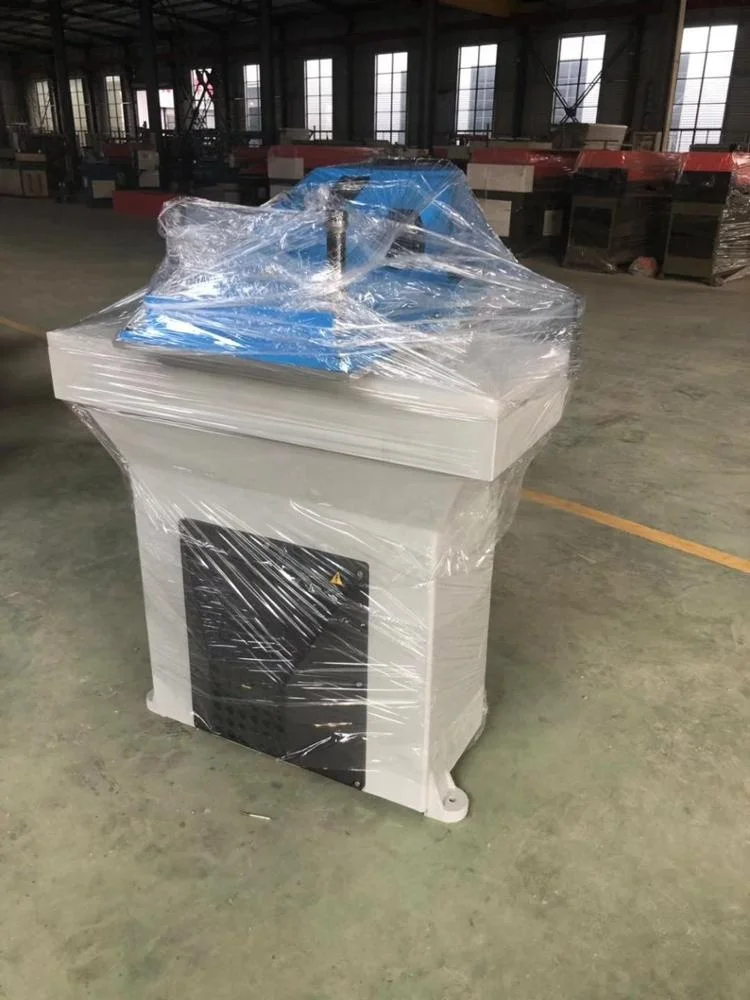

Packing&Shipping
