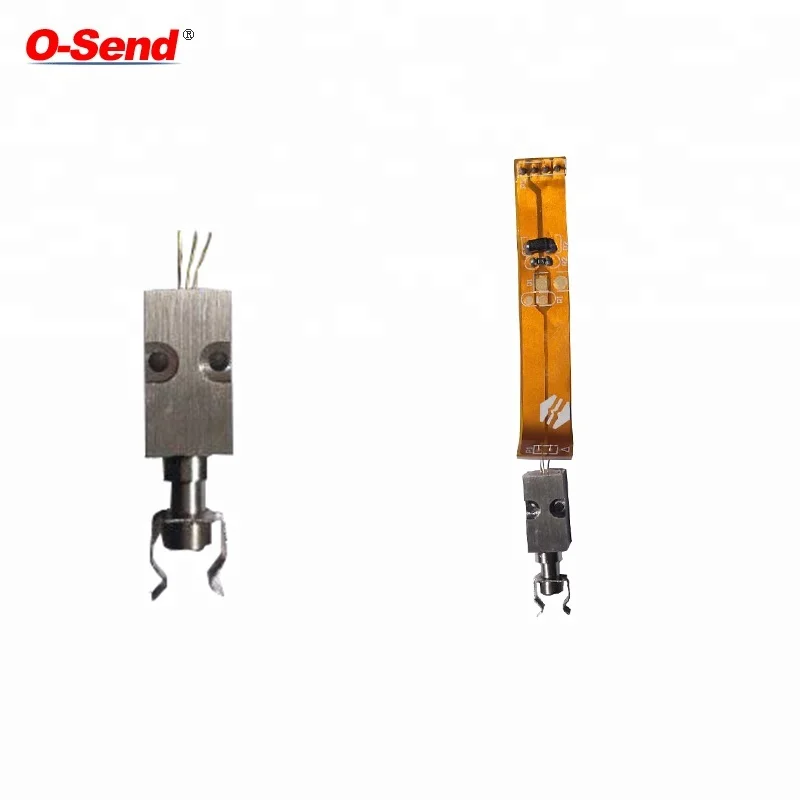

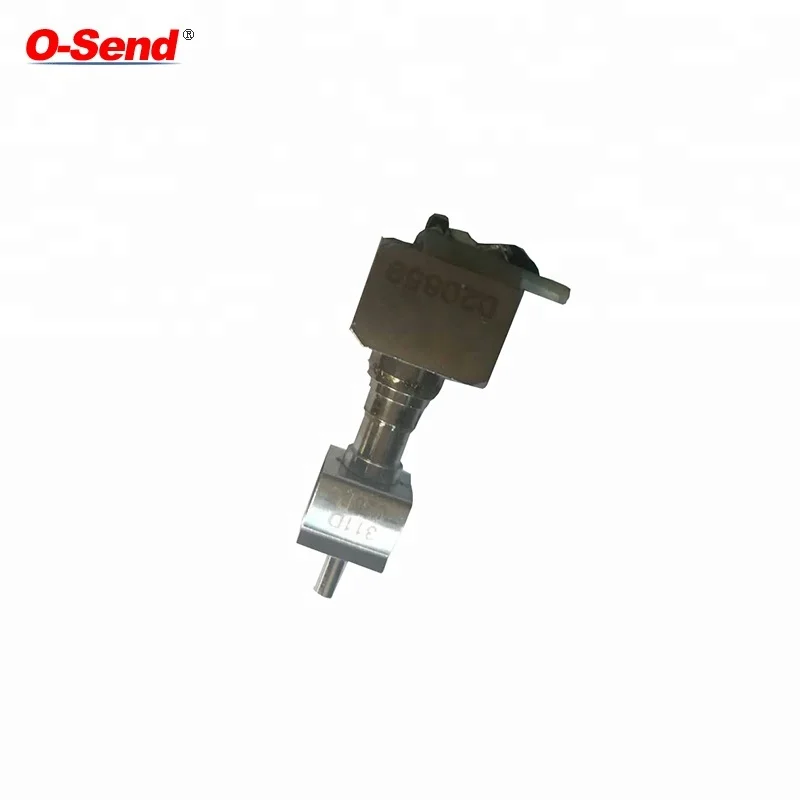

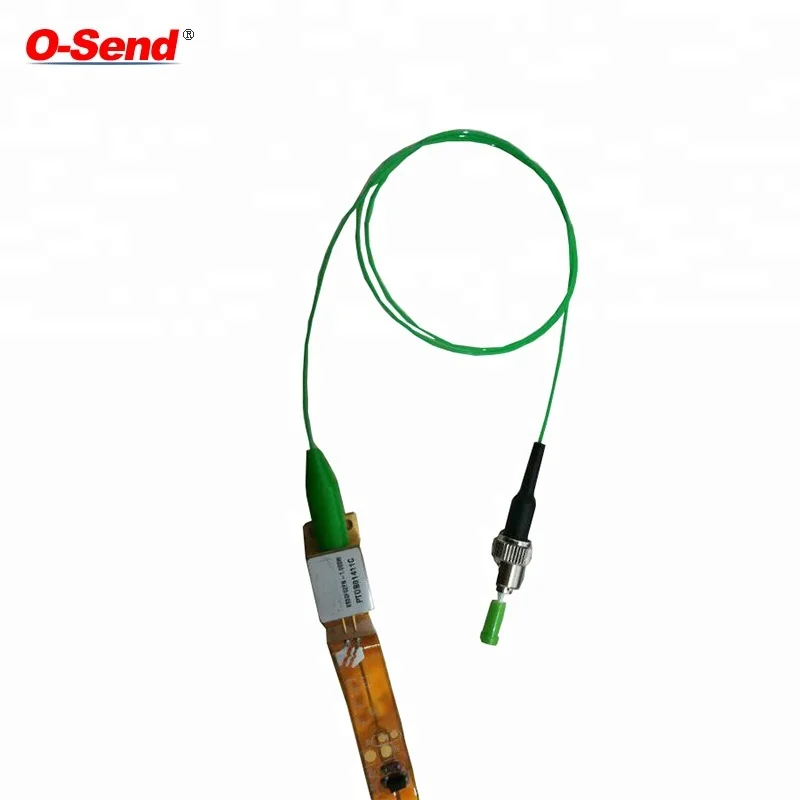

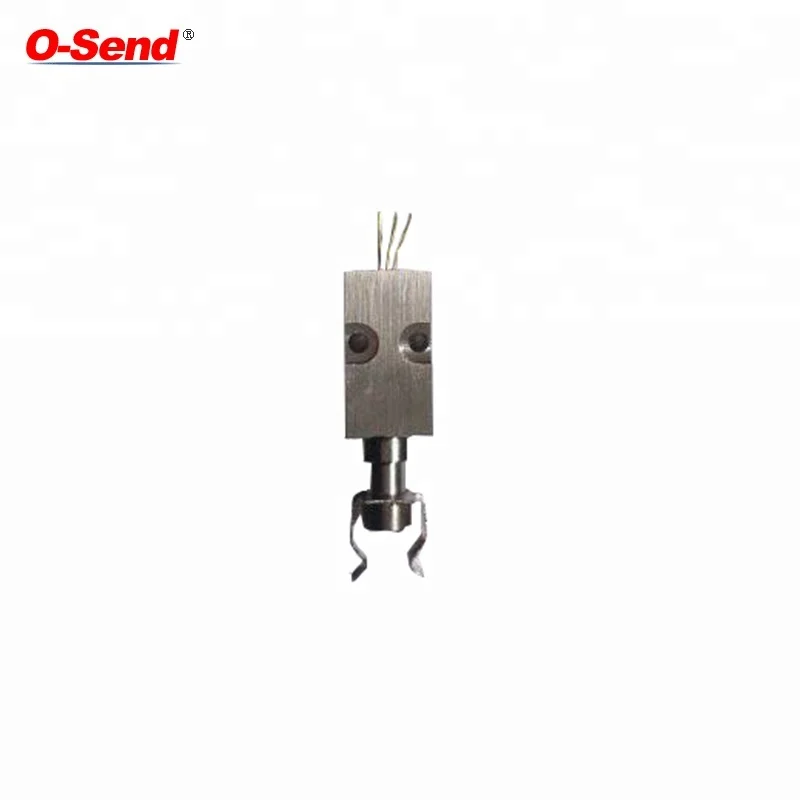

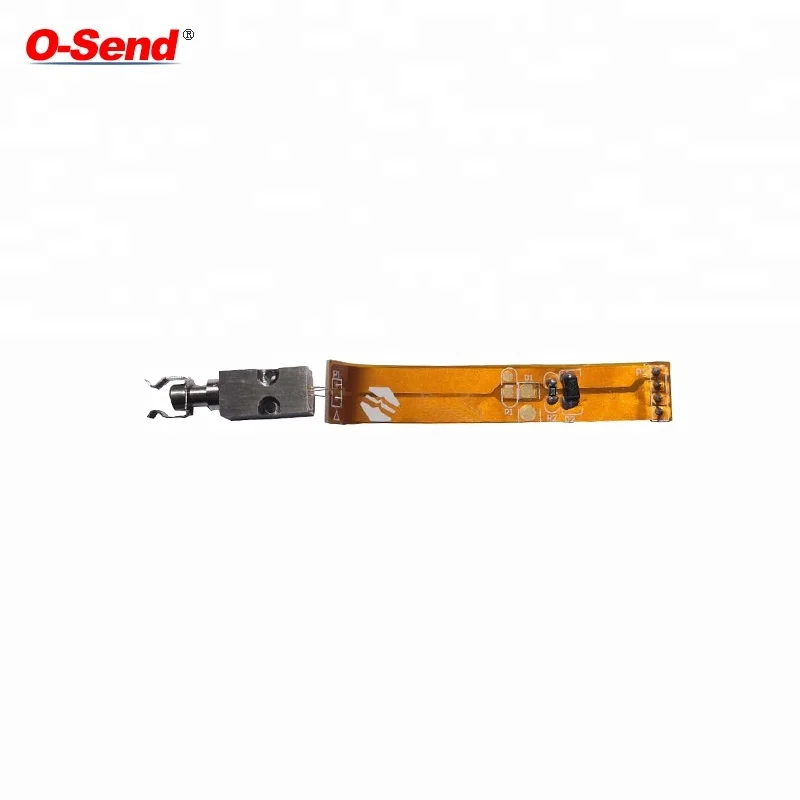

O Send 405nm 0.16w High Power professional Most Popular laser diode for ctp Machine
- Category: >>>
- Supplier: O-Send Opto-Electronics (Chongqing) Co. Ltd.
Share on (60819318446):
Product Overview
Description
Product Description
It offers a low cost solution for linear fiber optic links, which is packaged in a compact hermetic assembly for flexible integration into various transmitter configurations.
Product Detail
Wavelength:405nm
Fiber power :0.16w
Fiber core diameter:40um 0.22N.A
Application area:printing
Electrical/Optical Characteristics(25℃)
| Symbol | Unit | G405-0.16W | ||
| Optical Parameters | Output power | Po | mW | 160 |
Central Wavelength | λc | nm | 405 | |
| Wavelength range | - | nm | ±5 | |
Spectral broadb (FWHM) | Δλ | nm | <3 | |
Wavelength temperature coeffcient | - | Nm/℃ | ~0.2 | |
Optical fiber parameters(1) | Fibercore diameter | Wc | um | 40 |
| Numeical aperture | N.A | - | 0.22 | |
| Connector | - | - | F | |
Electrical Paramters
| Working current | Iop | mA | 130 |
| Threshold current | Ith | mA | 30 | |
Differential effciency | ηD | mW/mA | 1.5 | |
| Working voltage | Vop | V | 5±0.5 | |
| Reverse Voltage | Vre | V | 5 | |
Other Parameters | Working temperature | Top | ℃ | 10~30 |
Storage temperature | Tst | ℃ | -20+70 | |
| Life expectancy | MTTF | h | >10000 | |
| Size(No fiber and connectors) | - | mm | 8.5*7.5*16.3 | |
Wdelding teperature | Tls | ℃ | 260(3sec) | |
Related Products
Certifications
Packaging & Shipping
Shipping
INTERNATIONAL AIR MAIL
Payment
Fast Delivery
Different amount of time will be required for differentCompany Information
Founded in May 2004, and specializes in active component and passive component for telecommunication, data communication, FTTH(G/EPON,PON+EOC,RFoG)and CATV (CMTS) industries. Product lines include Laser Diode Module(Coaxial/Butterfly/DIP), Photo Diode Module, CWDM module, Optical Transceivers (Bi-di, ,SFP,SFP+), TO-Can assembly and passive component.
O-send Opto-Electronics(Chongqing)Co., Ltd, locates in ChaYuan, Chongqing, south west of China, covering an area of about 2500 square meters and with more than 120 staff.
