17 inch 8 port RJ45 rackmount kvm switch cat5 over ip kvm console
- Category: >>>
- Supplier: Shenzhen Pontron Technology Ltd.
Share on (60819329073):
Product Overview
Description

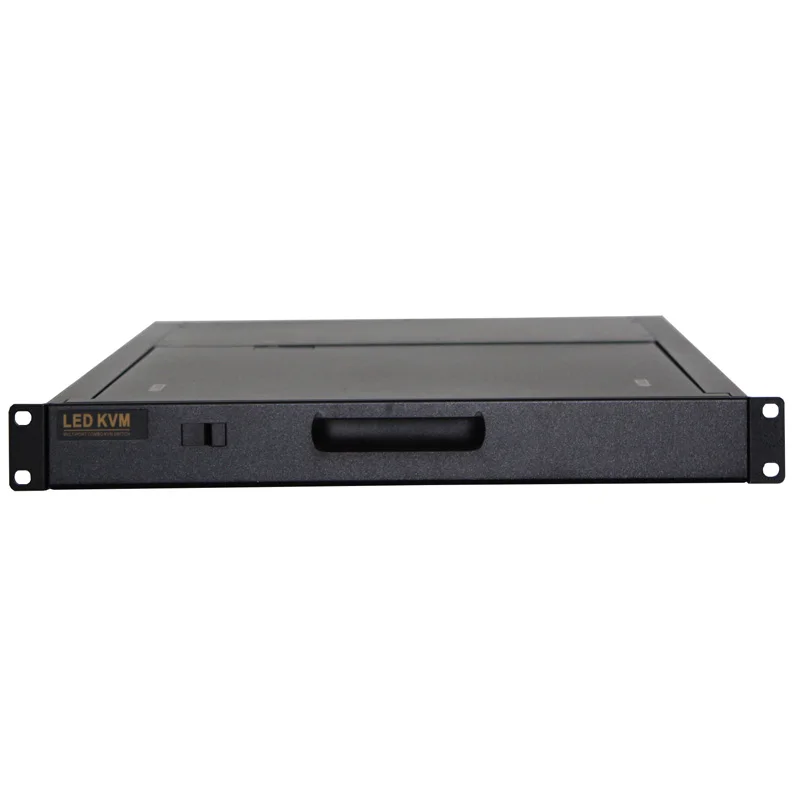

17 inch 8 port RJ45 rackmount kvm switch cat5
Main features:

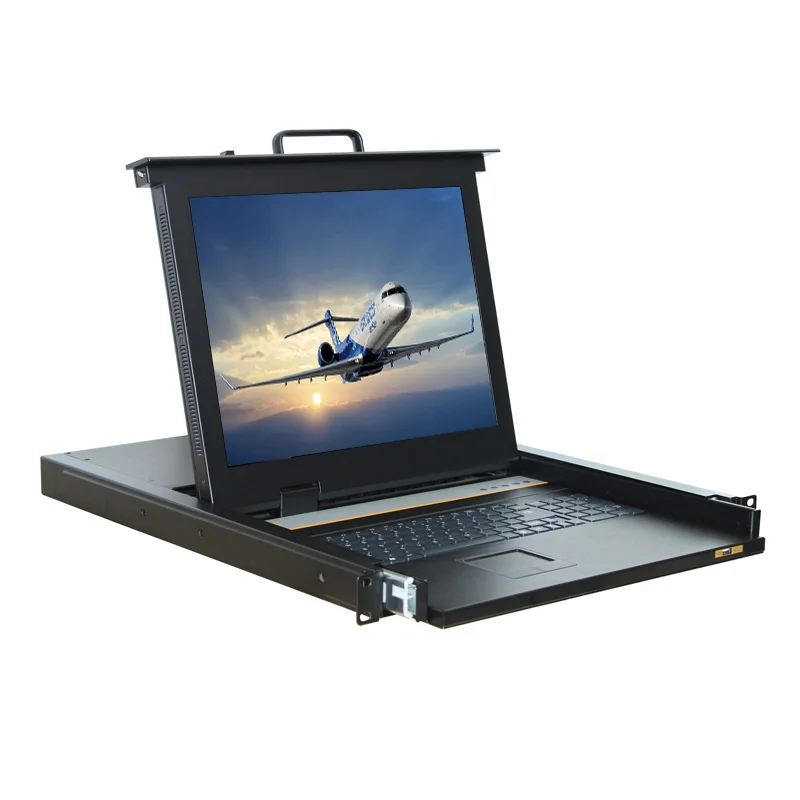

« 19’’ 1U rack mount 17’’ LED KVM switch with touch pad+Mouse +104keys keyboard with integrated Digital&E-switch keys.
« Supports front USB for keyboard/mouse
« Support 2 * USB+VGA local console
« Excellent video effects, the best resolution is up to 1280*1024@ 75HZ.
« Using RJ-45 interface, the CAT5/ CAT5E/CAT6 UTP cable are connected to the host computer ,control distance is up to 20M.
« With 21 electronic al gain adjustment, it can avoid signal attenuation cause by distance problem .
Introduction:
« Withdrawing installation design, the length can be adjusted to fit the rack space.
« Humanized design, can be installed and removed by only one person , which improves the efficiency of the administrator.
« To switch the host computer though the hotkey or OSD menu, which can manage up to 1024 computers.
« Password security protection, only authorized users can view and manage on-line computer.
« Support a variety of brand industrial computer and the sever, eg: EVOC / Lenovo / IBM / DELL / HP/ SUN, ect .
« Support various operating system: Window XP, 7 /8 / 10 ,Microsoft, Linux, Unix,etc.
Specification:
|
Model |
KVM-1708U |
KVM-1716U |
KVM-1732U |
|
|
Computer connect |
Direct : 8 |
Direct : 16 |
Direct : 32 |
|
|
Max : 256 |
Max : 512 |
Max : 1024 |
||
|
Keyboard |
104 Mechanical mute Keyboard |
|||
|
Mouse |
Touchpad |
|||
|
Switch Mode |
Hotkey , OSD Menu |
|||
|
Switch Scan Time |
1-255 second ( OSD adjustable ) |
|||
|
Cable Port ( CAT5 connected network cable is up to 200M ) |
Local console |
Keyboard / Mouse/ Display (2*USB +1* HDB-15 female ) |
||
|
Connector port |
8 /16 / 32 * CAT5 (RJ45 port ) |
|||
|
Power supply |
1 * 3 pin AC power supply socket |
|||
|
Panel |
Size |
17’’ TFT LED |
||
|
Resolution |
1280* 1024 @75HZ |
|||
|
Max Color |
16.2M |
|||
|
Brightness |
300nit |
|||
|
Contrast ratio |
700:1 |
|||
|
Pixel Pitch |
0.297 x 0.297 mm |
|||
|
Work environment |
Operating Temp |
-10℃~60℃ |
||
|
Storage Temp |
-20℃~70℃ |
|||
|
Humidity |
0%-95%RH |
|||
|
Power input |
DC12V input , (AC100-240V 47-63Hz, 35W ) optional |
|||
|
Cabinet Material |
high-strength and Anti-corrosive steel plate |
|||
|
Color |
Insulated black (optional) |
|||
|
For Cabinet |
800-1040mm |
|||
|
Net weight |
12KG-16KG |
|||
|
Gross Weight |
16kG-21KG |
|||
|
Dimension(Lx W x H) |
567*440*44mm |
|||
|
Package (L x W x H) |
708*608*195mm |
|||
|
Certificate |
CE , FCC , RHOS |
|||
Ordering information:
|
KVM - 1708U |
1U Rack mount 17 inch TFT LED KVM switch, W/ 8 RJ45 port , W/ 12V power supply. |
|
KVM - 1716U |
1U Rack mount 17 inch TFT LED KVM switch, W/ 16 RJ45 port , W/12V power supply, |
|
KVM - 1732U |
1U Rack mount 17 inch TFT LED KVM switch, W/ 32 RJ45 port , W/ 12V power supply. |

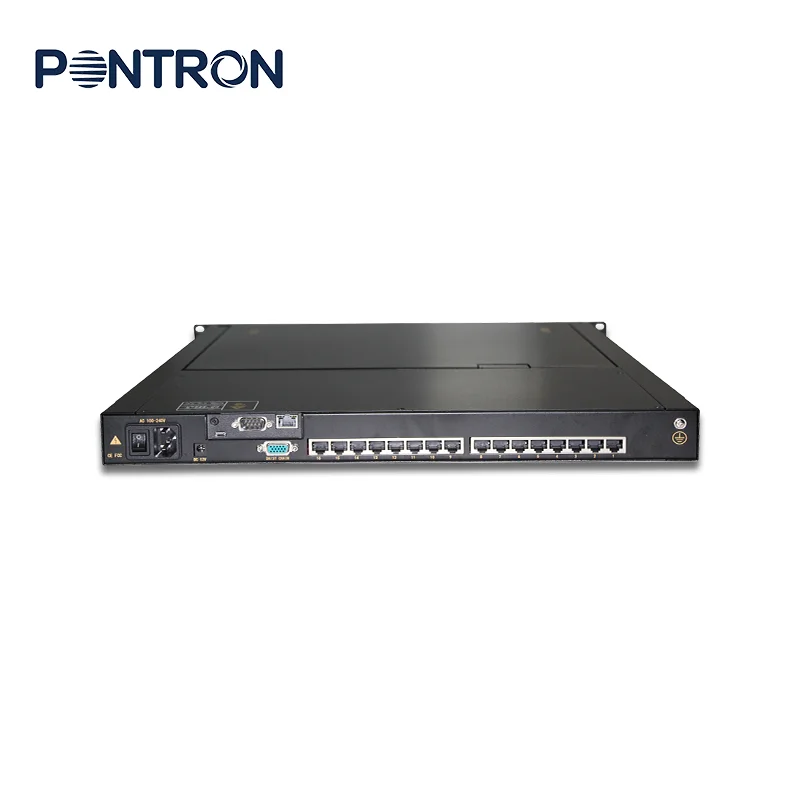

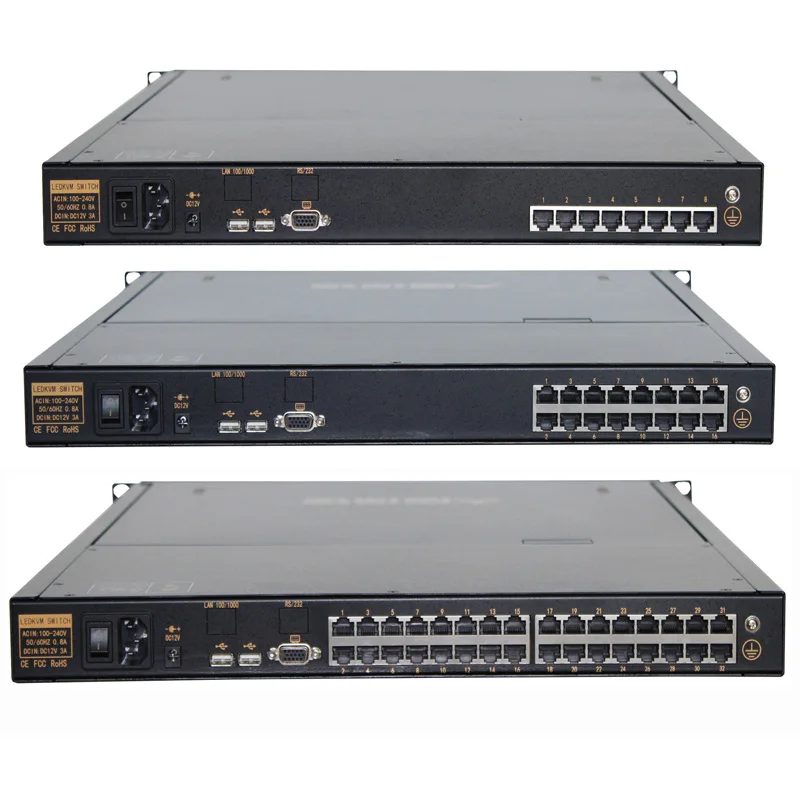

IO View :
