Non contact liquid level sensor D1CS D arduino capacitive water level sensor for mist fans
- Category: Measuring & Gauging Tools >>>
- Supplier: Shenzhen Ept Technology Co. Ltd.
Share on (60819352380):
Product Overview
Description
Non contact liquid level sensor D1CS-D arduino capacitive water level sensor for mist fans
Features
1. No mechanical moving components and with high reliability.
2. Small in size and low in cost.
3. Simply locate the sensor to outside the liquid container (low temp) for detection. Easy assembly.
4. Satisfying the requirements in Safety Standards.
5. The sensor itself satisfies RoHS requirements.
6. Waterproofing standard IP62.
7. Accuracy is between ±0.5mm.
Application case
Can be used in:Water dispenser, water heater, humidifier, medical devices or equipment, electrical appliances and equipment’s etc. requiring liquid-level control.
Parameter
| Electrical Specification (Ta=25°C ) | |||||
| Parameter | Symbol | Min. | Type | MAX | |
| Input | Supply Voltage | V CC | 4.8 | 5 | 5.2 |
| Current Consumption | I R | -- | -- | 3 | |
| Power Consumption | P | -- | -- | 15 | |
| Temp. | Operating Ambient Temperature | Topr | −20~+65 | ||
| Storage temperature | V ECO | −40~ +80 | |||
| Output Parameters (Ta=25°C ) | |||||
| Parameter | True value | Output (V) | Output C(mA) | Output C(mA) | |
| Output | Full liquid level | 0 | <0.3 | GND | <3 |
| Low liquid level | 1 | >4.5 | VCC | <3 | |

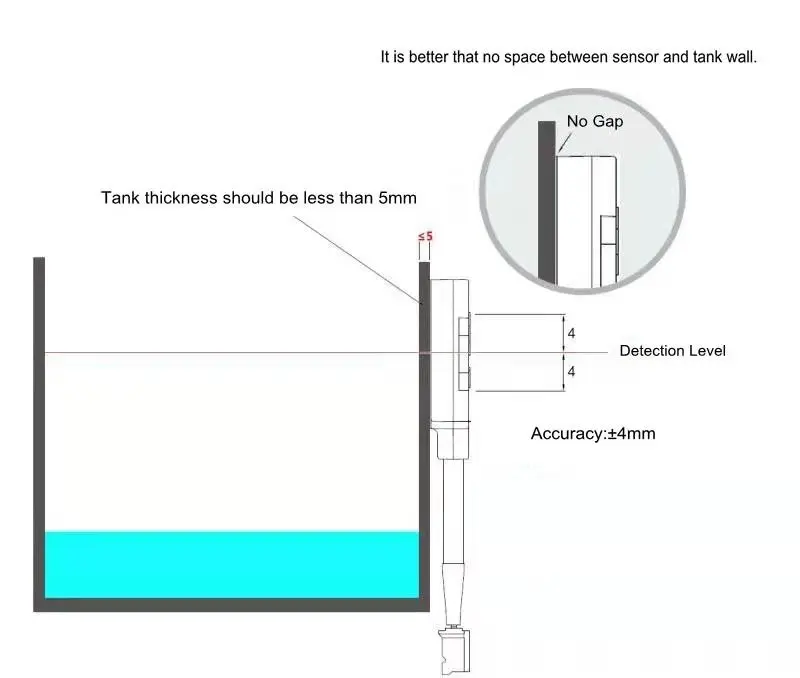

product dimension
