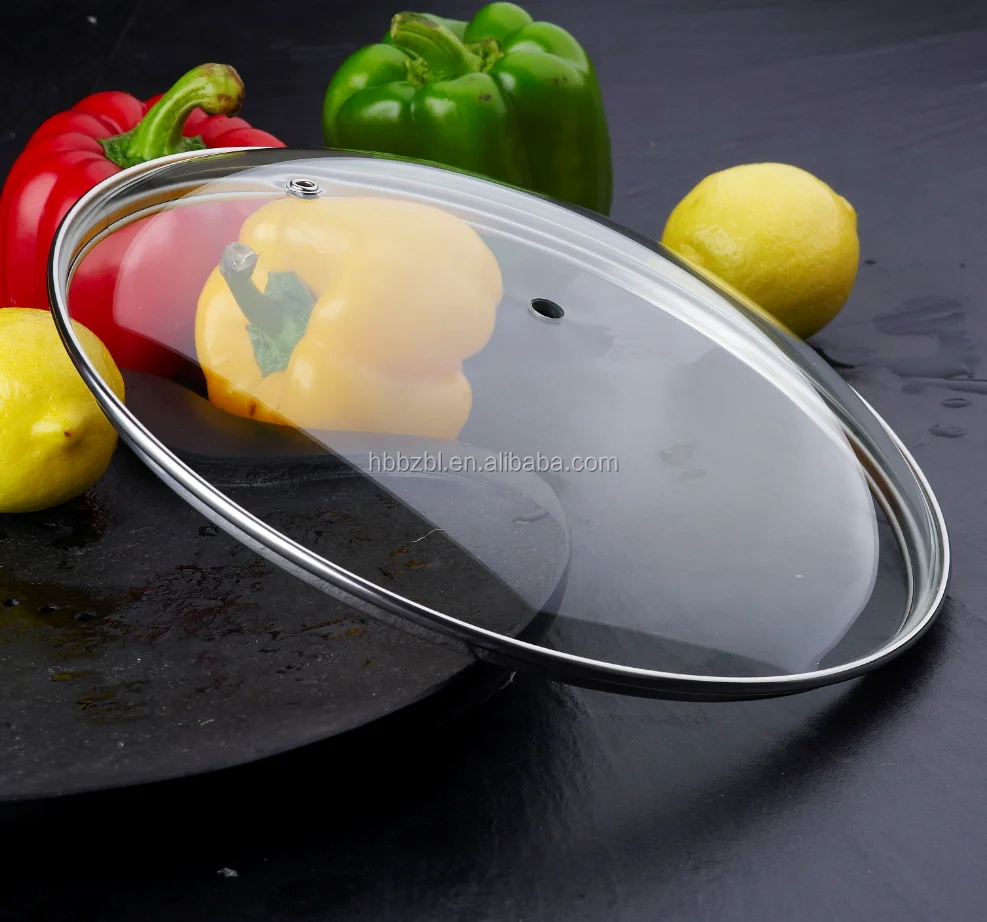

4mm glass lid pan glass lid G type tempered glass lid with 201ss rim and bakelite knob handle for pan frying pan

 HEBEI BOZHENG GLASSWORK CO.,LTD

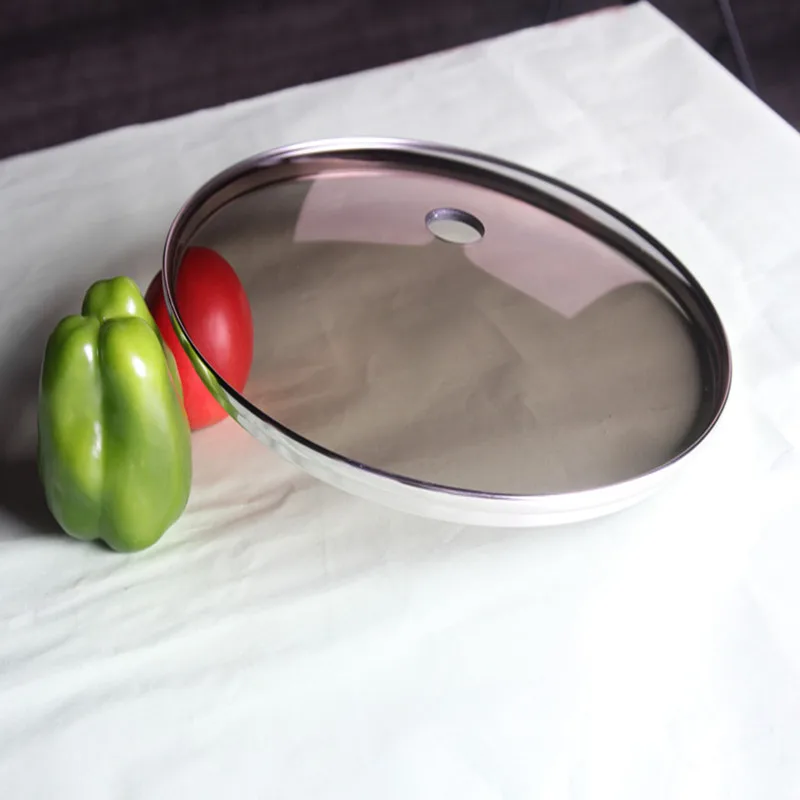

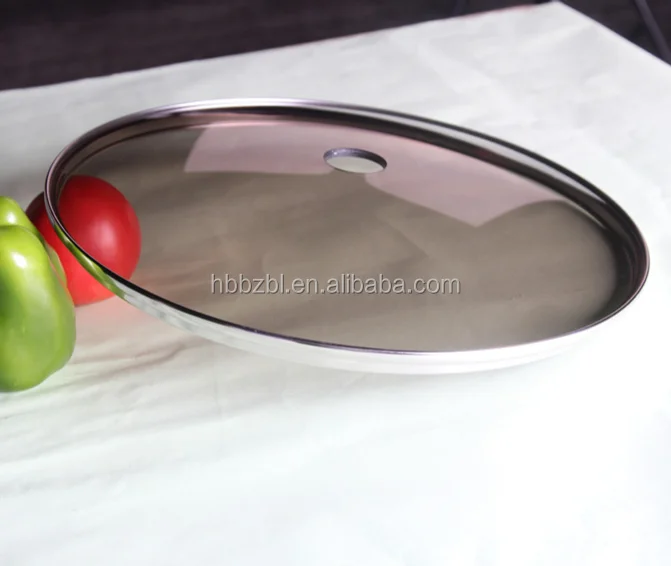

4mm G type tempered glass lid with 201ss rim bakelite handle for frying pan

Specifications of Tempered Glass Lid

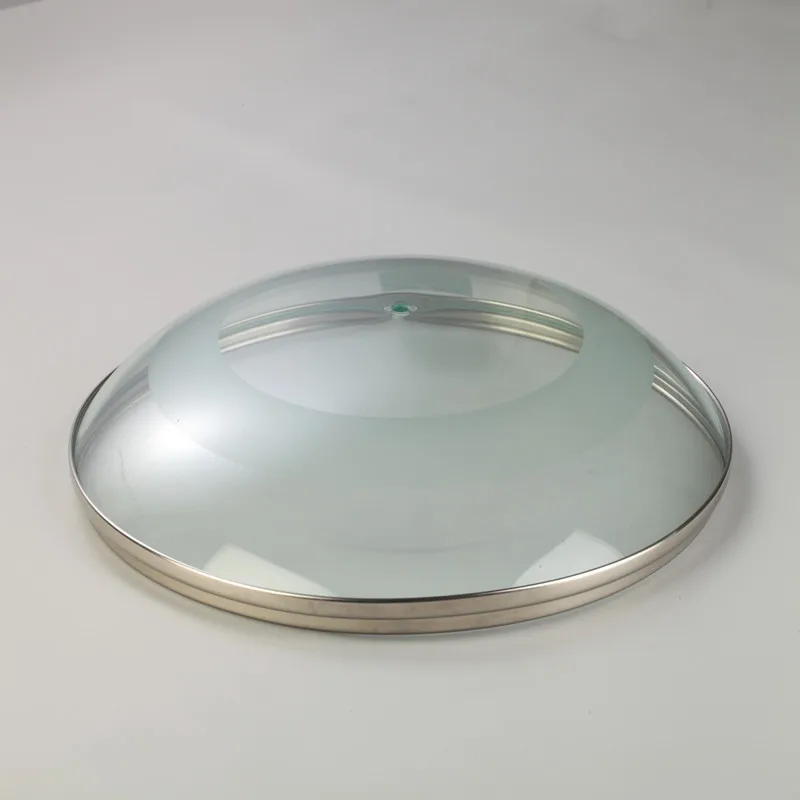

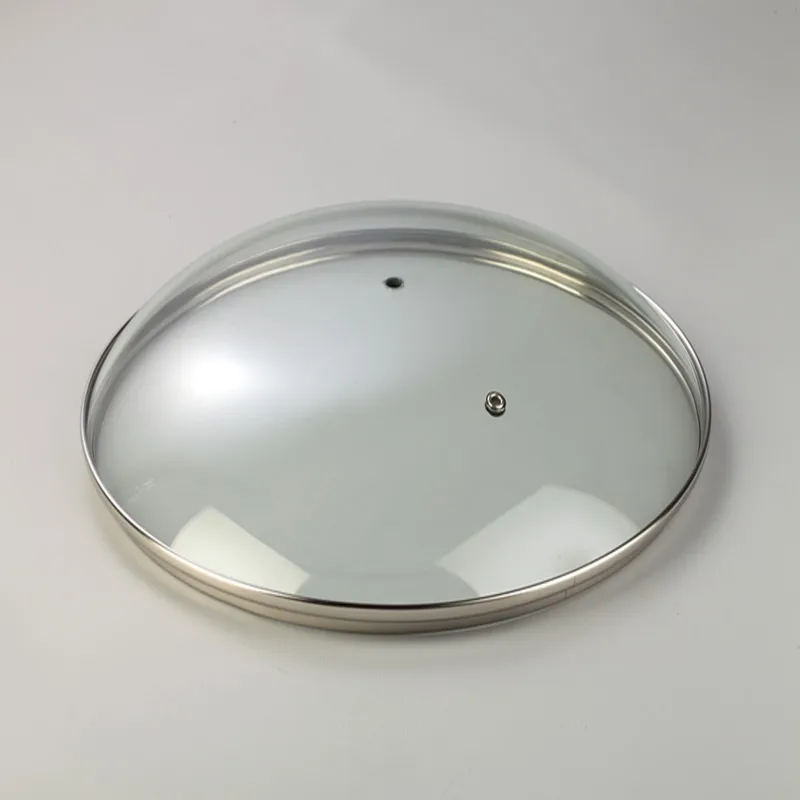

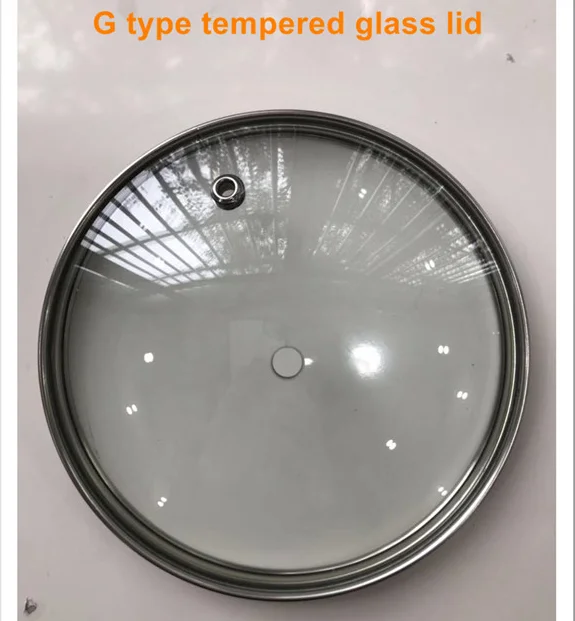

G type tempered glass lid with NORMAL DOME

G type tempered glass lid with brown color and normal dome

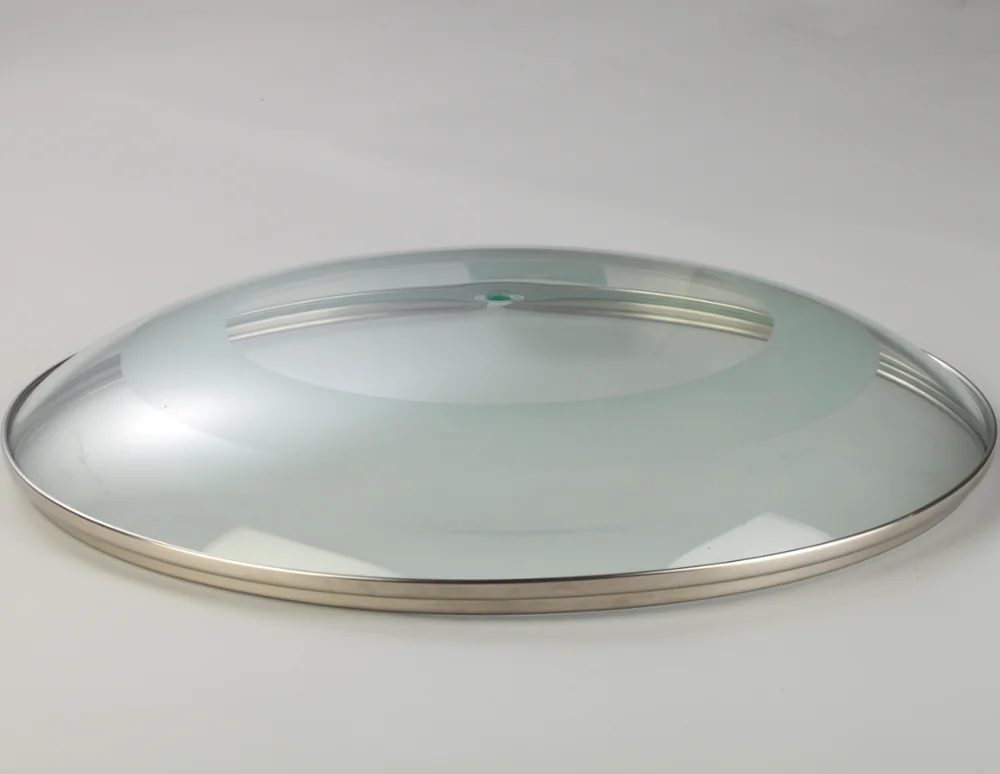

G type tempered glass lid with high dome

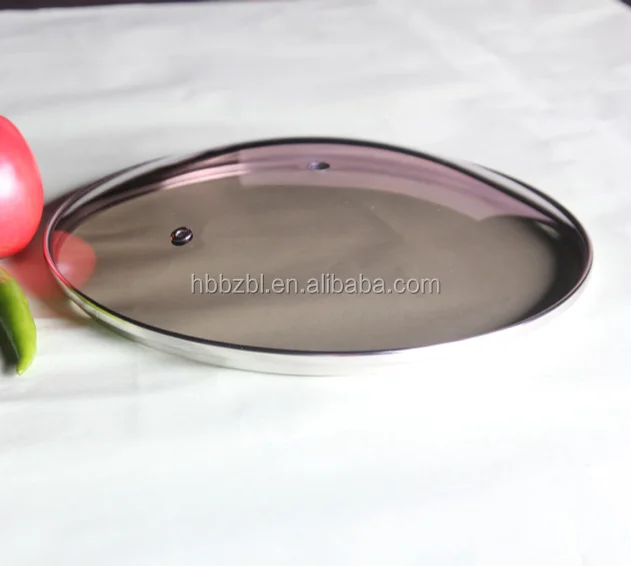

G type tempered glass lid with brown color and high dome

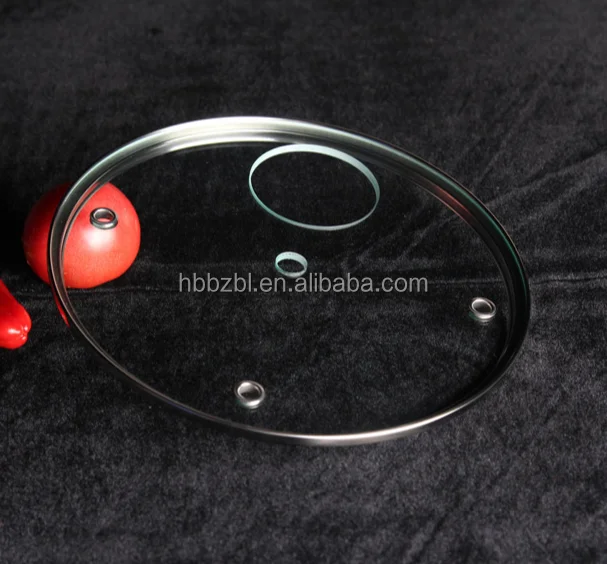

G type flat glass lid in BOZHENG with multihole

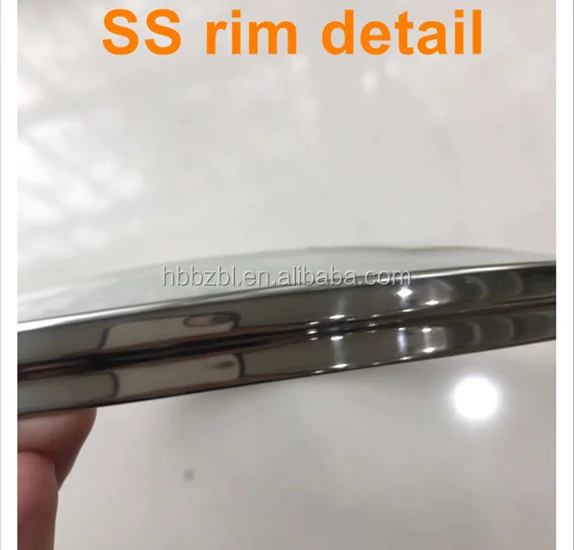

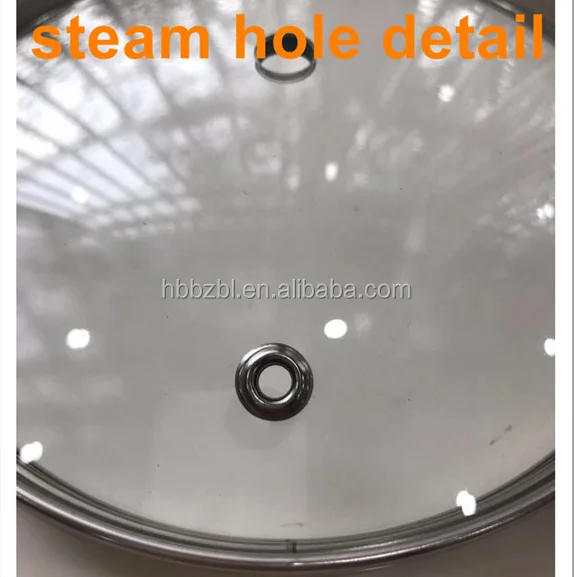

The more details about glass lid pictures:

We can produce different types with different colors for tempered glass lid, silk-screen technology for logo on lid and customized is accepted.

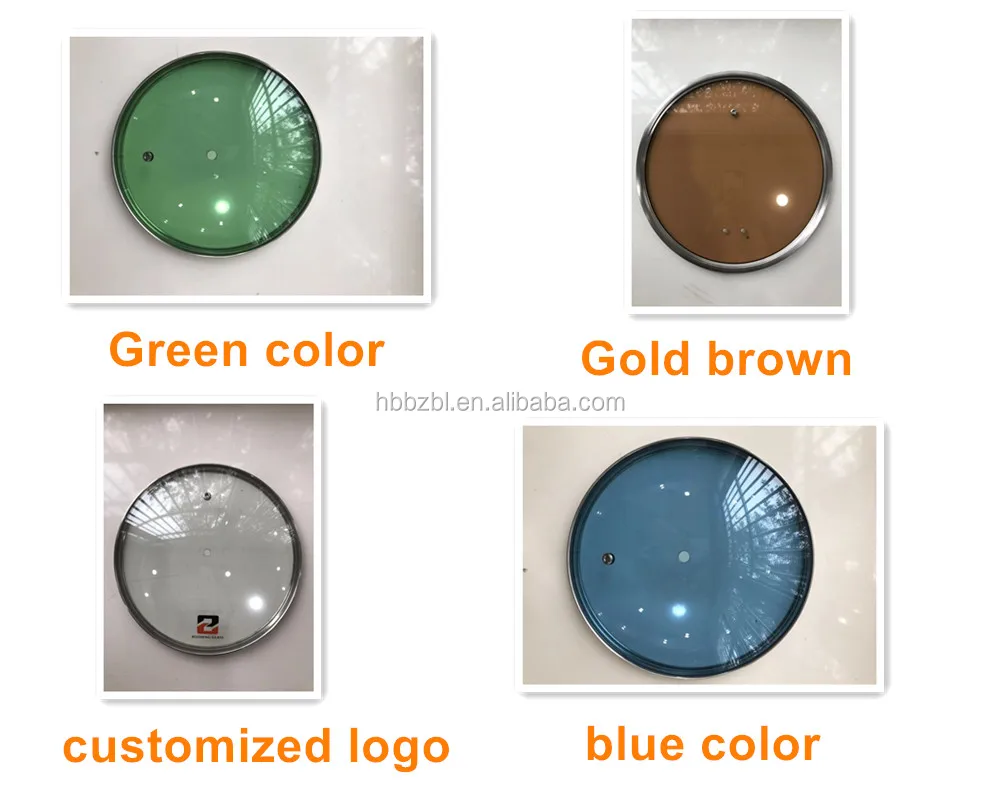

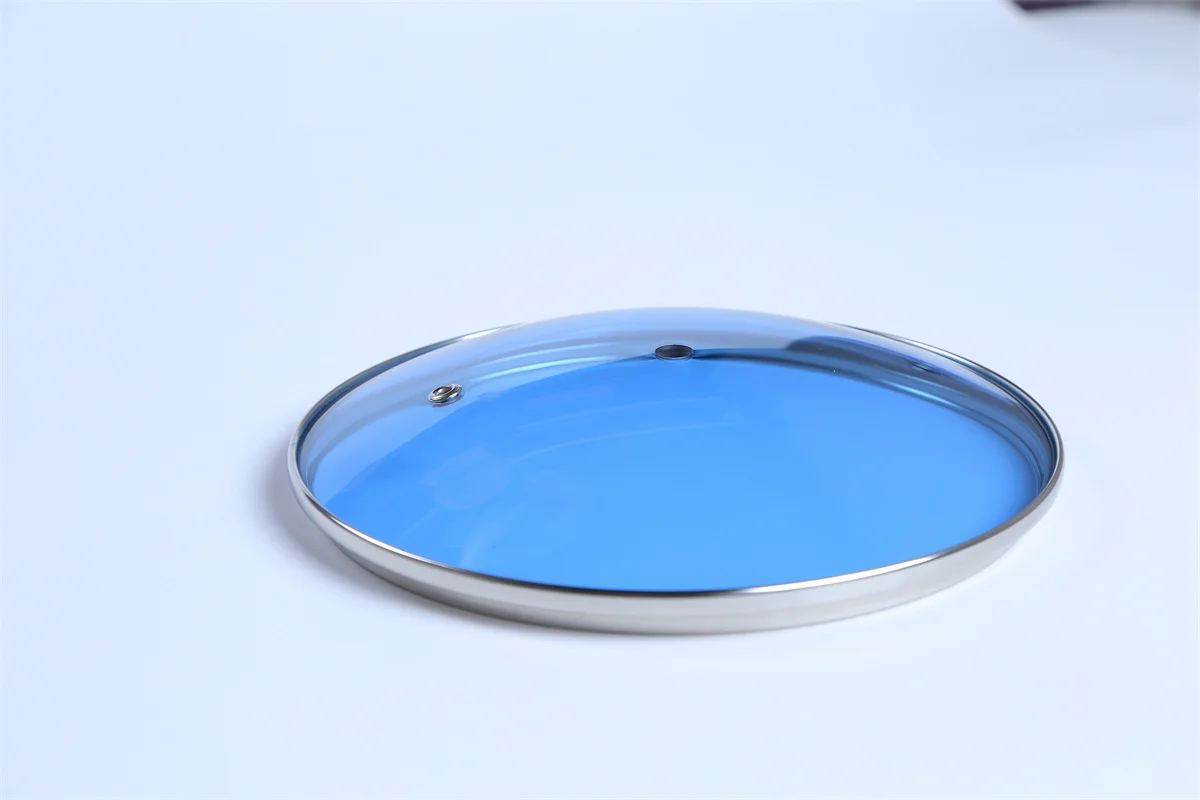

1. Color:   Transparent, brown, green ,blue

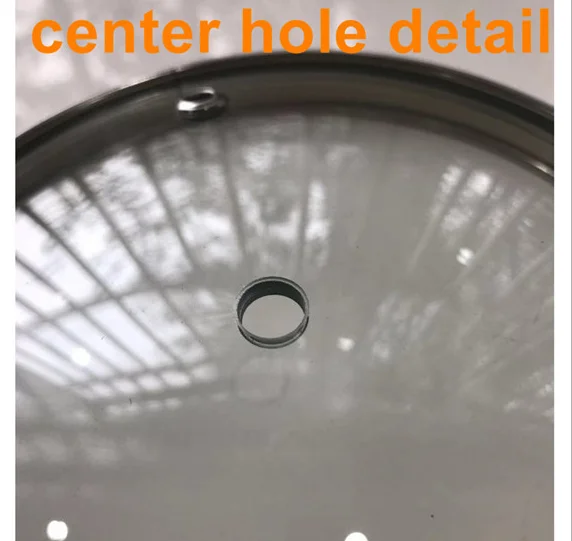

2. Hole:     with/without

3.Excellent heat endurance and thermal shock resistance

4. Customer's logo, brand name, or decoration can be printed on the glass

5. Raw material:  Float glass , Stainless steel: 201, 202, 304

6. Packing: paper between glass lid, then put into carton or as demand

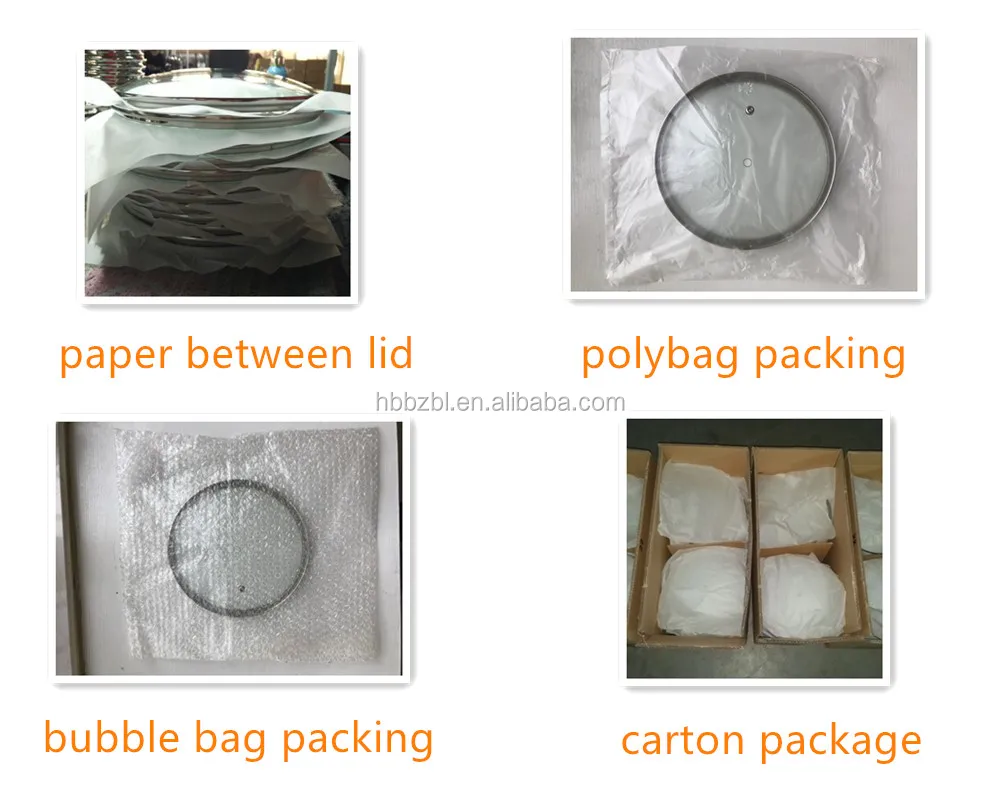

 Packing details ,many packing way are available for your choose.

packing details:

Inner packing: each pc into polybag / lined with soft paper between two pcs

Outer packing: standard export carton.

LOGO: BOZ or as customized

Delivery time:  7-10days for a 20GP container once confirmed samples and received 30% deposit.

Loading port: Tianjin

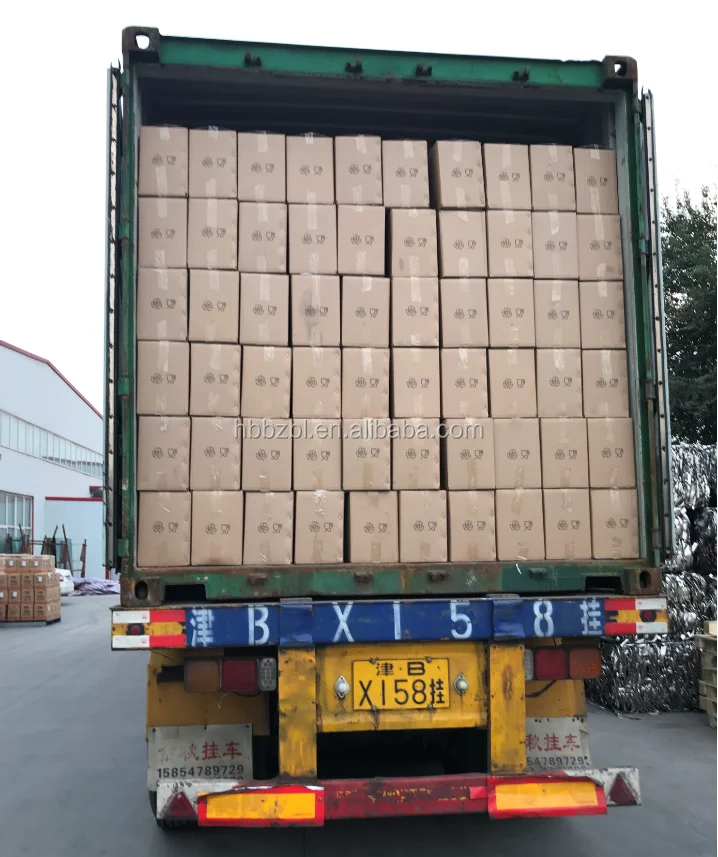

shipping by: container/ express

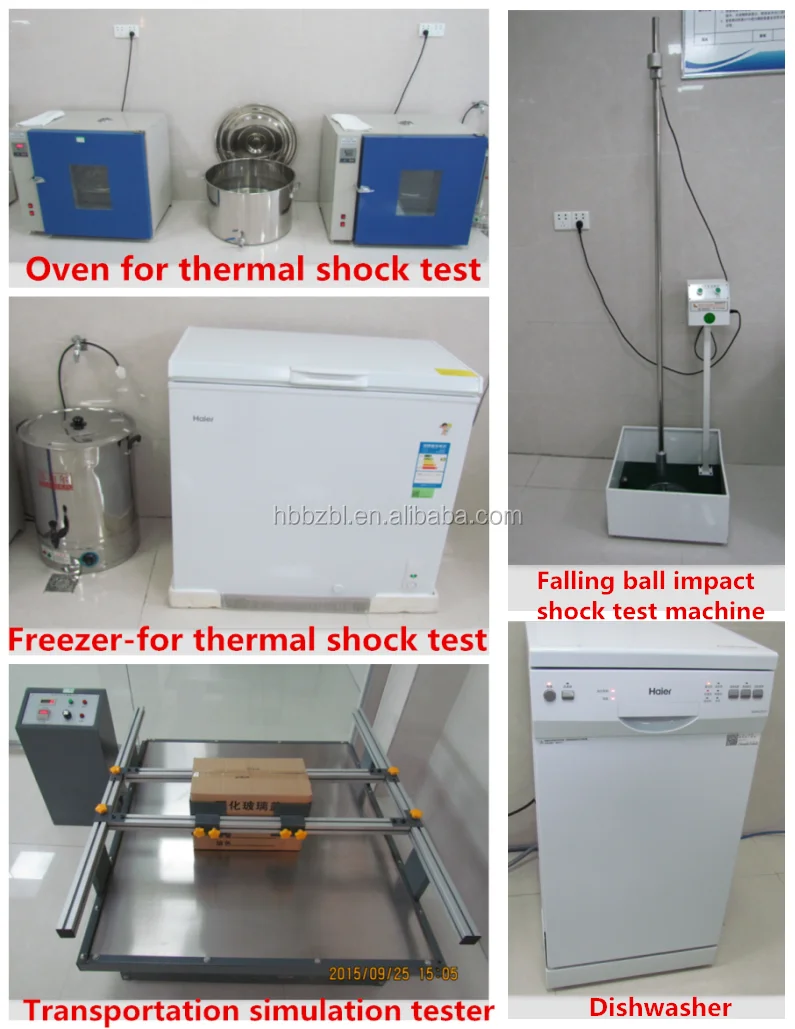

 QUALITY TEST EQUIPMENT

1.Thermal shock test: Put the glass lid into oven at 230 °C for 60 minutes, then remove it immediately into water at room's temperature, the lid should not be broken or cracked.

2.Impact resistance test: Drop the 227g±2g ball from the height at 2 metres in free fall and impact on the lid at 1/3 radius, repeat three times, damage or cracks are not allowed.

3.Pressure test: Use 120-grit abrasive paper scraping on the back side of the lid for 15 times, then check after 24 hours,the lid should not be broken or cracked.

4.Dishwasher test: Washed by the dishwasher for 50 times, the lid should not turn to be yellow or dark, and without loosing and deformation on the stainless steel rim.

5.Destructive testing: Break the lid with hammer and check,the number of particles should be over 70pcs within the area of 50m*50mm , and the biggest fragment should not be over 3g.

6.Salt-fog test: Put the lid into the the salt-fog machine of 5% NaCl with the PH at 7.0 for 24 hours, unmovable rust is not allowed on the rim.

7.Transportation silumation test: Put the carton on the test platform for more than 8 hours,  scratch and crack is not allowed.

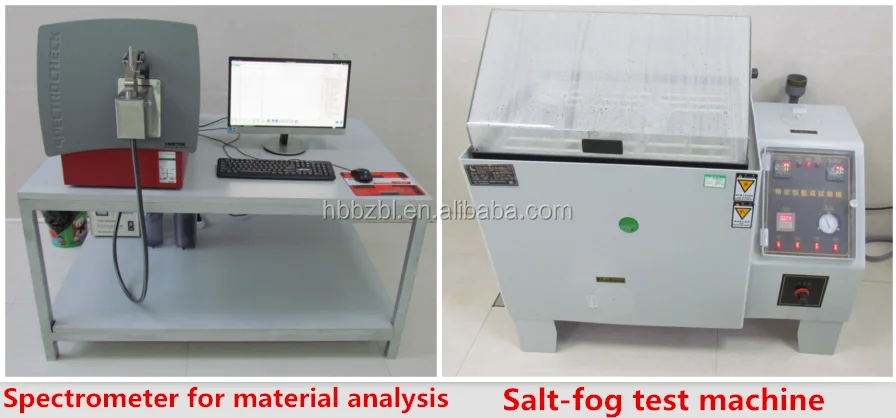

8. Material analysis: Use the advanced spectrometer "SEPCTROCHECK" which imported from Germany, to ensure the quality of the stainless steel rim.

Our service:

• Quality--High automatic computer-operated production equipments, advanced quality test machines, professional management system


• Technology--We have a professhional technical team, can reserch and design variours kinds of glass lids.


• Price----Located in “Chinese glass base” Shahe city, have high quality glass and cheap glass resourses


• Service---Professional working teams, offer all-round sales and after-sales service


• Sample--Fast sample delivery time


• OEM&ODM---OEM & ODM orders are welcomed.


• Shipping--FCL & LCL are both availble

Hebei Bozheng Glasswork Co., Ltd is an enterprise specialized in producing all kinds of tempered glass lid, which covers an area of 18000 square meters . Now we have 12 lines of advanced computer-operated tempering furnaces . And annual capacity is over 36million pieces .My company had passed the ISO9001:2008 and ISO14001:2004 certificate .
Located in the "Chinese glass Base"Shahe City , my Company has high quality and cheap glass resources, we introduce exclusively the most advanced testing equipment "Spectro Check",so we can offer the highest quality with the most competitive price. Moreover there is a professional Research and Management Team with over 10 years experience in this business field ,who can design and produce different kinds of glass lid and special-shaped ones as requested.
we have established long-term cooperative relationship with clients worldwide by High quality product ,Accurate delivery and competitive price.
With the motto"Aim high ,set up the industry benchmark",we are looking forward to cooperating with clients all over the world.

1. What is your payment term?

---T/T, L/C, could be accepted.

2.What is your trade term?

---EXW, FOB, CFR&CNF, CIF is ok.

3. What is your loading port?

---TIanjin  Port, also as your requirement.

4. What is your MOQ?

---MOQ of most of our products is qty in 1*20'GP. In this way, the price is more reasonable

 comparing to express delivery.
