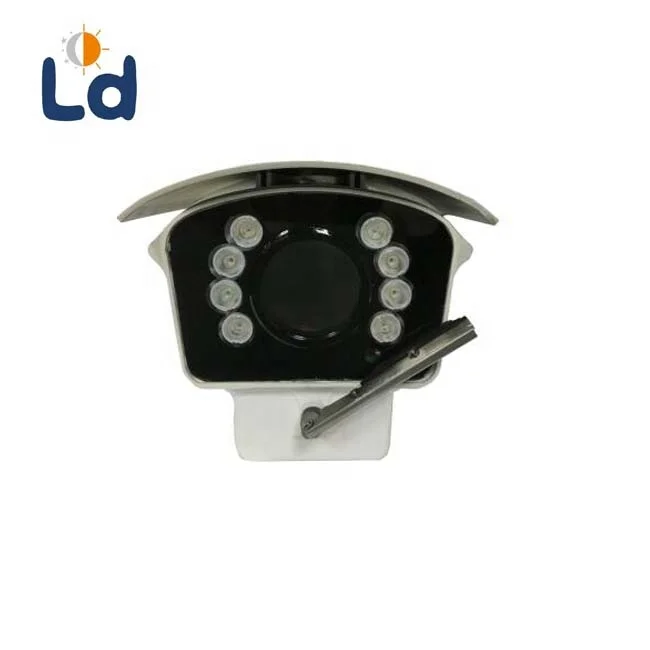

IP66 Dual Voltage S LD132 Aluminium Heavy CCTV Camera Housing with Infrared LED and wiper

Quantity of LED: 8PCS 2W High Power IR LED
Wavelength: 850nm
Beam Angle: 15°/ 30° for optional
IR Distance: 140m-100m
Day/night Switch: CDS 10-20lux ±10% (adjustable)
Input Voltage: AC24V
Output Voltage: DC12V 1000mA
Power Consumptionv  16W (adjustable)
Panel: Tempered glass panel
Housing: Aluminum Die Casting Housing
Bracket: Bottom mount bracket
Working Temperature: -40℃ to +60℃(-50℃ to +60℃ with heater)
Cooling: Air cooling internal circulation
Blower: Included
Protection Level: IP66
Color: Beige
N.W: 3.3KG
G.W: 3.85KG

Model for Selection

Model                Beam Angle    *IR Distance(850nm)
S-LD132-15B           15°                      140m
S-LD132-30B           30°                      100m

*IR distance is tested by SONY 1/3" CCD Camera with 0.01lux.
*To achieve the distance needed, please pay attention to your camera specification and lens before purchase. It is normal phenomenon that distance may vary due to different cameras and lens.
