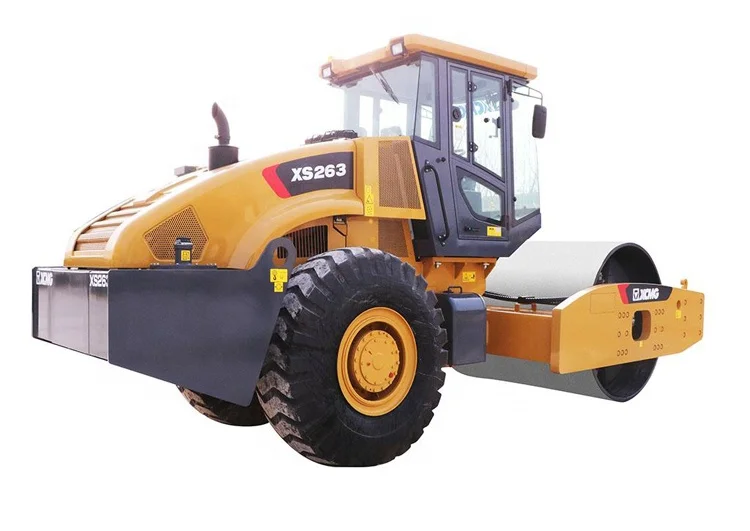

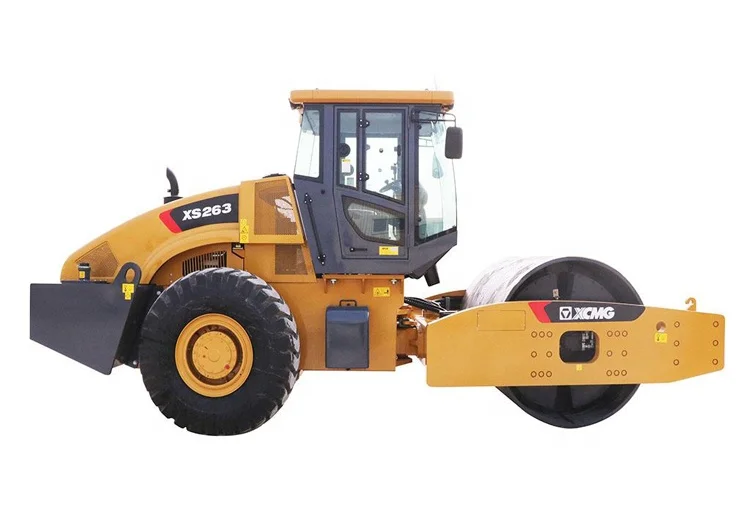

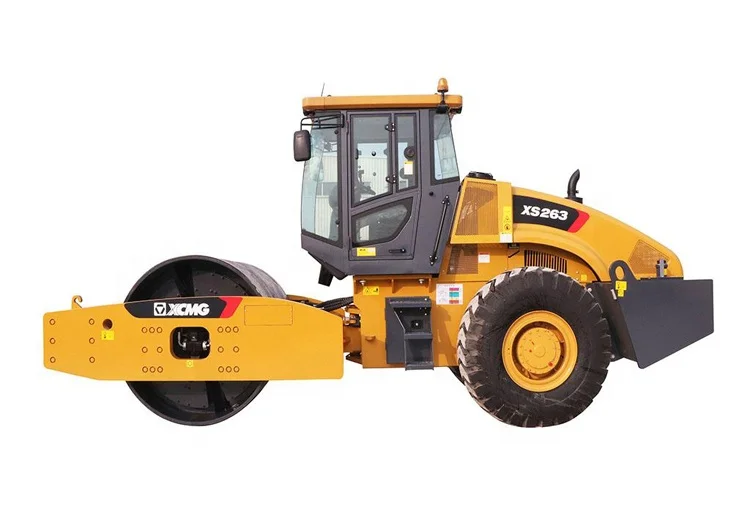

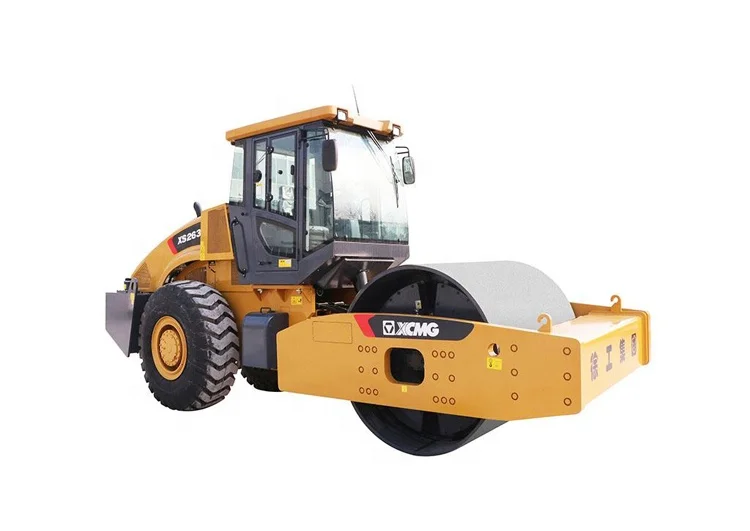

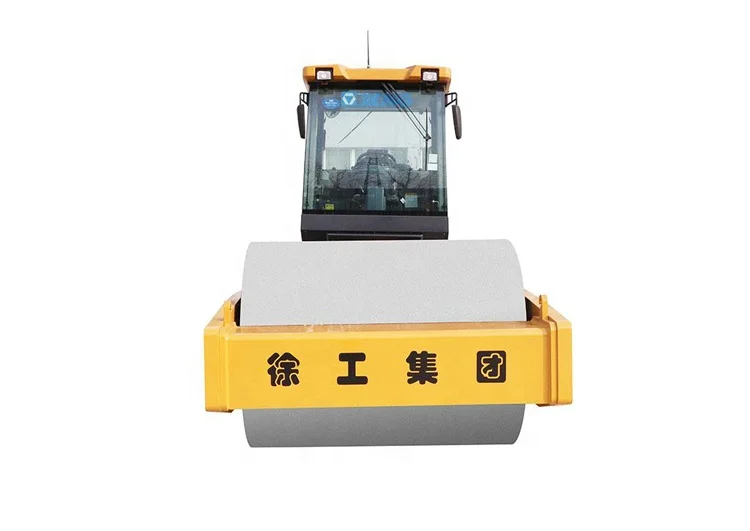

Soil Compaction Equipment 26 ton Roller XCM XS263

Product Overview

Description



Single drum vibratory roller XCM XS263

Main parameter:

Operating weight :26 tons ,

Vibrating frequency 27/32 Hz

Weight at drum: 17 tons ,

Drum width:2130 mm,



Detailed configuration

* Deutz BF6M1013EC engine ,

* DANA made axle ,

* Saul hydraulic system ,

*Air conditioner driving cabin ,

* water spraying,



Advantages

Low noise .Maximum visibility. Comfortable driving cabin .

Adopt top brand engine , pump ,vibratory bearing .Great compaction performance .



Optional  parts :

*Weld Lug wheel ,



Item	Unit	XS263
Static linear load	N/cm	784
Vibrating frequency	Hz	27/32
Nominal amplitude(High/Low)	mm	1.9/0.95
Centrifugal force High/Low Amp	kN	410/300
Drum width	mm	2130
Minimum ground clearance	mm	510
Driving
Theoretical gradeability	%	50
Min.Outer turning radius	mm	6600
Wheel base	mm	6600
Weight
Operating weight	kg	26000
Weight at driving wheel	kg	9000
Weight at drum	kg	17000
Dimension
L*W*G	mm	6690*2430*3330
Engine Brand		Deutz
Model		BF6M1013EC
Rated rotating speed	r/min	2200
Rated power	kW	160
Rated oil wear	g/kW·h	228
