Anti sticking 0.10mm thick ptfe woven glass fabric(F4B N)0.10mm ptfe woven glass fabric ptfe woven glass fabric
- Category: >>>
- Supplier: Taizhou Wangling Insulating Materials Factory
Share on (60819418943):
Product Overview
Description

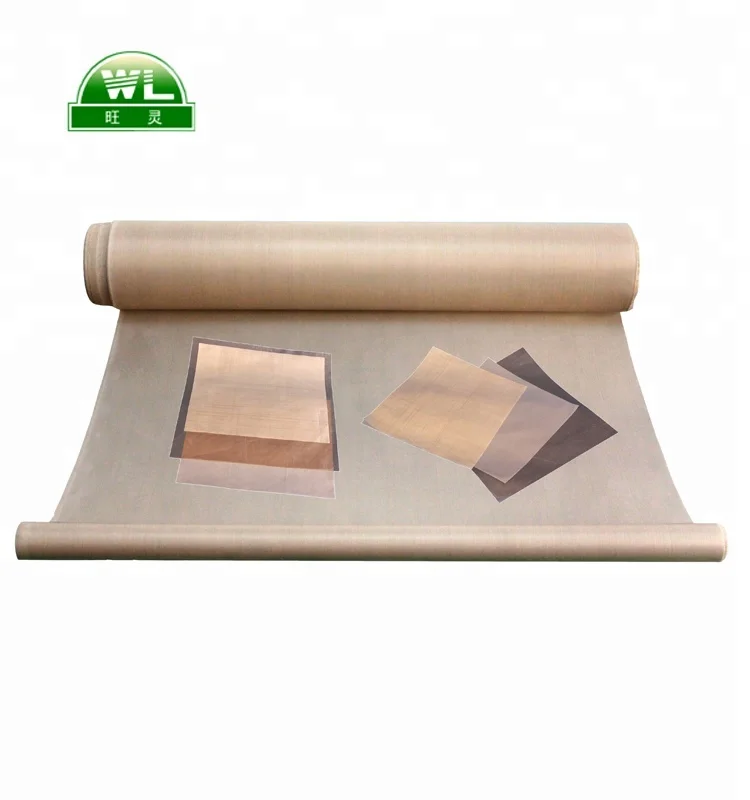

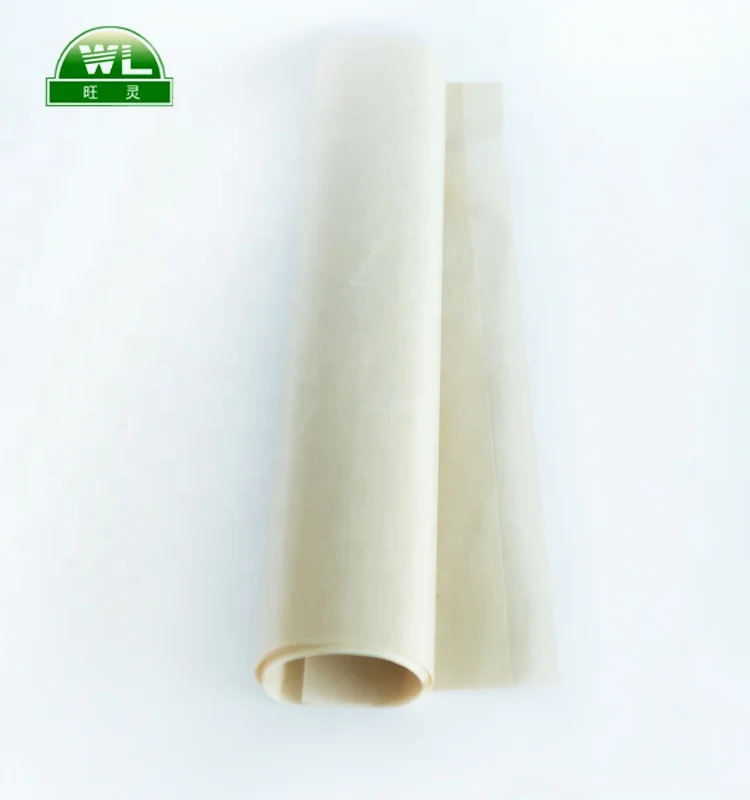

Anti-sticking ptfe woven glass fabric(F4B-N)
1.Description:
This product is the raw material for the ptfe woven glass fabric copper-clad laminates.The technological process of manufacturing the microwave dielectric material is dipping treatment of the ptfe resin on the alkali-free woven glass fabric,drying,baking and sintering.This product is characterized by some features,such as heat-resistance,insulation,low loss,excellent electrical performance,non-sticky performance.In the area of microwave devices,it can be used as the bonding sheet for the manufacturing of multilayer printed circuit board.
Product code des
2.Specifications:
Product name | Ptfe woven glass fabric |
Types | F4B-N |
Appearance | Smooth and neat surface,uniform glue discharge and mechanical damage. |
Dimensions (mm) | Length: 1-200m |
| Width: 900-1260mm | |
Thickness and Tolerance(mm) | 0.10±0.015 |
Tensile strength(N) | Test condition:Tensile machine 8±5% |
Dissipation Factor(tgδ) | Test condition:1GHZ ≤2×10-4 |
3.Mechanical,chemical,electrical property
