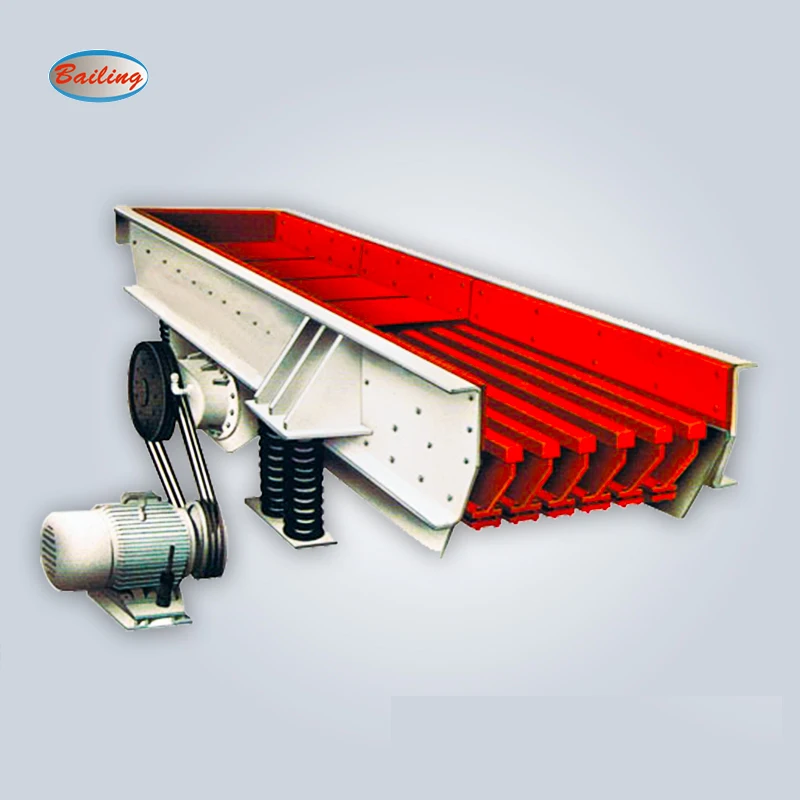

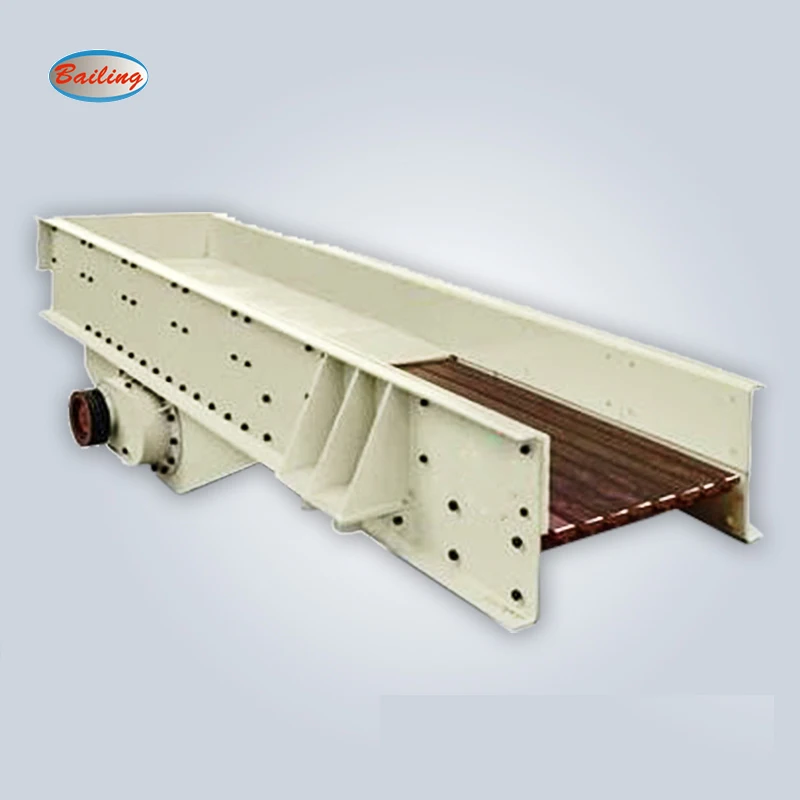

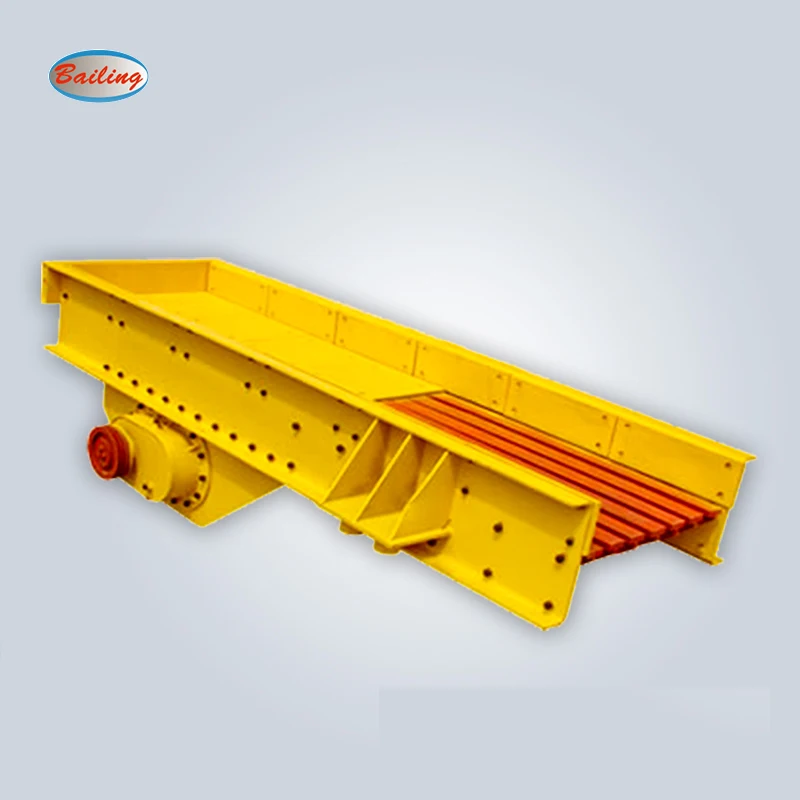

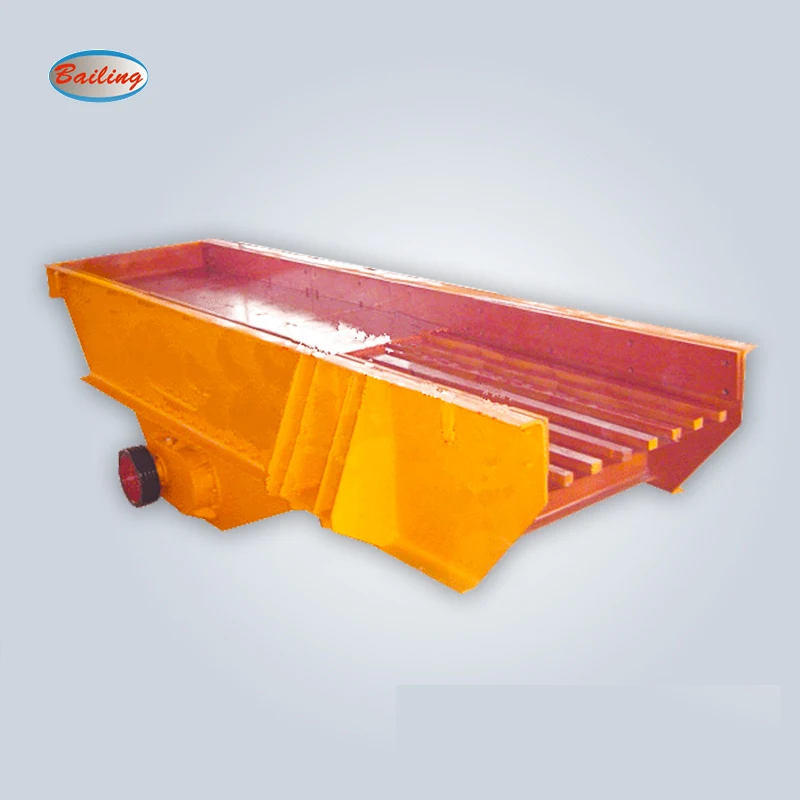

Electromagnetic Vibrating feeder
- Category: >>>
- Supplier: Henan Bailing Machinery Co. Ltd.
Share on (60819422706):
Product Overview
Description
GZD vibrating feeder can uniformly and quantitatively and continuously feed the block and granular materials from the storage bin to the receiving device, and continuously and evenly feed the crushing machine in the gravel production line and the material can be roughly sieved.
⌈ Application range ⌋:Widely used in metallurgy, coal mining, mineral processing, building materials, chemicals, abrasives and other industries in the crushing, screening and joint operations.
⌈ Applicable material ⌋:Granite, marble, basalt, limestone, quartz, river pebbles, copper ore, iron ore, etc.
|

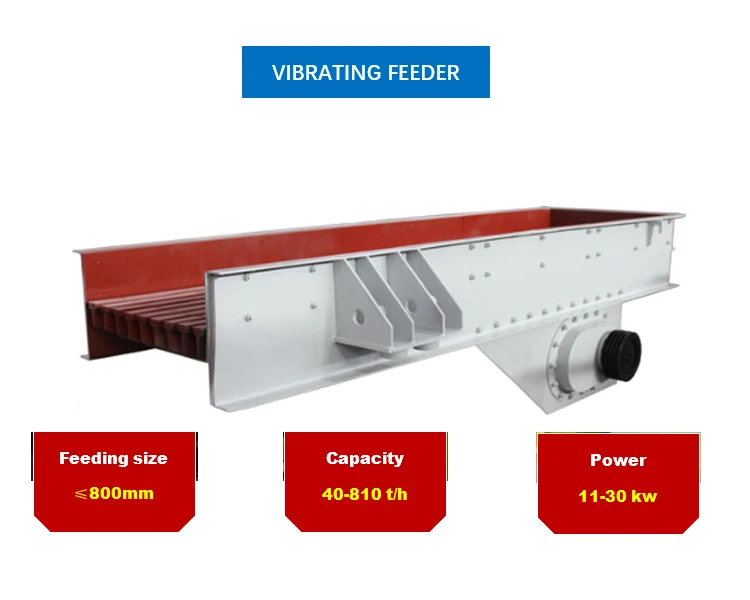

| Model | Feeding size(mm) | Capacity(t/h) | Power(kw) | Weight(t) | Over dimension(mm) |
| GZD-850*3000 | ≤500 | 40-100 | 11 | 3.1 | 3100*1790*1610 |
| GZD-960*3800 | ≤500 | 120-210 | 11 | 4.22 | 3840*1960*1620 |
| GZD-1100*4200 | ≤600 | 150-350 | 15 | 4.68 | 4380*2100*1670 |
| GZD-1200*4200 | ≤650 | 270-380 | 18.5 | 5 | 4380*2260*1690 |
| GZD-1250*4900 | ≤750 | 350-530 | 22 | 6.2 | 5200*2370*1720 |
| GZD-1500*6000 | ≤800 | 450-810 | 30 | 7.1 | 6090*2570*2100 |

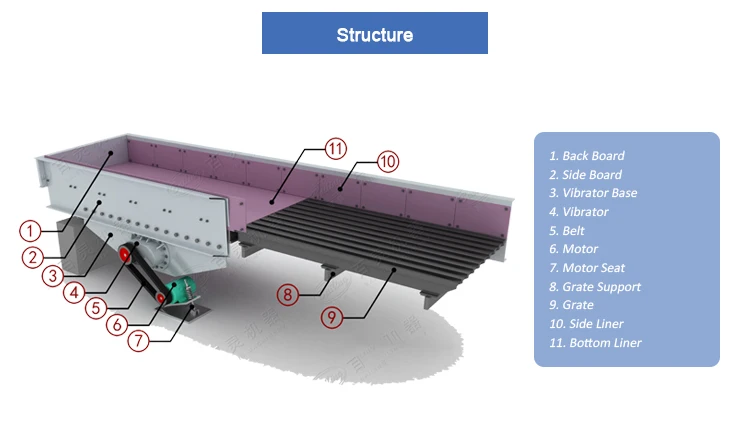

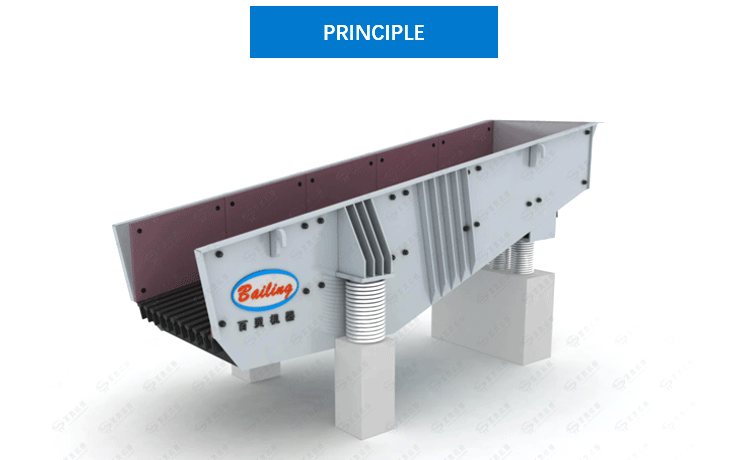

The motor drives the drive shaft through the V-belt, the gear on the drive shaft meshes with the passive shaft to start rotating. The main and passive shafts reverse rotate at the same time, so that the tank vibrates and the material continuously flows to achieve the purpose of conveying materials.
Company profile
FAQ
Q: 1.Are you factory or trade company?
A:We are factory.
Q: 2. To which country your products have been exported before?
A: Our products have been sold to America, Brazil, Chile, Sudan, Zambia, Kenya,Turkey, Indonesia,Malaysia, Philipines, Australia, India and so on.
Q: 3. How will you help the customer install the equipment?
A: Our senior engineer will guide the installation and commissioning as well as the initial production at
Q: 4. How about the wear parts supply?
A: We offer wear parts to our customer with our most favorable price. If there are problems youcould not handle, we will send our technicians to your place and you are therefore, responsible for all thecost involved.
Q: 5.What about the payment method?
A:T/T, Paypal, Western Union, L/C is available
Q: 6.What about the Shipment?
A:We'll choose proper transportation mode based on the weight of goods, usually arrange shipment such as DHL,FEDEX,TNT or UPS.
Q: 7.What about after-sale service?
A:12 months warranty for all kinds of products;
