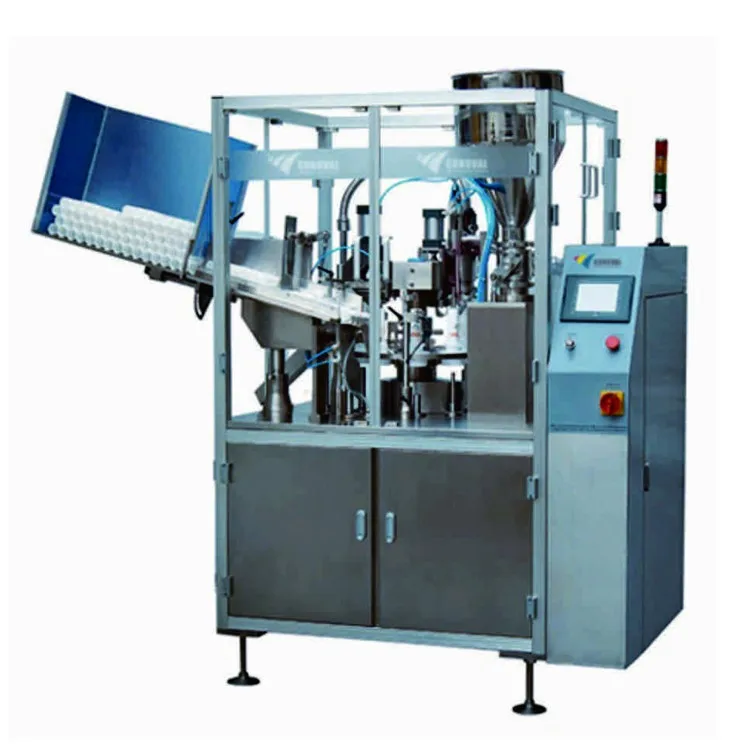

Plastic Laminated aluminum tubes filling and sealing machine suppository machine
- Category: >>>
- Supplier: Liaoyang Conoval Technology Co. Ltd.
Share on (60819427912):
Product Overview
Description
Introduction
Tube material: plastic tubes, laminated aluminum tubes.

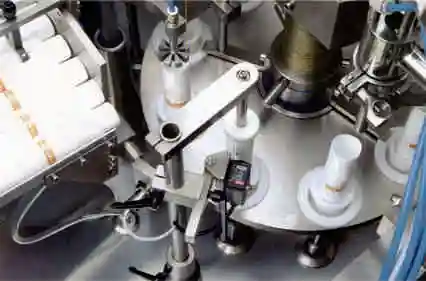

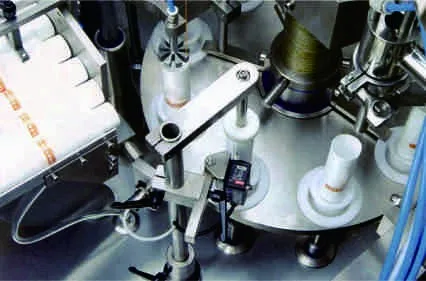

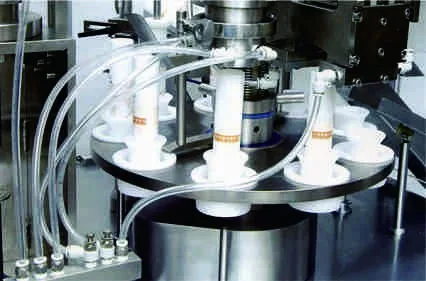

Compact design, with color touch screen and PLC control system, convenient, visualized and reliable. Tube feeding, marking identification, filling, hot air sealing, code printing, trimming and ejecting out the tubes conducted by automatic system.
The speed is adjustable and controlled by frequency converter. With safety device, the machine is shut down when the door is opened, with filling quantity counting function.
The material that contacts feed is made of 316L stainless steel, clean, sanitary and conforming with GMP. With easy and quick adjustment, it is suitable for filling all sizes of plastic tubes, laminated aluminum tubes.
Shapes of sealing: With different shape sealing component, different shapes of sealing can be achieved with one set of tube filling and sealing machine.
Application: It is widely used in the industries of pharmaceutics, foodstuffs, cosmetic and daily chemicals . Suitable for filling all kinds of pasty and viscous fluid and the materials alike, into plastic tubes, laminated aluminum tubes and then internally heating tubes, sealing and printing lot number.
Technical parameter
Tube diameter (mm): | Φ 10-50 (customizable) |
Tube length (mm): | 20-260 (customizable) |
Filling volume (ml): | 1.1 kw |
Filling accuracy: | ≤±1% |
Output (pc/h): | 1800-3600 |
Air supply: | 0.55-0.65mpa, 0.1m3/min |
Motor power: | 1.1kW, 380V/220V, 50Hz (customizable) |
Overall dimension(mm): | 2050*900*1980mm |
Machine weight(kg): | 750kg |
Our Service
Act as a good adviser and assistant of clients to enable you get rich and generous returns on your investments.
Pre-sale service
1. Introduce the product to the customer in detail, answer the question raised by customer carefully;
2. Make plans for choice according to the needs and special requirements of users in different sectors.
Selling service
1. Ensure product with high quality and pre-commissioning before delivery;
2. Delivery on time;
3. Provide full set of documents as customer's requirements.
After-sale service
Provide considerate services to minimize clients' worries.
1. Assist clients to prepare for the first construction scheme;
2. Install and debug the equipment;
3. Train the first-line operators;
4. Examine the equipment;
5. Take initiative to eliminate the troubles rapidly;
6. Provide technical support;
7. Establish long-term and friendly relationship.
Pre-sale service
1. Introduce the product to the customer in detail, answer the question raised by customer carefully;
2. Make plans for choice according to the needs and special requirements of users in different sectors.
Selling service
1. Ensure product with high quality and pre-commissioning before delivery;
2. Delivery on time;
3. Provide full set of documents as customer's requirements.
After-sale service
Provide considerate services to minimize clients' worries.
1. Assist clients to prepare for the first construction scheme;
2. Install and debug the equipment;
3. Train the first-line operators;
4. Examine the equipment;
5. Take initiative to eliminate the troubles rapidly;
6. Provide technical support;
7. Establish long-term and friendly relationship.
Packaging
Our Company
As the industry chain of machinery manufacturing is being worldwide comprehensively upgraded, the future production operations will be more environmentally friendly, energy efficient and intelligent. CONOVAL insights into the continuous improvement of customers' demand and we are committed to providing one-stop service for consulting, design, planning, manufacturing, installation, commissioning, after-sales and follow-up upgrades for customers in the pharmaceutical, chemical and food industries. LIAOYANG CONOVAL TECHNOLOGY CO., LTD. is a leading manufacture and engineering service provider of pharmaceutical machinery, packaging machinery and other production lines belongs to CONOVAL INC.
