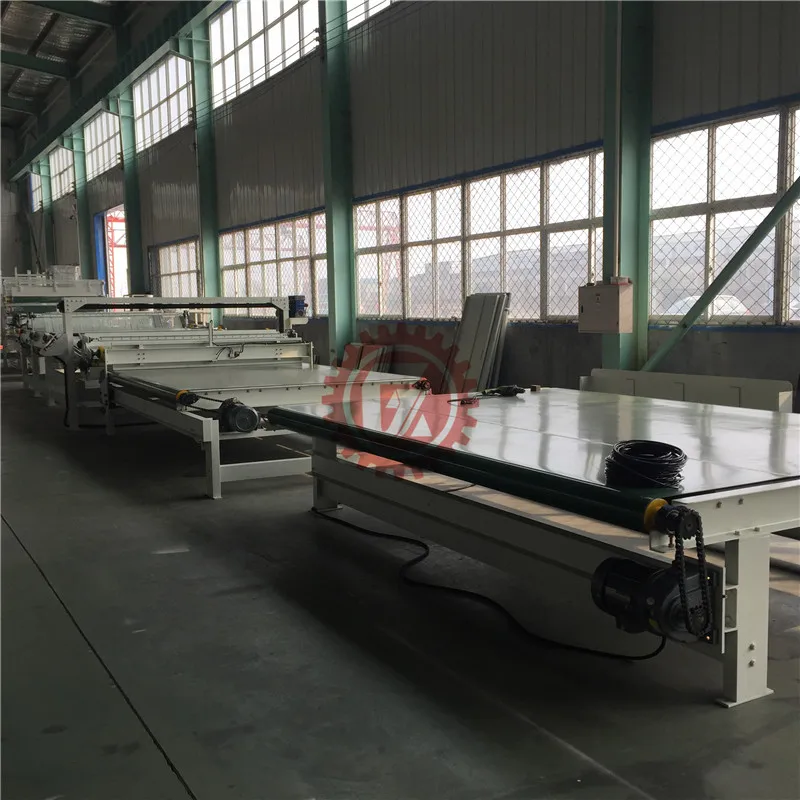

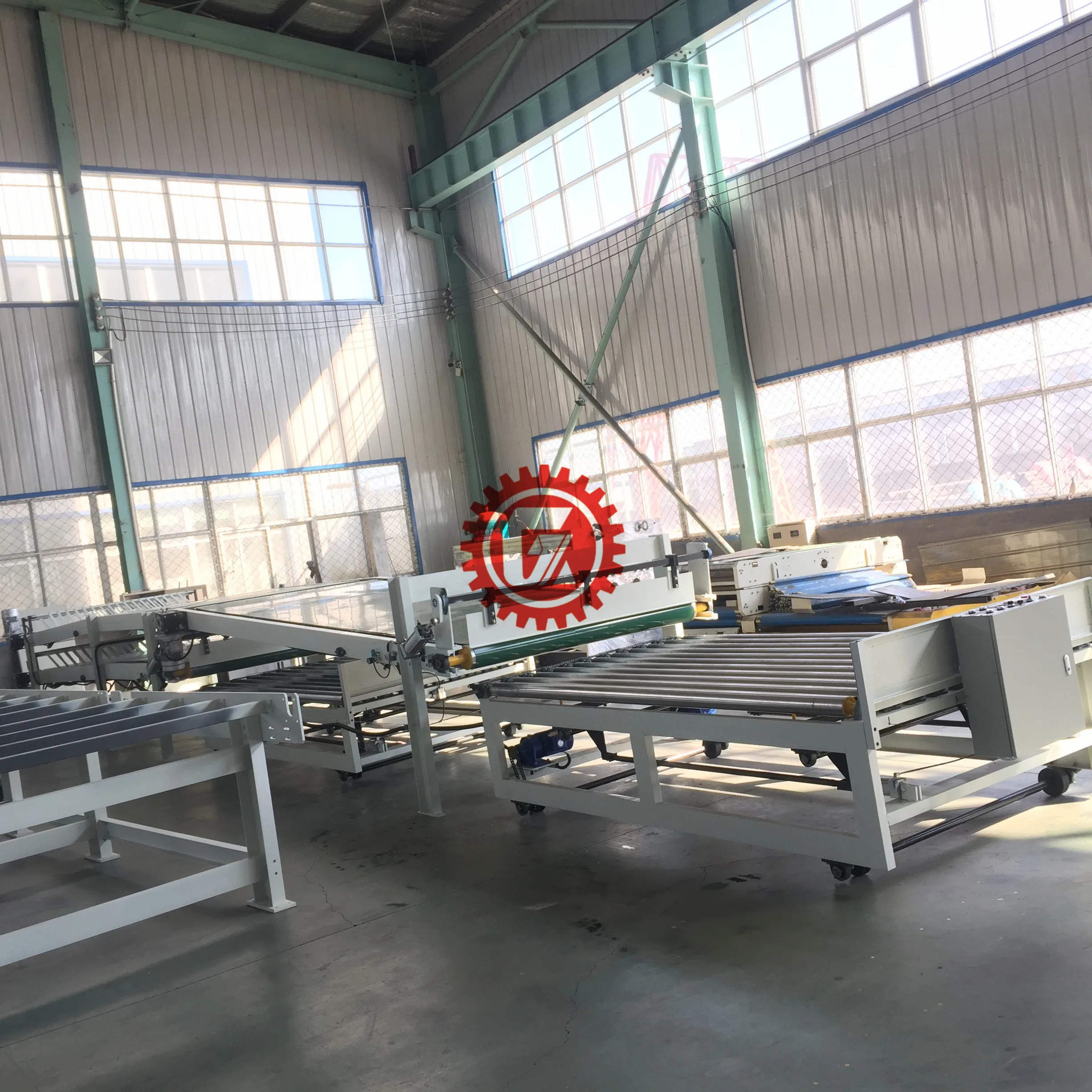

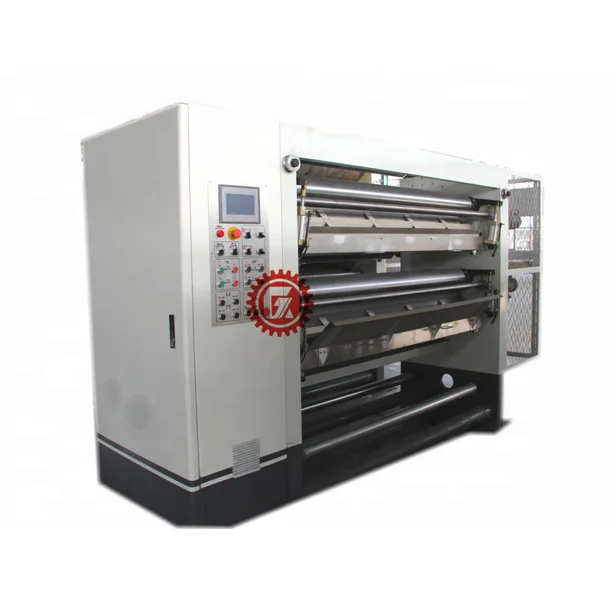

WJ 150 1800 type three layer corrugated roller cardboard production line

Main Features

1) Adopting advanced world famous brand components in pneumatic parts ,electric parts and operation parts.

2)Active force variable frequency motor drive, energy efficient, low failure rate.

3)Glue wide electric adjust to changes in the width of the paper used.

4)Power and operating parts with a safety net to ensure the safety of personnel in the operation of machinery.

5)Double facer drive roller coated with attached wear-resistant rubber ,showed a herringbone structure,With a high, ensure smooth cardboard output.

hydraulic shaftless mill roll stand

adopt hydraulic drive to complete the paper clamping, loosen, remove for the medium, translation left and right and others,the lifting of the paper adopts hydraulic drive.

brake adjustable adopts multipoint braking system.

every stand matched two sets paper car , and they can paper on the both sides at the same time.

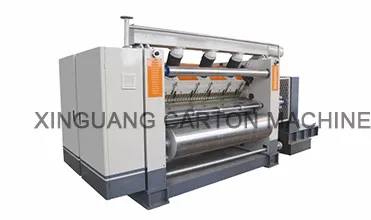

paper preheater

preheat roller accord the pressure container national standards,and enclose the pressure container certificates and inspection certificate.

Each roller surface after grinding precision grinding and dealing with hard chrome plating, Surface friction is small, durable.

Electromotion adjustment angle, and angle can rotation adjustment the preheat area in the range of 360°.

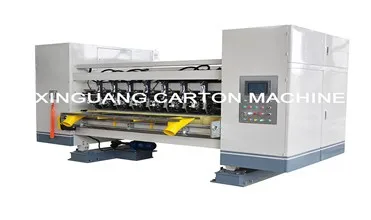

NCBD thin blade slitter scorer

(Zero Pressure Line)

Synchronous servo motor control row of knives, cable. Automatic reset. Precise dimensions.change order time 3-8 seconds,the two machines can be achieved with no slow down immediately for a single memory of 999 order,non-stop automatic change order or manual change order can be realized.

Three kinds of pressure line forms:Convex against the concave(three layers line),Convex against the concave(five layers line),Convex against Flat,Three kinds of electric pressure line forms can be converted.Crimping round shades by computer control,linear, and easy to bend.

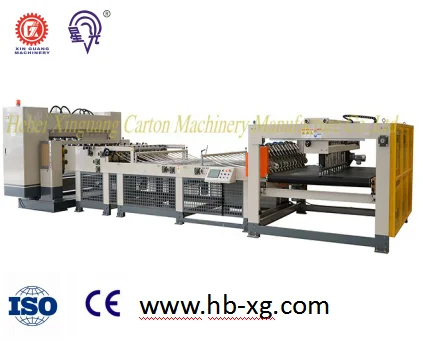

NC cutter helical knives

It can store 200 units orders,replace the cutter specifications quickly and accurately,changing orders without stop,And enables networked computers to facilitate production management.

Knife shaft drive gears are precision forged steel induction hardening, backlash-free transmission, advanced keyless connection, high transmission accuracy.

Cutting machine adopts inlaid front steel blade knife spiral structure, serrated knife. scissors, shears, shear force, long blade life.
