Product Overview

Description


Geotube Description
\t
Geotube technology introduction

Geotube technology integrates water inlet, separation, filtration and sludge dewatering and solidification treatment. It is equipped with automatic management system. Compared with traditional technology, it has more stable processing performance, simpler process, superior effect, and more competitive total investment and processing cost.


\t
Geotube basic technical principle
\t
Using the equivalent pore diameter of the woven geotextile (the equivalent pore size has a filtering structure) and the liquid pressure in the geotube, the two dynamic factors are used to promote the separation of the mud and water by adding a water purification agent. The water seeps out of the tube bag, and the sludge remains in the tube. Inside the bag. The effluent water fully meets the relevant emission standards and can be recycled.
\t
Geotube Technical process flow
\t
       Filling               ----------->
\t
        Dehydration         ---------->
\t
      Consolidation
\t
(1).Filling: the waste water or sludge is pumped into the geotube.
\t

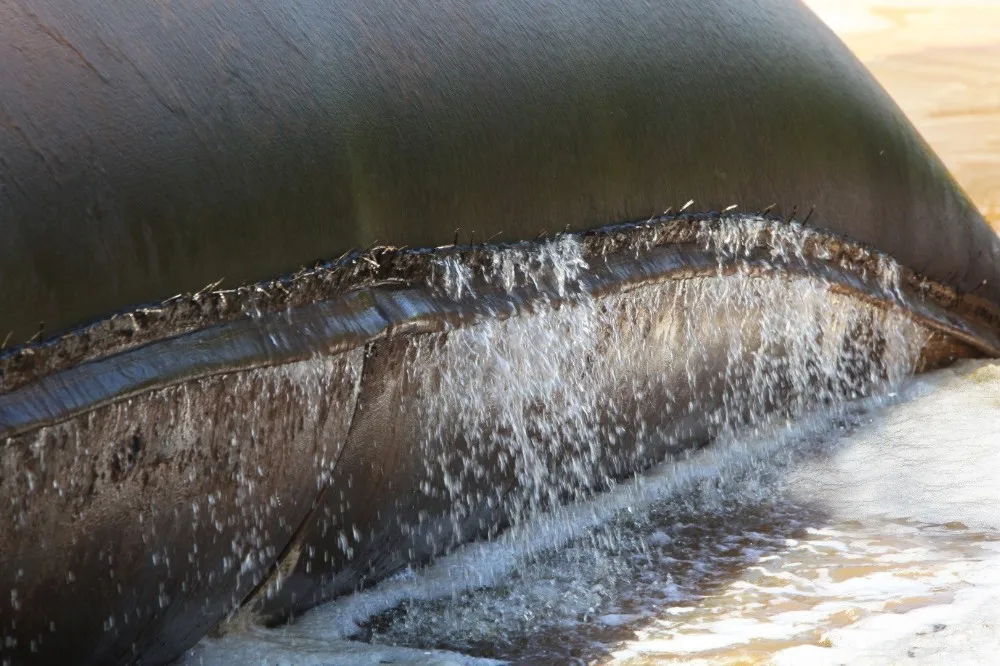

(2).Dewatering:the qualified water seeping out of geotube, more than 99% of the solid particles are kept in the geotube.
\t

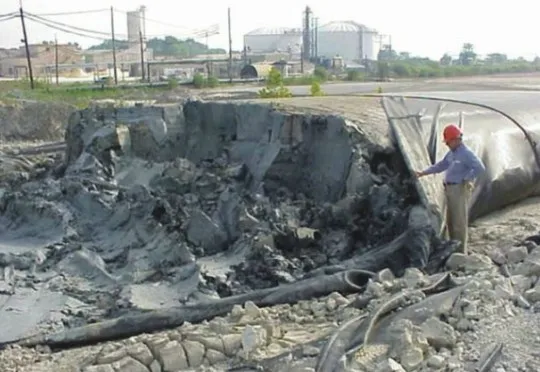

(3).Consolidation: solid particles are retained in geotube.
\t
Geotube advantages

(1) Economy/energy saving: no need for large equipment and plant investment; only a small number of non-professional operators are required; sludge dehydration part does not need electricity, and it has the advantages of energy saving and emission reduction.


(2) Convenience: The diameter and length of the geotube can be adjusted according to needs, the plasticity is strong, and it can be stacked and transported conveniently.

(3) Environmental protection: Fully enclosed construction, almost no noise, not easy to cause secondary pollution.

(4) High efficiency: It can fully meet the treatment capacity of wastewater and sludge. The treatment volume can increase and decrease the number of tube bags according to the flow rate of the pump.

(5) Good volume reduction effect: The sludge volume can be reduced by more than 90% in one month, which is easier for subsequent removal and treatment.

(6) Wide application: Both large and small wastewater treatment projects and sludge dewatering projects can be used.

\t
                                                                      physical indicators of geotube
\t
Mass per unit area
\t
                 400g/m2
\t
                       500g/m2
\t
Breaking strength(CD)
\t
   ≥100kN/M
\t
         ≥130kN/M
\t
Breaking strength(MD)
\t
  ≥70kN/M
\t
         ≥90kN/M
\t
Elongation at break(CD)
\t
   ≤30%
\t
          ≤30%
\t
Elongation at break(MD)
\t
    ≤35%
\t
           ≤35%
\t
Tear strength (MD/CD)
\t
  ≥ 1.4kN
\t
          ≥ 1.7kN
\t
CBR Mullen burst strength
\t
   ≥10.5kN
\t
       ≥ 14.4kN
\t
         Sewing strength
\t
                          ≥70kN/M
\t
                            ≥90kN/M
\t
Sieve size O90(O95)
\t
     0.05MM~0.50MM
\t
Material
\t
 PP filament woven geotextile
\t
Anti-UV
\t
Yes
\t
Remarks: Special specifications can be customized
\t
Application of Geotube technology
\t
(1) Ecological restoration: dewatering and subsequent disposal of sediments from rivers, lakes, reservoirs, seaports, docks, etc.;

(2) municipal sludge treatment (water plant and sewage plant sludge), industrial sludge treatment (chemical, pharmaceutical, printing and dyeing sludge treatment);

(3)Agriculture, animal husbandry and fishery farms wash manure sewage treatment, plantation wastewater treatment, aquaculture bed waste treatment, etc.;

(4)power plant fly ash and low ash treatment, steel plant desulfurization and dedusting sludge, aluminum plant, ceramics plant sludge treatment;

(5)Wastewater treatment and waste recycling of mining and washing, and dewatering treatment of slurry in engineering construction;
\t

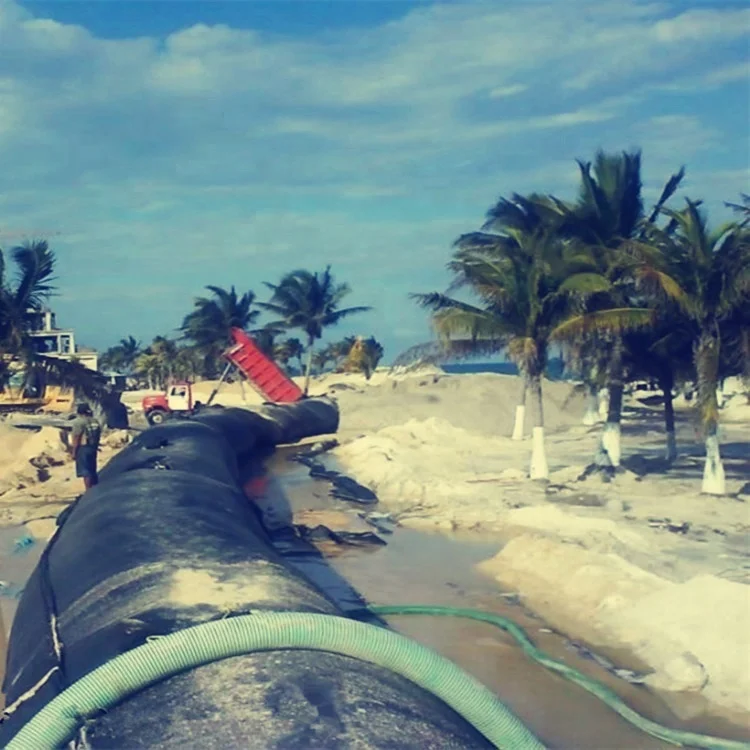

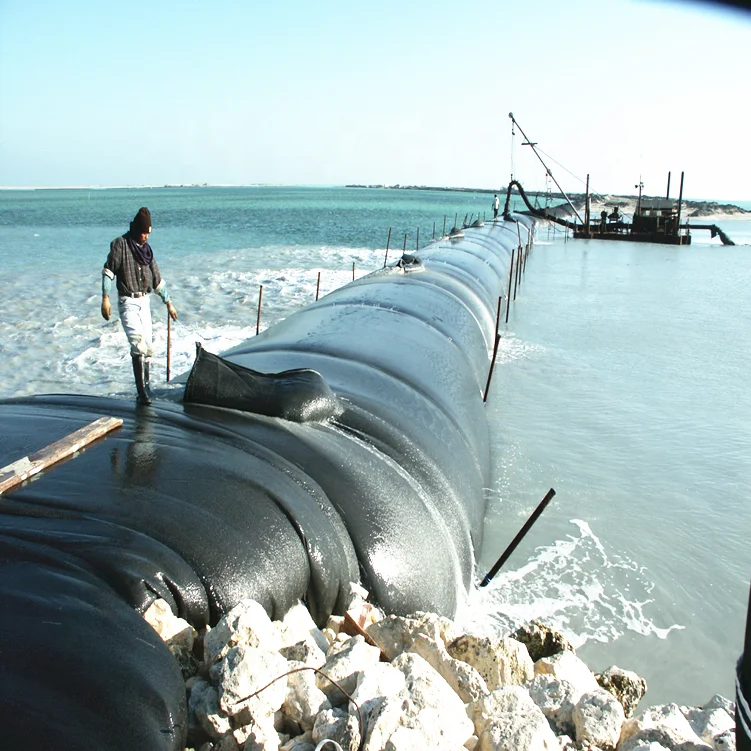

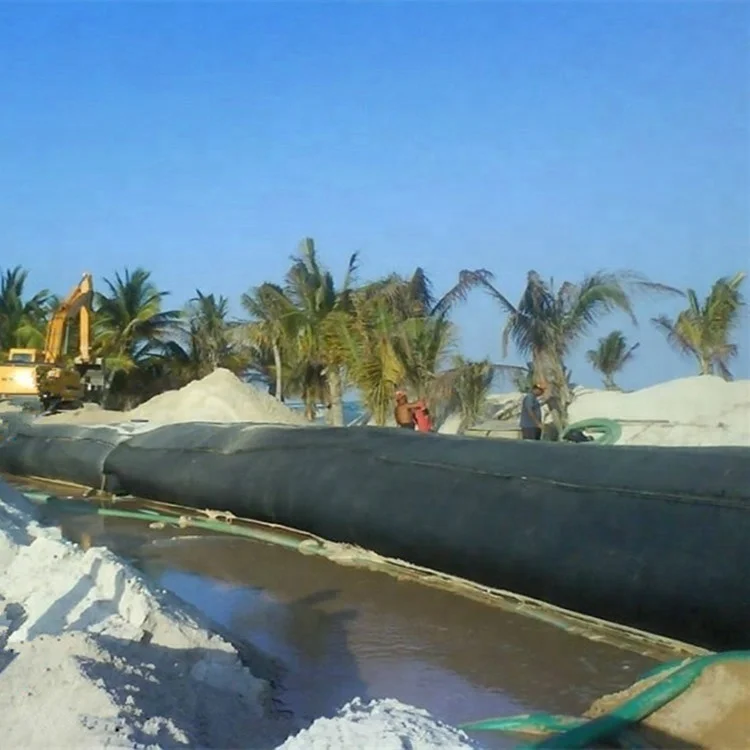

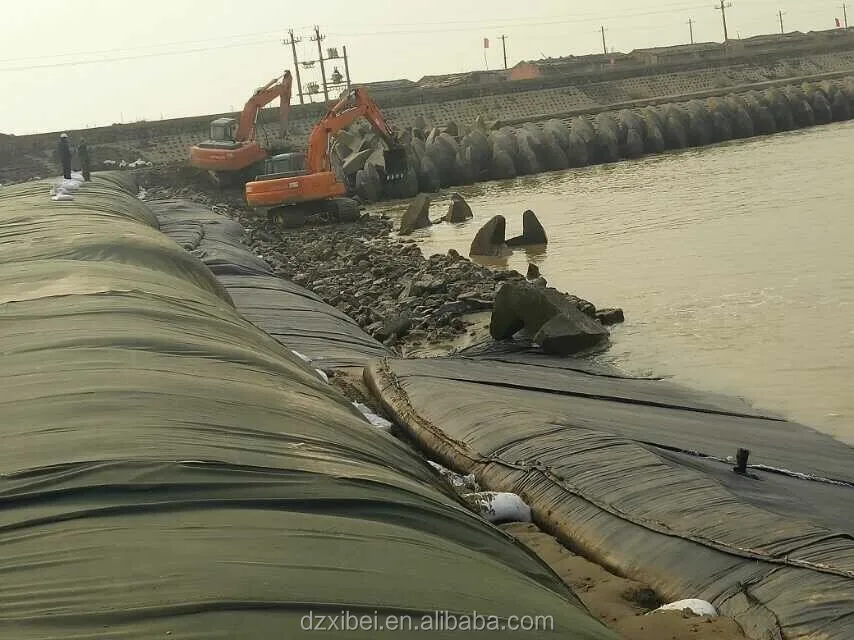

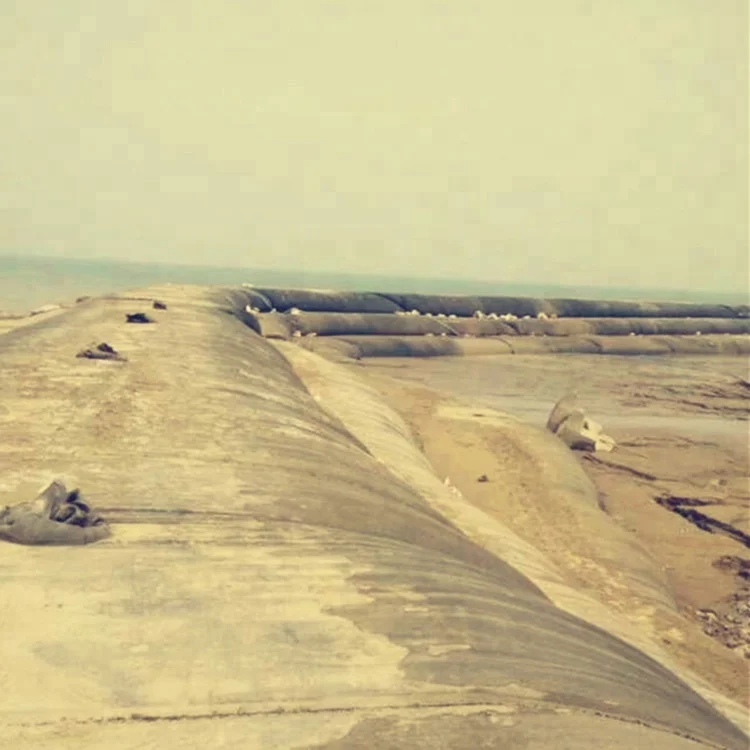

Geotube  used in shoreline restoration erosion control.
\t

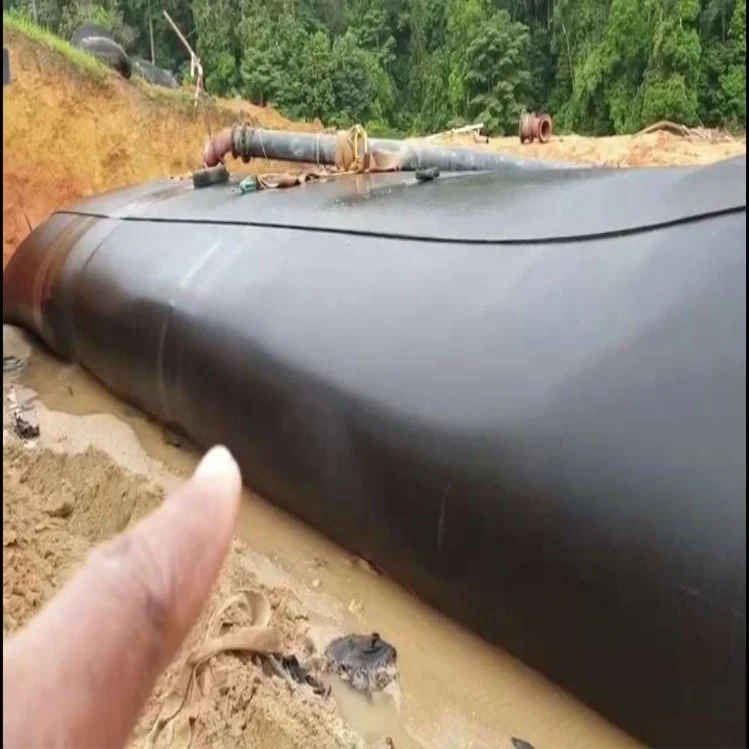

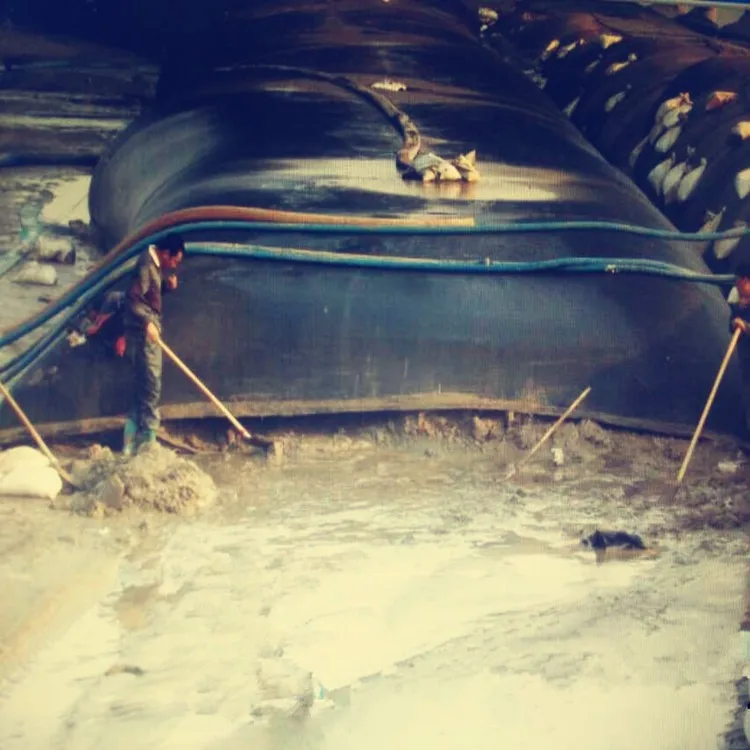

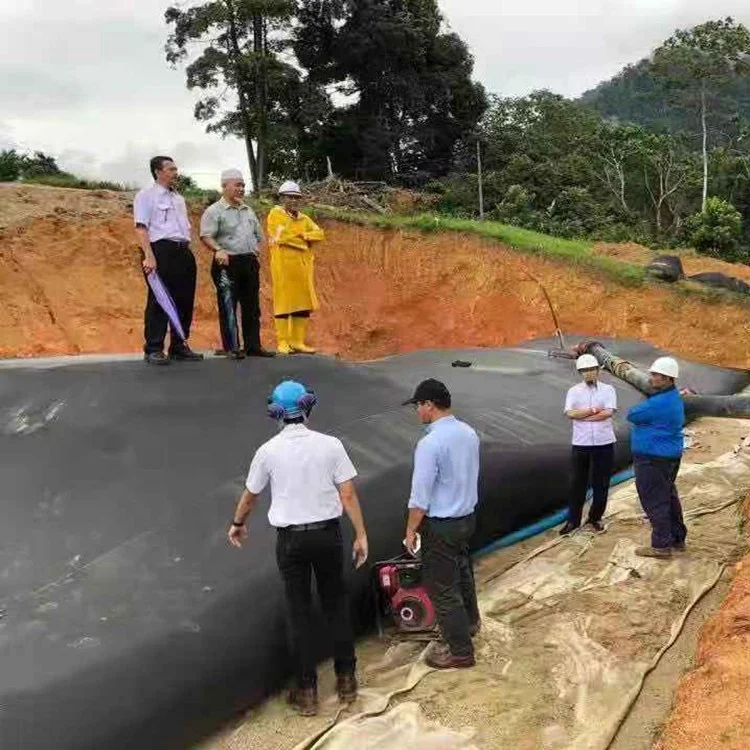

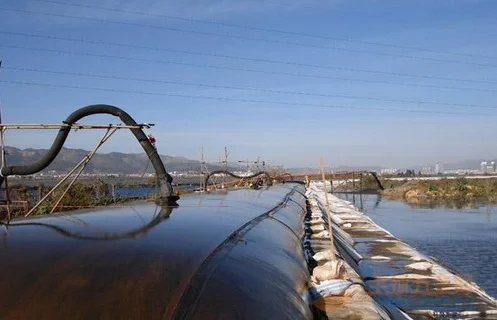

Geotube used in Sludge dewatering.

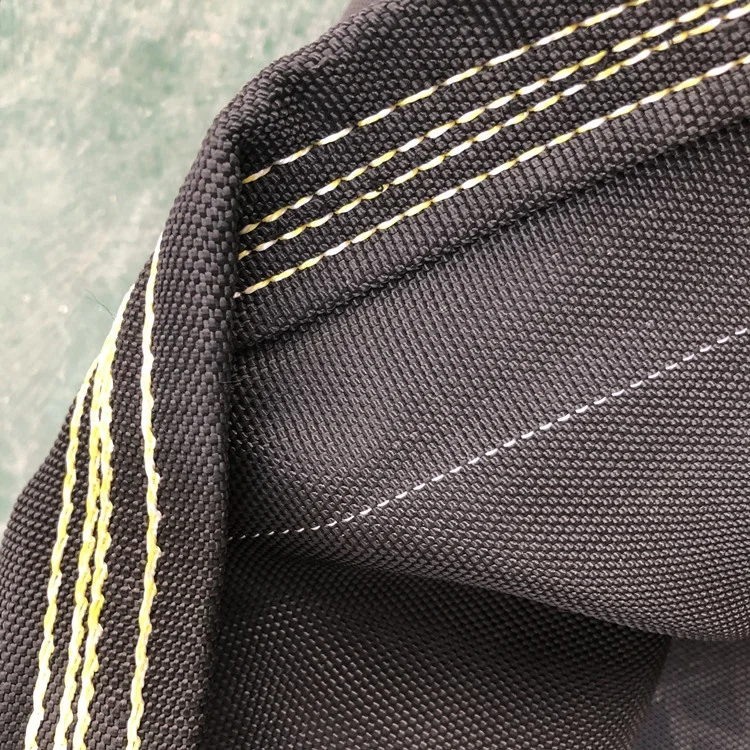

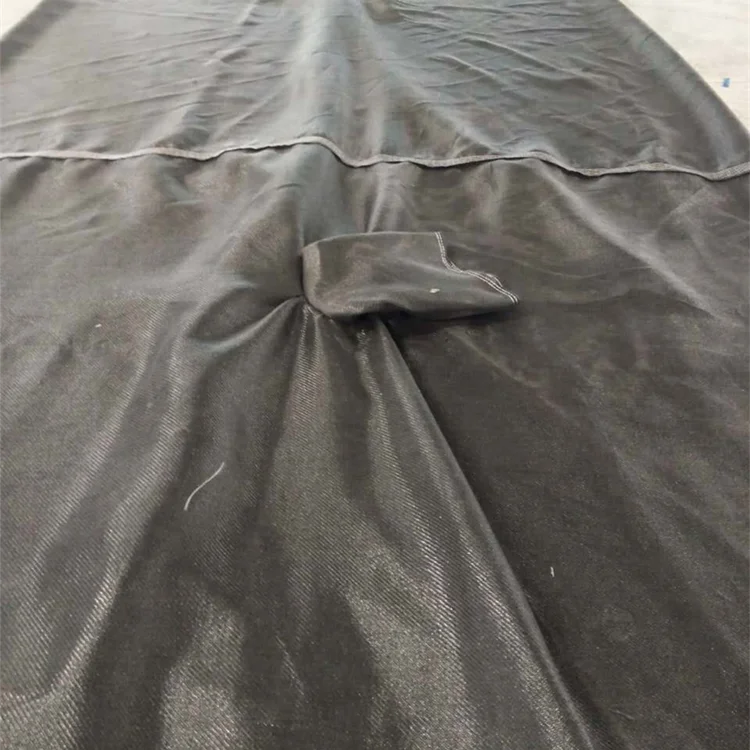

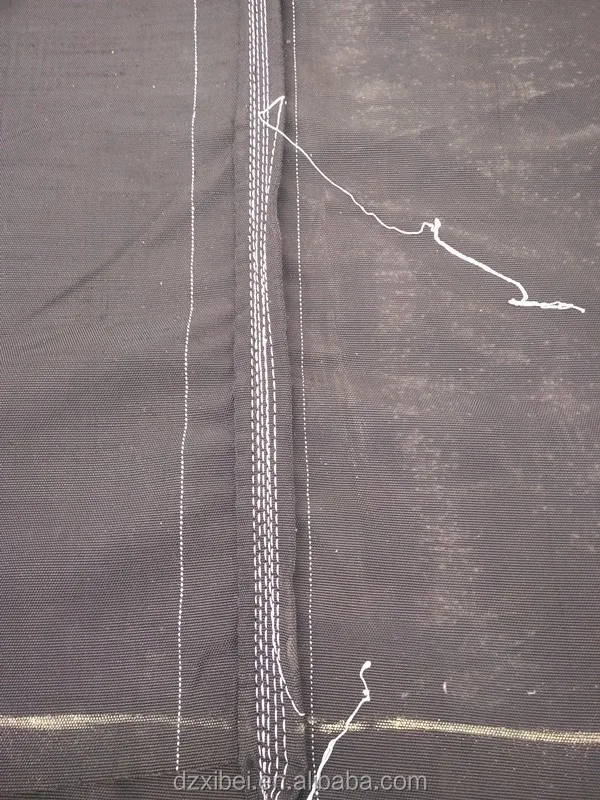

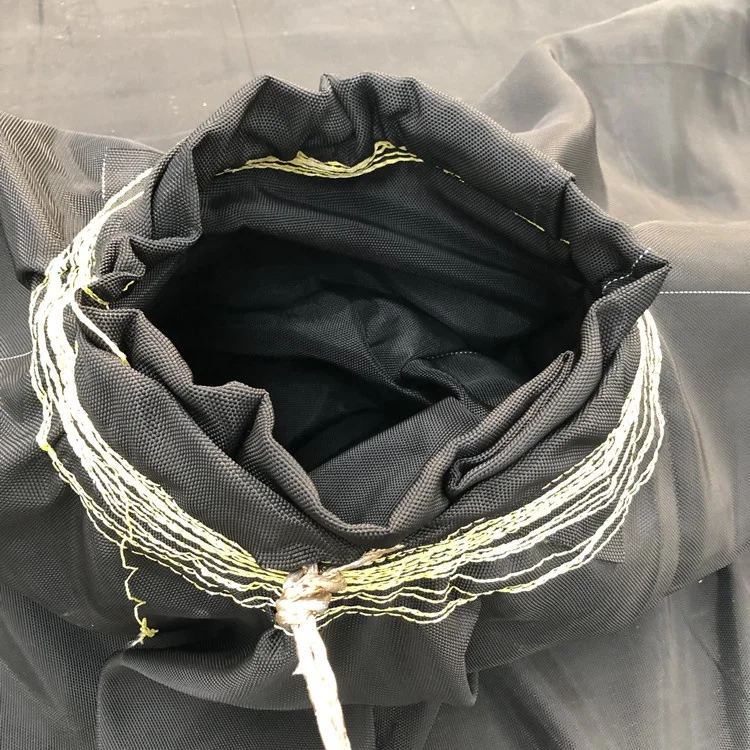

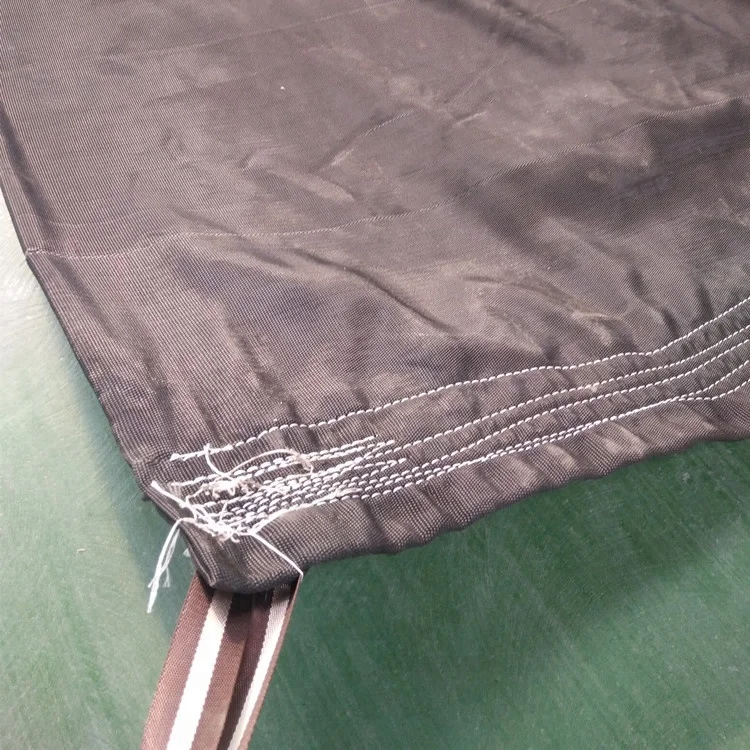

Geotube details

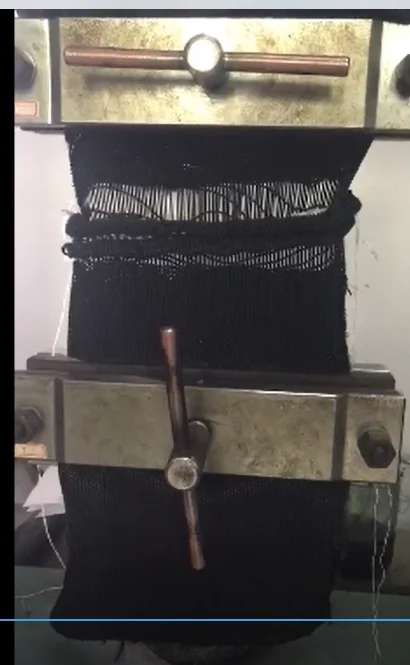

Geotube test
\t

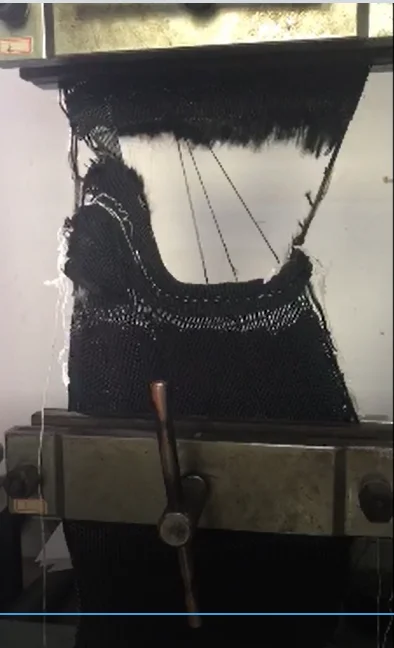

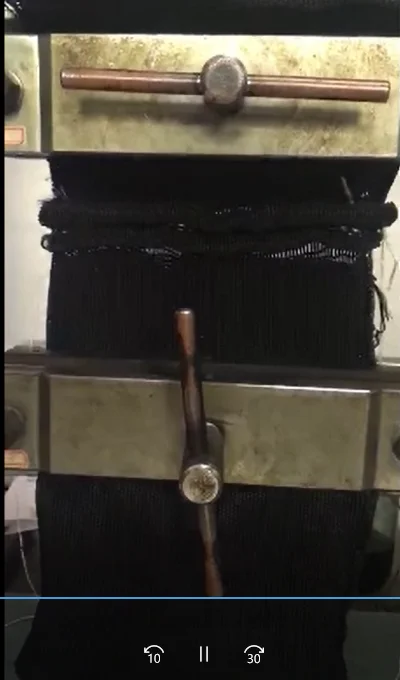

Sewing strength of geotube  test. The test results show that Sewing strength of  geotube is higher than breaking strength of  PP woven geotextile.

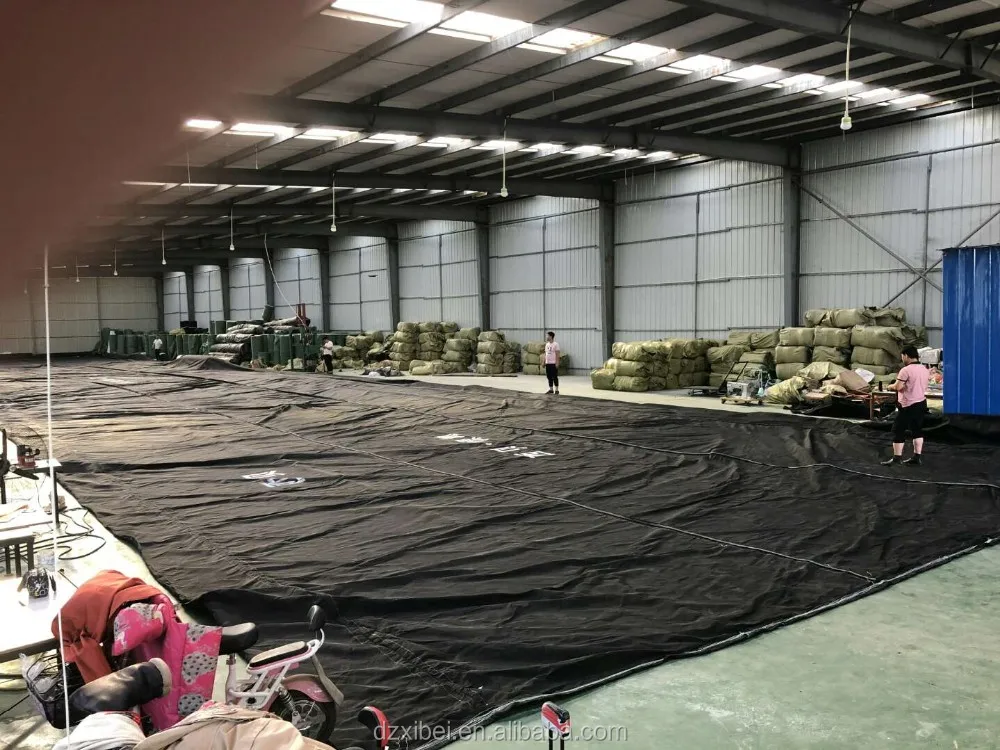

Geotube workshop
Packing & Delivery
\t

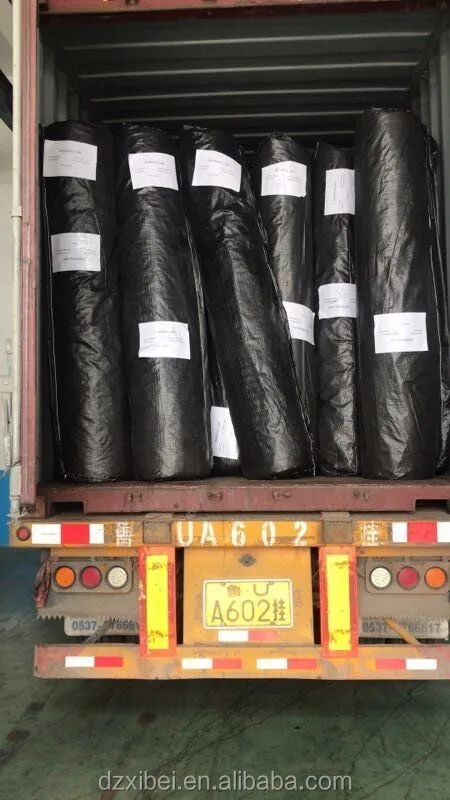

Packing in rolls with PP woven geotextile  or at your request.
FAQ

Q1. What is your terms of packing?

A: Generally, we pack our goods in PP woven geotextile. If you have legally registered patent,

we can pack the goods in your packaging after getting your authorization letters.


Q2. What is your terms of payment?

A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages

before you pay the balance.

Q3. What is your terms of delivery?

A: EXW, FOB, CFR, CIF.

Q4. How about your delivery time?

A: Generally, it will take 10 to 15 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.

Q5. Can you produce according to the samples?

A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.

Q6. What is your sample policy?

A: We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and

the courier cost.

Q7. Do you test all your goods before delivery?

A: Yes, we have 100% test before delivery

Q8: How do you make our business long-term and good relationship?

A:1. We keep good quality and competitive price to ensure our customers benefit ;

2. We respect every customer as our friend and we sincerely do business and make friends with them,

no matter where they come from.
