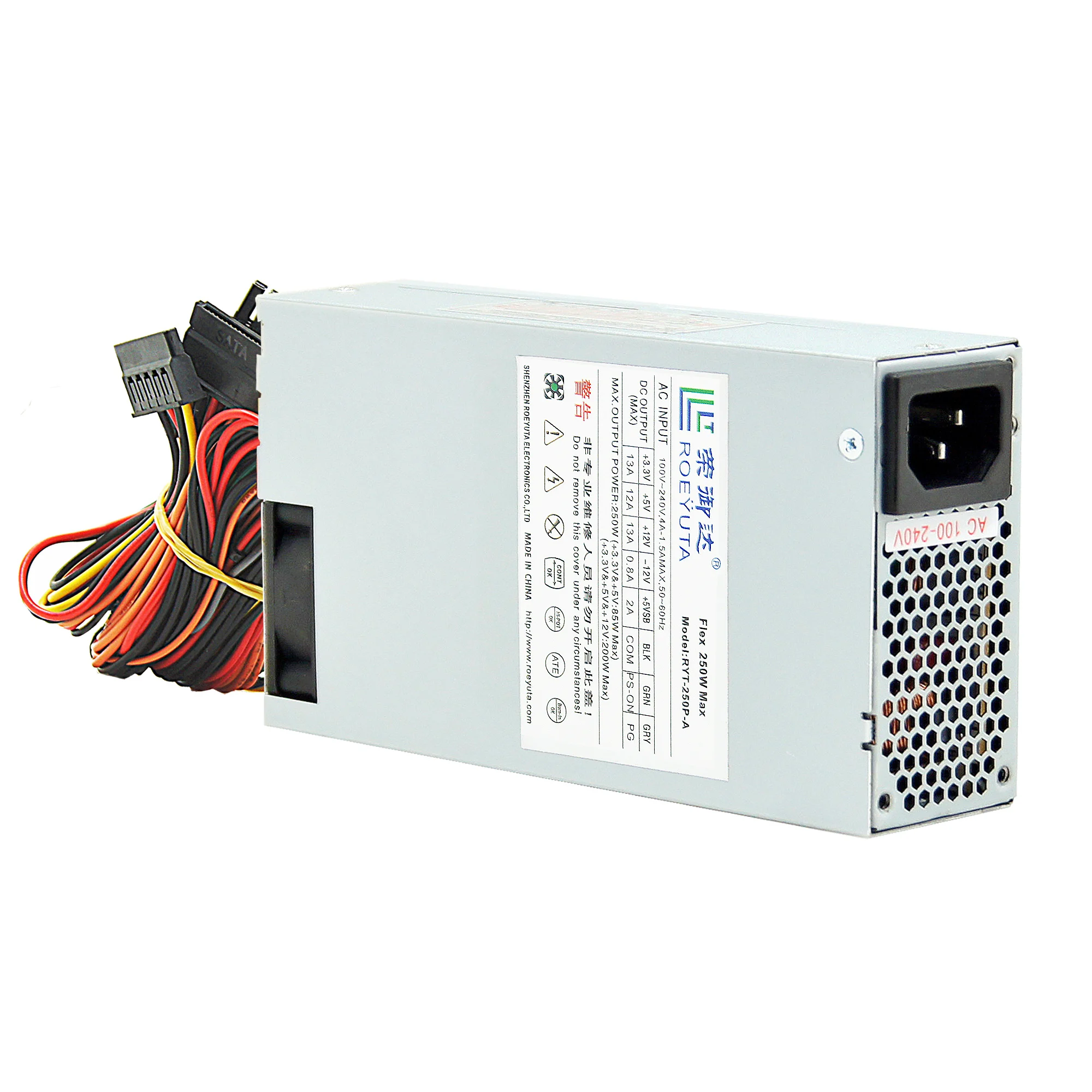

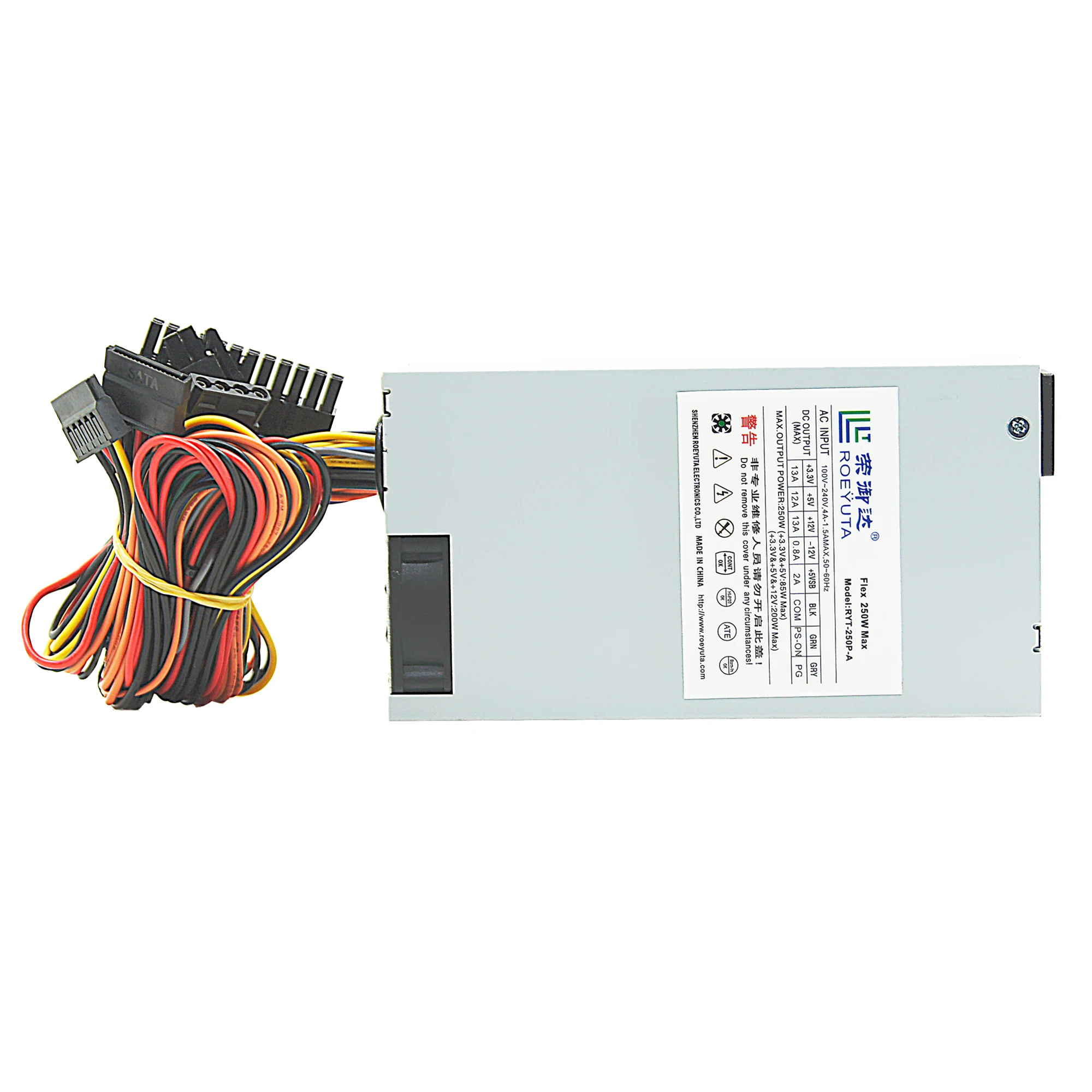

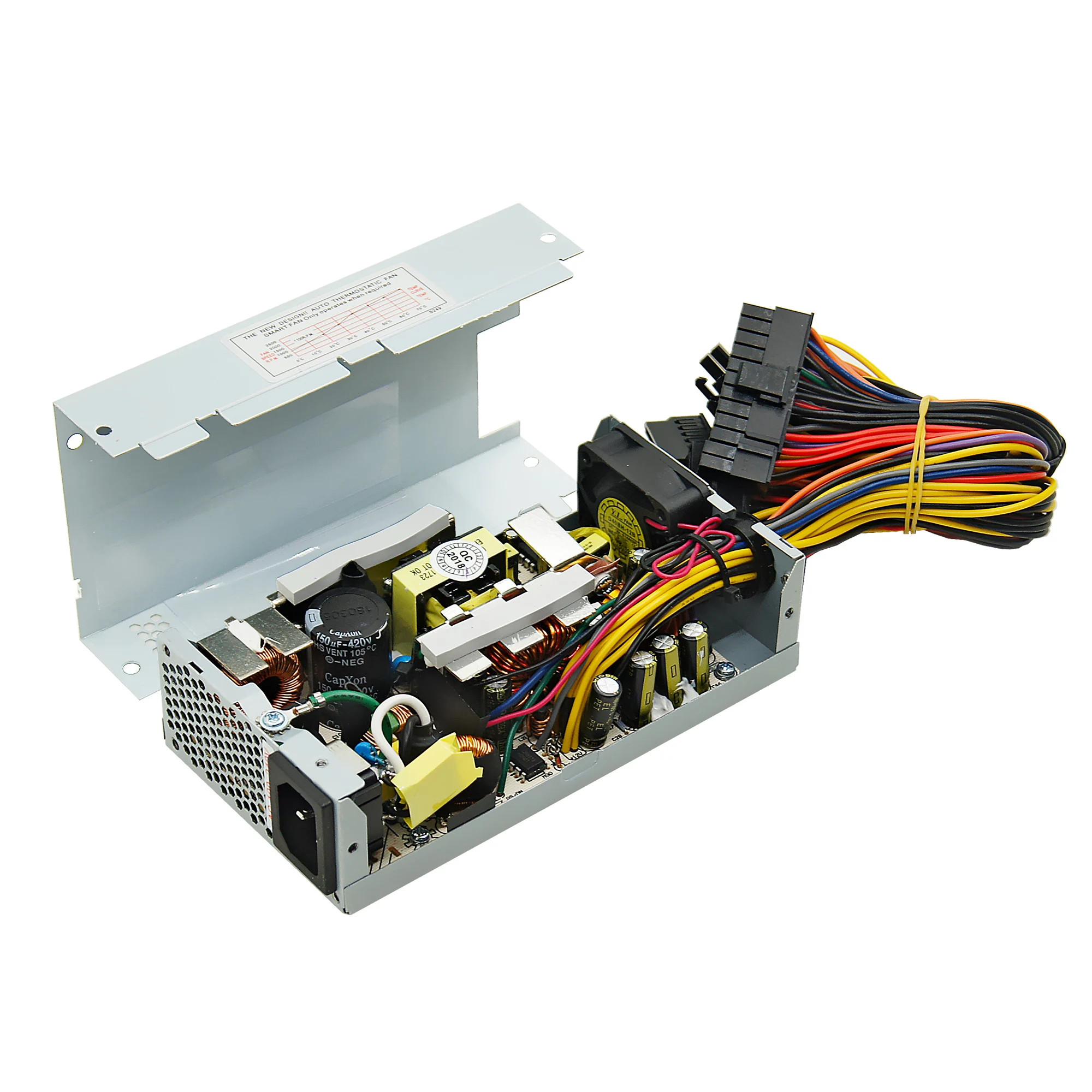

flex atx 200W Active PFC Industrial PC Power Supply Unit

Product Overview

Description

flex atx 200W Active PFC Industrial PC Power Supply Unit



Model Number:

RYT-250PSF-A



Rated Power:

200W



Application:

Industrial PC, Checking machine ,All-in-one machine,etc.



Fan Type:

4cm



Power Factor:

Active PFC



Input Voltage:

100-240Vac



High efficiency:

80%



Dimention:

150x81.5x40mm



Packaging Details:

12pcs/ctn



Carton Dimention:

500x350x110mm





PRODUCT FEATURES

*Comply with FLEX 12V Ver2.0, Rated output power: 200W (250W Max)
*wide range input 90-240v
*80+,APFC
*high quality ,low noise and low ripple
*4cm fan for good cooling
*output over voltage protection
*short circuit protection on all output
*MTBF:80K hours at 25c.
*Life Cycle:80K hours
*Connectors: 20+4Pin for M/B,4+4pin for 12VCPU,SATA*2,4Pin for HDD*2





PRODUCT DETAILS

Connector



    * Motherboard Cable    20+4-Pin*1



    * CPU power Cable        4+4-Pin*1



    *  HDD power Cable       SATA*2



    * HDD power Cable       4-Pin*2





Parameters

• PFC: Active


• Protection function: OVP, OPP, SCP


• Cooling system: SPEED: 8000RMP(+/-10%)
  TEMP.AUTO ONTROL: 2200rpm at 41.7℃~7000rpm at 60.5℃
  4CM Fan


• Noise: 20dB at 7000rpm


• P.G signal: 100-500ms


• Keep time: 17ms(min)


• Conversion efficiency:80%


• MTBF:100000 hours


• Working temperature:0-50℃
