Product Overview
Description
Widely Using iot RS485/GSM/TCP gateway with phone APP, remote alarm device, Smart gateway
Product Description
1. Feature:
(1)Smart gateways have three ways of networking, WIFI/TCP/GPRS are connected via routers, switches and traffic CARDS.
(2)Gateway has continuous power function, in the absence of the gateway power supply, but still able to continue for more than 3 hours, continuously bring the equipment status information to the customer.
(3) Easy to install, the intelligent module can adapt to different kinds of device.
(4) System stability, software for independent research and development, strong compatibility, ensure maintenance timeliness. International standard interface for industrial monitoring, easy to extend and maintain.
(5) Mpbile phone software with remote alarm control devices. SMS, sound-light alarm, WEB window, mailbox and other alarm methods.

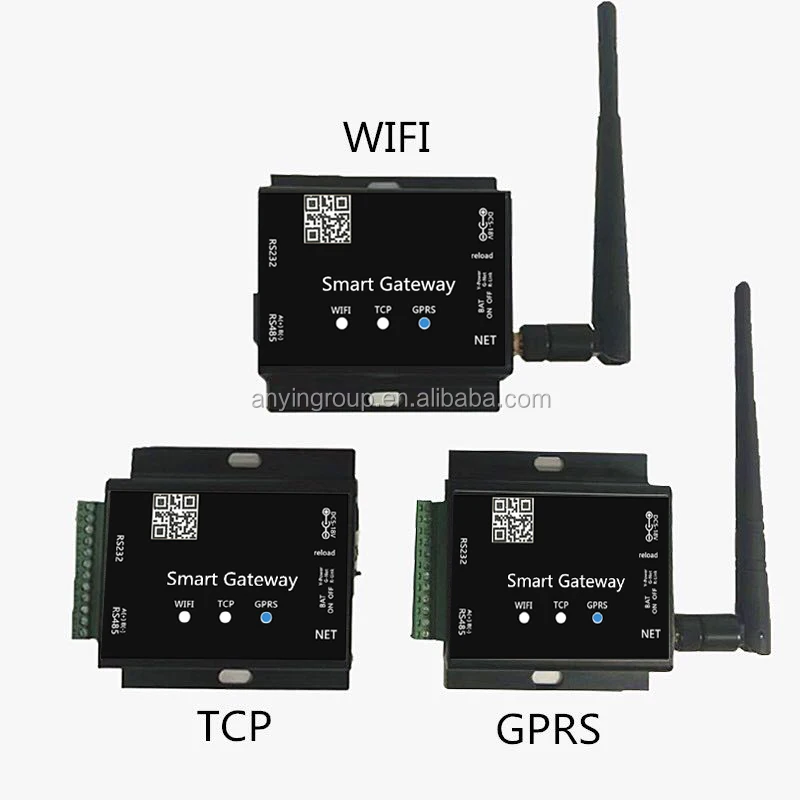

2.Type profile
(1)WIFI Gateway

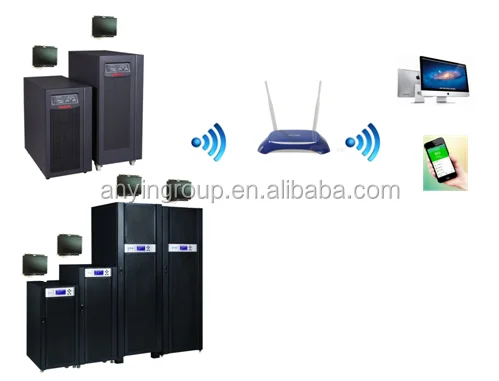

The device passes through the RS232/RS485 serial port, which is collected by the intelligent gateway and transmitted to the wireless router, which is sent to the mobile phone or PC, The advantage is that the data and latest status of each device can be transmitted to mobile phones and computers via a wireless routing network without wiring.
The device transmits the data of each device to the switch/router through the network cable, and then sends the data to the mobile and computer terminals after encryption processing. The advantages of this gateway are easy connection, stable signal and easy control.

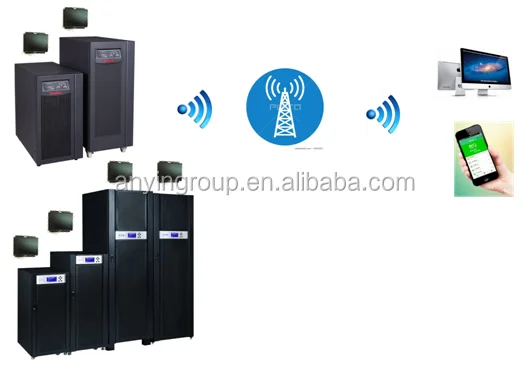

The device collects data through the gateway, and the data is transmitted from the base station to the mobile phone and PC through GPRS signal. The advantages of this configuration mode lie in its simple configuration, no wiring required, as long as there is a place covered by cell phone signal, and strong connection stability.

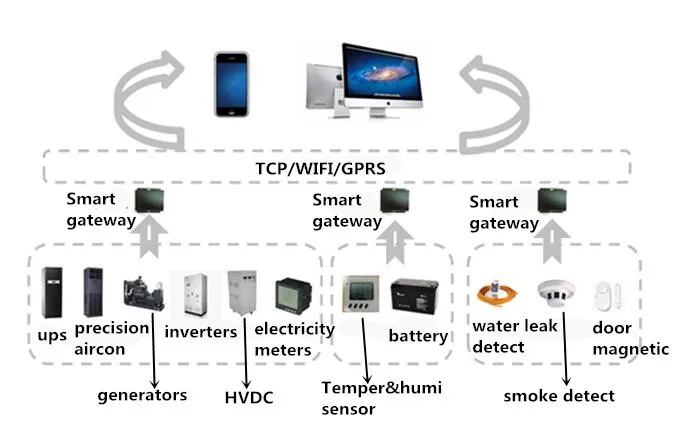

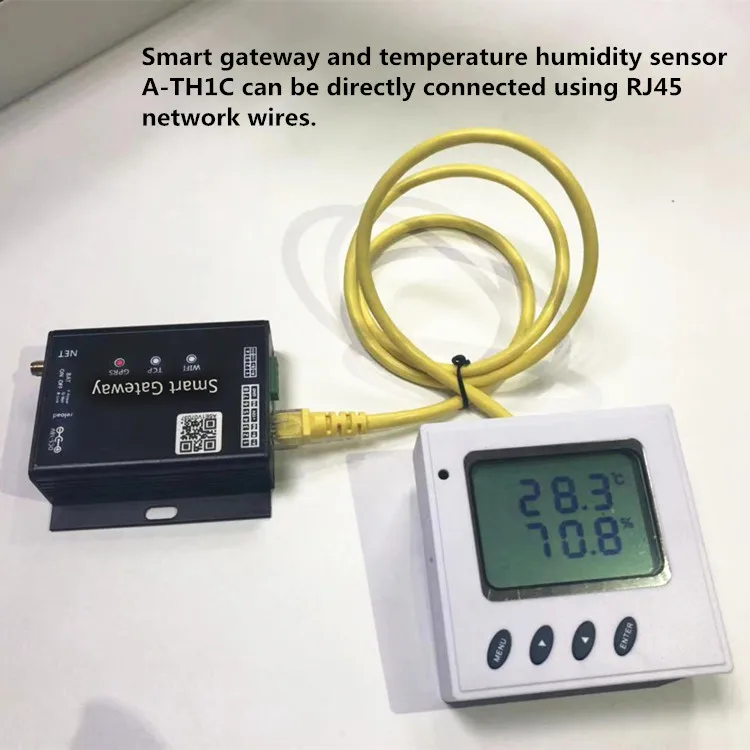

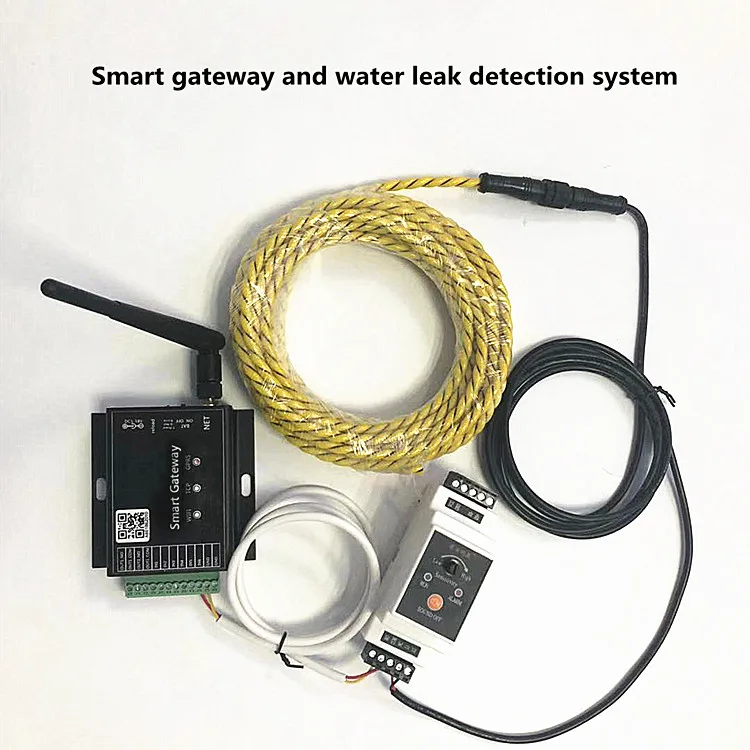

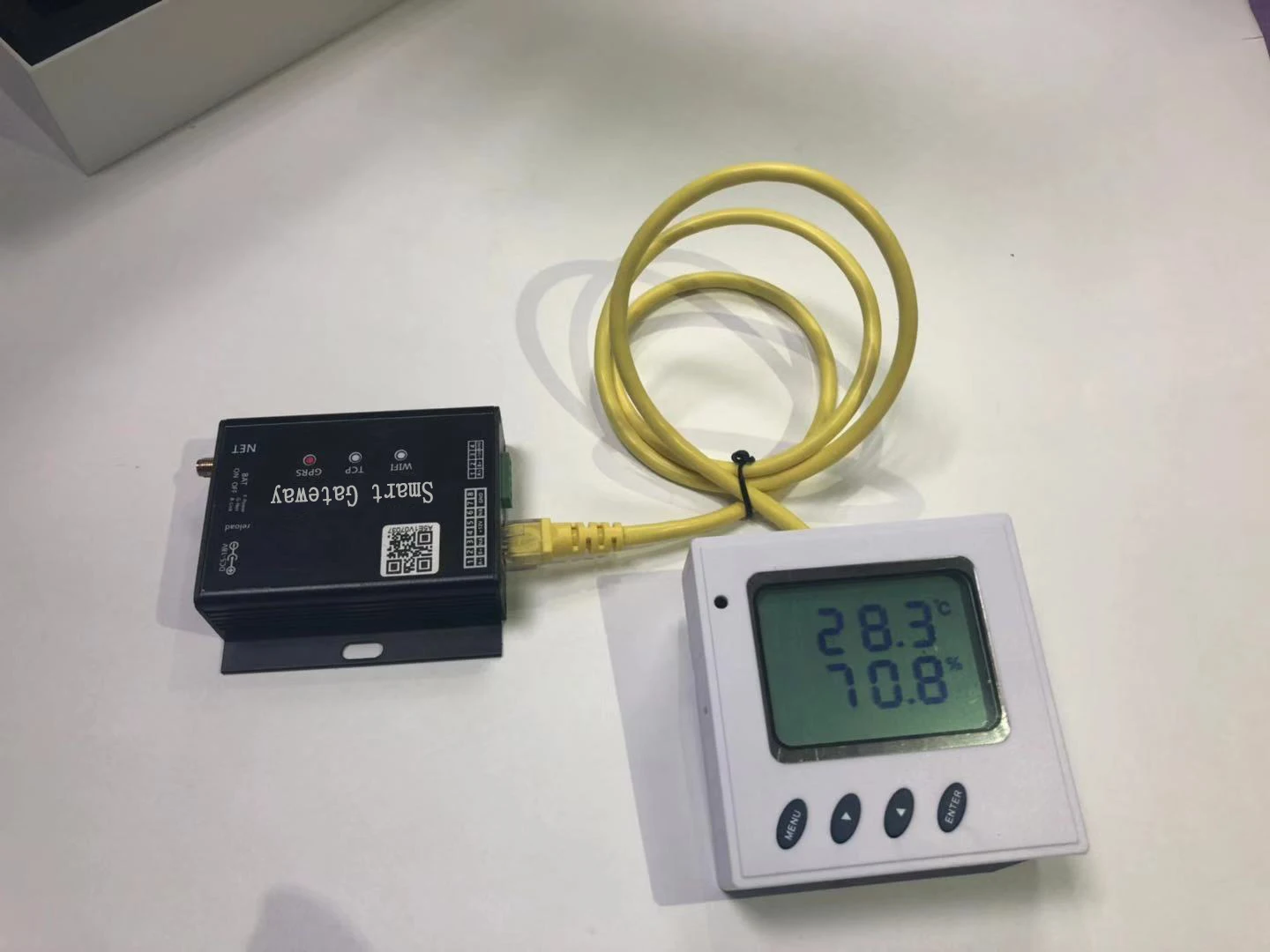

3. It can be connected with various sensors, which is equipment to small machine room monitoring host.

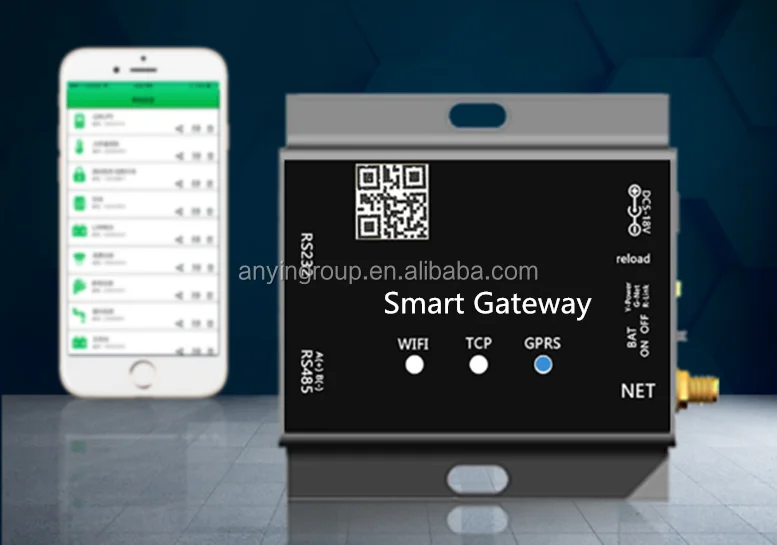

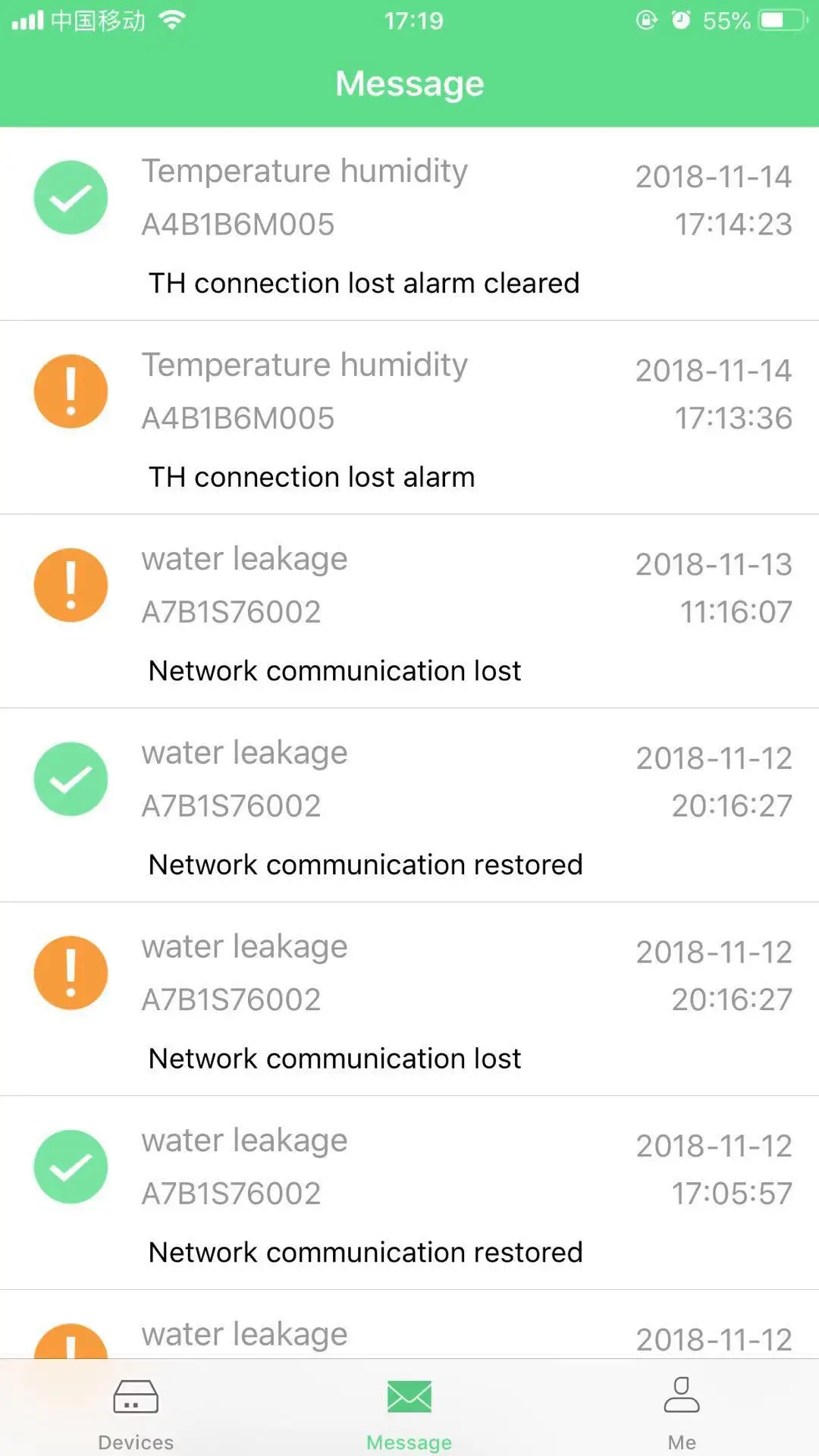

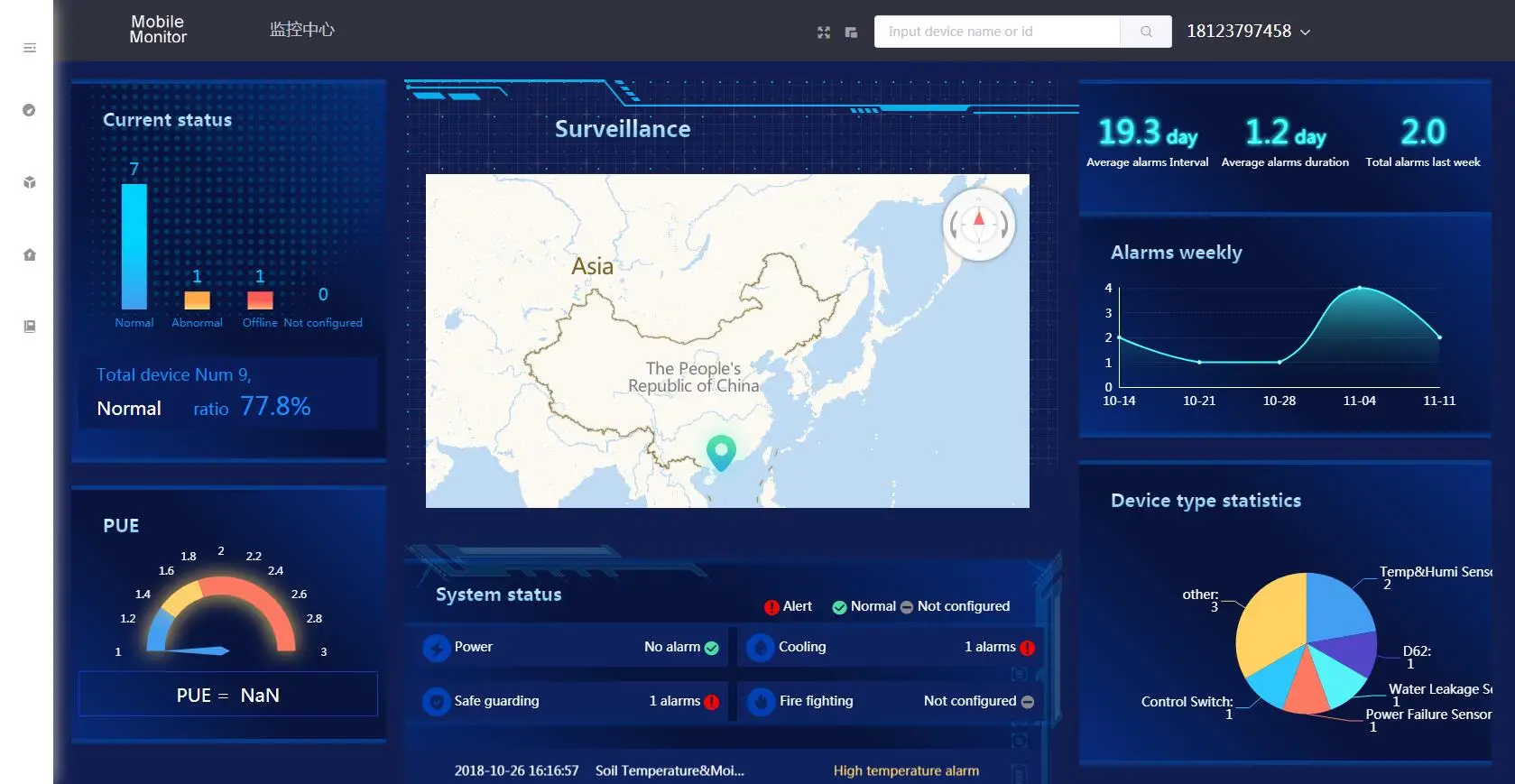

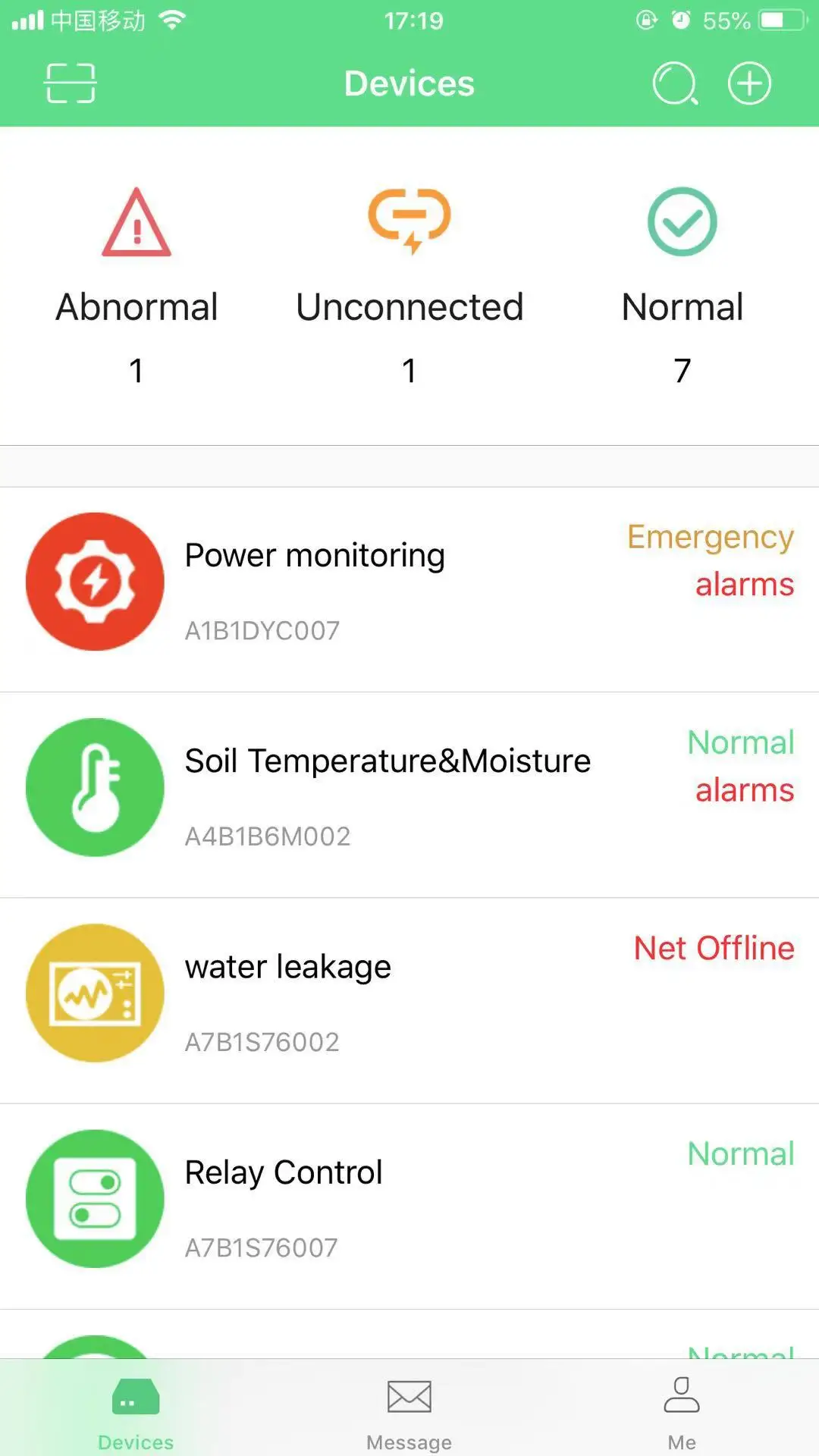

4. Mobile APP and WEB page display
Please consult Alice if you need to experience the account and website!!
5.Data Sheet:
AY01 | AY02 | AY03 | |
Communication Type | WIFI | GPRS | TCP |
Size | L*W*H=84*83*24mm | ||
Working Temperature | -25~85℃ | ||
Working Humidity | 10~85% | ||
Save the environment | -40~105℃,5~95RH(without condensation) | ||
Input voltage | 5~18V | ||
Working current | 110mA(aver)@5V | ||
Power consumption | <1W | ||
The processor | 32ARM | ||
Interface | 1 road RS232,1 road RS485(Both cannot work at the same time) | ||
Serial interface standard | RS232:DB9 ,RS485(A+,B-) | ||
Baud Rate | 600~230.4K | ||
Network protocol | IP,TCP,UDP,ARP,ICMP,DNS,DHCP | ||
Serial port to protect | RS485: anti-static 2KVA | ||
Wide Application
Smart Gateway is applicable to all secenarious requiring environmental monitoring, such as computer room, agricultural internet of things, etc.
Company Information
Shenzhen Anying Technology Company Ltd Specialize in Environmental Monitoring System for comperter Suites as Water Leak Detection, Temperature&Humidity Controller, Air Conditioner Remote Control etc with Self-Researching&Development. With the efforts of our high-tech strength team, we successfully established our promissing IOT department for Agricultural Monitoring.
Our products enjoys a high-reputation abroad like Russia, Germany, UK, Amercia,
Canada, Korea etc. Welcome to contact us!!!
Packaging & Shipping
What we provide for this products :
- Common box packing / Gift box packing / OEM and Customized packing is welcome.
- Normally, we use courier service ( such as UPS, DHL, FedEx, TNT) for fast and safely shipping methods.
- Delivery time, within 2-7 working days and sample can be sent within 24 hours
