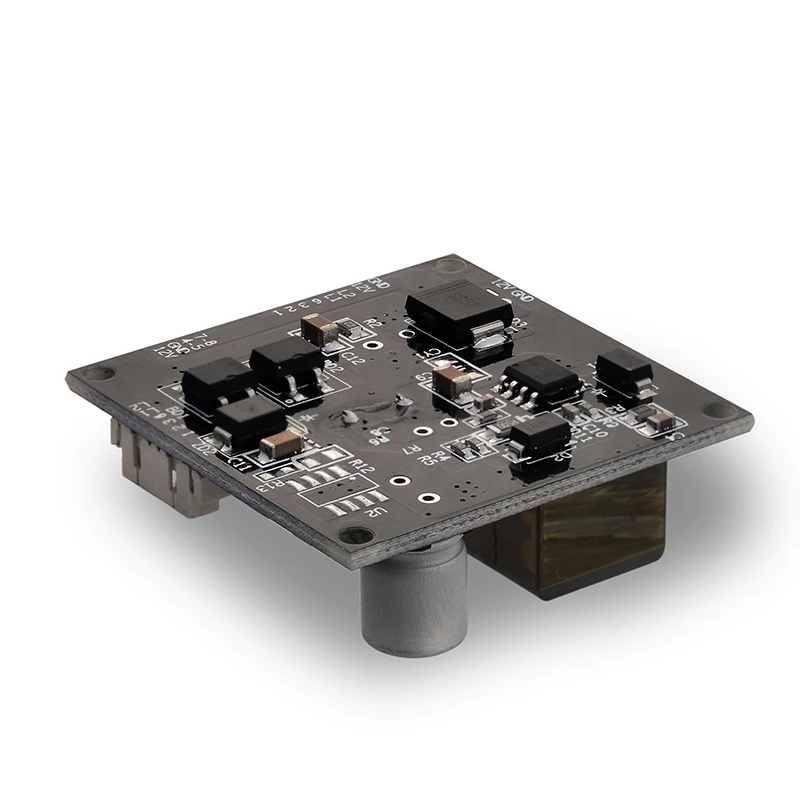

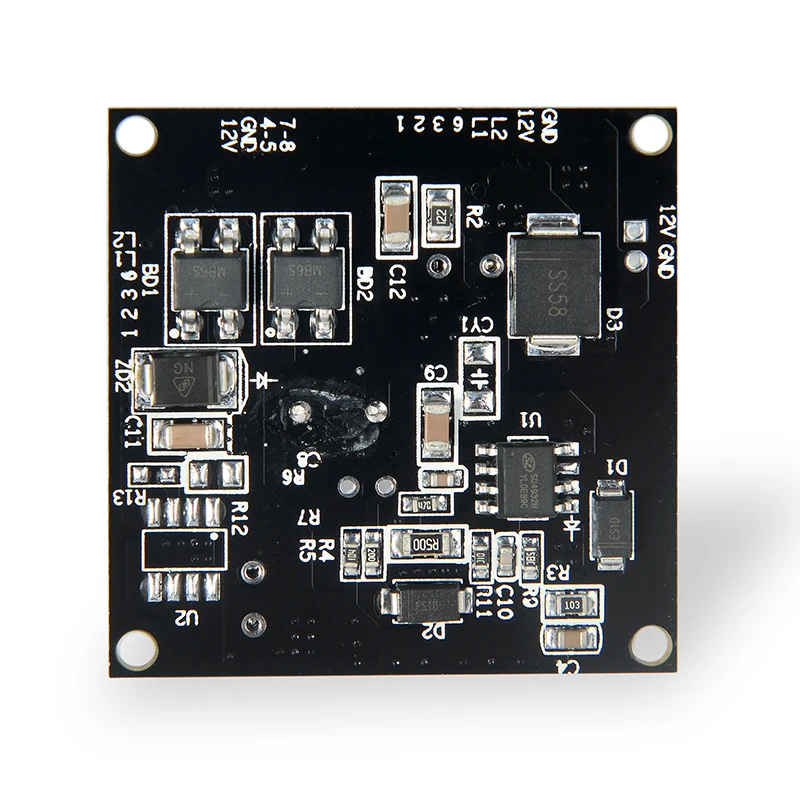

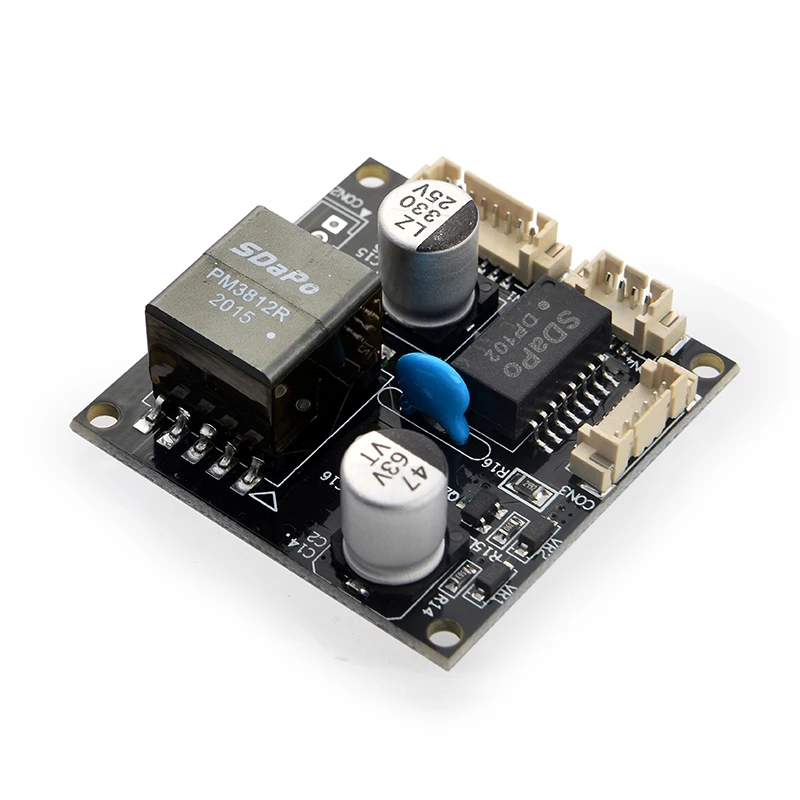

SDAPO PM3812R V2.0 12V 1A Manufacturer High Quality 38X38mm IEEE802.3af Standard POE Module
- Category: Ethernet & Communication Modules >>>
- Supplier: Shenzhen Dapo Communication Co. Ltd.
Share on (60819518397):
Product Overview
Description
Products Description
You are welcome to customize the POE modules of various sizes and appearances and function.The layout is required to receive the initial research and development expenses.After ordering a certain number of modules (usually 5000 pieces), the r&d cost can be deducted.After the sample is qualified, batch production.
1.product features：
* Specification：with IEEE802.3af standard
* Security：Has a perfect short circuit protection, 1500V high voltage isolation
* Size :38*38mm
* Compatibility: integrated network adapter supports End-span (1,2 + / 3,6 -) and Mid-span (4,5 + / 7,8 -) two power modes
2. Applications：All IP Camera
3. The main parameters：
* Specification：with IEEE802.3af standard
* Security：Has a perfect short circuit protection, 1500V high voltage isolation
* Size :38*38mm
* Compatibility: integrated network adapter supports End-span (1,2 + / 3,6 -) and Mid-span (4,5 + / 7,8 -) two power modes
2. Applications：All IP Camera
3. The main parameters：
No. | Parameter | Symbol | Min | Typical values | Max | Unit |
1 | Input Voltage | Vin | 37 | 48 | 57 | V |
2 | output voltage | +VDC | 11.8 | 12 | 12.3 | V |
3 | output Current | PWR | 1 | 1.08 | A | |
4 | Isolation Voltage | ISO | 1.48 | 1.5 | 1.52 | KV |
5 | Storage Temperature | Tj | -40 | 25 | 120 | ℃ |
6 | Operating Temperature | Tstg | -20 | 25 | 65 | ℃ |
* is typically 25 ℃, measured under the 48V power supply environment, only for reference design
3.2 Do not exceed the recommended load value of 850mA (not included IR-cut switch) to adapt to different environments

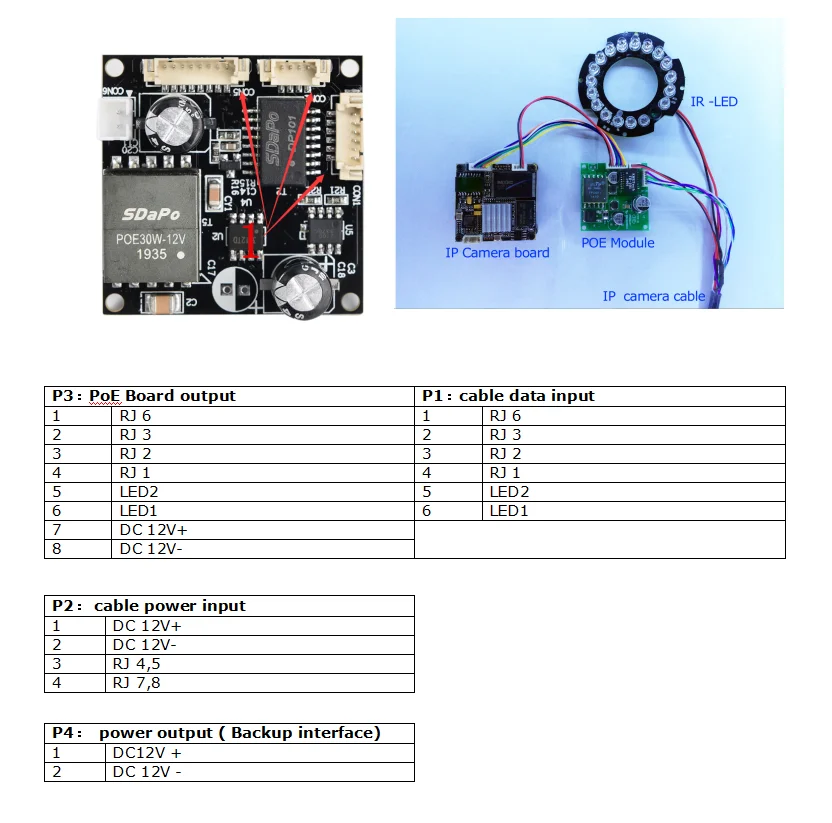

4. Interface Definition：
3.2 Do not exceed the recommended load value of 850mA (not included IR-cut switch) to adapt to different environments
4. Interface Definition：
