High penetration x ray luggage security inspection equipment machine airport x ray baggage scanner

Share on (60819547939):


Price:US$9,880.00 - US$11,880.00

Quantity:


Product Overview

Description


Product Description

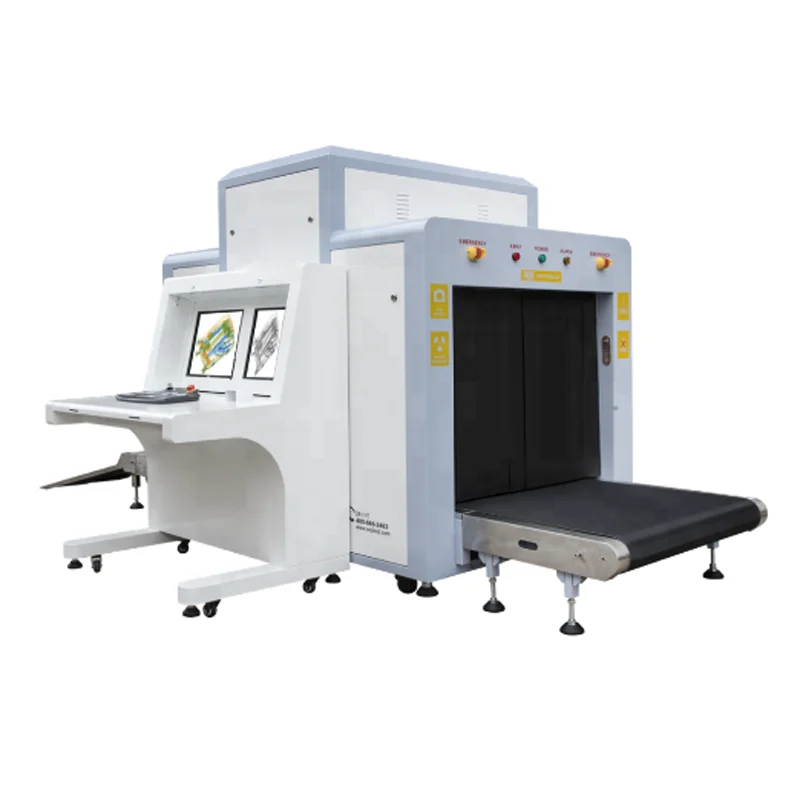

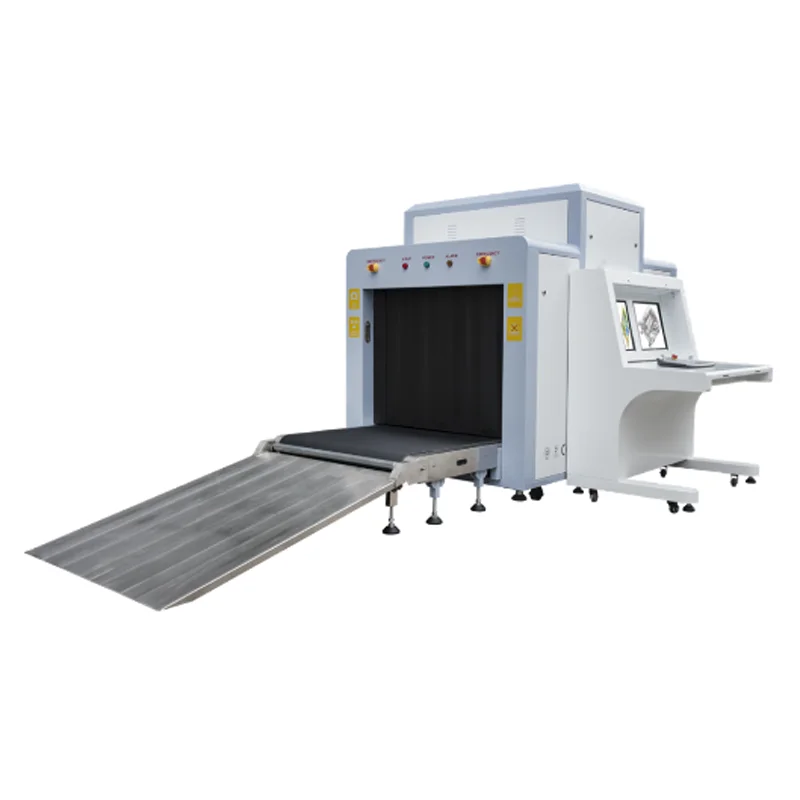

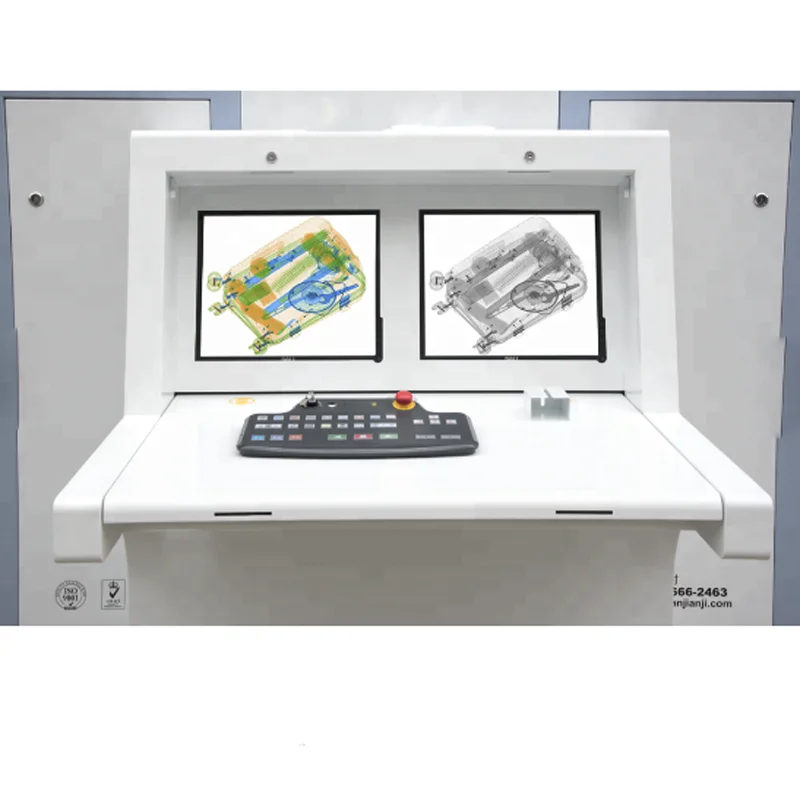

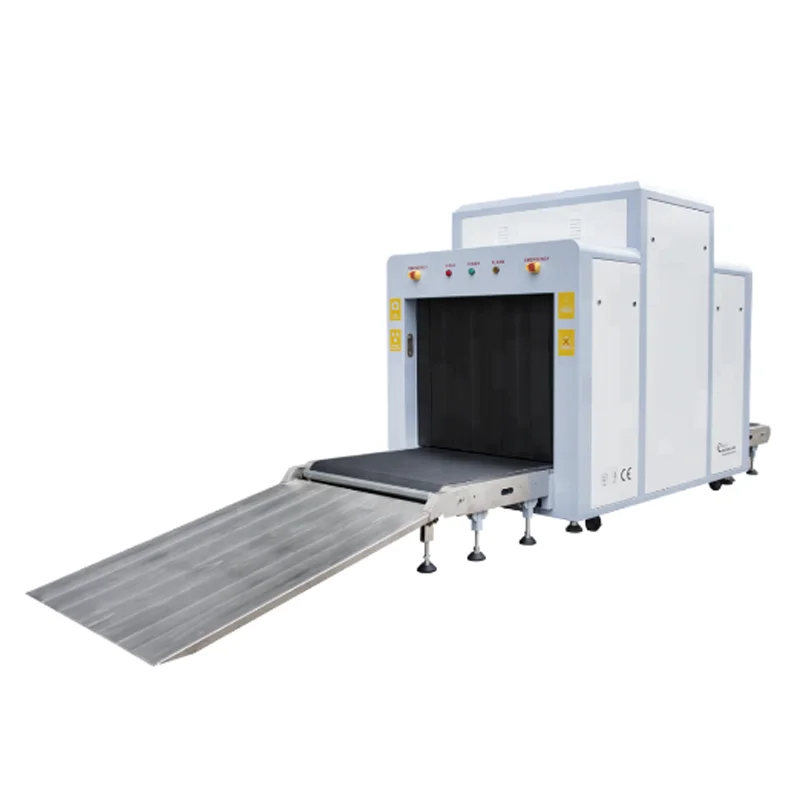

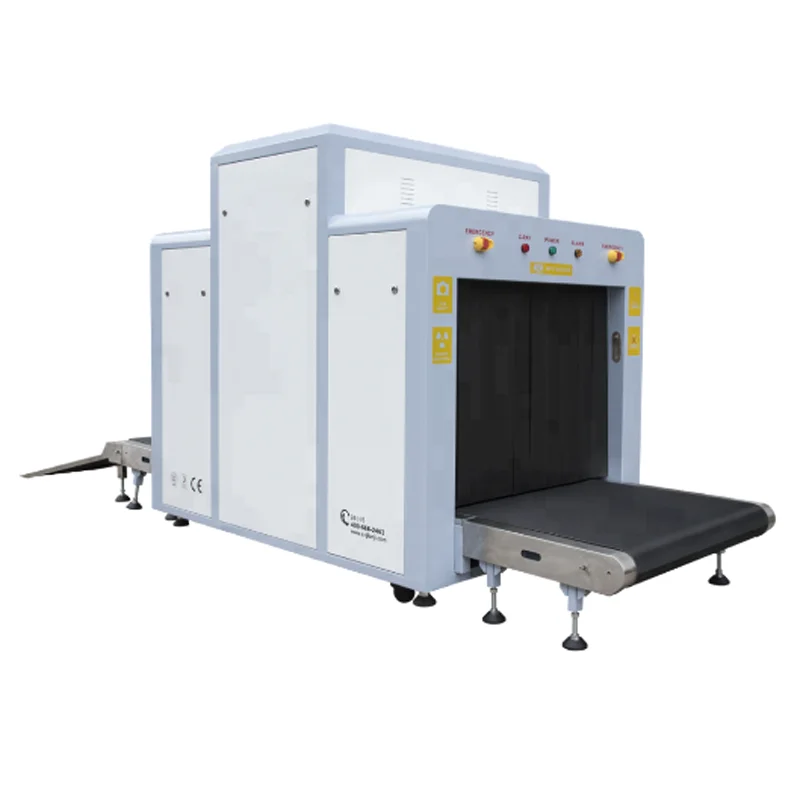

High penetration x-ray luggage security inspection equipment machine airport x ray baggage scanner

SE-5030A

SE-8065

SE-100100


Physical Specifications
Unit weight (kgs)
850

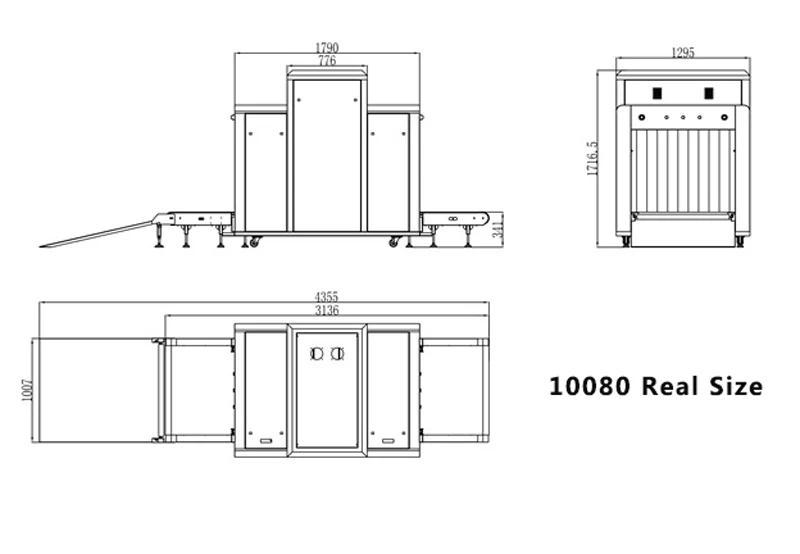

Unit size (mm)
3138.5(L)*1295(W)*1716.5(H)
after packed in wooden pallet -

Gross weight (kgs)
945
Packing size
#1: 226*143*194cm

#2: 113*91*142cm
General Specifications
Tunnel size(mm)
1000(L)*800(W)
Conveyor Speed(m/s)
0.22
Conveyor height(mm)
296
Conveyor Max Load(kgs)
200
X ray dose per each inspection
1.5 μGy
X ray leakage
<0.25 μGy / h
Penetration
32mm steel
Wire Resolution
dia 0.0787mm copper wire (AWG40)
Penetration Resolution
dia 0.202mm copper wire (AWG32) under three-step aluminum wedge 9.5mm, 15.9mm, 22.2mm
Spatial resolution:
Horizontal:dia1.0mm,Vertical: dia1.0mm
Power Consumption
max. 1KW
Pictures

 1.jpg2.png3.pngQQ20181116171852.pngQQ20181116171917.pngQQ20181116171944.pngQQ20181116172010.pngQQ20181116172051.pngQQ20181116172308.pngQQ20181116172405.pngQQ20181116165909.png

Produce




Packing


Shipping


FAQ



Q: Are you manufacturer or trader?
A:We are manufacturer, we have own factory in Shenzhen, we have independent department for purchasing, producing, processing, testing, packing, storing , and transportation, believe our team is best team in china.



Q. Do you sell the accessories for Products ?
A:Yes. We have Match the parts for our testing equipment. If our machines damages by fire, water flood, earthquakes, unsteady of power and other natural disasters, we are willing supply match parts with lowest price for you.



Q.How about the packing for product?
A:Is it easy damaged during transportation? For light structure products like Gold detector. Hand held metal detector and so on we takes of strong carton box . For heavy structure products like conveyor belt needle detector. Food metal detector X ray machine .Our packing is Standard Export ploy Wooden Case. Every prepackage have a plastic bags cover .



Q. What’s your main product?
A:We professional in needle detector. Metal detector. X ray machine and other related electronic products and machines



Q.Where is your main sales market?
A:Our Gold meal detectors customer all over the world. Our hand metal detector and walk through metal detector mainly in Southeast of Asia. South of America.Middle east. East Europe and Africa Our needle and food metal detector mainly customers are from Australia. USA. All Europe and Asia



Q.How about your after-sales policy?
A:Customer first is our always principle . All of our products normal warranty is 24months. We give necessary back or video guidance for daily problems. If massive products occur big quality problems. Our technical and engineer support overseas service .



Q.Do you accept customer Logo and customized ?
A:we accept kinds of customized and logo of all of our products for customers



Q:How can we contact with you?

A:Phone number:+86-13691883242

    Skype:secueradetector

    Whatsapp:+86-13691883242

    Wechat: +86 13691883242
