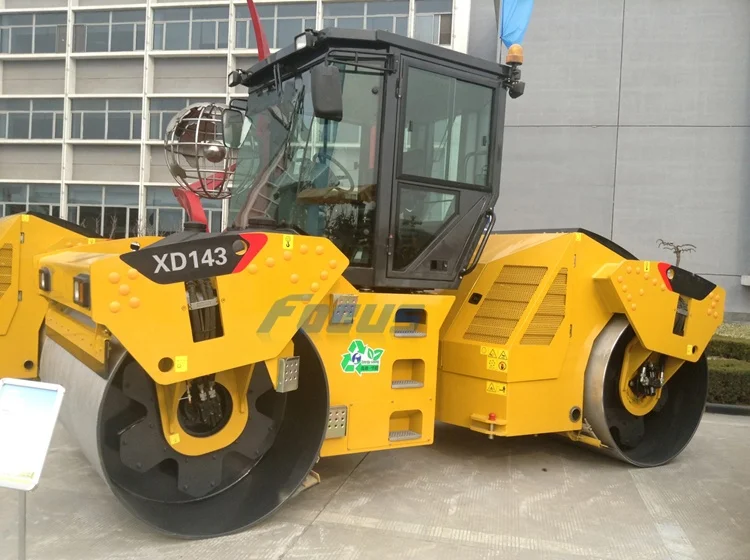

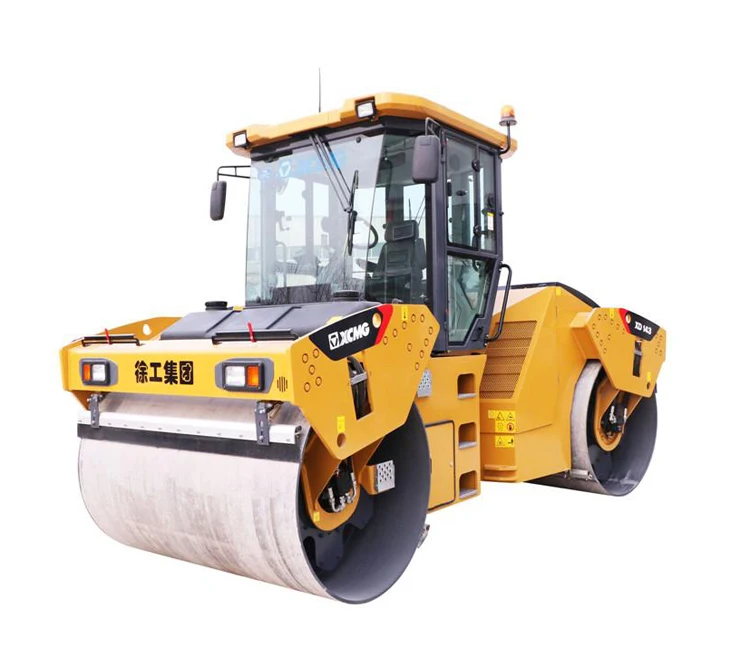

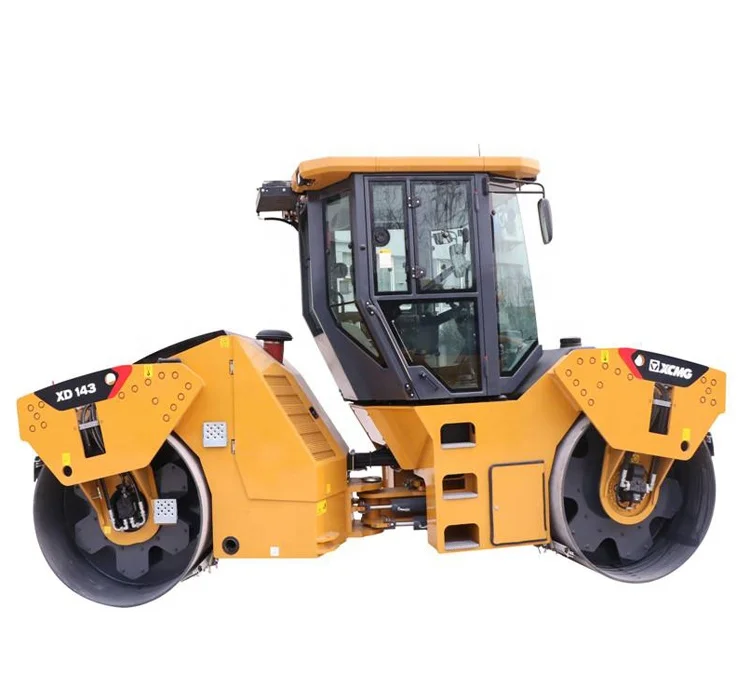

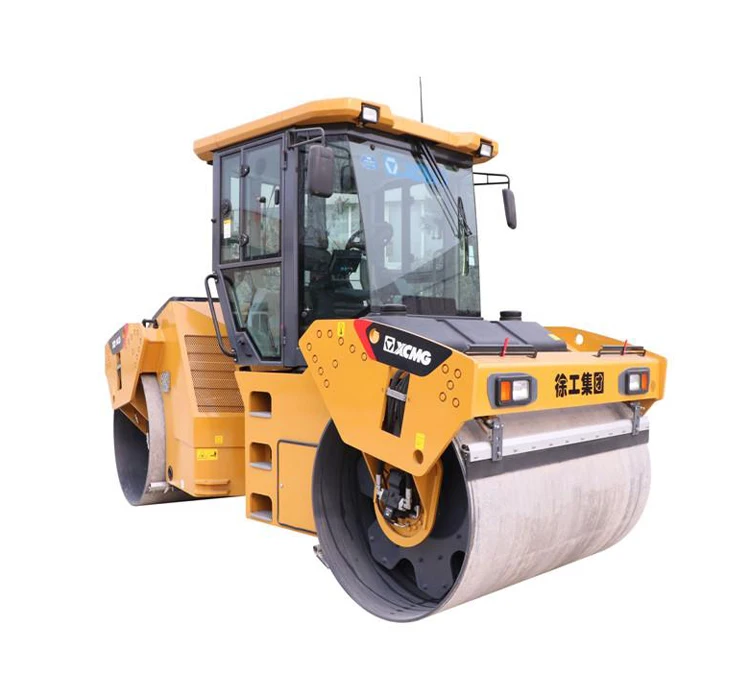

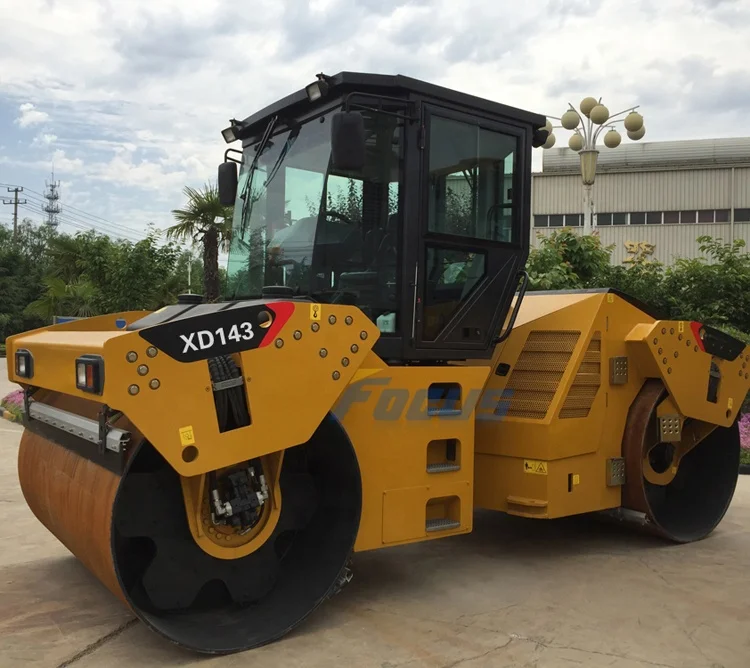

XCM XD143 Hot Model 14 ton Tandem Drum Road Roller Specification

Product Overview

Description



Tandem Vibratory Road Roller XCM XD143

Main parameter:

Operating weight :14 tons ,

Vibration frequency : 50/67 Hz,

Drum width:2130 mm,



Detailed configuration

* DEUTZ BF4M1013EC engine,118Kw,

* Saul hydraulic system ,

* Electronic control system ,

* Driving cabin with air conditioner equipped,



Advantages

Adopt top brand engine , pump ,vibratory bearing .Great working performance .

Large colorful LCD screen equipped .

High vibrational frequency improve the compaction quality

Type	Unit	XCM XD143
Operating weight (including cab)	kg	14000
load on front drum	kg	7000
Load on rear wheels	kg	7000
Static linear load	N/cm	305
Speed	km/h	0~10
Gradeability in theory	%	35
Minimum turning radius	mm	4050/5950
Crab-walking distance	mm	160
Minimum ground clearance	mm	340
Wheel base	mm	3700
Steering angle	± °	35
Swing angle	±°	8
Vibration frequency	Hz	48—45
Nominal amplitude	mm	0.41/0.8
Centrifugal force	kN	85/140
Model and manufacturer		DEUTZ BF4M1013EC
Rated rotating speed	r/min	2300
Rated power	kW	118
Rated oil wear	g.kw/h	205
Water tank capacity	L	1000
Fuel tank capacity	L	240
