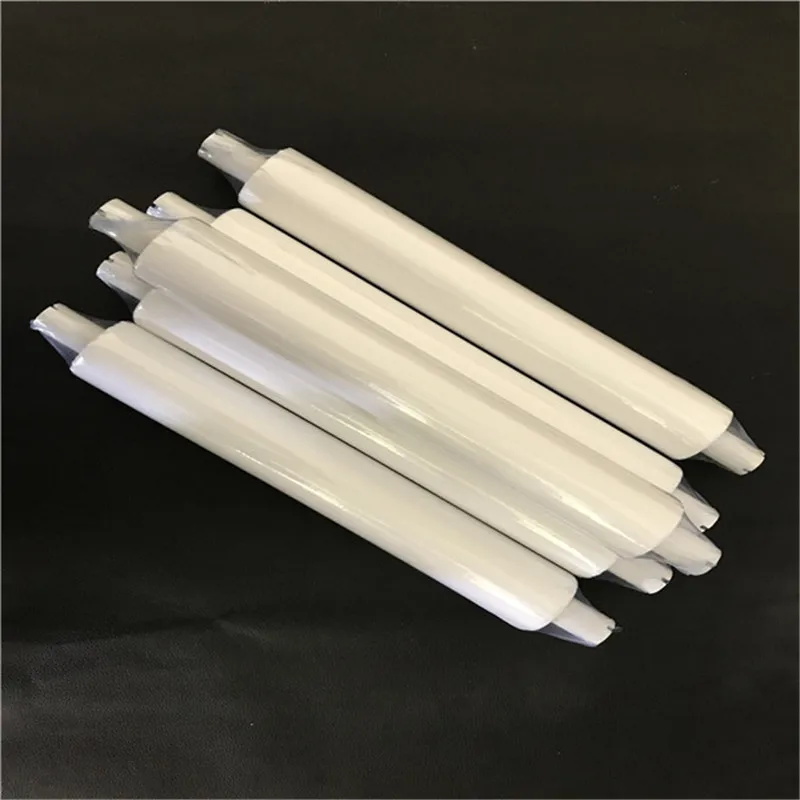

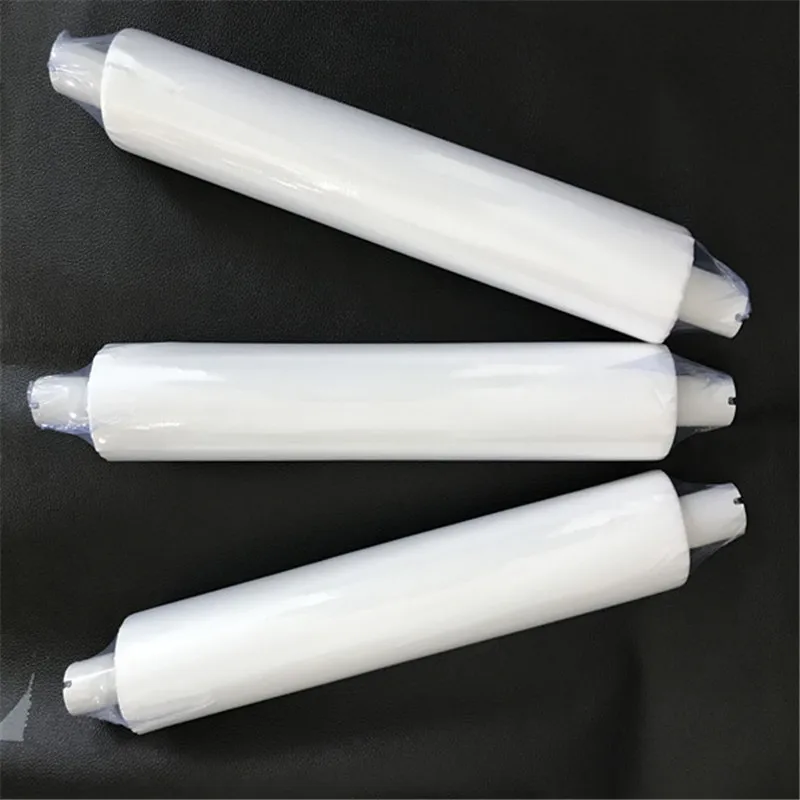

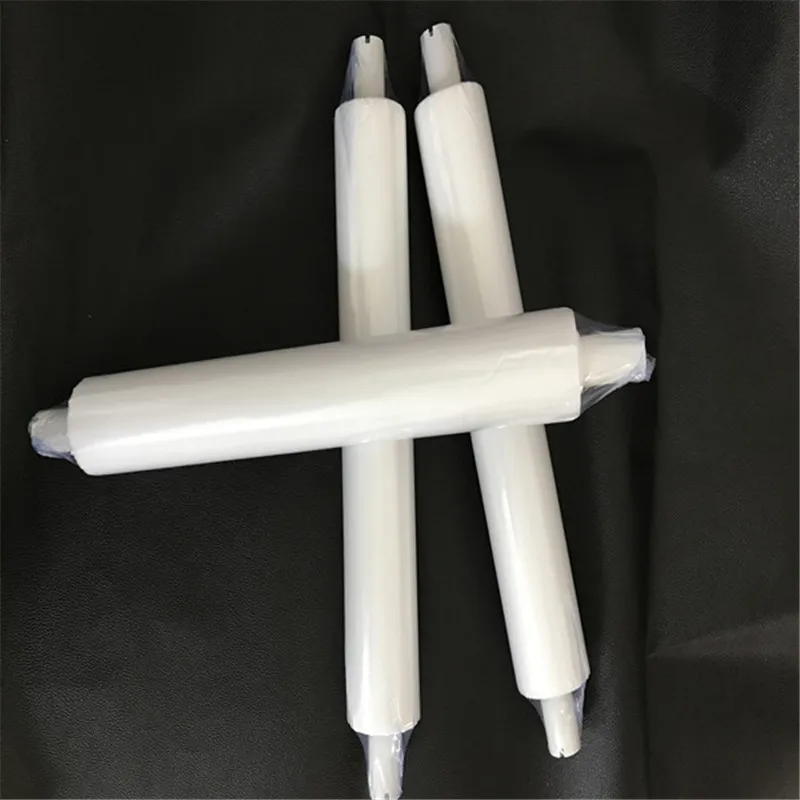

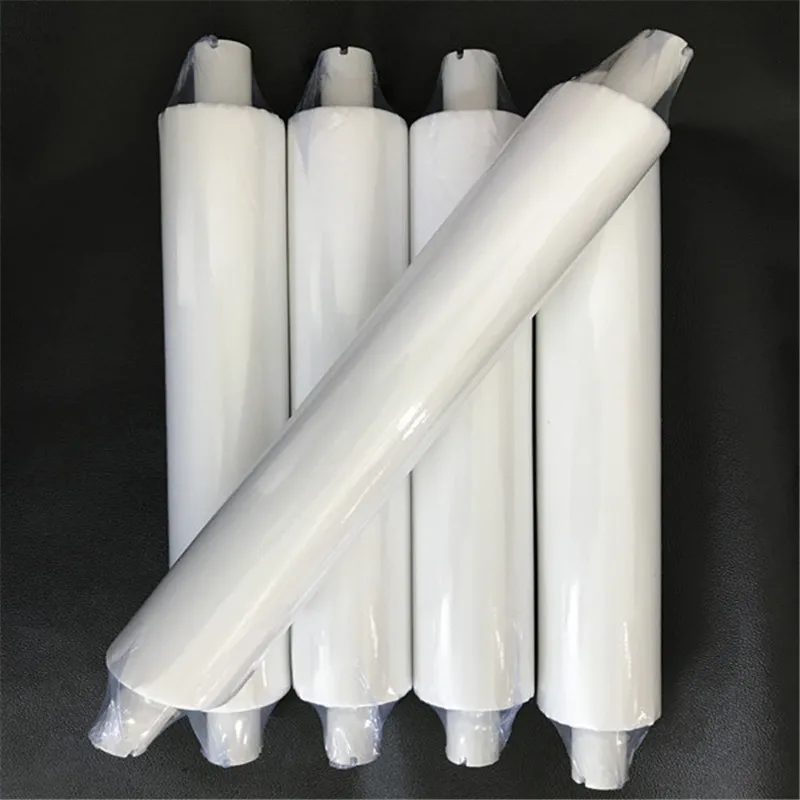

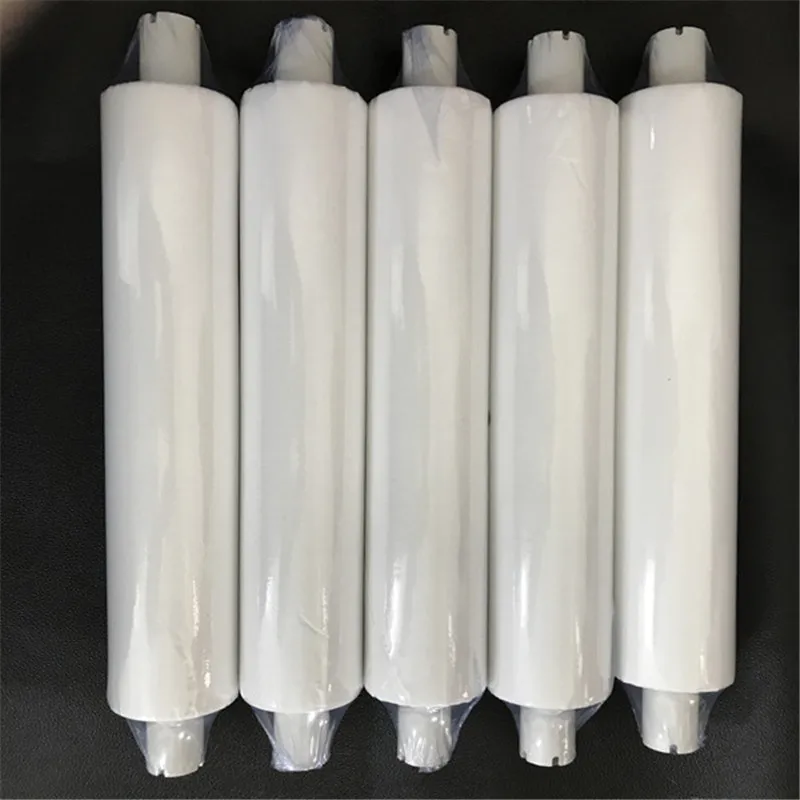

MPM Stencil Paper Roll for Cleaning Stencil Paste
- Category: >>>
- Supplier: Nanan Jiedao Electronic Material Co. Ltd.Nanan Ltd.
Share on (60819568232):
Product Overview
Description
Product Description
It is constructed of 55% cellulose and 45% polyester,this fabric blend combines the high absorbent properties of natural fiber with the cleanliness and strength of synthetic.This is specifically designed for SMT or PCB production line use.
Product details
| Material | 55% cellulose ,45%polyester |
| Color | White |
| Size | Customer's requirement |
| Weight | 68gsm, 62gsm, 60gsm, 56gsm |
| Packaging | 1roll per pvc bag |
| Certification | SGS |
| Product Keywords | Customzied specification understencil cleaning wiper roll,China Supplier stencil wiper roll,China Supplier stencil paper roll |
Material:
55% Cellulose and 45% Polyester or Viscose/Polyester or PP fabric
High absorbency
Low lint release
Solvent resistant
Heat-resistant
Specification
55% cellulose and 45% polyester non-woven composite
Weight:56,65, 68 grams per M2
Suitable for different kinds of SMT machines

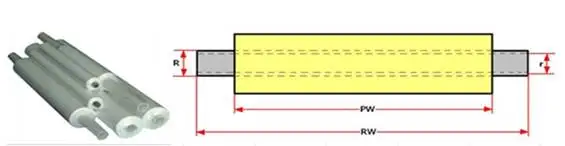

Application Machine Type | SMT Silk Screen Roller Wipes Spec.(mm x m) | Paper tube/PVC tube Core(mm) |
MPM | 300x10 | 19.5x455 |
MPM | 443x10 | 19.5x455 |
MPM | 600x10 | 19.5x615 |
DEK | 300x10 | 19.5x530 |
DEK | 350x10 | 19.5x530 |
DEK | 490x7 | 19.5x530 |
DEK | 500x10 | 19.5x530 |
DEK | 500x10 | 19.5x530 |
DEK | 510x9 | 19.5x530 |
DEK | 520x10 | 19.5x530 |
MINAMI | 270x5 | 8x290 |
MINAMI | 350x6 | 8x370 |
KME | 200x30 | 38x350 |
KME | 270x30 | 38x270 |
KME | 340x15 | 19.5x350 |
KME | 480x30 | 38x480 |
KME | 545x15 | 19.5x545 |
PANASONIC | 270 x 10 | 38 X 280 |
PANASONIC | 360x10 | 38x360 |
PANASONIC | 350x20 | 38x355 |
FUJI | 400x11 | 25x400 |
FUJI | 500x11 | 25x500 |
PANA | 360x12 | 38x360 |
PANA | 410x36 | 38x410 |
YAMAHA | 410x30 | 25.5x420 |
YAMAHA | 350x10 | 25.5x350 |
EKRA | 300x8 | 13.5x300 |
EKRA | 450x8 | 13.5x450 |
ASKA | 350x8 | 14x450 |
ASKA | 430x8 | 14x450 |
SAMSUNG | 400x7 | 20x460 |
More other sizes available upon request! | ||
Features
Absorbent,Vacuum Friendly and Fast Wicking
Special non-woven fabric construction reduces lint,preventing aperture blockages and contamination
Fabric does not compromise vacuum power,optimizing aperature cleaning performance
Wicks consistently across the full width of the cleaning roll to ensure even distribution of the cleaning agent for a more productive clean
Wick time is extremely fast compared to other cleaning fabrics
Application
Cleans
Dry cycle in addition to Wet(Vac/Dry) cycle

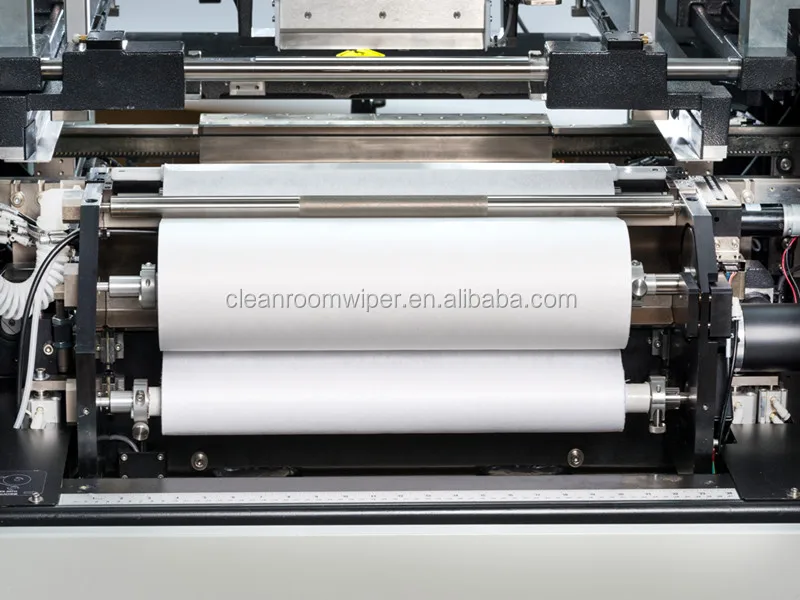

Delivers a superior clean for underside of the stencil
Broad machine compatibility
Suitable for DEK,MPM and Ekra cleaners,plus advanced understencil cleaners such as DEK cyclone technology
11 meters minimum length reduces number of changeovers and total changeover time on DEK platforms
44 meters length available for latest MPM platform
Packaging & Shipping
PACKAGE:
Standard export carton packing.
DELIVERY TIME:
3-20 days after confirming order,detail delivery date should be decided according to
production season and order quantity.
Company Information
About
We,Jiedao,established in 2013,rooted from a small plant in 1999,devoted in the development and manufacturing of cleanroom and antistatic products.
Our main products include Class 100-10,000 cleanroom wiper,cleaning swab,SMT stencil roll,sticky mat,ESD mat,ESD garment,ESD SMT magazine rack, and other ESD products.
