Product Overview

Description

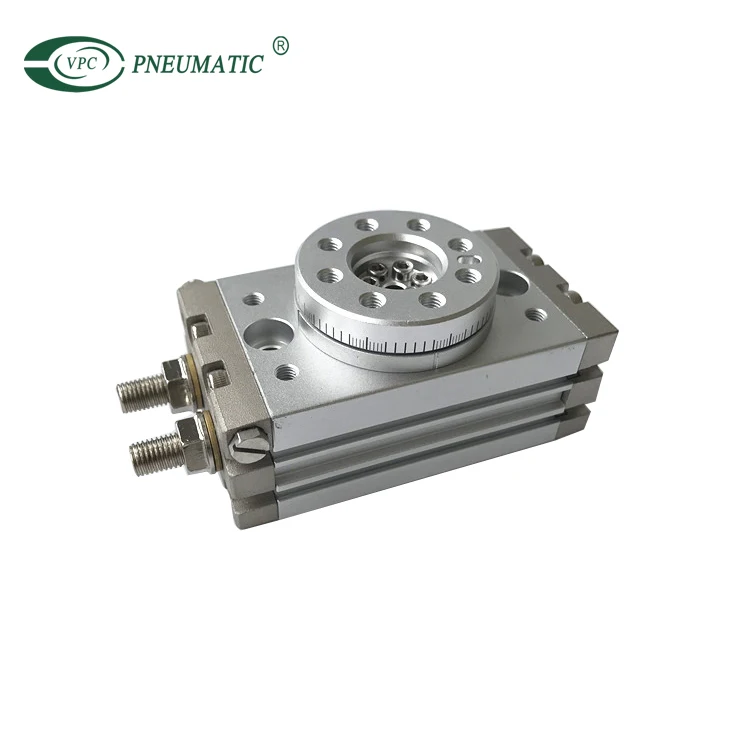

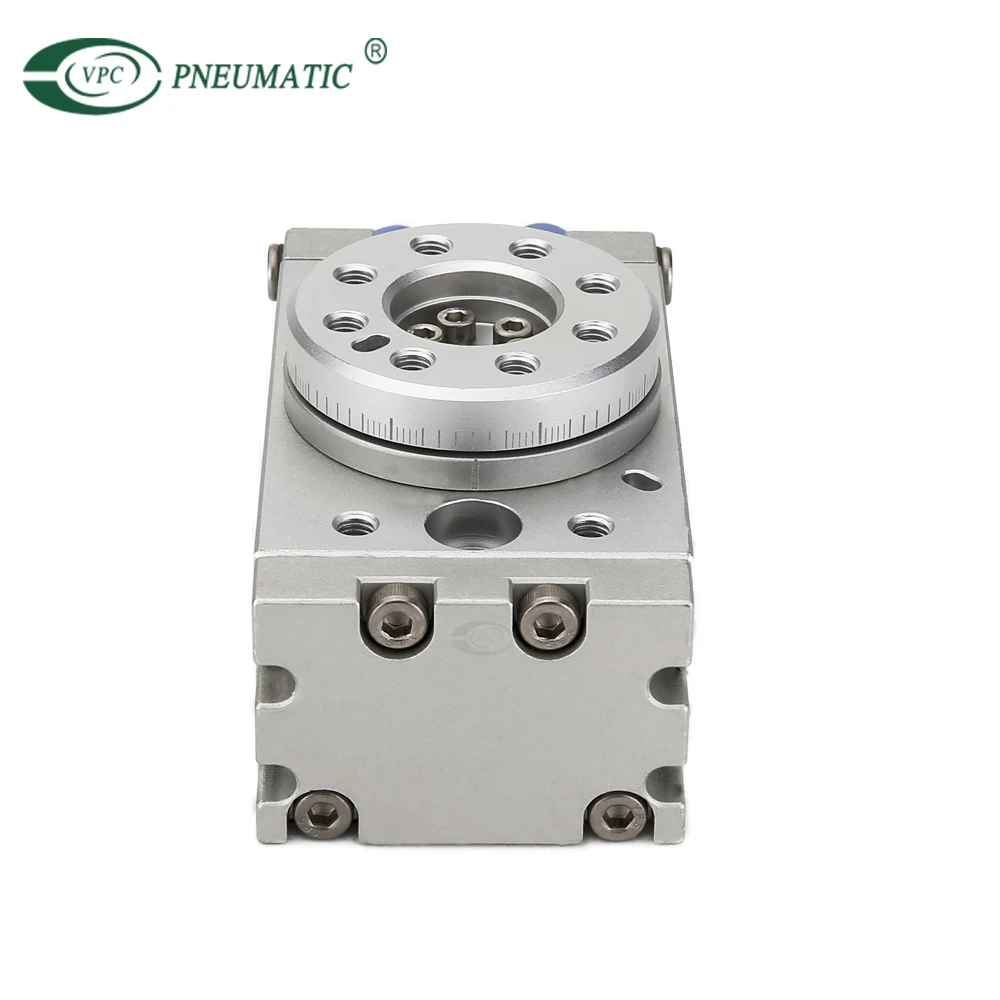

SMC type MSQ Series 90 180 Degrees Swing Solid Aluminum Pneumatic Rotary Table Actuator Cylinder


Product's Feature
1. Rotating platform type,workpiece easy installation
2. Roller bearing design,swing smoothly,accurately
3. Hollow shaft can be used for the introduction of wire of climate
4. Standard device with a transfer point,adjust the angle range
5. Built-in magnetic ring,magnetic switch can be installed




Bore(mm)
10
20
30
50
70
100
200
Working medium
Clean air(40μm Filteration)
Working pressure range
With adjustable angle screw:0.1~1.0Mpa,With shock absorber:0.1~0.6Mpa
Cushion type
Cushion rubber cushion(Standard) / Shock absorber(Optional)
Allowed power
With adjustable angle screw
0.007J

0.025J

0.048J

0.081J

0.24J

0.32J

0.56J
With shock absorber
0.039J
0.116J
0.294J
1.1J
1.6J
2.9J
Angle adjustable range
0~190°
Steady swing time range
A 0.2~1.0S/90°
0.2~1.5S/90°
0.2~2.0S/90°
0.2~2.5S/90°
R 0.2~0.7S/90°
0.2~1.0S/90°
Piston diameter
Φ15
Φ18
Φ21
Φ25
Φ28
Φ32
Φ40
Port size
 M5X0.8
G1/8




Ordering Code MSQ Series Rotary Table,Rack&Pinion Cylinder


MSQ B 50 A


B→Basic
50→Bore
A:With adjustable angle screw

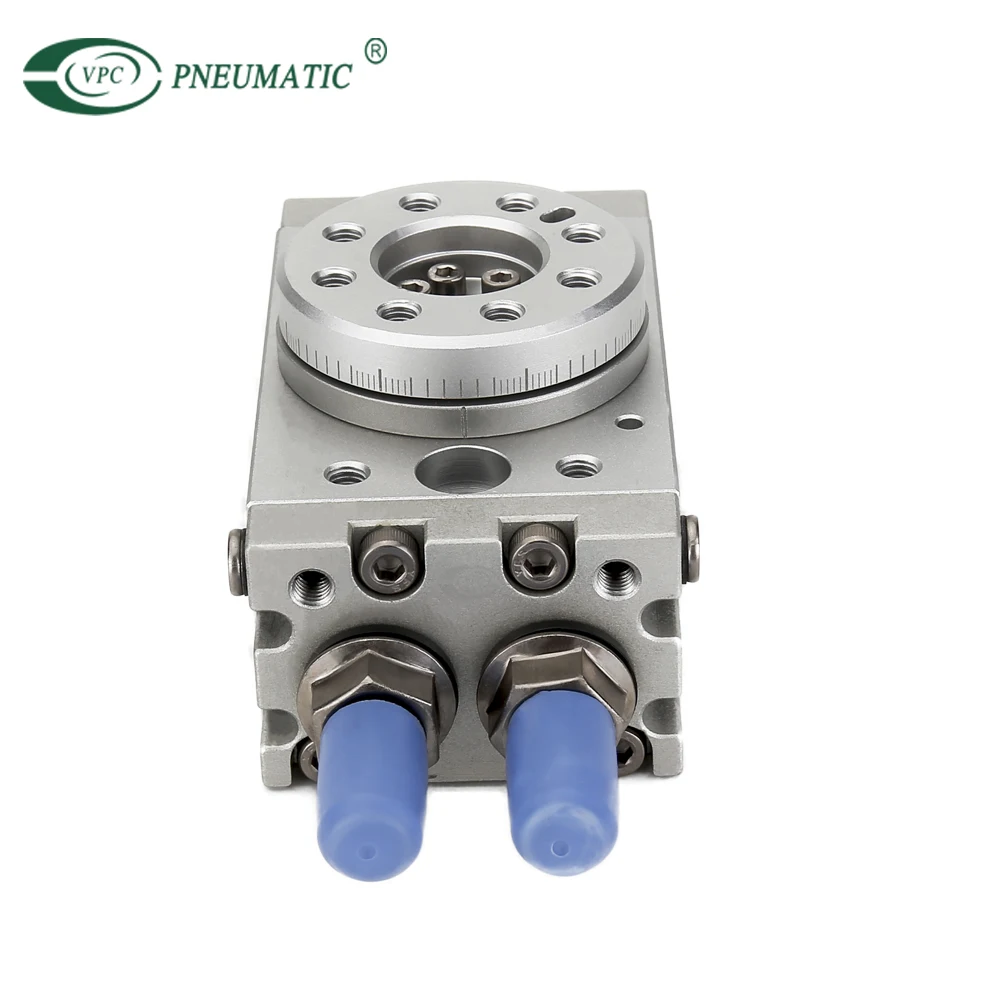

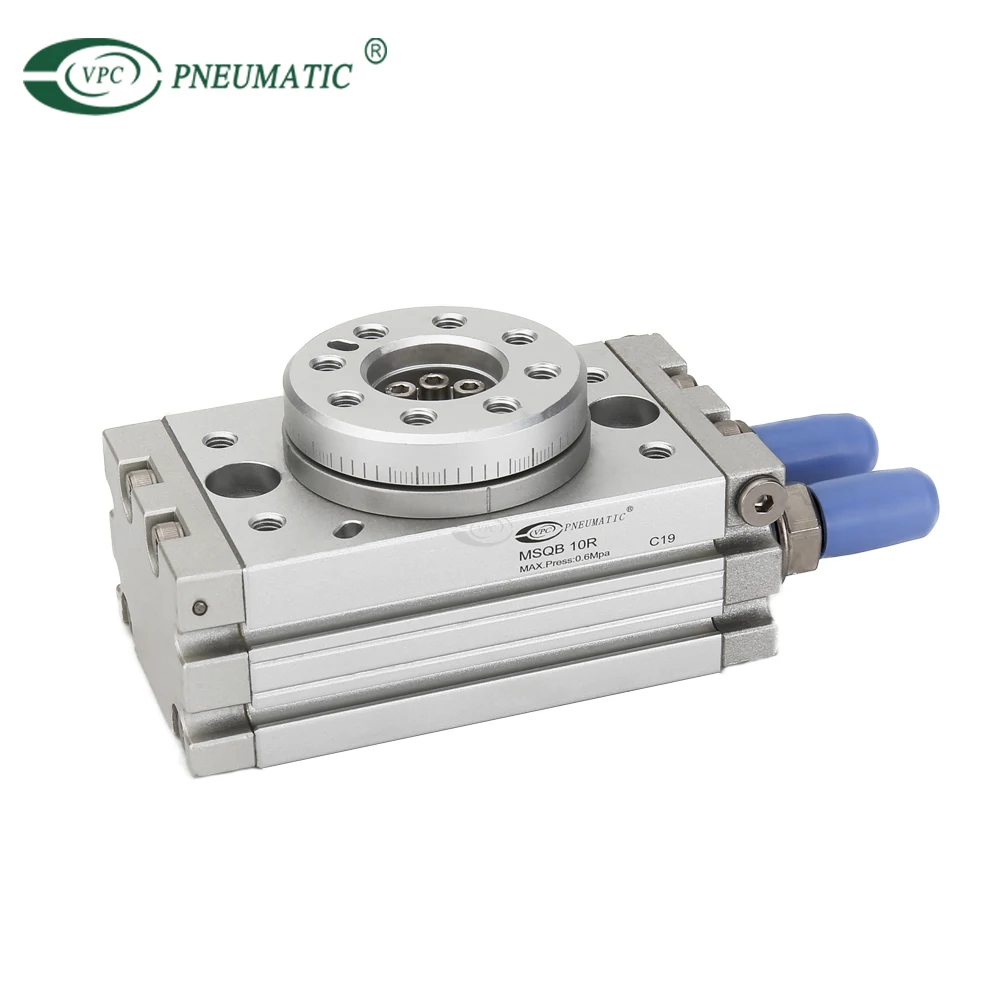

R:With shock absorber


PRODUCTING








PNEUMATIC CYLIDER
DIRECTIONAL SOLENOID VALVE
BRASS SOLENOID VALVE


AIR TREATMENT UNITS
AIR RIDE SUSPENSION VU4 VALVE
PLASTIC STAINLESS STEEL FITTINGS


PU HOSE
PNEUMATIC ACTUATOR
AIR SUSPENSION AIR COMPRESSOR


About Us

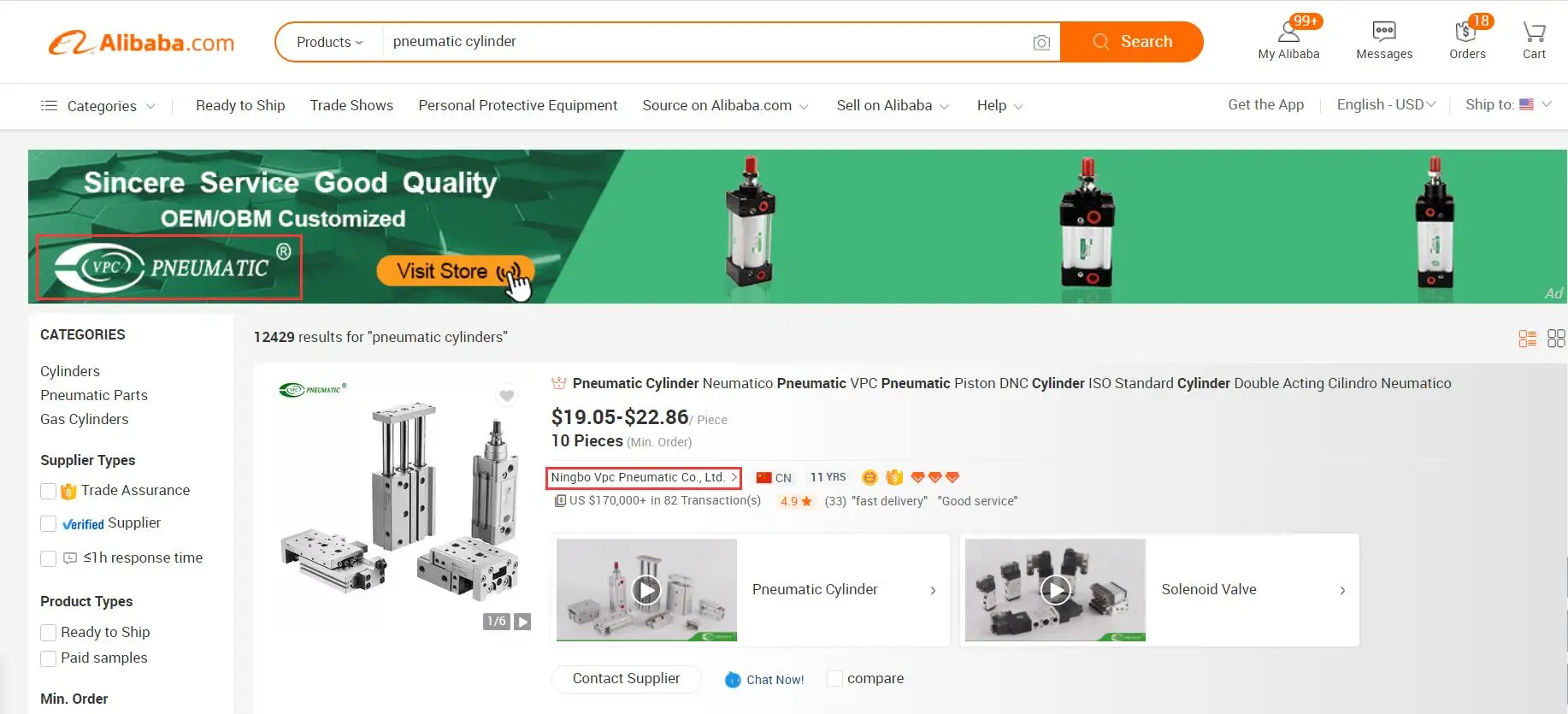

VPC Pneumatic——Alibaba Quality Supplier
