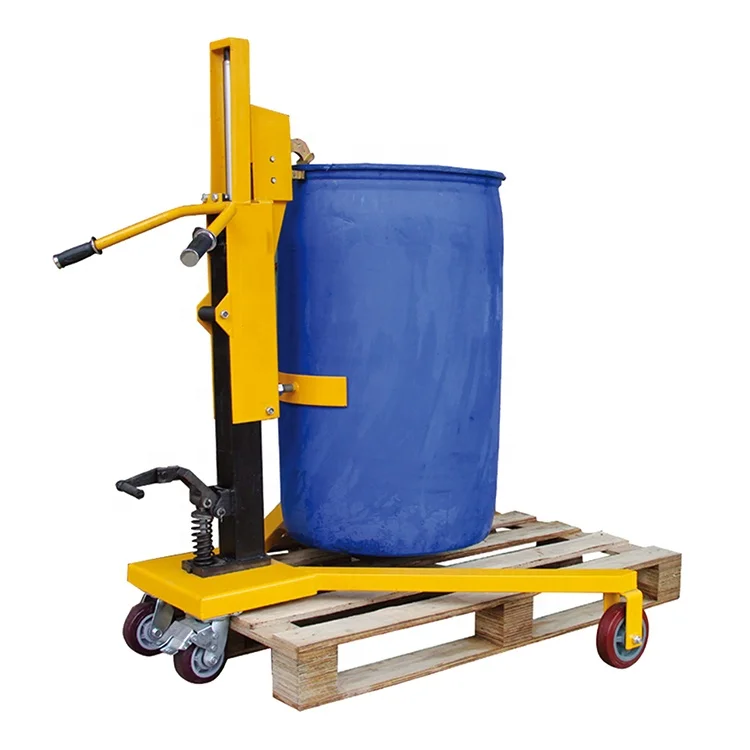

Hydraulic hand controls rotate 180 degree drum truck

Product Overview

Description

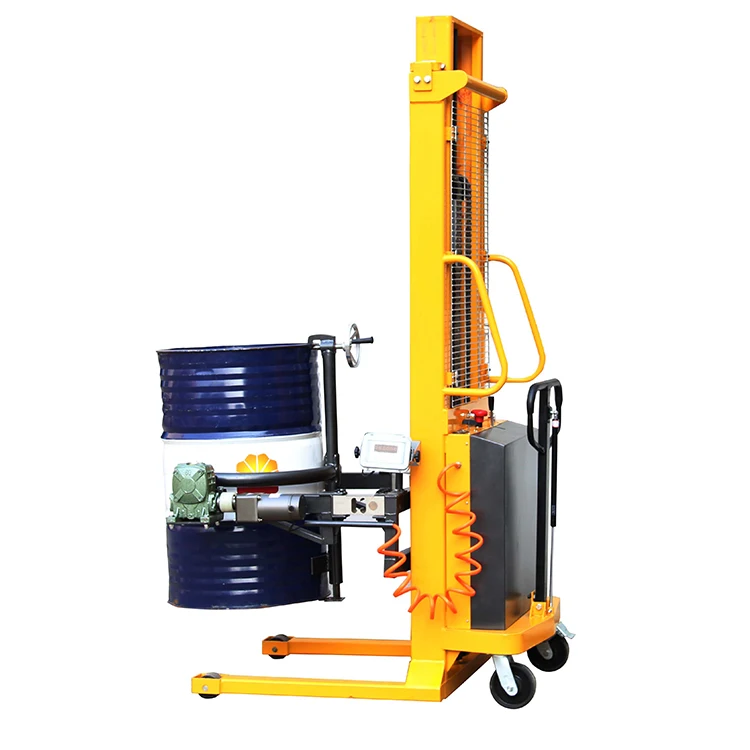

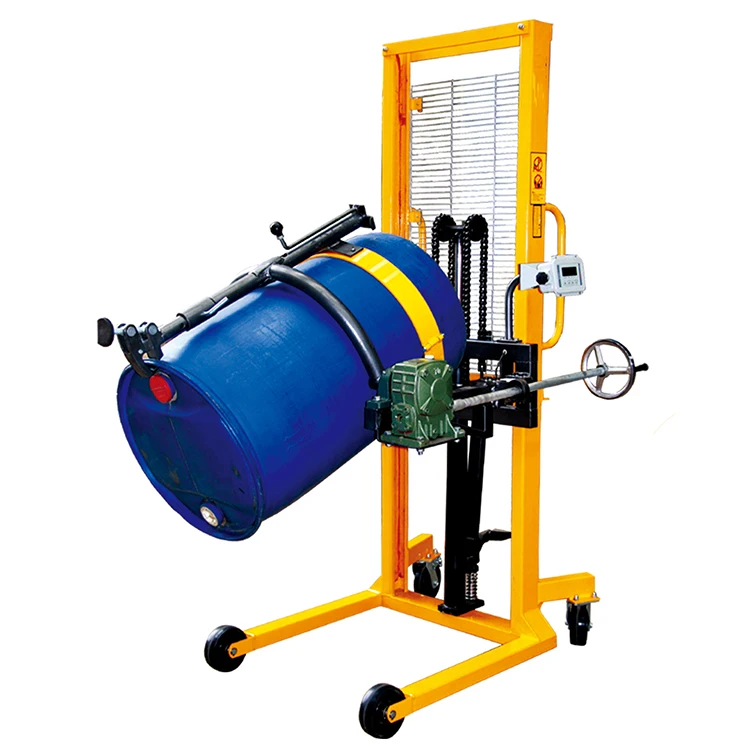

Manual/Electric rotate drum stacker with scale
Special design for handling all size of drums.
All electric control,ideal for lifting,rotating and stacking drum or other round goods such as paper roll.
Ride-on-platform driver,stepless drive speed control,three separate hydraulic hand controls.
Easy and convenient to operate.
Can rotate 180 degree.
CE and ISO certificates.



Model		YL500A-1	YL500B	YL500B-1
capacity	kg	500	500/450	500/450
N.W.	kg	250	250	225
Electric lift	mm	yes	yes	yes
Electric rotate		yes	yes	yes
Weight scale	mm	yes		yes
Front wheel size	mm	Φ80x60	Φ80x60	Φ80x60
Back wheel size	mm	Φ150×50	Φ150×50	Φ150×50
Front leg width	mm	630/810	630/810	630/810
Front leg length	mm	630	630	630
Overall size	mm	1500*950*2060	1500*950*2060	1500*950*2060
Turning radius	mm	1750	1750	1750
LIfting motor	kw/h	1.5	1.5	1.5
Battery	v/ah	12/120	12/120	12/120
Charger	v	12	12	12
scale charger	v			6
Lifting height	mm	1450	1450/2450	1450/2450
Lifting speed	mm/s	120	120	120
Rotate speed		180°/30s	180°/30s	180°/30s



You can get any product in our company. One good supplier and partner is better than thousands of factories. Just tell us what you need, and our professional team members will give you suggestion about the most suitable items.



Q1: How long is the Warranty for SUNRISE product?

A1: SUNRISE provides 12 months or 1000 hours for the whole machine from on

board time.

Q2: How about the delivery time?

A2: Usually SUNRISE producing time is 15-20days after we receive the advanced

payment For some standard products, we may have stock and could delivery Immediately.

Q3: How about the continuous working time for the electric series forklifts And How

long time to charge the battery full?

A3: SUNRISE battery continuous working time is around 4-6 hours(working time

depend on battery volume). It needs usually 8-12 hours to charge the battery, the

charger is automatic, after the battery is full, it will stop working automatically

Q4: Can SUNRISE provide customized products? OEM products or ODM products?

A4: Yes, SUNRISE can provide customized products per your request, both OEM

and odM are acceptable. We do a lots of non-standard products, welcome your specla.

Q5: What's the specification of the chargers?

A5: Our chargers voltage could be 110V 220V 240 380V 415V(1 phase or 3

hases, 50/60HZ). Power plug could be USA/UK/AUSTRALIA/EUPROPEAN

standard.

Q6: Could we request our own color for the products?

A6: Yes, of course, you just need to offer us the RAL code.
