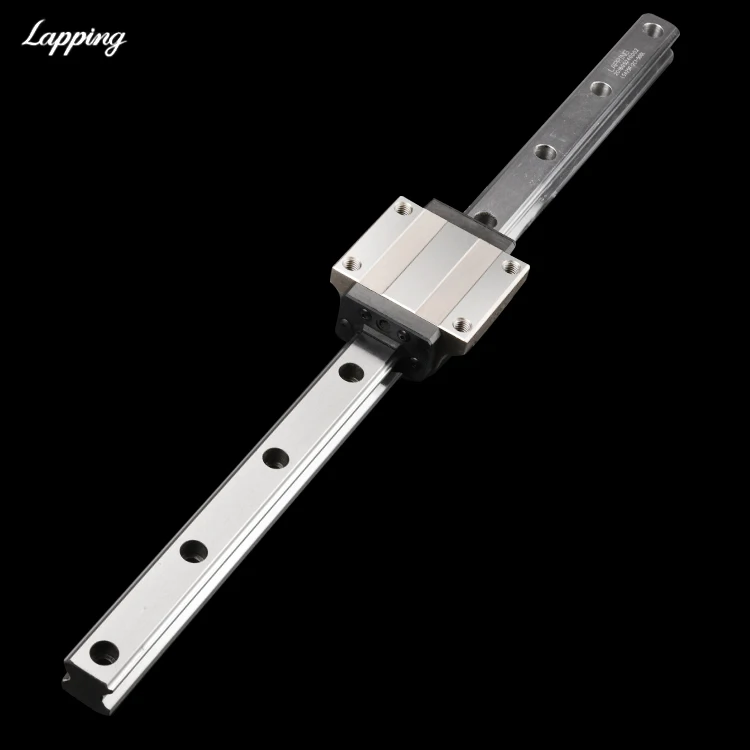

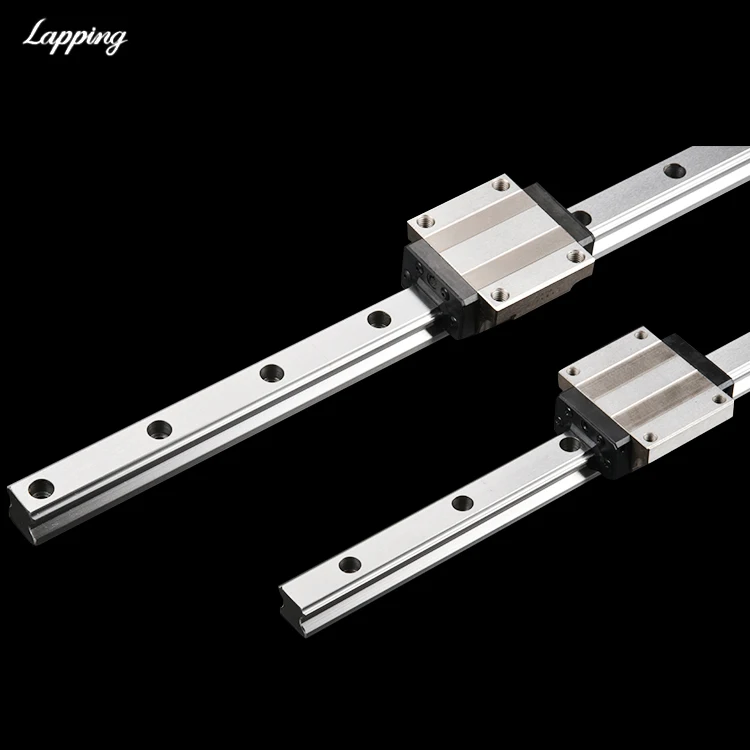

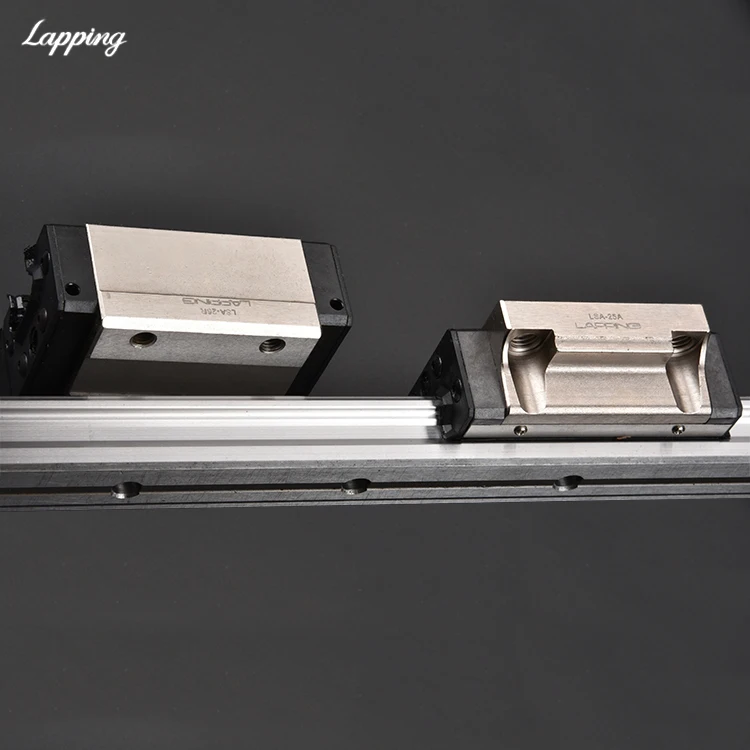

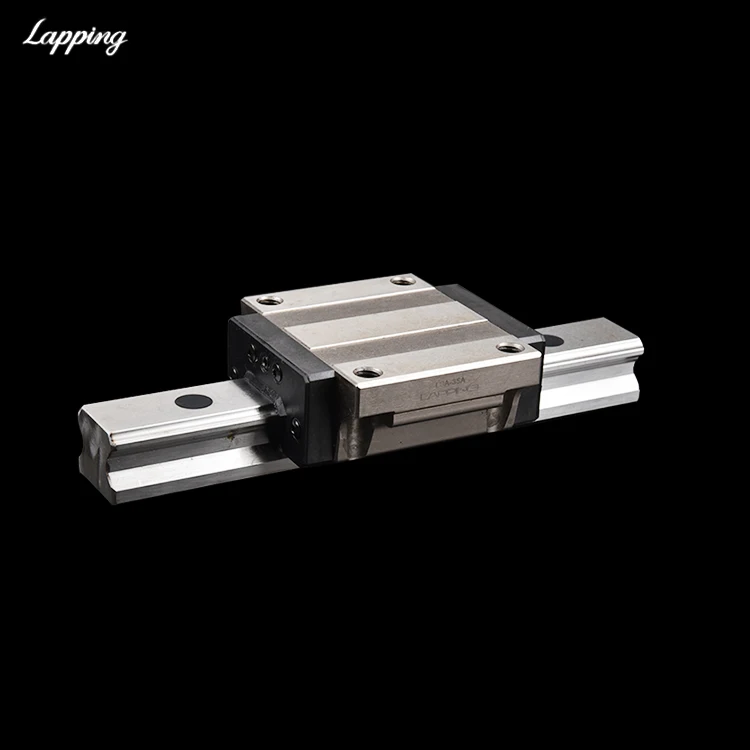

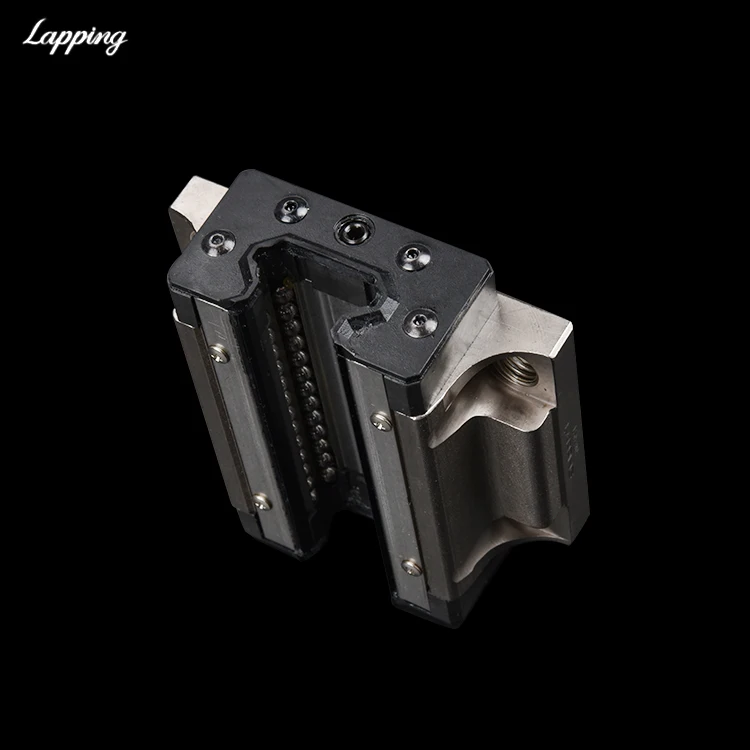

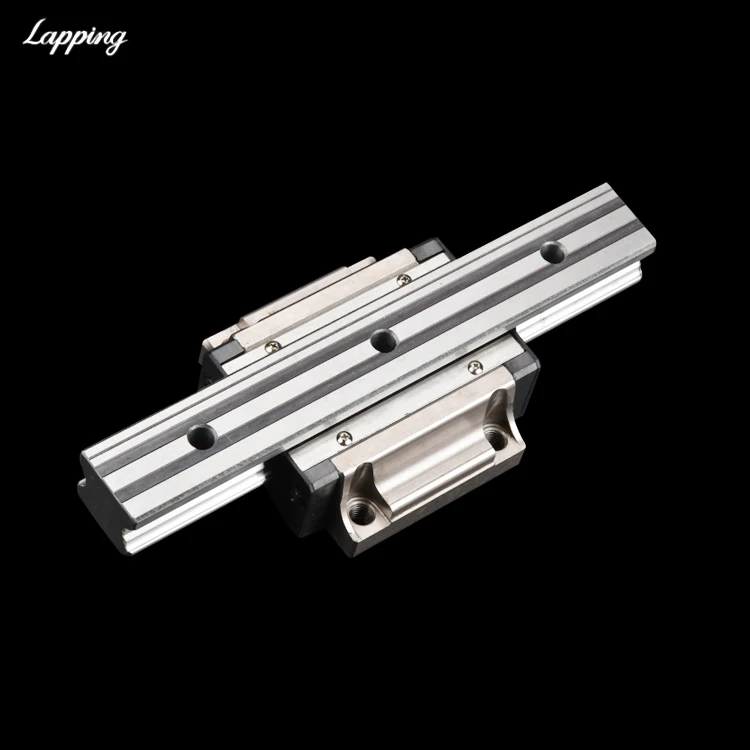

Cheap Sliding Rail System Linear Motion Guide With Slide Block 15 to 65 mm

Name

Slider guide

Type

Automatic equipment high speed transmission device

Combination

At least 100mm linear rail + 1 piece slide block

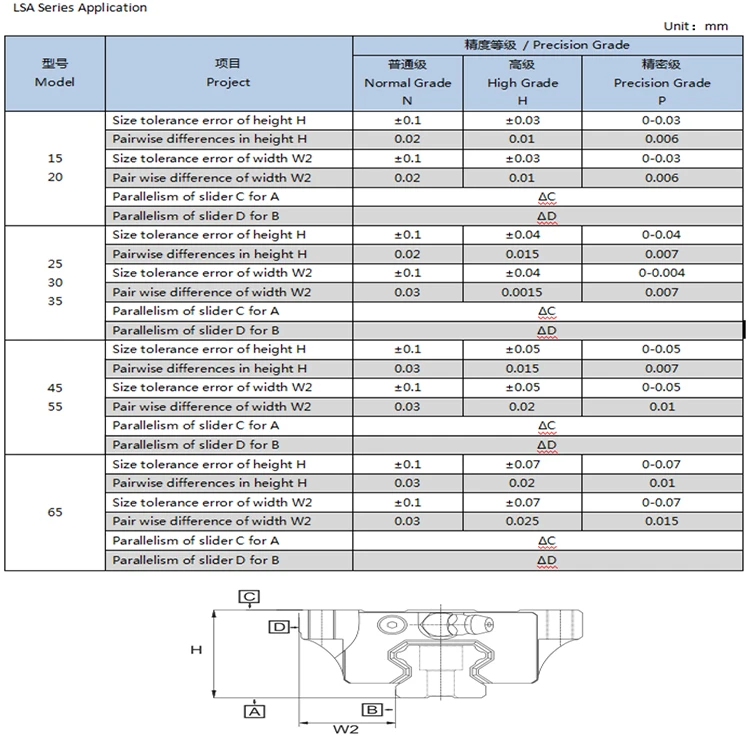

Precision grade

N, H, P

Material

Heat treated steel

Guide Size

Width: fixed, between 15-65mm

Length: up to 4 meters long, longer stitching

Colour

Silver or black

Shape

Rectangle

Certification

ISO9001

Effect

1. Parallelism and high precision

2. The slider and the guide rail are interchangeable, saving cost

3. High rigidity in all directions

4. Reduce friction

Application area

Applied to sliding friction guides

Sample

No

Delivery period

7 days

Packing

1.PE bag, shockproof bubble bag, export standard carton, wooden box

2. According to customer's special requirements

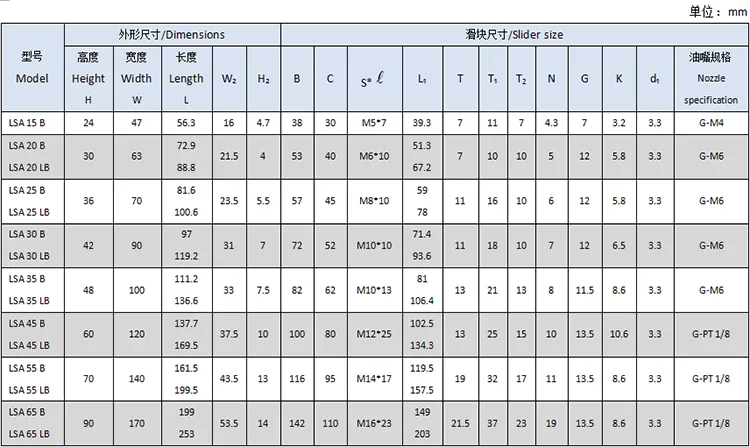

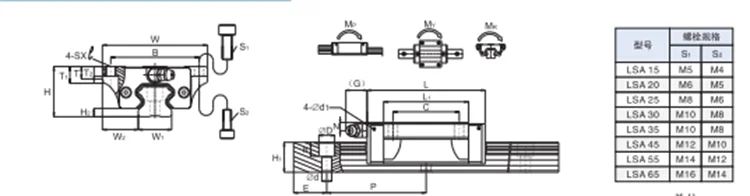

Model

Rail size

Basic load rating

Allowable static moment

Weight

Height

H

Width

W

Pitch

P

E

std

D*h*d

Dynamic load C

KN

Static load C0

KN

MP

KN*m

MY

KN*m

MR

KN*m

Slider

KG

Guide

KG/m

Single *

Double*

Single *

Double*

LSA 15 B

15

15

60

20

7.5*5.3*4.5

11.8

18.9

0.12

0.68

0.12

0.68

0.14

0.18

1.5

LSA 20 B

LSA 20 LB

20

18

60

20

9.5*8.5*6

19.2

23.3

29.5

39.3

0.23

0.39

1.42

2.23

0.23

0.39

1.42

2.23

0.29

0.38

0.4

0.52

2.4

LSA 25 B

LSA 25 LB

23

22

60

20

11*9*7

28.1

34.4

42.4

56.6

0.39

0.67

2.20

3.52

0.39

0.67

2.20

3.52

0.48

0.63

0.62

0.82

3.4

LSA 30 B

LSA 30 LB

28

26

80

20

14*12*9

39.2

47.9

57.8

77.0

0.62

1.07

3.67

5.81

0.62

1.07

3.67

5.81

0.79

1.05

1.09

1.43

4.8

LSA 35 B

LSA 35 LB

34

29

80

20

14*12*9

52.0

63.6

75.5

100.6

0.93

1.60

5.47

8.67

0.93

1.60

5.47

8.67

1.25

1.67

1.61

2.11

6.6

LSA 45 B

LSA 45 LB

45

38

105

22.5

20*17*14

83.8

102.4

117.9

157.3

1.81

3.13

10.67

16.95

1.81

3.13

10.67

16.95

2.57

3.43

2.98

3.9

11.5

LSA 55 B

LSA 55 LB

53

44

120

30

23*20*16

123.6

151.1

169.8

226.4

3.13

5.40

17.57

28.11

3.13

5.40

17.57

28.11

4.50

6.00

4.17

5.49

15.5

LSA 65 B

LSA 65 LB

63

53

150

35

26*22*18

198.8

253.5

265.3

375.9

6.11

11.84

33.71

57.32

6.11

11.84

33.71

57.32

8.36

11.84

8.73

11.89

21.9

Model

Rail size

Basic load rating

Allowable static moment

Weight

Height

H

Width

W

Pitch

P

E

std

D*h*d

Dynamic load C

KN

Static load C0

KN

MP

KN*m

MY

KN*m

MR

KN*m

Slider

KG

Guide

KG/m

Single *

Double*

Single *

Double*

LSA 15 R

15

15

60

20

7.5*5.3*4.5

11.8

18.9

0.12

0.68

0.12

0.68

0.14

0.18

1.5

LSA 20 R

LSA 20 LR

20

18

60

20

9.5*8.5*6

19.2

23.3

29.5

39.3

0.23

0.39

1.42

2.23

0.23

0.39

1.42

2.23

0.29

0.38

0.30

0.39

2.4

LSA 25 R

LSA 25 LR

23

22

60

20

11*9*7

28.1

34.4

42.4

56.6

0.39

0.67

2.20

3.52

0.39

0.67

2.20

3.52

0.48

0.63

0.52

0.68

3.4

LSA 30 R

LSA 30 LR

28

26

80

20

14*12*9

39.2

47.9

57.8

77.0

0.62

1.07

3.67

5.81

0.62

1.07

3.67

5.81

0.79

1.05

0.86

1.12

4.8

LSA 35 R

LSA 35 LR

34

29

80

20

14*12*9

52.0

63.6

75.5

100.6

0.93

1.60

5.47

8.67

0.93

1.60

5.47

8.67

1.25

1.67

1.45

1.90

6.6

LSA 45 R

LSA 45 LR

45

38

105

22.5

20*17*14

83.8

102.4

117.9

157.3

1.81

3.13

10.67

16.95

1.81

3.13

10.67

16.95

2.57

3.43

2.83

3.70

11.5

LSA 55 R

LSA 55 LR

53

44

120

30

23*20*16

123.6

151.1

169.8

226.4

3.13

5.40

17.57

28.11

3.13

5.40

17.57

28.11

4.50

6.00

4.12

4.91

15.5

LSA 65 R

LSA 65 LR

63

53

150

35

26*22*18

198.8

253.5

265.3

375.9

6.11

11.84

33.71

57.32

6.11

11.84

33.71

57.32

8.36

11.84

6.43

8.76

21.9
