2000 liters high grade mixer blender liquid soap mixer machine



Dear all, thank you for visiting our web. Hope you can find what you need here. For a more efficient communication, please refer to the following question when sending the inquiry.

1. What is your product? (liquid soap, or shampoo or ?)

2. What is the capacity you need?

3. Is your product highly corrosive?

4. Does the product needs heating when mixing?





Features and Advantages



1.The blending system adopts single-direction or double-direction wall scraping blending and frequency conversion speed adjustment to satisfy production of different technological requirements.



2.Material can be heating or cooled according to technolgical requirements . The heating methods such as steam or electric heating can be selected according to customer requirements.



3.Various forms of blending vanes are suitable for production of different types of production of products.



4.The pot body is welded by imported three-layer stainless steel plate. The tank body and the pipes adopt

mirror polishing, which fully conforms to GMP requirements.





5.Bottom installation type dispersing head and SPX Pipeline type emulsifying head are optional to speed up dissolution and emulsification of materials .



6. The stainless steel electric control cabinet can completely supervise the operation of equipment, and display such data as temperature and blending rotation speed etc.





Introduction

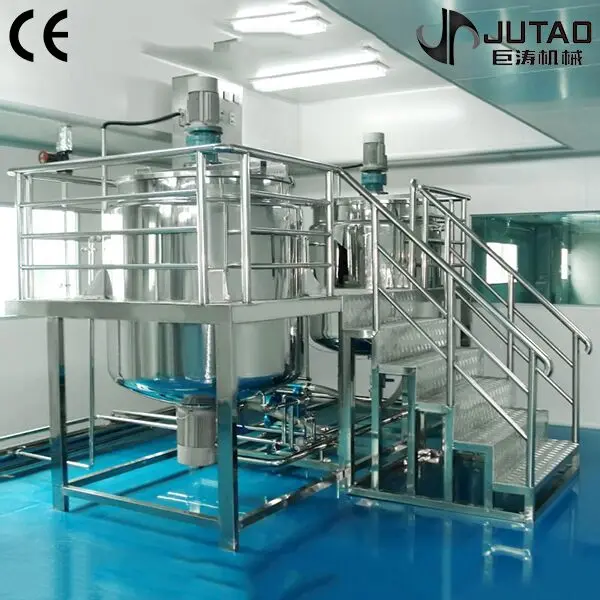

JUTAO Liquid agitator kettle

Name Liquid washing machine Material Stainless steel 304/stainless steel 316L Application Cosmetic, pharmacy, daily chemical care products  (such as detergent, shampoo, laundry detergent, etc) Product features 1) With CE certificate   2) Upper scrapping mixer: 0-63 r/min (speed adjustable)   3) bottom homogenizer: 0-3000 r/min (speed adjustable)   4)Motor: Siemens or ABB   5) Mitsubish or Taiwan Delta frequency speed changer   6) Three layerd mixing pot. Jacket for heating and tap water cycle cooling   7) Particle size could reach 0.2-5μm Your satisfaction is our mission!







Technical parameter

Model	Capacity(L)	mixing power(kw)	Mixing Speed(r/min)	Homogenizing power(kw)	Homogenizing speed(r/min)	Heating method
JT-200	200	0.75	0-65	2.2-4	3000	Steam Heating or Electric Heating (optional)
JT-300	300	0.75	0-65	2.2-4	3000
JT-500	500	2.2	0-65	5.5-7.5	3000
JT-1000	1000	4	0-65	7.5-11	3000
JT-2000	2000	5.5	0-53	11-15	3000
JT-3000	3000	7.5	0-53	18	3000
JT-5000	5000	11	0-42	22	3000
Note: In case of inconformity of the data in the table due to technical improvement or customization, the real object shall prevail.

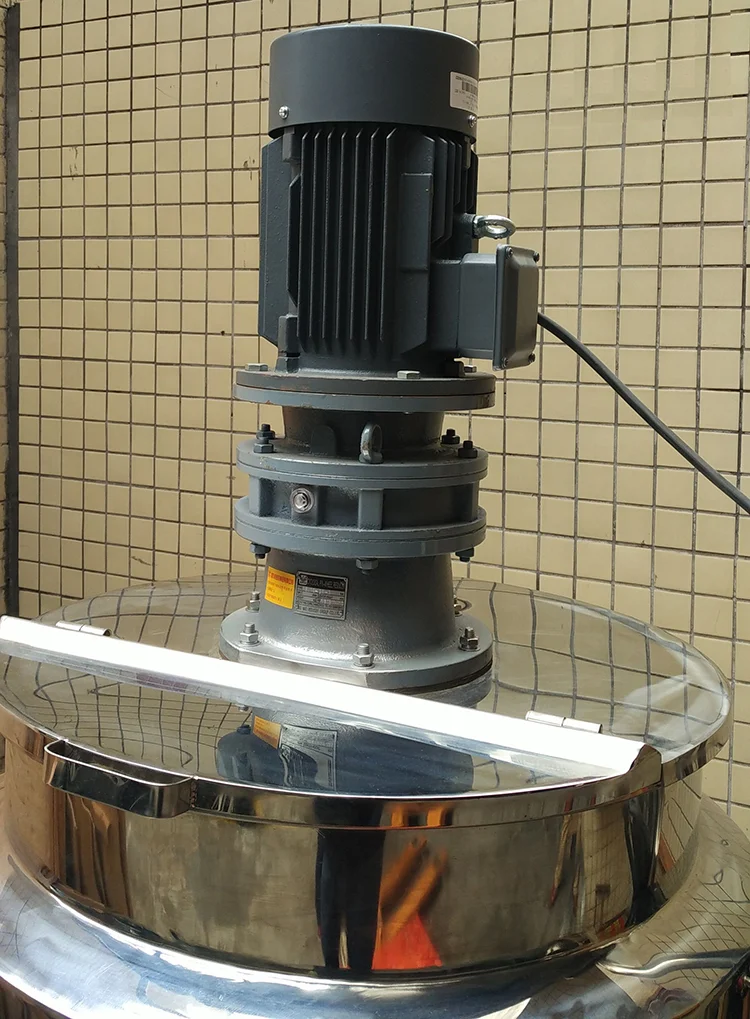

    Upper motor: stable and powerful, provide the power to the mixer.

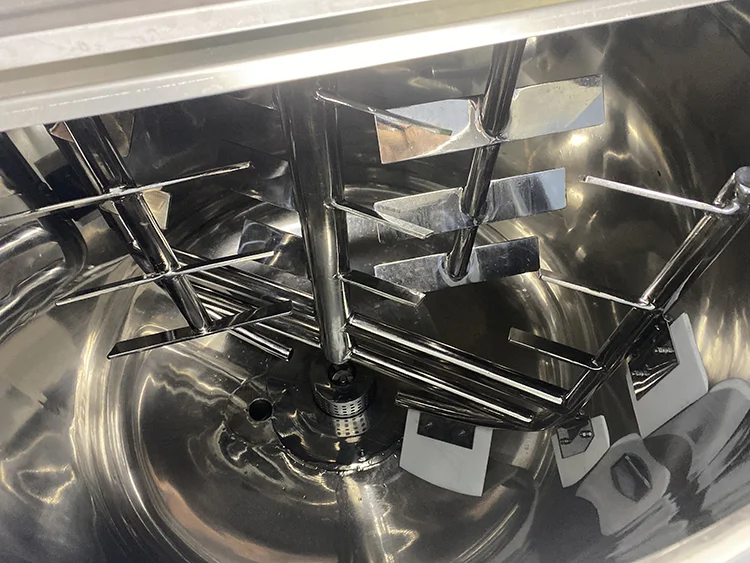

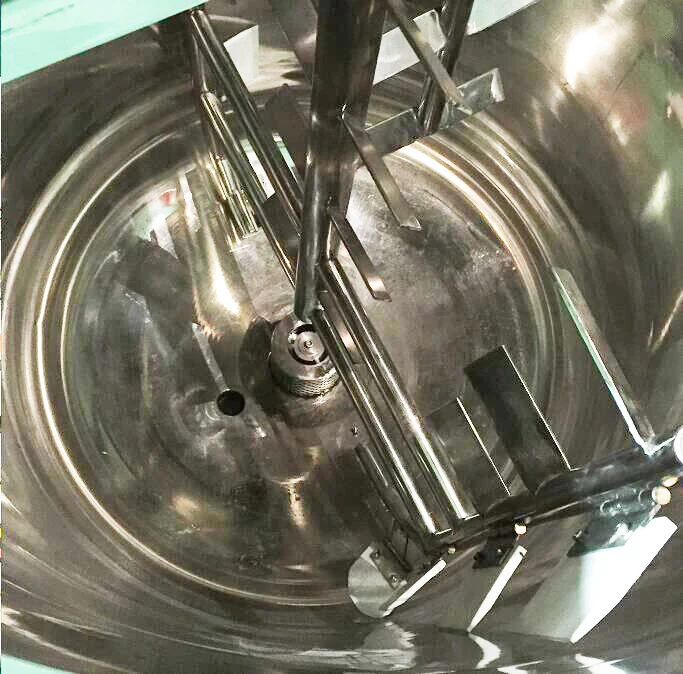

 Blending paddle: made of high quality stainless steel SUS316L, equipped with the wall scraper to scrap the materials stick on the tank.

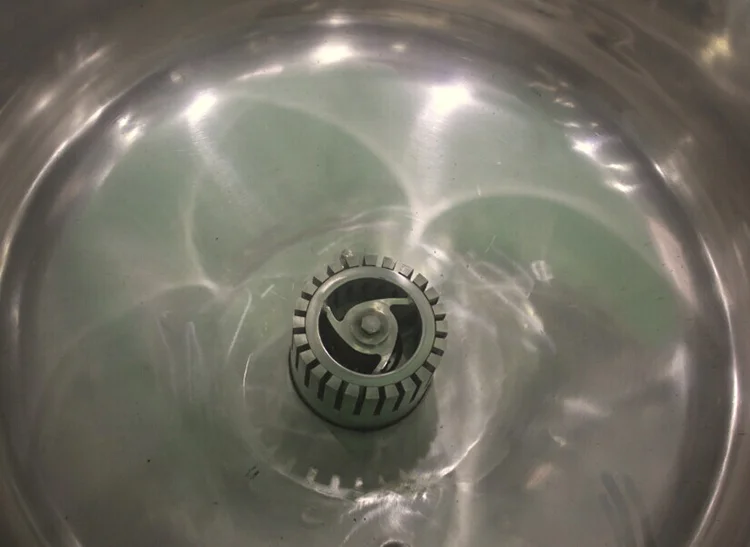

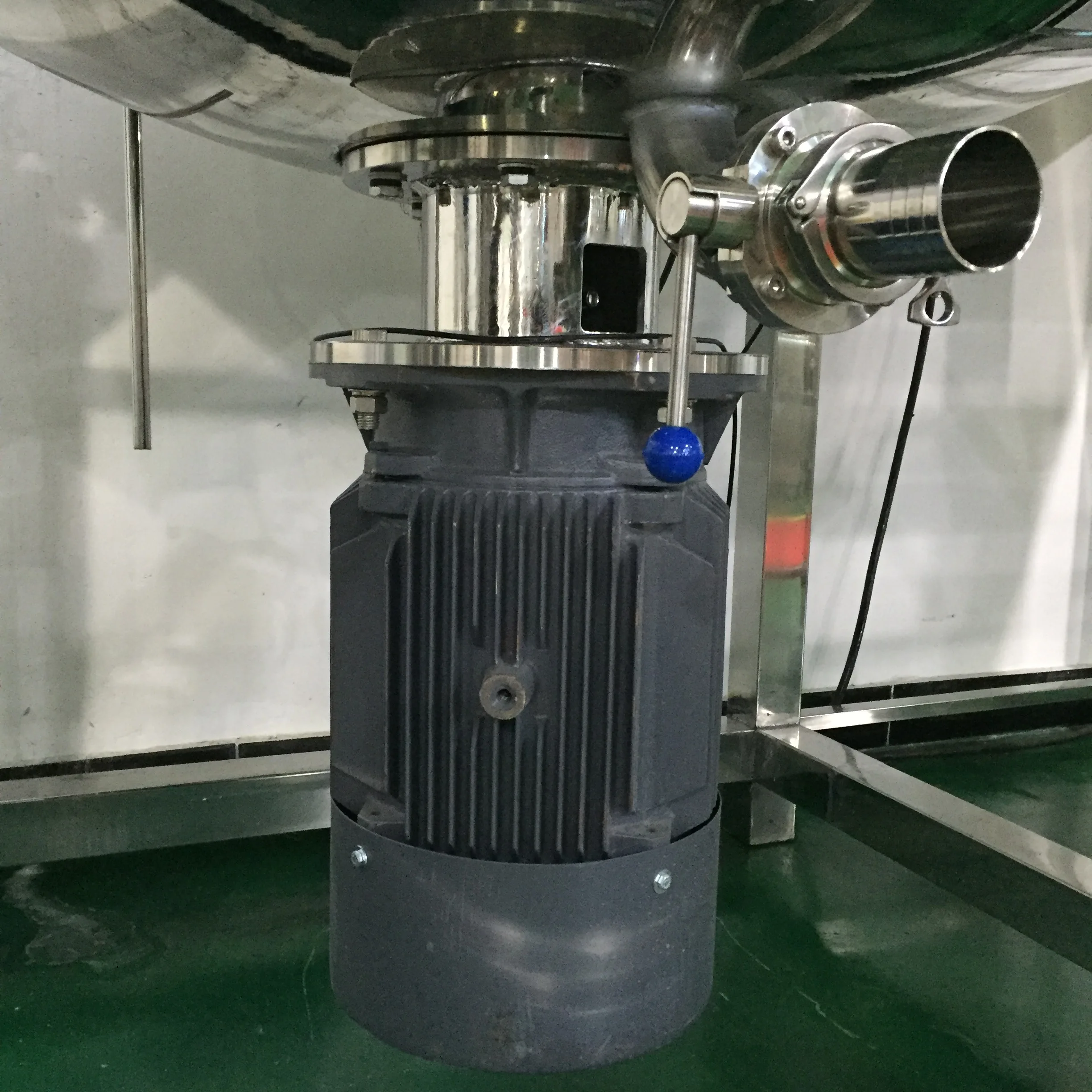

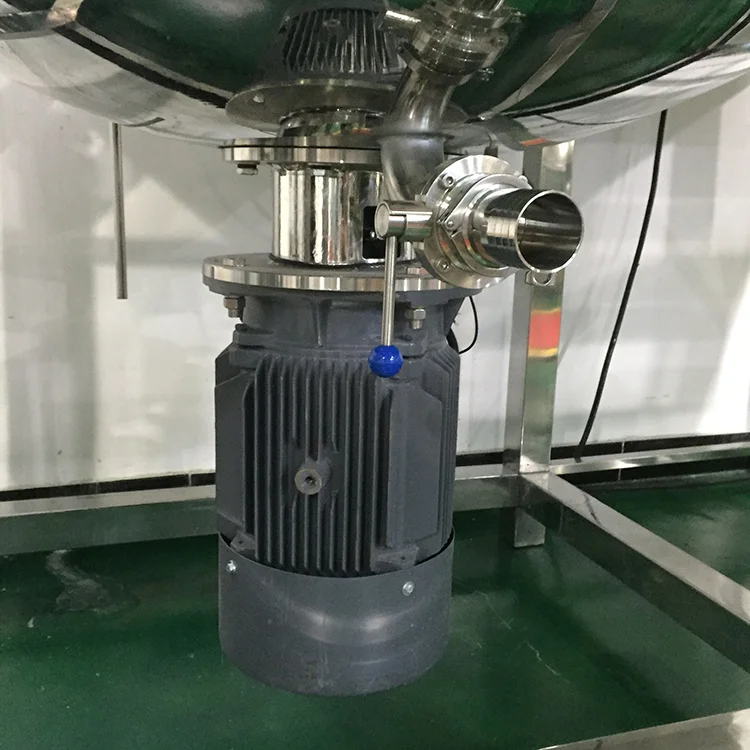

 Homogenizer: the rotation speed can reach 3000 round per minute.

 Bottom discharge: bottom direct discharge or by transfer pump.

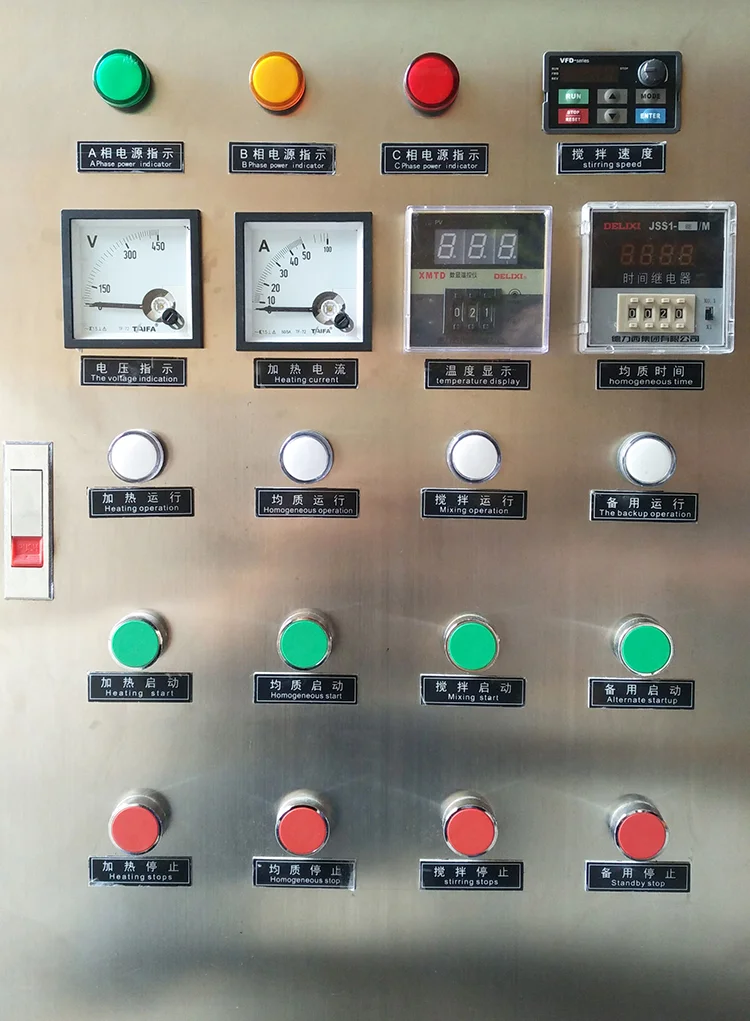

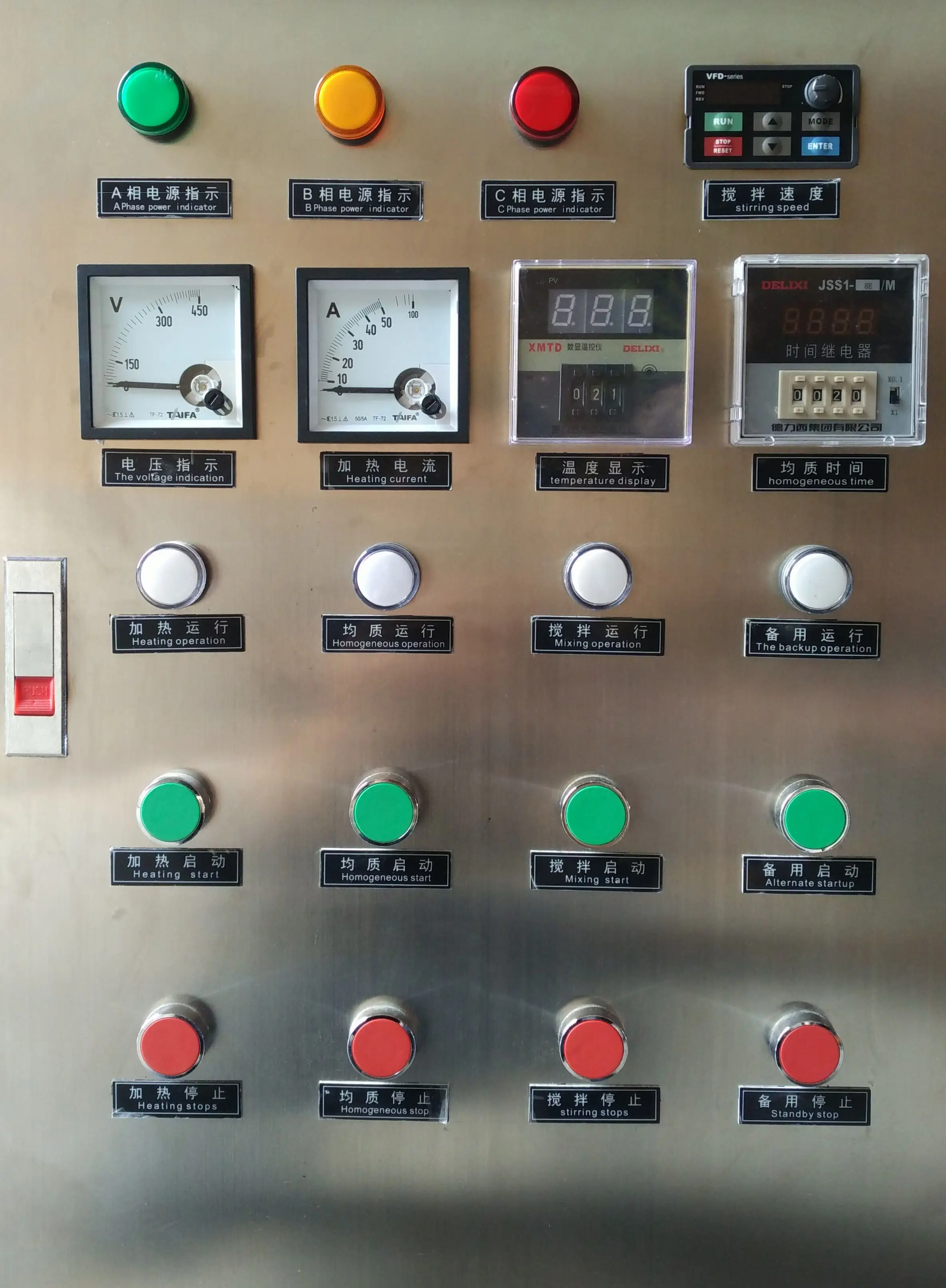

 Button control panel: easy to learn and operate.  Each function can be controlled separately, such as mixing, homogenizing, heating...

 Application: it is suitable for liquid, lotion, detergent products, such as body wash, hand wash, liquid soap, shampoo, hair gel...



                              Material sources of parts













 Notes: A quality department has been set up to control the product quality during every process of production. For years, we are strictly implementing International Quality Management System ISO 9001.











Notes: Founded in 1997, with 5 production lines and covering an area of 12,000 square meters, our factory has developed into a professional manufacturer of cosmetics machinery and equipment, by integrating R&D, manufacturing, sales and service. Advanced production equipments are the guarantee for high quality products.







Notes: Our product categories mainly include: Vacuum emulsifying mixer, Liquid washing mixer, Water treatment equipment, Perfume machine, Filling machine, Packing machine, Labeling machine etc. We are able to supply a wide range of high quality products for your One-stop sourcing in our exhibition center.











 Notes: We are a professional sales team with high efficiency, and endeavoring to provide satisfactory services to every of our customers as always.

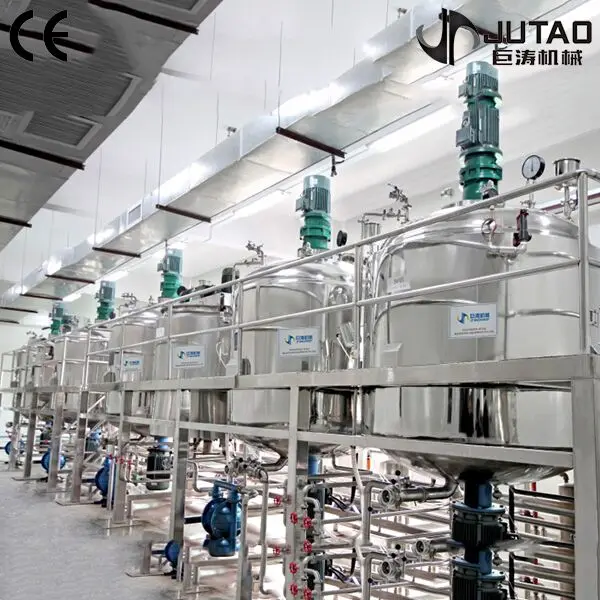

   Factory

    We have own factory and skilled workers,rich-experienced design team and good after service.



   Quality and Price

    Our good quality is built on superior material, imported from Japan, French and so on.We   pass ISO9001,CE, GMP. Our price is based on the quality,we give the reasonable price to every customer!



   Product range

    We can provide various kinds of stainless products for your choice.Also,we can customize according to   your specific requiements.



   Convenient transportation

    We cooperated with efficient logistics.Which ensure the goods can be reached you timely and safely.



    Training

     Our engineers will train your staff to operate it during the period of installation and commissioning,

     and they will not leave there until your staff can operate it properly and normally.



    Pre-consultation

     Please contact us before you place order,or need any technical support or guidance.

   Contact person: Pepe Yu (Overseas Sales)



     WhatsApp: +86 13556901160

     Wechat and Mobile: +86 13556901160

      Address: 1st floor Building C, Baiyun lake creative industrial park, No.8 Nanyue street, Xiamao, Baiyun district, Guangzhou China.



Would like to know more about the products?Please send us inquiry click"Send" now!
