JT108 2.5KG PUR Hot Melt Glue/Adhesive Machine
- Category: >>>
- Supplier: Fujian Jingtai Equipment Co. Ltd.
Share on (60819633867):
Product Overview
Description
Product Description
SPECIFICATIONS FOR JT101-500 & JT108 HOT MELT GLUE MACHINE | ||||||
MODEL | JT101-500 PUR | JT108 PUR | MARK | |||
TANK CAPACITY | 500mL | 2.5L | ||||
TANK INSIDE DIAMETER | 95mm | 140mm | ||||
MAX. OPERATION TEMP. | 180℃ | 180℃ | ||||
MAX. VISCOSITY | 50000cps | 50000cps | ||||
SETS OF HOSE & GUN | 1-2pcs | 1-2pcs | ||||
SETS OF MOTOR | 1pc | 1pc | ||||
TYPE OF TEMP. CONTROL | PID | Touch screen | ||||
TOTAL POWER | 1120w | 4400w | ||||
WEIGHT | 30kg | 60kg | ||||
DIMENSION | 600*280*400mm | 810*490*1100mm | ||||
POWER DEMAND | AC220V/50HZ | AC220V/50HZ | ||||
Main Features
1) Heated hose and additional automatic controller for easy adjustment of spraying height and angle.
2) Large area operation can be achieved without moving machine.
3) 1 to 2 sets of hose & gun can be chose to be installed so as to save purchase cost.
4) When melting, the hot melt adhesive is isolated from the air: there are some O-ring seal with high temperature resistance between the heating plate and the melting tank, it can protect the melted adhesive from being exposed to air so as to ensure the PUR in a better using conditions.
5) High strength integral molding glue tank, leaf shape heater can increase the heating area and improve the melting rate. The inner tank is sprayed teflon, so its internal face is smooth without corner structure , and it can protect glue stick to the internal face and get carbonized efficiently.
6) Gear pump's working accuracy (adopt import technology) can efficiently ensure the stable output glue.
Detailed Images
Machine

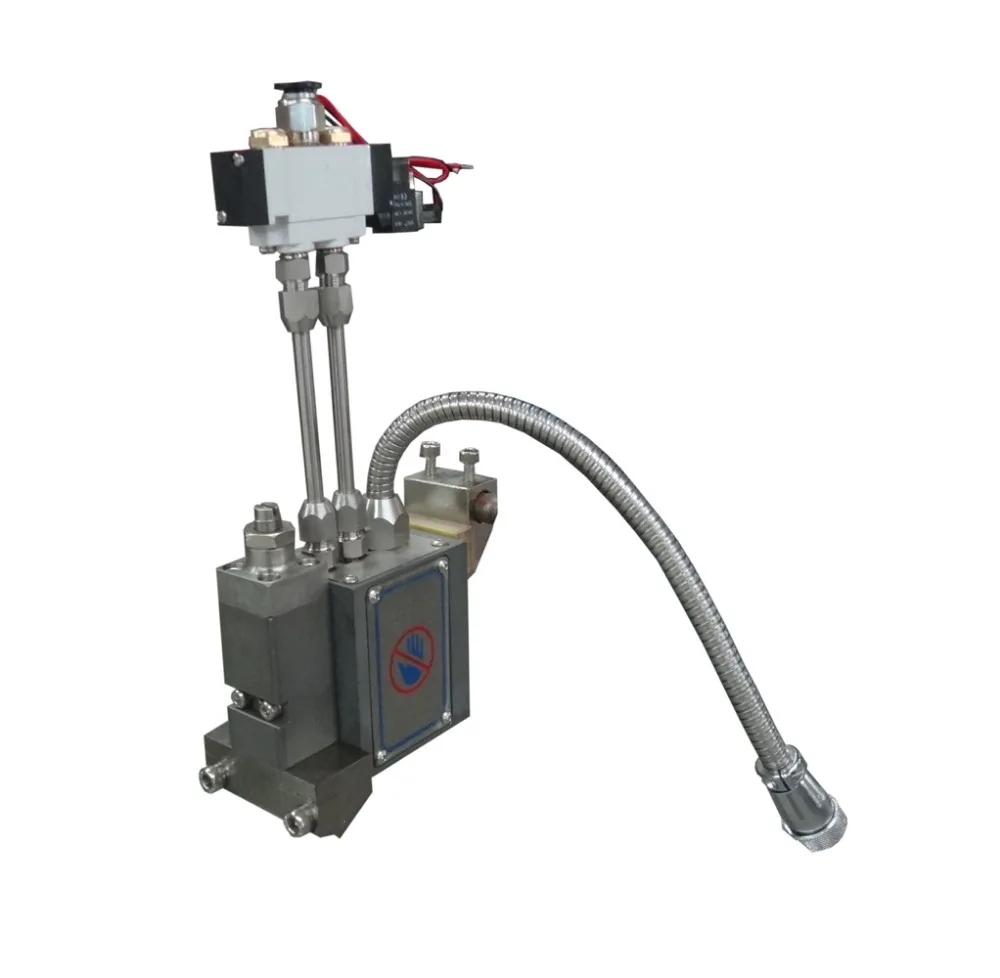

Name: JT108 Hot Melt Glue Machine/Applicator
Brand: JINGTAI
Original: China
1. The glue output is stable;
2. The max. operation temperature is 180℃;
3. High quality and good price;
4. It can be equipped with 1-2 sets of heated hose & glue gun.
Machine Accessories

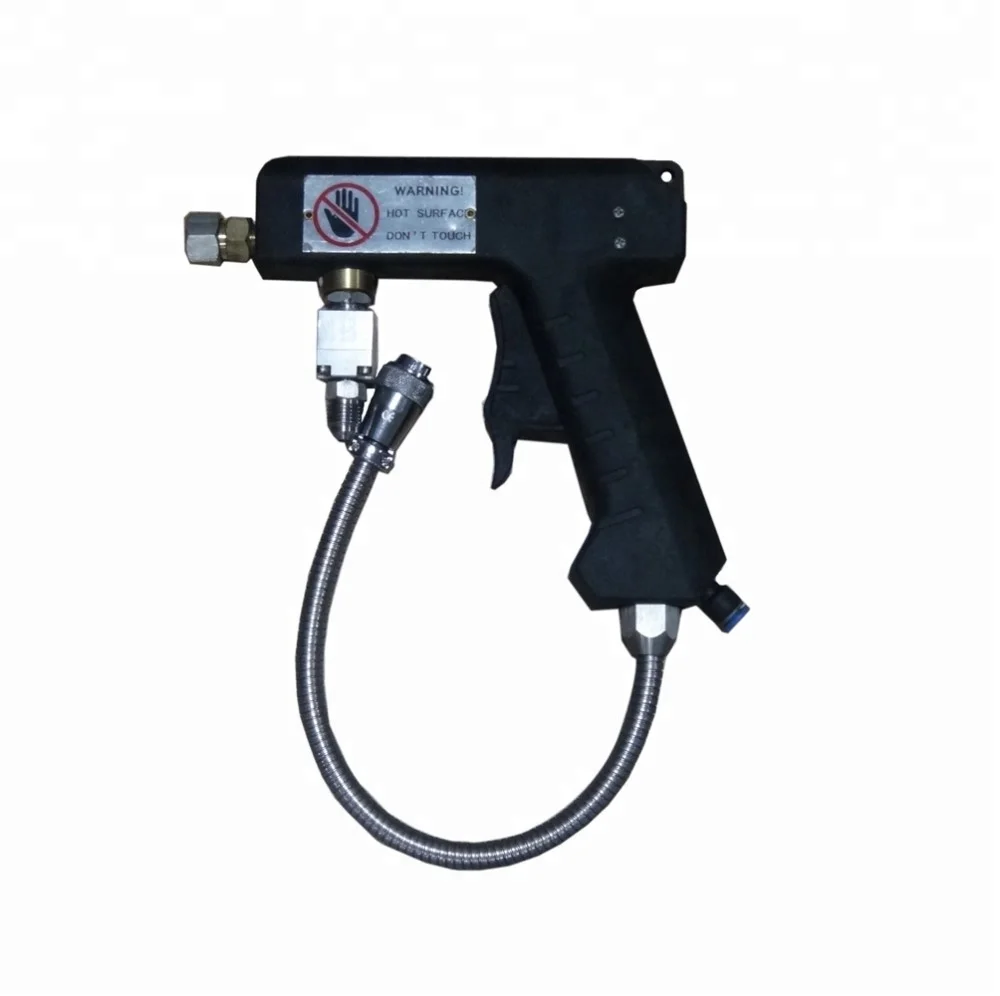

Name: Glue Gun
Brand: JINGTAI
Original: China
1. Manual glue gun or automatic glue gun can be chose;
2. Glue output way: bead spraying, strip spraying, mist spraying, scrape spraying.
Machine Accessories

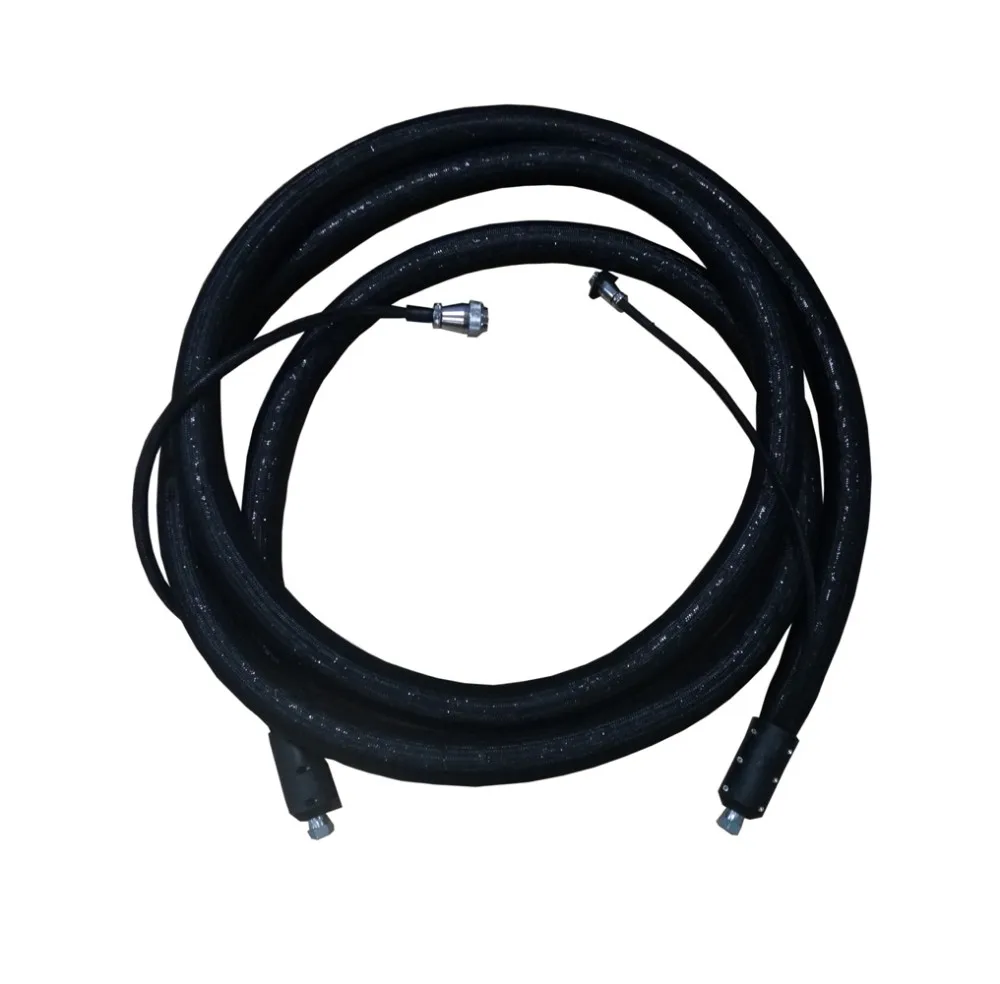

Name: Heated Hose
Brand: JINGTAI
Original: China
1. Customized hose length, min. length is1 meter;
2. The color can be chose, black or blue.
Our Service
Pre-Sales Service
* Inquiry and consulting support.
* Testing support.
* View our Factory.
After-Sales Service
* Technology support.
* Specification and video direction.
Packing & Delivery
Packaging | ||
Size | 820mm (L) * 420mm (W) * 1100mm (D) | |
Weight | 70-100kg | |
Packaging Details | 1. The packing is confirmed to export wooden case standard, strong and durable. The wooden case's thickness is generally 1 cm. 2. In order to be waterproof, we usually use bubble film to wrap machine. 3. In order to avoid the machine being damaged in transit, the foam will be full filled between the machine and wooden carton. | |
