M30 Capacitive Liquid Level Proximity Sensor Switch NPN/PNP 3 Wires 5Vdc/12V/24VDC IP67 Waterproof (IBEST)

Product Overview

Description

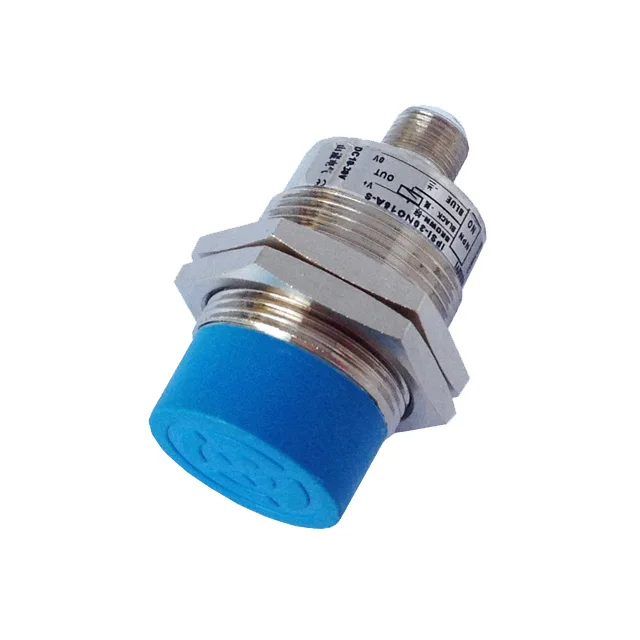

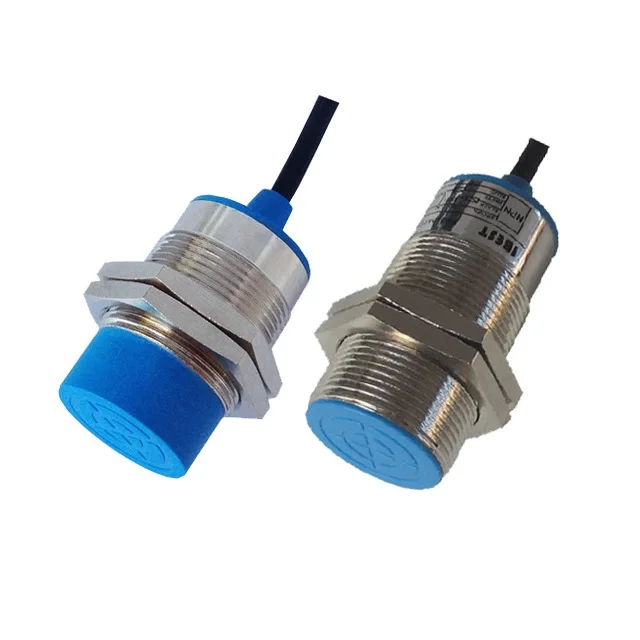

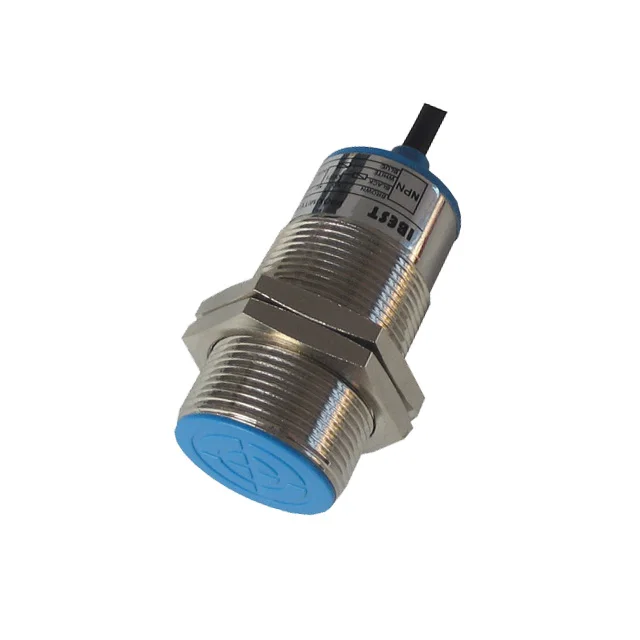

  IBEST M30 Cylinder Capacitive Proximity Sensor/Switch

NPN or PNP 3 Wires / With 2M Cable





1. Features of IBEST M30 Capacitive Sensor Switch  :



--    Style: cylinder 30mm, lenth: flush 55mm, Non-flush 63mm.

--    Standard sensing object: metal or non-metal objets. (Except thin paper, thin plastic objects and thin poly bag are not sensitive)

--    Shielded / Flush: 10-15mm; Unshielded / Non-flush: 15-25mm.

--    DC 3wire or 4 wires (10-30V DC), PNP or NPN, NO or NC or NO+NC. (or AC 2 wires 90-250V supply or AC24V supply can be specially made as per customer's request)

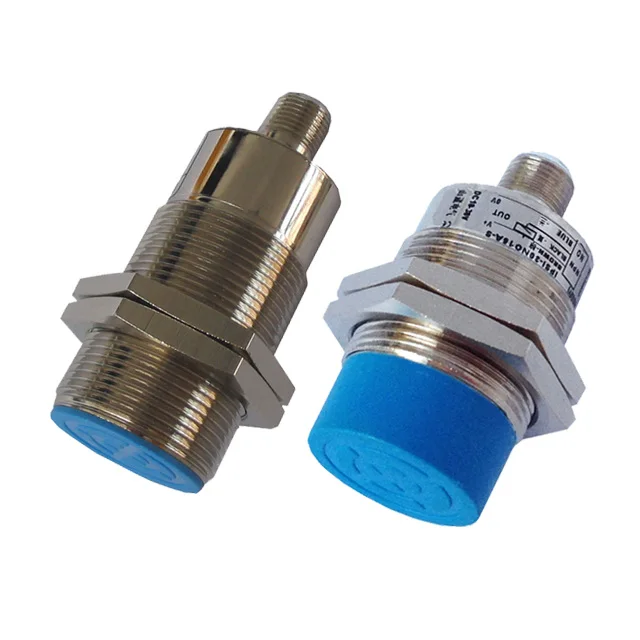

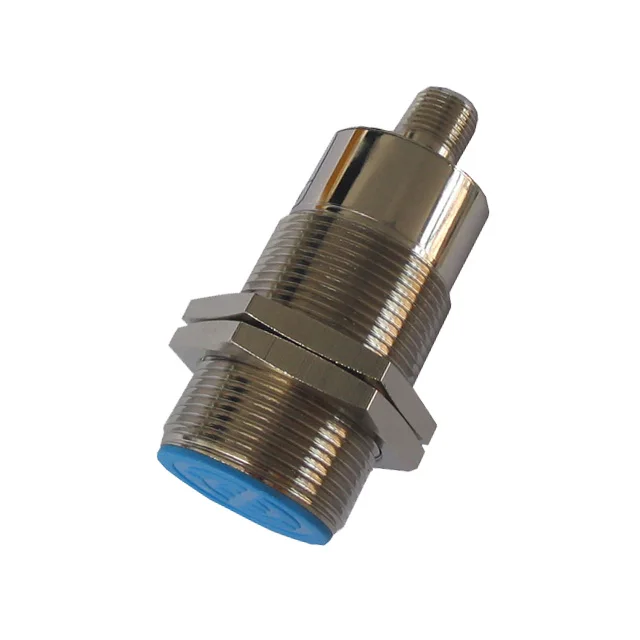

--    Connection mode: cable=2M or with M12 connector and cable.

--    With LED operation indicate lamp, easily identifiable.

--    Brass chrome plated, proof of oil, water acid, alkaline.

--    Protection rate: IP67, water resistant.

--    Reliable quality to replace famous brands, such as: Omron, Sick, Bafflus...etc.

--    CE approved.

--    Widely applied in measuring, Counting, Rpm measuring in mechanism,paper  manufacture light industry, chemical etc



2.Ordering code



Model and type	Output type	Mounting  distance	Current   output	Power supply	Protection  rate	Buy
CPS-30PO15B	PNP NO	3-15mm	≤200mA	DC 10-30V	IP67
CPS-30PC15B	PNP NC	3-15mm	≤200mA	DC 10-30V	IP67
CPS-30POC15B	PNP NO+NC	3-15mm	≤200mA	DC 10-30V	IP67
CPS-30NO15B	NPN NO	3-15mm	≤200mA	DC 10-30V	IP67
CPS-30NC15B	NPN NC	3-15mm	≤200mA	DC 10-30V	IP67
CPS-30NOC15B	NPN NO+NC	3-15mm	≤200mA	DC 10-30V	IP67
CPS-30PO25B	PNP NO	3-25mm	≤200mA	DC 10-30V	IP67
CPS-30PC25B	PNP NC	3-25mm	≤200mA	DC 10-30V	IP67
CPS-30POC25B	PNP NO+NC	3-25mm	≤200mA	DC 10-30V	IP67
CPS-30NO25B	NPN NO	3-25mm	≤200mA	DC 10-30V	IP67
CPS-30NC25B	NPN NC	3-25mm	≤200mA	DC 10-30V	IP67
CPS-30NOC25B	NPN NO+NC	3-25mm	≤200mA	DC 10-30V	IP67
CPS-30AO25C	AC  NO	3-25mm	≤300mA	AC 90-250V	IP67
CPS-30AC25C	AC  NC	3-25mm	≤300mA	AC 90-250V	IP67
CPSI/L-30PO15B	PNP NO	3-15mm	≤200mA	DC 10-30V	IP67
CPSI/L-30PC15B	PNP NC	3-15mm	≤200mA	DC 10-30V	IP67
CPSI/L-30POC15B	PNP NO+NC	3-15mm	≤200mA	DC 10-30V	IP67
CPSI/L-30NO15B	NPN NO	3-15mm	≤200mA	DC 10-30V	IP67
CPSI/L-30NC15B	NPN NC	3-15mm	≤200mA	DC 10-30V	IP67



Model and type	Output type	Mounting  distance	Current   output	Power supply	Protection rate	Buy
CPSI/L-30NOC15B	NPN NO+NC	3-15mm	≤200mA	DC 10-30V	IP67
CPSI/L-30PO25B	PNP NO	3-25mm	≤200mA	DC 10-30V	IP67
CPSI/L-30PC25B	PNP NC	3-25mm	≤200mA	DC 10-30V	IP67
CPSI/L-30POC25B	PNP NO+NC	3-25mm	≤200mA	DC 10-30V	IP67
CPSI/L-30NO25B	NPN NO	3-25mm	≤200mA	DC 10-30V	IP67
CPSI/L-30NC25B	NPN NC	3-25mm	≤200mA	DC 10-30V	IP67
CPSI/L-30NOC25B	NPN NO+NC	3-25mm	≤200mA	DC 10-30V	IP67

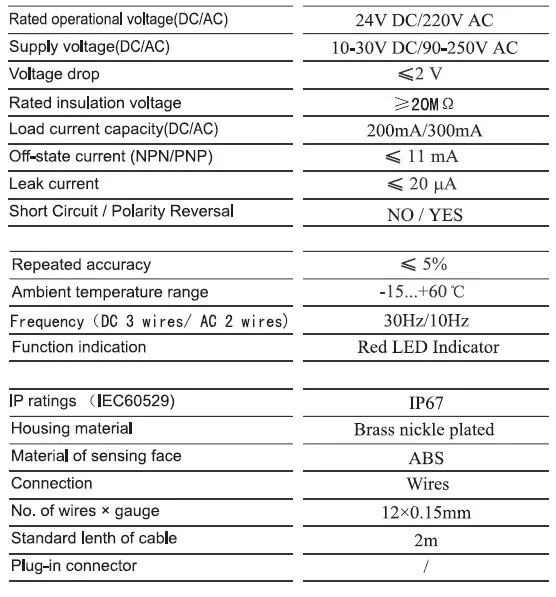

3. Size &Technical Specifications:



Our company is a professiona manufacutures of:

1, Sensors: inductive proximity sensor, capacitive proximity sensor, photo sensor,  hall sensor, color mark sensor and analog sensor.
