6-S Shaking table which is also called table concentrator, is a mine separation device for fine minerals working by gravity. They are effective in processing precious and base metal, rare metal and non-metallic minerals, widely used in separation for Gold, Silver,Tin, Columbium, Tantalum, Titanium, Barium, Tungsten, Iron, Chrome, Manganese, Zircon, Lead, Zinc, Mercury, Copper, Aluminum, etc.
Separating precisely is the prominent advantage of shaking table. We can get some final concentrate, final tailings and 1 or 2 kinds of middling product after the first separating from raw mineral. The enrichment ratio of concentrate is very good, when dealing with low grade tungsten ore and tin ore, the enrichment ratio could reach about 300 times. Besides, the range of separating particle size effectively in dealing with metallic ore is 3 to 0.02 mm.
SPECIFICATIONS FOR 6-S SHAKING TABLE
Model
6-S 7.6
6-S 4.08
6-S 1.95
6-S 0.5
Beneficiation area (m2)
7.6
4.08
1.95
0.5
Maximum feeding size (mm)
2-0.074
Sand -2
Slime -0.1
Sand -2
Slime -0.074
Sand -2
Slime -0.074
Capacity (t/h)
0.3-1.8
0.4-1.5
0.3-0.8
0.05-0.2
Feeding density (%)
15-30
10-30
10-30
10-30
Stroke (mm)
8-22
6-30
12-28
9-17
Frequency of stroke (r/min)
220-280
210-320
250-450
280-460
Water consumption (t/h)
0.4-1
0.3-1.5
0.2-1
0.1-0.5
Power (Kw)
1.1
1.1
1.1
0.55
Dimension(mm)
5600x1850x860
4075x1320x780
3040x1050x1020
1530x500x800
Weight(Kg)
750
550
350
150

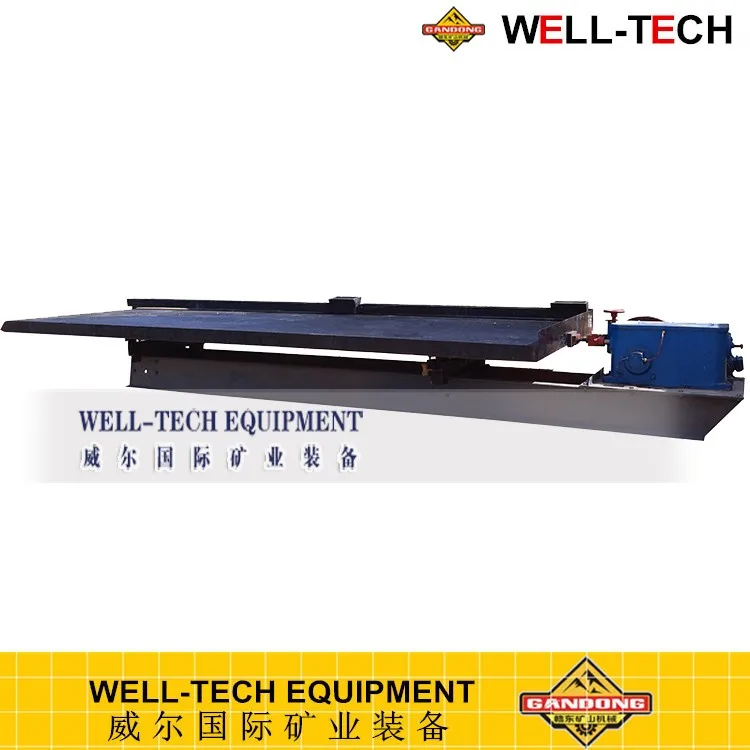

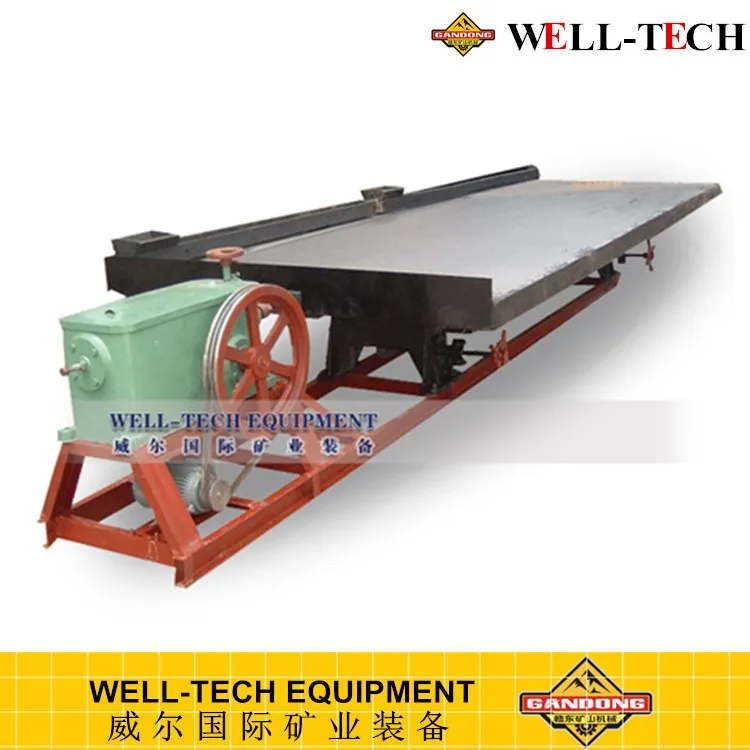

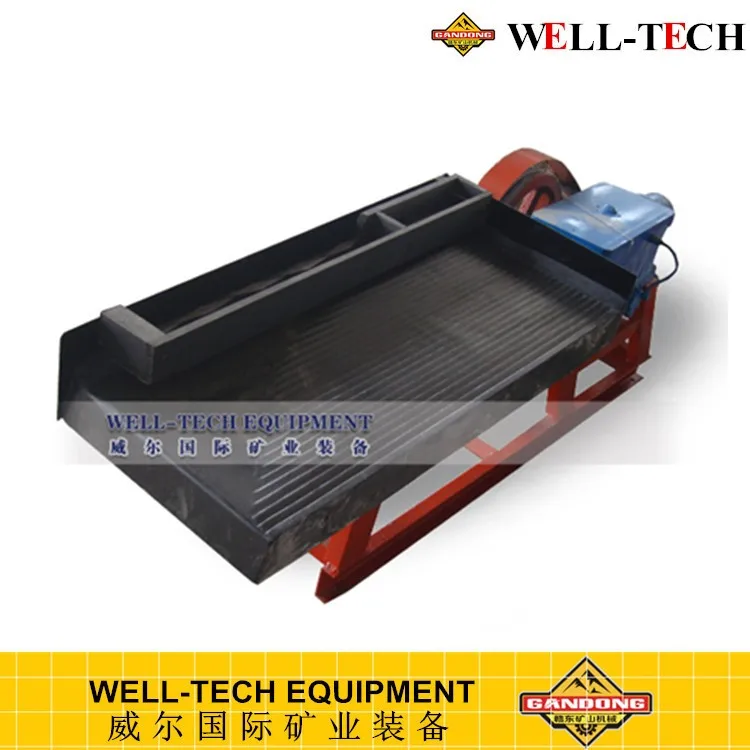

6-S7.6Shaking table with 10#channel steel support. 6-S7.6Shaking table with 28#channel steel support
Main Features
1.High recovery ratio; 2.High concentration ratio; 3.Easy installation; 4.Simple operation; 5.Deck constructed of fiber glass; 6.Seven different decks to choose; 7.Long working life; 8.Adjustable stroke length and speed.
Detailed Images
Working principle
The working principle of Shaking Table is to use the combined action of the specific gravity difference of sorted minerals, alternating movement of bed surface, and transverse oblique water flow and riffle (or notch groove),
to allow loose layering of ores on the bed surface and fan-shaped zoning. Then different products can be produced.
Machine Parts

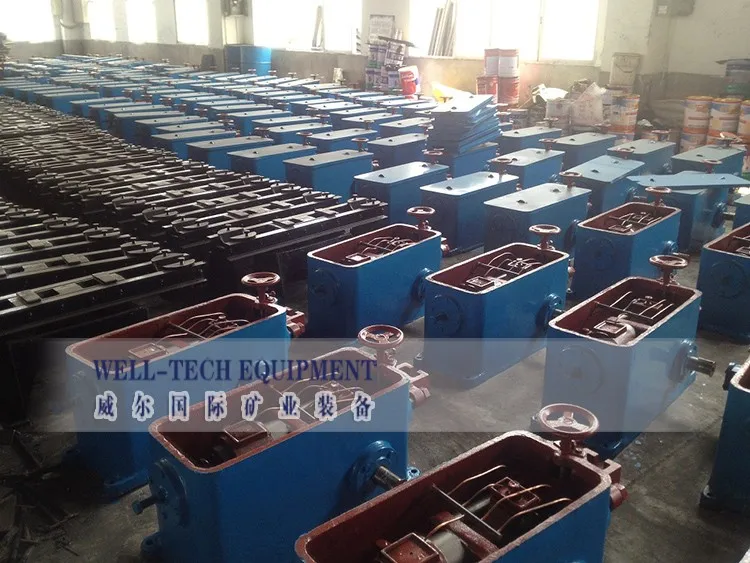

Name: Drive engine
Brand: GANDONG
Main Parts

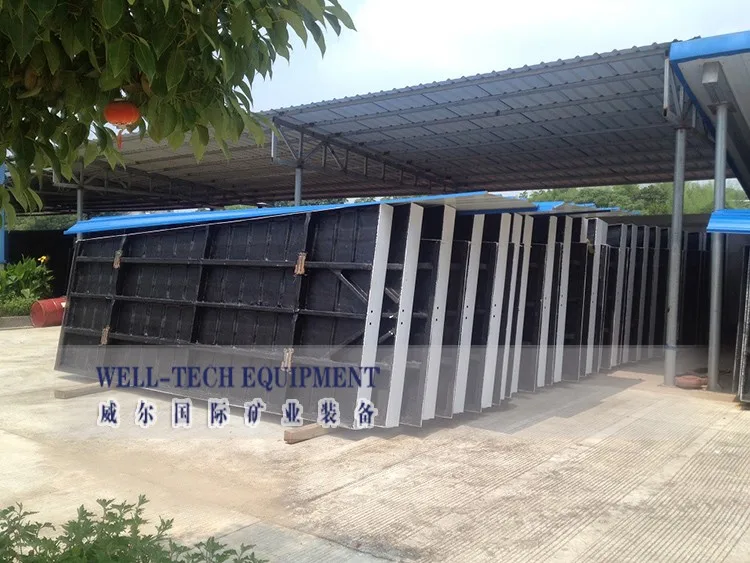

Name: Fiberglass Deck Brand: GANDONG Fibergrass deck surface,manganese steeel fram

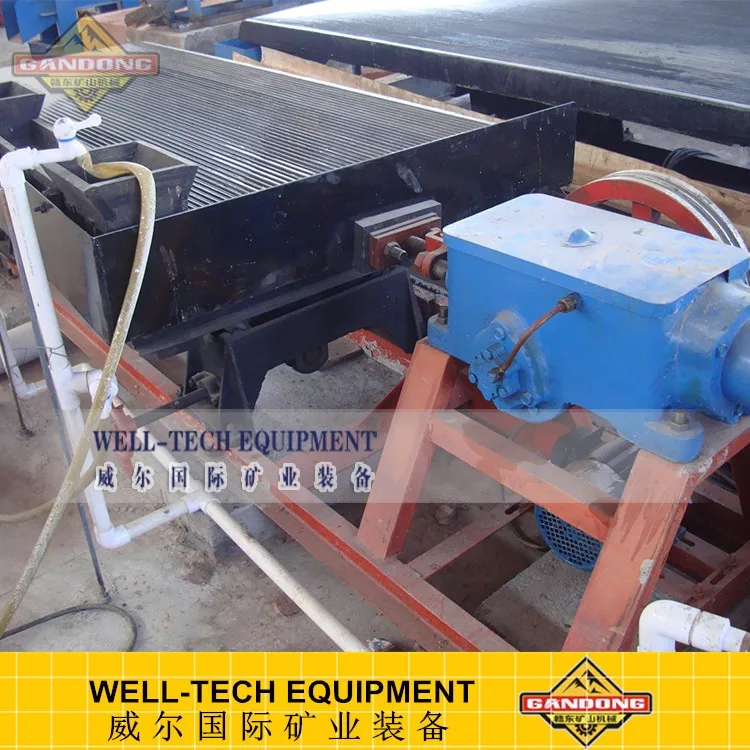

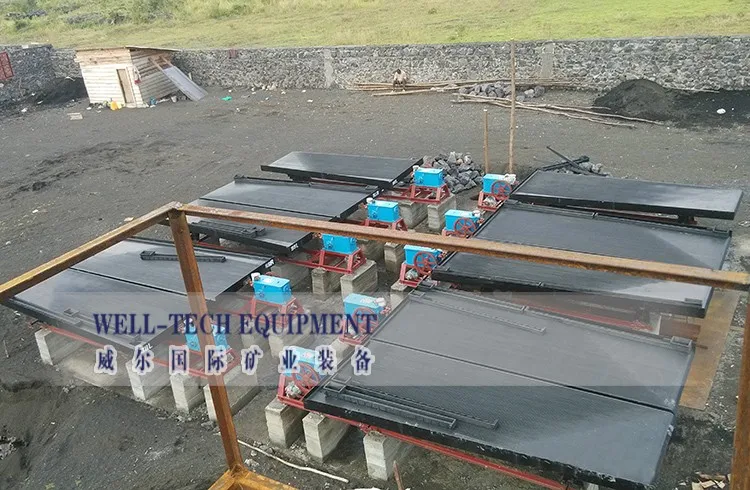

Working on site

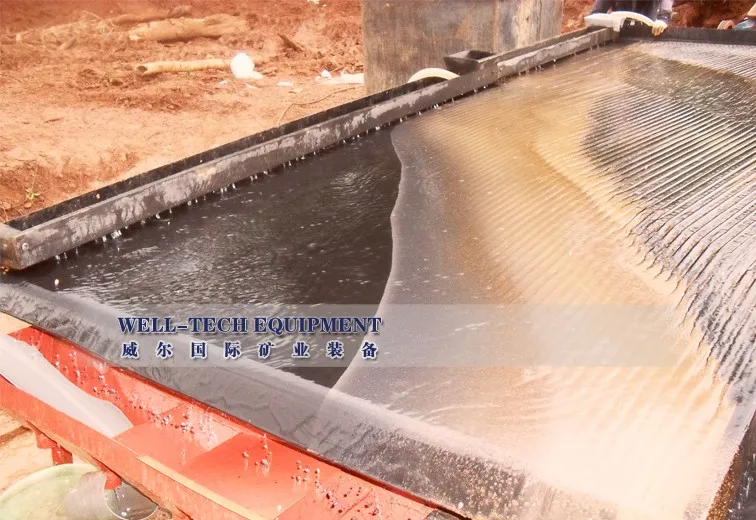

Metal concentrates-left side.
Tailing-right side
Middling-middle

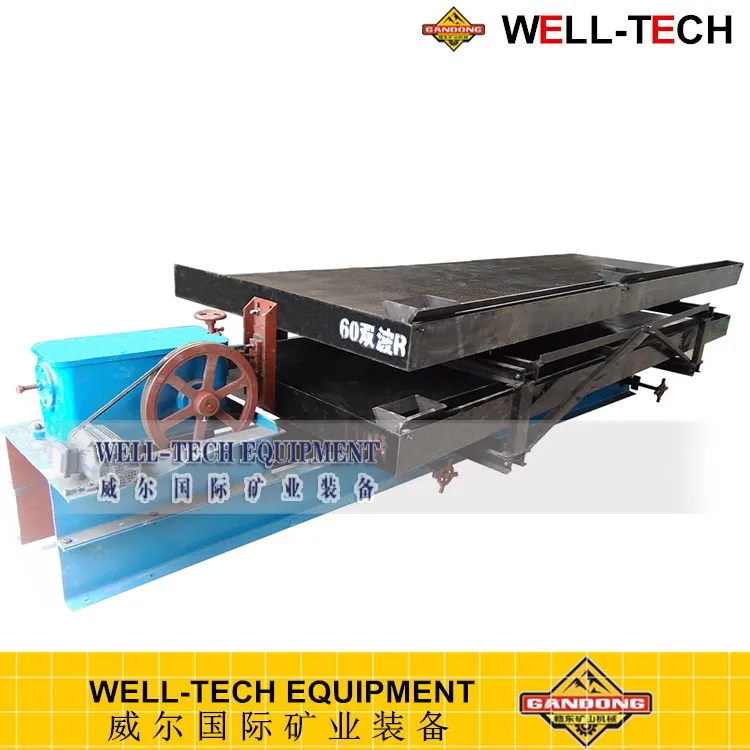

2 layer deck shaking table
See more details, please link the double layer deck shaking table picture

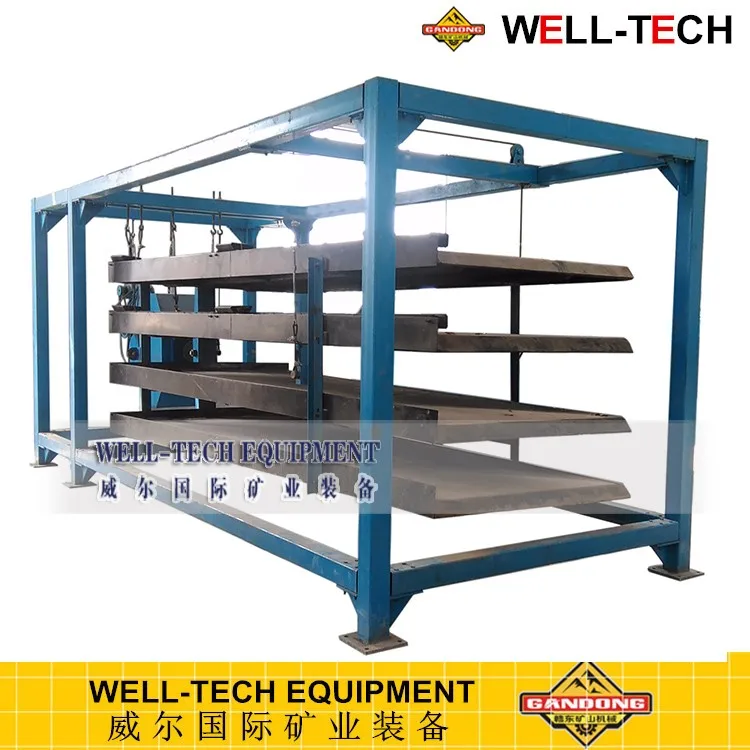

4 layer deck shaking table
See more details,please link the 4 layer deck shaking table picture
FAQ:
Q:If just one deck type?
A:Three different kinds of decks are available, Coarse ore deck,Fine sand deck,slime deck. It according to your ore feeding size.
A: Our machines are manufactured strictly according to national and international standards, and we take a test on each equipment before delivery. You can also use Trade Assurance by Alibaba for product quality protection, on-time shipment protection and payment protection.
Q: How about the price?
A: We are manufactory, and we can give you lower price than those trade companies.
Q: Do you provide after-sale service?
A: Yes. The warranty period of our machines is one year, and we have a professional after-sale service team to promptly and thoroughly solve your problems.
Q: Do you provide equipment operation training?
A: Yes. We can send professional engineers to the working site for equipment installation, adjustment, and operation training. All of our engineers have passports. Q: Can you test our samples?
A: Yes. You can send your samples to us for test and analysis.
Q: Do you provide beneficiation flow chart?
A: Yes. Our experienced engineers are specialized in designing process flowchart for various ores beneficiation, including gold ore, alluvial gold and rock gold, chrome,ilmenite,tantalum-niobium,zircon,iron ore, tin ore, copper ore, manganese ore, etc. --- PRE-SALE SERVICE
