PCP pleated paper filter cartridge / polyester cellulose pleated water filter 10' 20'

PCP Series Polyester Cellulose Pleated Cartridge Filters

Features & Benefits
• Pleated design increase filtration surface area;
• Pleated design maximizes dirt-holding capacity;
• Designed for general water filtration purposes;
• Polyester cellulose media is bacteria and chemical resistant;
• Versatile and reusable, allowing for a variety of uses;
• Low pressure drop, high flowrate;

• general water and R.O treatment;

• residential commercial water treatment;

• acid-base liquid in chemical processing;

• industrial chemicals and organic solvents;

• processing of sterile water and ultrapure water;

• industrial water and plating liquid;

Material of Construction

• Media: Polyester cellulose;

• Core: Polypropylene;

• End caps: Vinyl plastisol;

Recommended Operating Conditions
• Maximum differential pressure: 4.0bar at 20℃
• Recommended change out: 1-1.5bar
• Maximum temperature: 52℃
• Flow rate 3-10GPM per 10"L, depend on removal rating

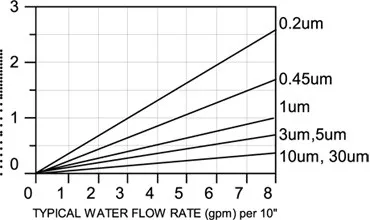

Removal Ratings ( μm )

• 1, 5, ...50
