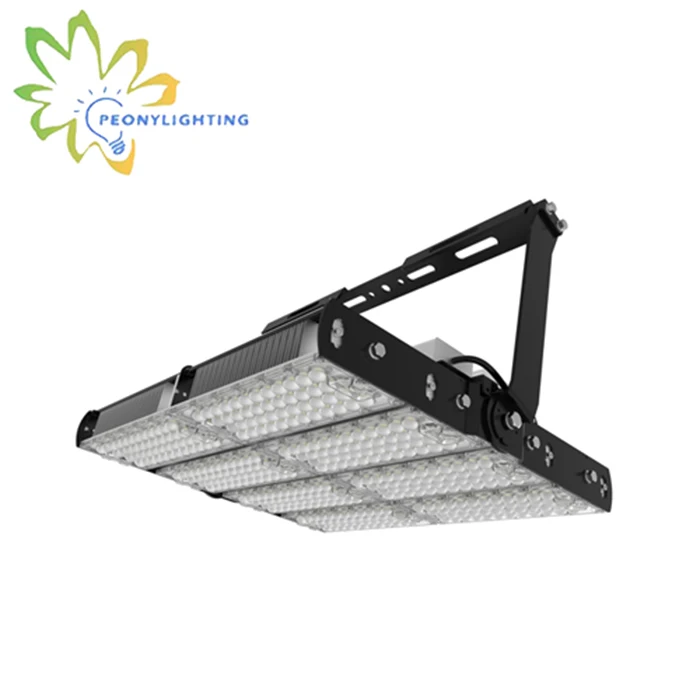

5050SMD 160LM/W adjustable led stadium sports flood light 960W ,high mast light with 5 8years warranty

Product Overview

Description

5050SMD  160LM/W  adjustable led stadium sports flood light 960W  ,high mast light with 5- 8years warranty



First, the product overview
Using the latest LED lighting technology developed by the high-brightness flat industrial lamp (tunnel lights), shape Founder, the internal light source is selected lumileds 5050SMD as light source. Lens light distribution technology to control the light angle.





Features
1.module standardization, pluggable technology, spare parts for easy storage, simple tools on-site maintenance;
2. professional cooling structure, inside and outside the permeability of the duct design, access to efficient heat dissipation;
3. shell by the paint treatment, radiator anodized, with good corrosion resistance, suitable for harsh outdoor environment;
4. products using waterproof connectors and silicone pad sealing process, protection class up to IP65, suitable for a variety of harsh outdoor environment;
5.180 ° adjustable bracket, easy to install, suitable for different installation sites
6.lens angle optional 8°  20°  40°  60°/90°/140x100°/120°





Technical Parameters



Material:Aluminum+ acrylic lens	Luminous Flux(LM): ≥153600
LED Quantity: 368pcs lumileds5050smd	Color index (CRI) :≥70/80Ra
Power: 960W	IP Grade: IP 66
Working Frequency: 50HZ-60HZ	Working Temperature: -50℃—+50℃
Working Voltage: AC90-277V/305V	Working Humidity:<95%
Bean angle : 8°  20°  40°  60°/90°/140x100°/120°	Lifespan:LED≥50,000Hs
Color Temperature:4000K,5000K,5700K	Power Factor:≥95%

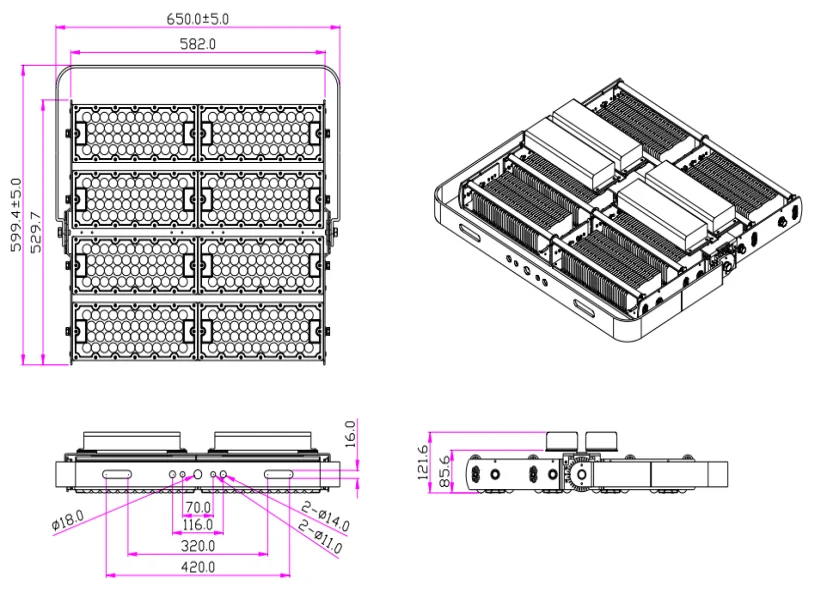

Lamp size :650*117.6*335.4mm	Driver brand:sosen/meanwell
Net wight:21.00KG	Warranty :5-8 years



Package and shipping (by express and by air and by sea )

lamp size:650*117.6*335.4mm

1pcs/ctn,ctn size:70.5x64.4x17.2cm

gross weight:21.5kg













 FAQ

1.Q:How about your delivery time ? Delivery Terms ?

A:3-5 business days for sample ,order subjects to your quantity

Delivery terms as follows: FOB ,CFR,CIF,EXW ,FAS ,etc.

2.Q:Can I get some samples?

A: We are honored to offer you samples.

3.Q:How does your company do regarding quality control?

A:we always attach great importance to quality controlling from the very beginning to the very end

4.Q:Which kind ways of transportation you use ?

A: By ocean ,air or express

5.Q: Could you offer me the safest terms of payment?

A: T/T ,PAYPAL ,ESCOW, WESTERN UNION are available,you can choose the best way
