25T Battery Locomotive For Subway Tunneling Match With TBM
- Category: Locomotives >>>
- Supplier: Shandong China Coal Industrial & Mining Supplies Group Co. Ltd.
Share on (60819768276):
Product Overview
Description
Product Description

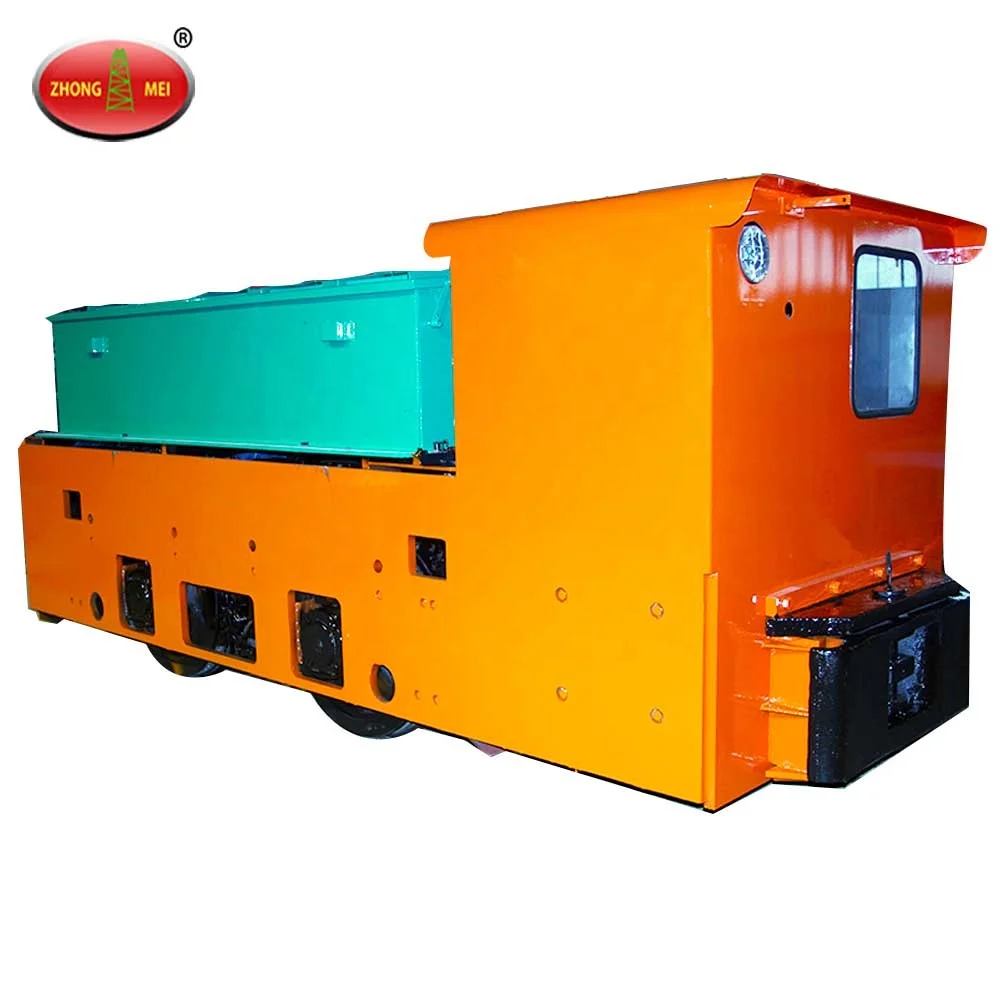

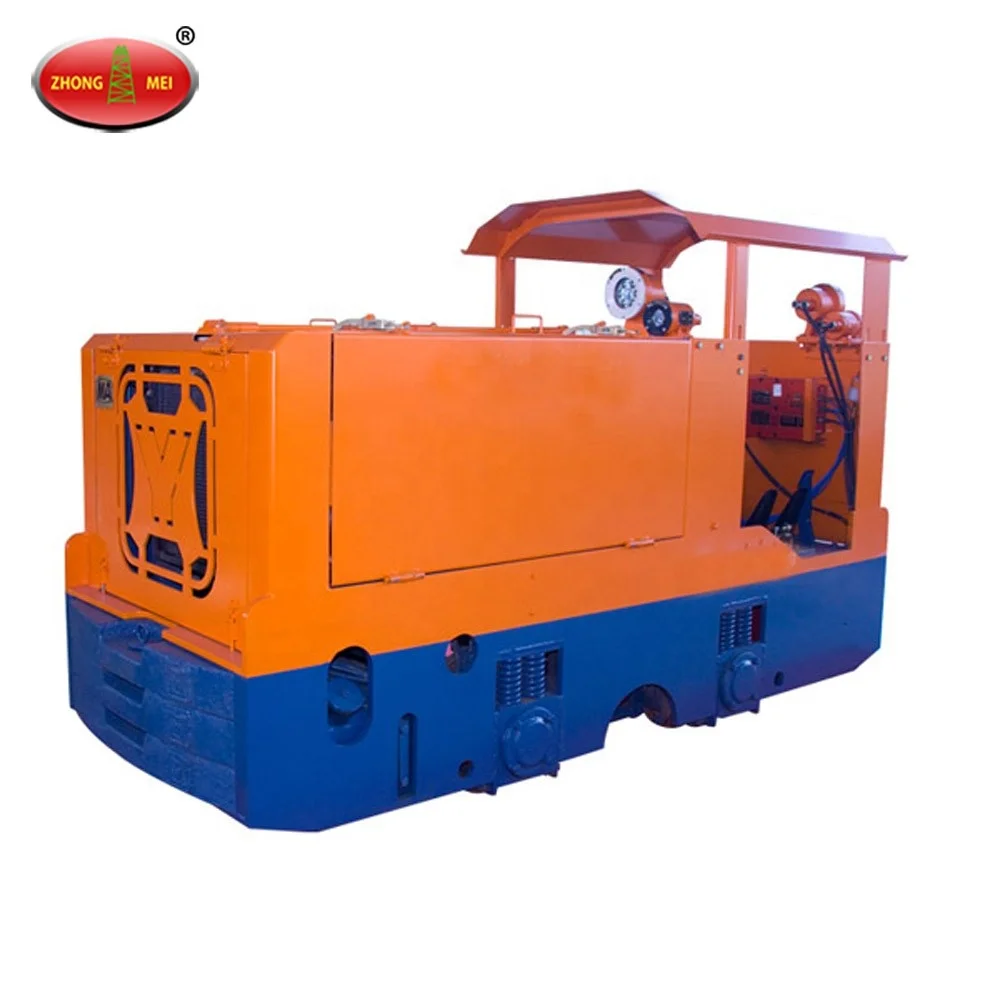

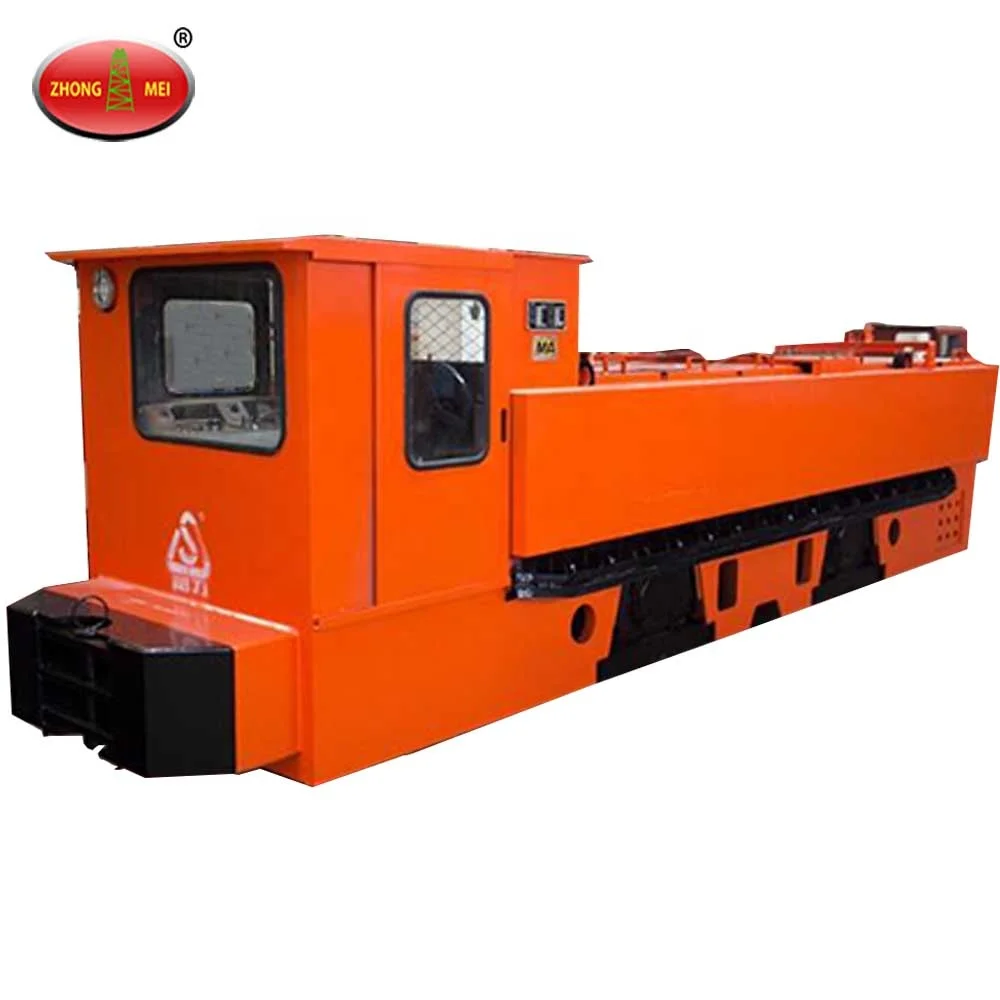

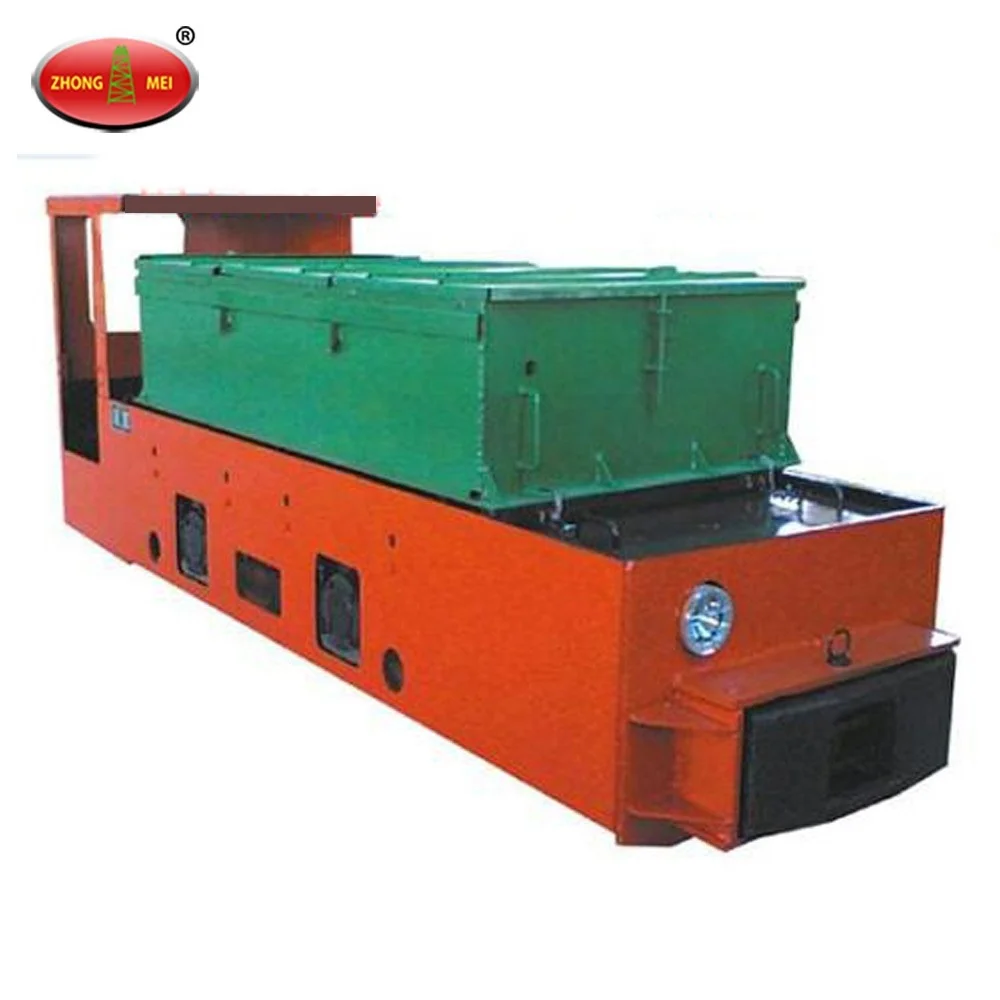

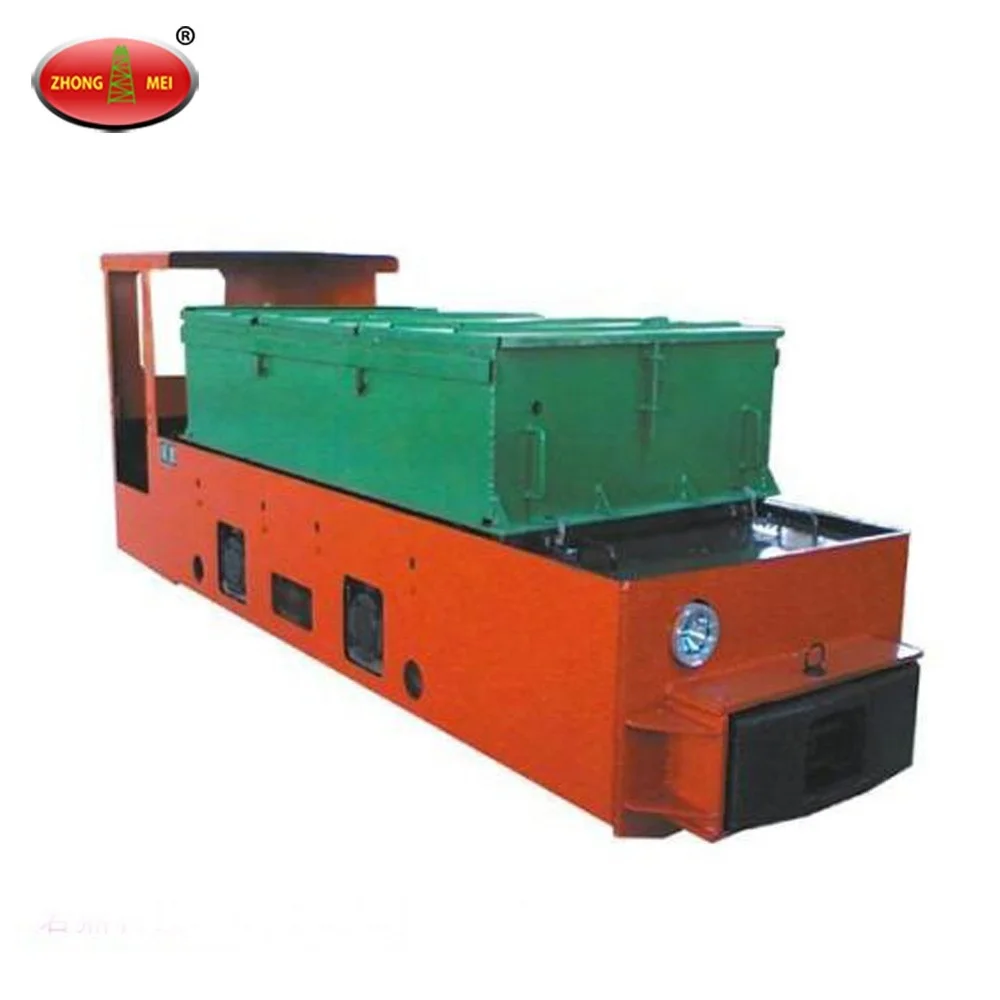

Photos of 25T Battery Locomotive For Subway Tunneling Match With TBM
Introduction of 25T Battery Locomotive For Subway Tunneling Match With TBM
25T Battery Locomotive For Subway Tunneling Match With TBM is DC-AC driving, narrow rail battery powered mining locomotive, suitable for transportation tracting on the narrow rail for the field of coal, metallurgic,mine,forest, railway,road tunnel construction and etc. zmwm01
Features of 25T Battery Locomotive For Subway Tunneling Match With TBM
Great tractive effort
Heavy duty loading capacity
Smoothly climbing and moving
Safe braking control system
Reliable and easy operation
Simple maintenance
25-30% energy saving compared to DC driving type
Less emission, Eco-Friendly
| ||
Specification | CAY25/7GP | CAY25/9GP |
Adhesive/ Total Weight(t) | 25 | 25 |
Track Gauge(mm) | 762 | 900 |
Wheelbase(mm) | 2000 | 2000 |
Wheel Diameter(mm) | 680 | 680 |
Coupler Height Over Steel Rail(mm) | 320/430 | 320/430 |
Min Curve Radius(m) | 30 | 30 |
Battery Volt Rating(V) | 288/540(620Ah) | 288/540(620Ah) |
Braking Method | Mechanical,Electrical,Air | Mechanical,Electrical,Air |
Max Tractive Effort(KN) | 68.7 | 68.7 |
Max Speed(km/h) | 25 | 25 |
Rated Speed per hour(km/h) | 8.8 | 8.8 |
Power of Traction Motor(KW) | 2*65 | 2*65 |
Transmission | Dual Level Gearing | Dual Level Gearing |
Controller | AC Frequency Conversion | AC Frequency Conversion |
Over all Dimensions | 6700*1550*2300 | 6700*1550*2300 |
Service& Application | Mucking in Mining& Tunneling | Mucking in Mining& Tunneling |
