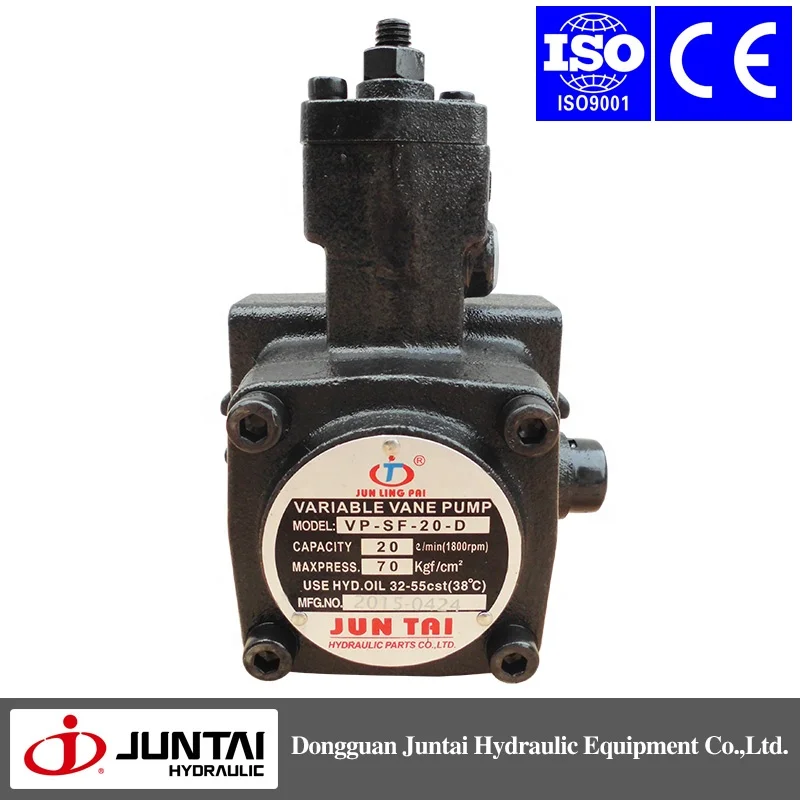

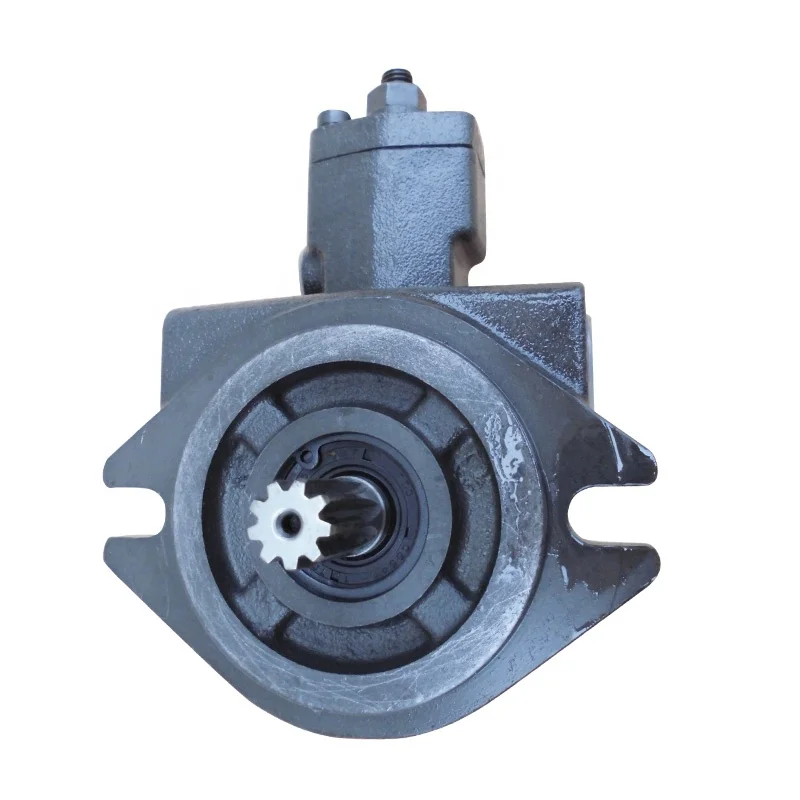

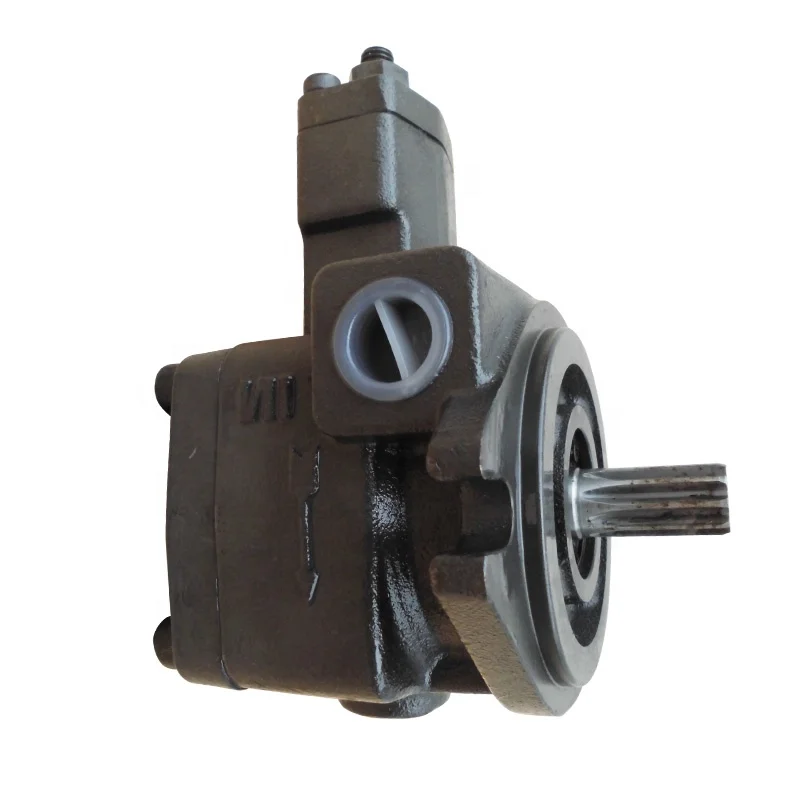

Factory outlets discount prices hydraulic unit pump VP SF 12 D spline key Vane pump

Product Overview

Description

Product Description

variable displacement vane pump



Characteristic:



1, use precision machining technology, can automaticly adjust displacement and complement under setting pressure. decrease the loss of load power ,high efficiency , low temperature , energy saving.

2, low noise, response promptly, high efficiency and steady operation.

3, simple structure, simple operation, easy to maintain.

4, include adjusting screw, can adjust the displacement and pressure randomly, widely apply for lathe machine and show making machine,etc.

5, long working life, steady structure, small volume, can connect with motor directly, save space, durability and so on.



VP type single pump model description:

Allowed rotating speed:minimum:800r/min,maxmum:1800r/min

Drain oil pipe: drain oil pipe must be installed under the oil level. Pressure should be setted as <0.05MPa; Pipe length should be shorter than 1M, don’t mix with other oil return pipe.



Performance curve:following data based on oil viscosity46 mm2/s(ISOVG-46 temperature 40oC)

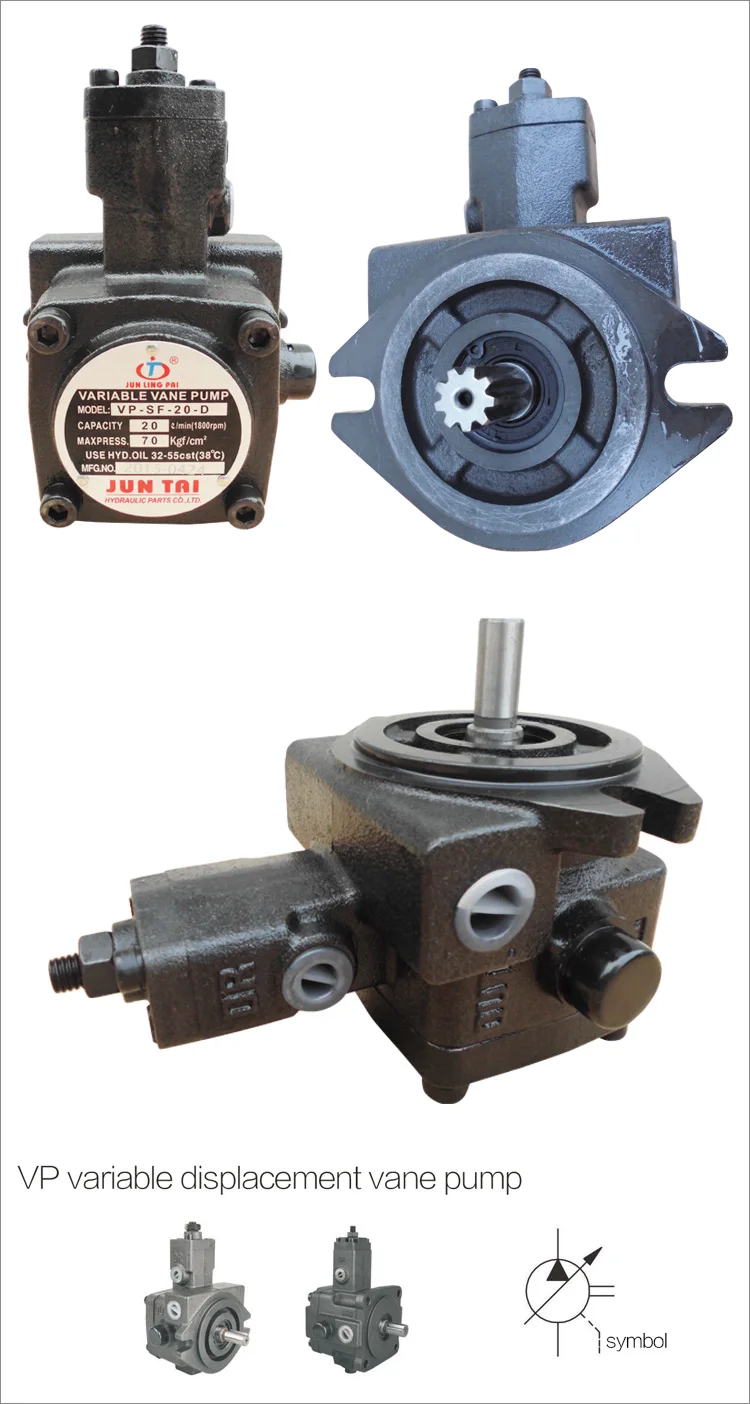

VP variable displacement vane pump

Installation drawing



Packaging & Shipping

Packaging: pack one pump in one plastic bag,then put it in one thick paper carton,then heap up                           them on the plastic pallet, wrap the plastic pallet and cartons with plastic membrane                           then bind the cartons with plastic packing belt.





Delivery date:about 10-20 days after receipt your 30%T/T for deposit



Trade term: FOB SHENZHEN,or FCA or C&F or CIF



Shipping for sample and bulk productions:

send sample by international Express(Fedex or UPS or TNT or DHL),sample freight paid by collect.

For bulk production, shipped as per customer's instruction,shipping process all fllow INCOTERM regulations.







Product packing details:

style#	carton dimension of each item	net weight	gross weight	quantity
VP-SF-12-D	19X14X14 cm	5.5 kg	6 kg	1 pc/ carton



Our Services

 Warranty period:  ONE YEAR



1,Within one week after receipt of the goods, if customer use the products in correct method,and find any problem of performance or  construction with obvious evidence,we will be responsible for replacement or other discussing solution between us.

2,But if customer using method are not correct, or customer disassemble our products privately,we will not  responsible  for any problem or defective points of products.

3, If you meet any questions of installation or debugging, please inquiry us anytime, our Engineer will provide technical support in time, or we will help you to resolve the technical failure through online video.

4, Any damage from transportion, we will slove the problem according to the responsibility standard of INCOTERMS.



Company Information



We are Guangdong Juntai Hydraulic Technology Co.,Ltd., which located in Dongguan city,Guangdong Province,China.

We have ourself R&D team with about 5-10 engineers and designers. Our factory have more than two hundred skilled employees, our production line have many advanced processing machines and testing equipment, such as numerical control lathe machine, the processing center, CNC milling machine, special CNC grinding machine, double grinding machine,automatic three dimensional measuring instrument, etc.

  Our company passed ISO9001:2008 quality management system certification, CCC certification and Europe CE certification.

  Our main products are hydraulic variable displacement vane pump, double pump, HVP high pressure pump, YUKE style PV2R1 & PV2R2 series fixed displacement vane pump and 3phase/single phase electrical motors for hydraulic equipment.

  Our products widely used for industrial machinery,numerical control lathe machine,shoes machinery,wood-working machines,plastic machines,construction machines and various hydraulic system machinery.

 Summary:

 1, OEM and ODM manufacturer

 2, R&D department with about 5-10 engineers and designers

 3,more than 200 skilled workers

 4,have many advanced processing machines and advanced testing equipments

 5,passed ISO9001:2008 , CCC and CE certification

 6,production with good quality but competitive prices

 7,products series:hydraulic variable displacement vane pump, double pump, HVP high pressure pump, YUKE style PV2R1 & PV2R2 series fixed displacement vane pump and electrical motors for hydraulic equipment.

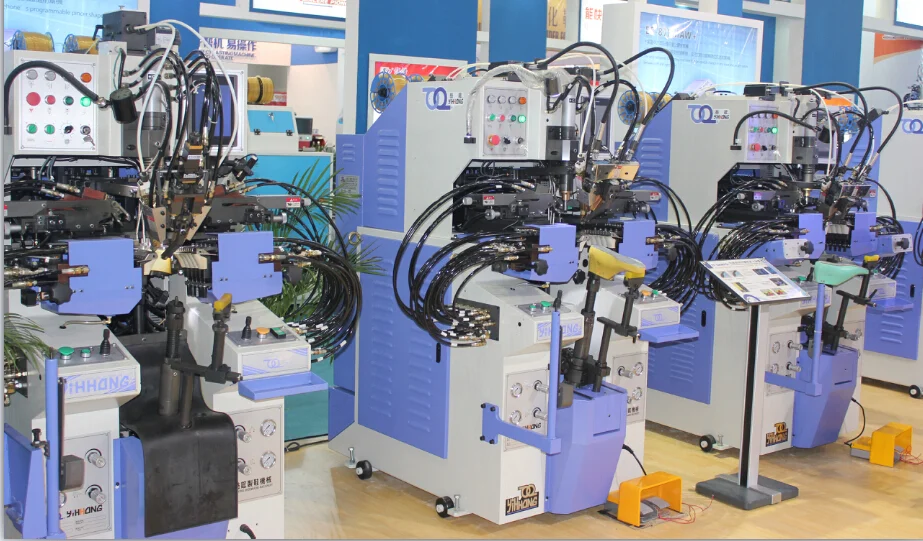

Our partners and our hydraulic parts application area:



Our certifications





FAQ

Frequently Asked Questions (FAQ) :

1, What's the standard hydraulic oil and its working temperature ?

Under 70 bar pressure, use hydraulic oil viscosity 30-50CST(ISO VG-46) in temperature 40℃. Working temperature 15-16℃ .



2, How to adjust the pressure through the pressure adjustment screw ?

clockwise rotation, increase pressure; counter-clockwise rotation, decrease pressure.



3,How to adjust the displacement through the displacement adjustment screw ?

clockwise rotation, decrease the displacement  ; counter-clockwise rotation, increase displacement.



4, What's the possible reason if there is no oil output from delivery port ?

 1),the shaft rotating direction is wrong.

 2), sauction oil pipe was jamed.

 3), vane was locked in the rotor,can't slip out from rotor.
