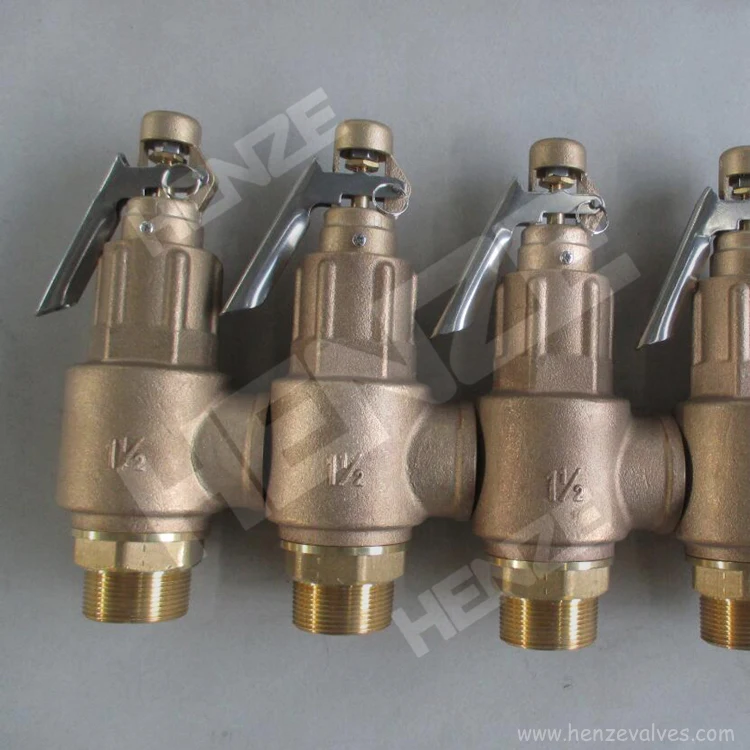

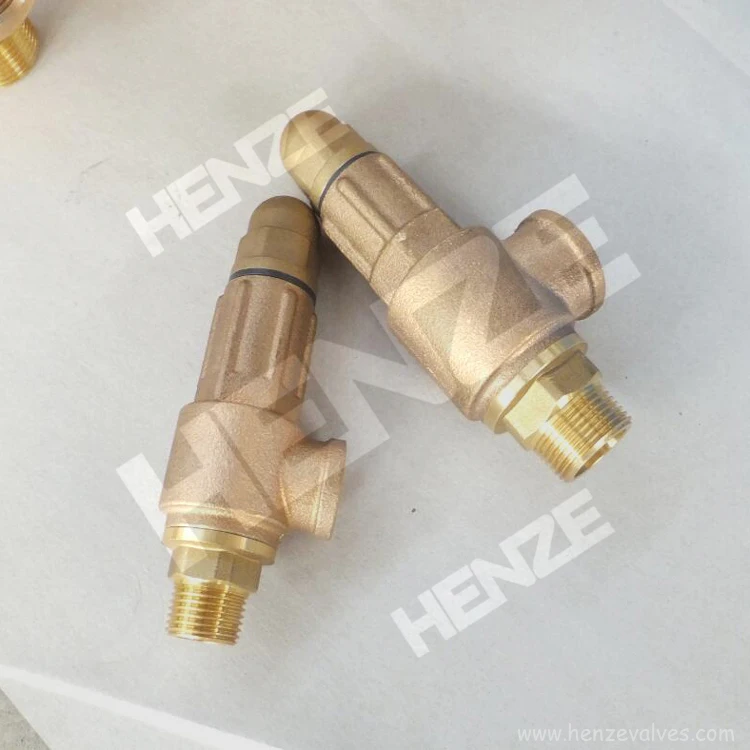

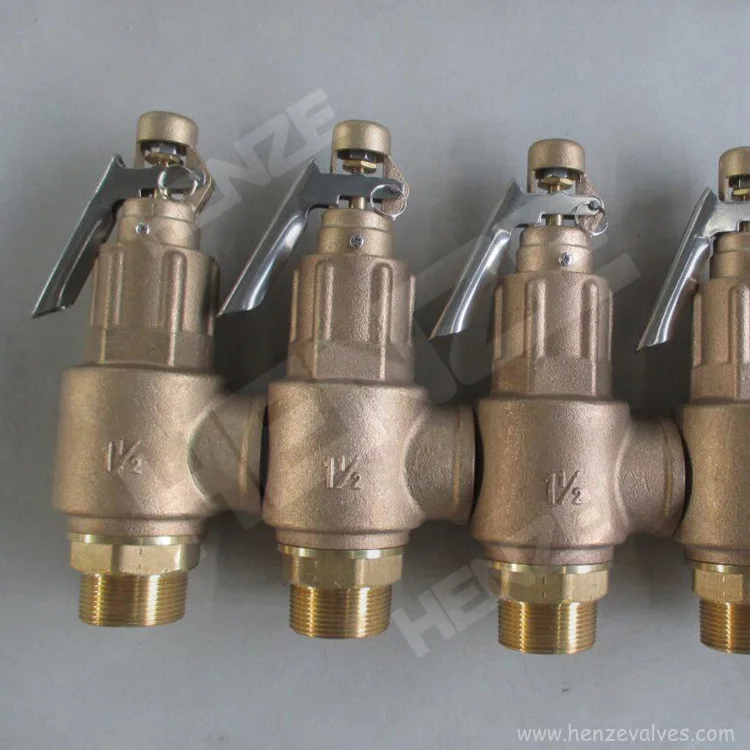

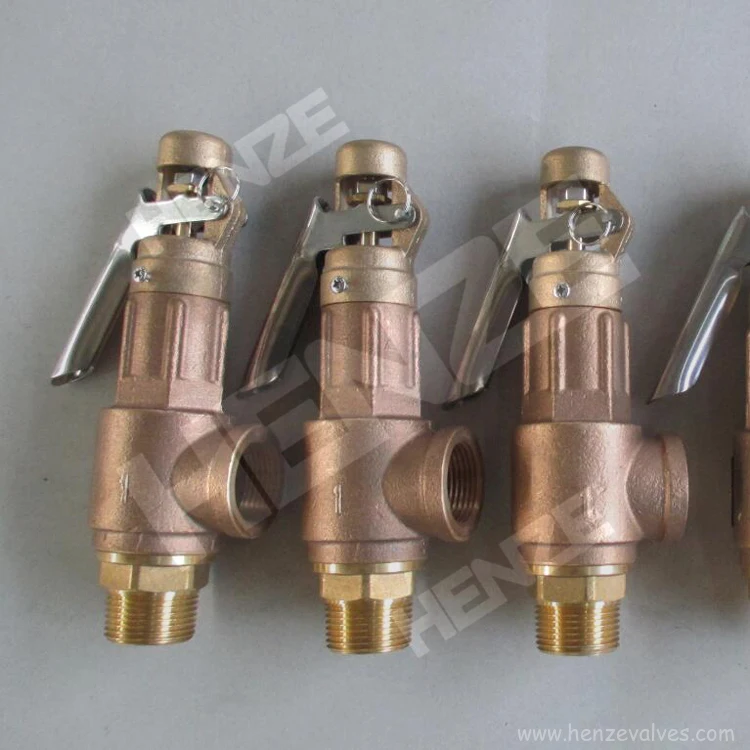

Бронзовый резьбовой предохранительный клапан с резьбой BSP или NPT
- Category: >>>
- Supplier: Henze Valves Corporation
Share on (60819803479):
Product Overview
Description
Technical Parameters
Technical Parameters & Characteristics
| Product Description | Bronze Threaded BSP or NPT Safety Relief Valve |
| Nominal Diameter | 1/2"~2"(DN15~DN50) |
| Operating Temperature | -20 Deg. C~120 Deg. C(the range of service temperature may vary for different materials) |
| Operating Pressure | Class150, PN10, PN16, 200WOG, 400WOG, 600WOG |
| Main Materials | Bronze, B62, C95400, C95500, C95800 |
| Trim Materials | Brass |
| Seat | PTFE, NBR, VITON |
| Design standard | ASME B16.34, ISO STD |
| Structural length | ANSI and Manufacture Standard |
| Connect Ends | Male NPT, Female NPT, Male BSP, Femal BSP |
| Ends Standard | ASME B1.20.1, ISO STD |
| Test standard | ISO5208 |
| Application | Cold/hot Water, Oil, Gas |
| Other Features 1 | Easy of Maintenances |
| Other Features 2 | Renewable Screen/Filter |
| Other Features 3 | Stock is available |
| Other Features 4 | Union Bonnet |
Workshop Show
Workshop Show
Machining
Machining
Testing
Testing and Inspection

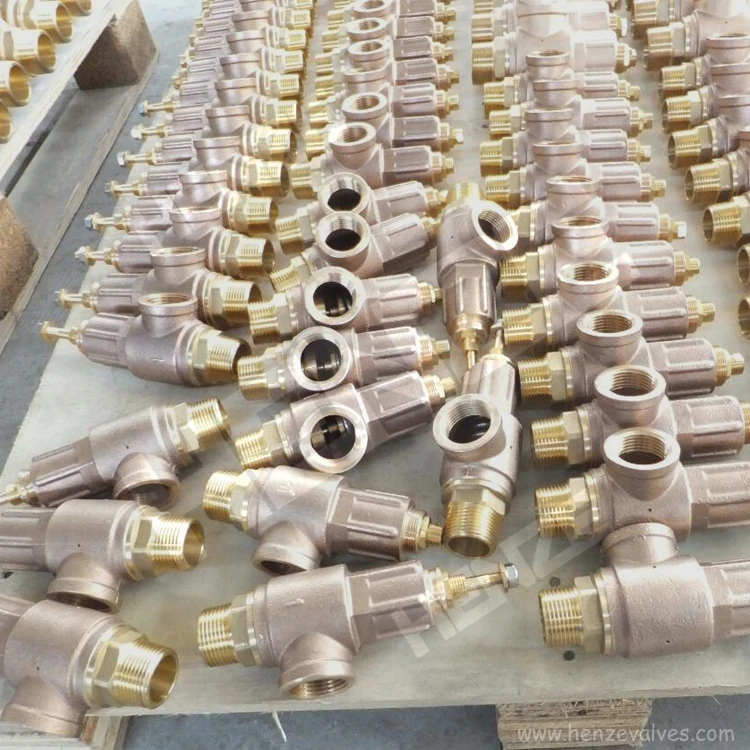

Finished Products
Finished Products
Packing and Shipping
Packing and Shipping
Service
Service
