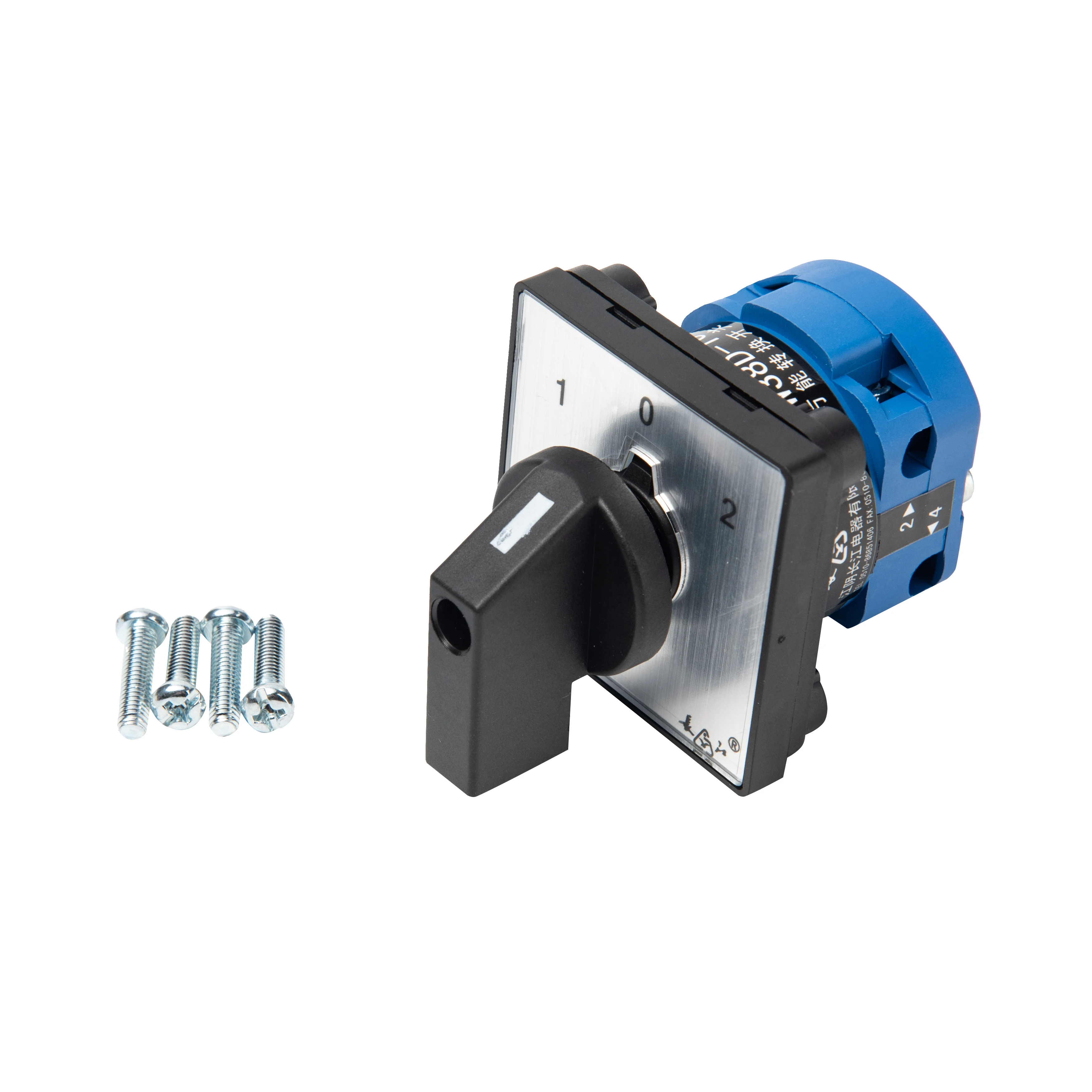

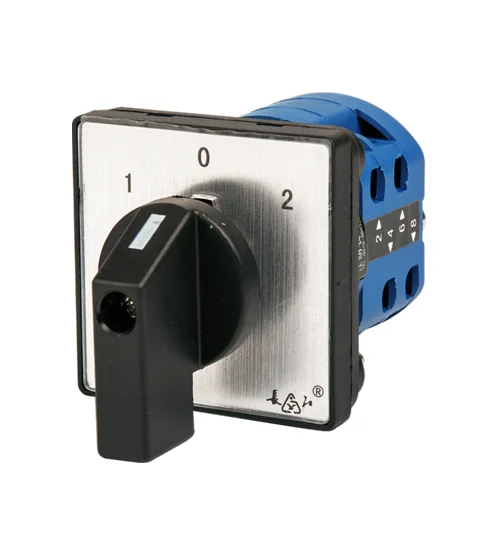

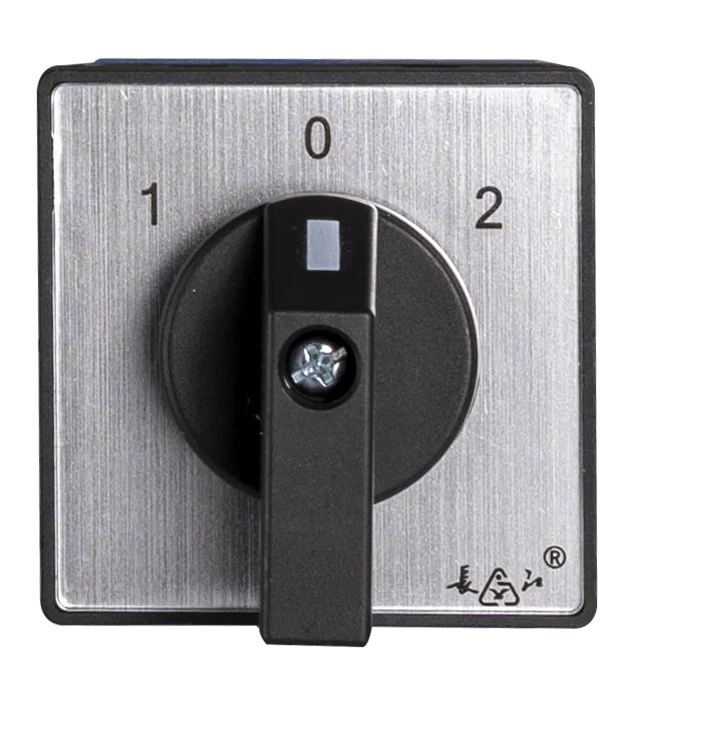

LW38 series 20A 4 pole 3 position universal changeover switch
- Category: >>>
- Supplier: Jiangyin Changjiang Electric Appliance Co. Ltd.
Share on (60819805343):
Product Overview
Description
Products Description
Product Name：
LW38 Series Cam Switch
LW38 universal change-over switch is applicable to 50-60Hz NC program controlled machine tool with the voltage of 380V and below or the current of 220V and below for the conversion of electrical control, remote control of power distribution equipment, conversion of electrical measuring instrument and the control of servo motor and micro-motor; can also be used for the control of the squirrel cage asynchr-onous motor with small capacity.

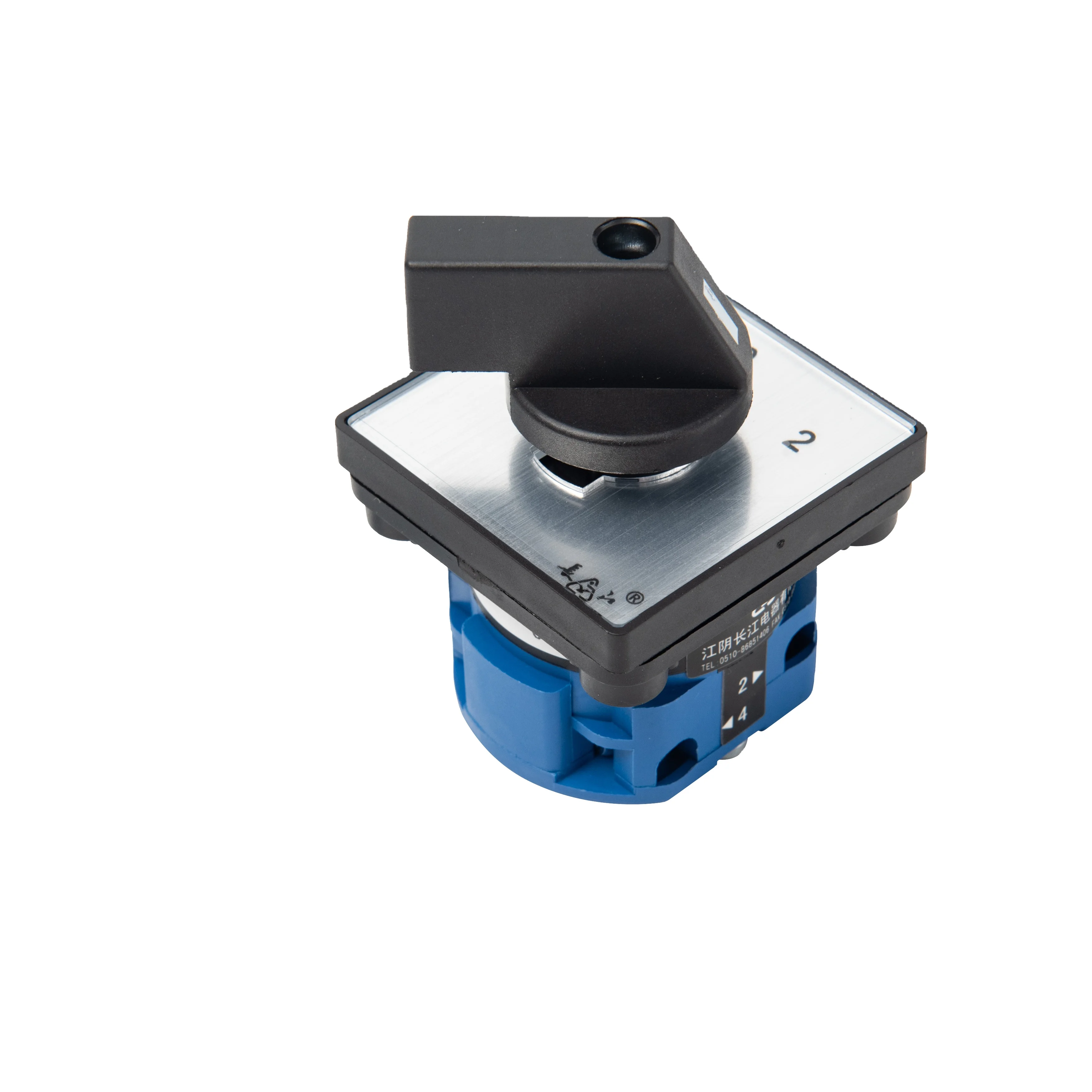

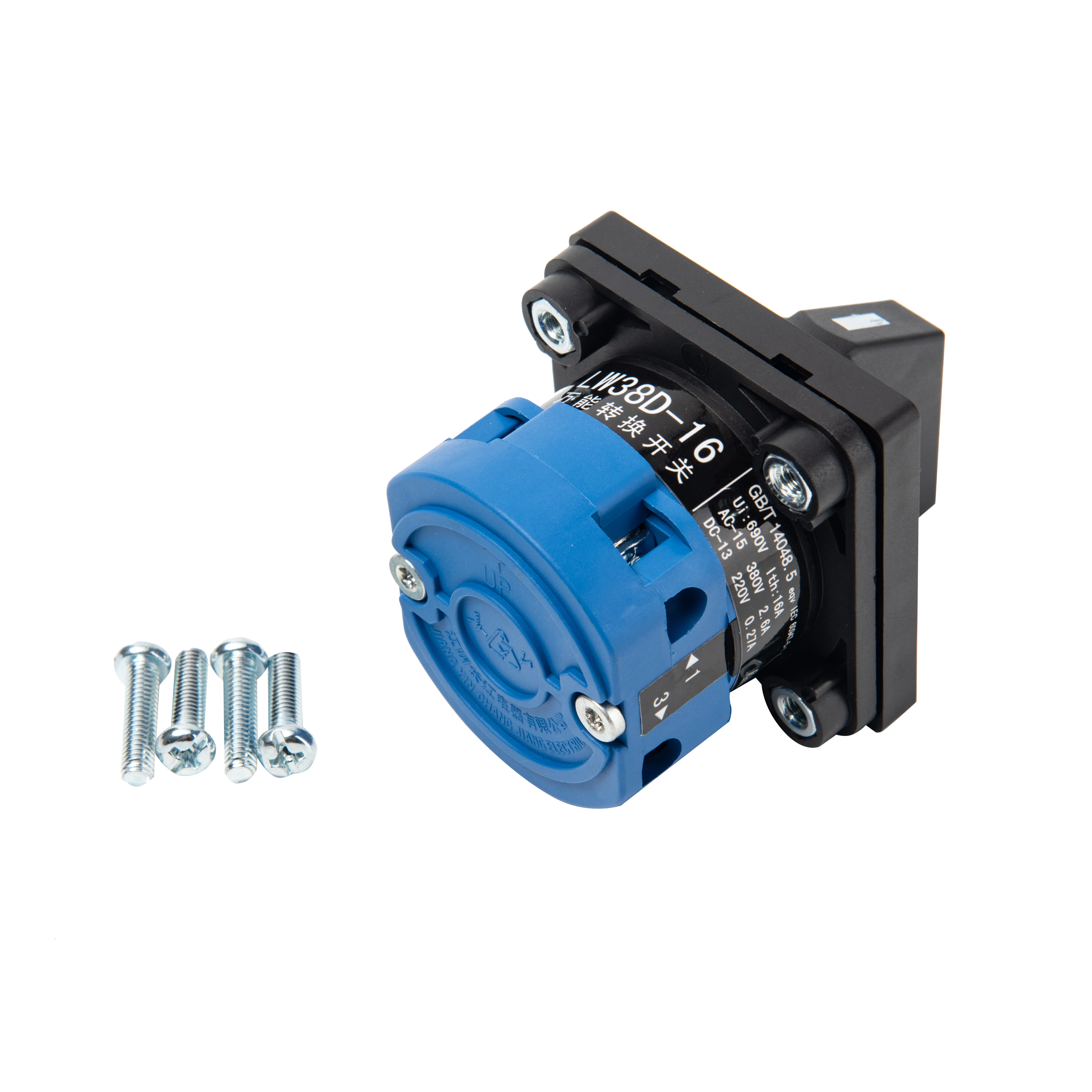

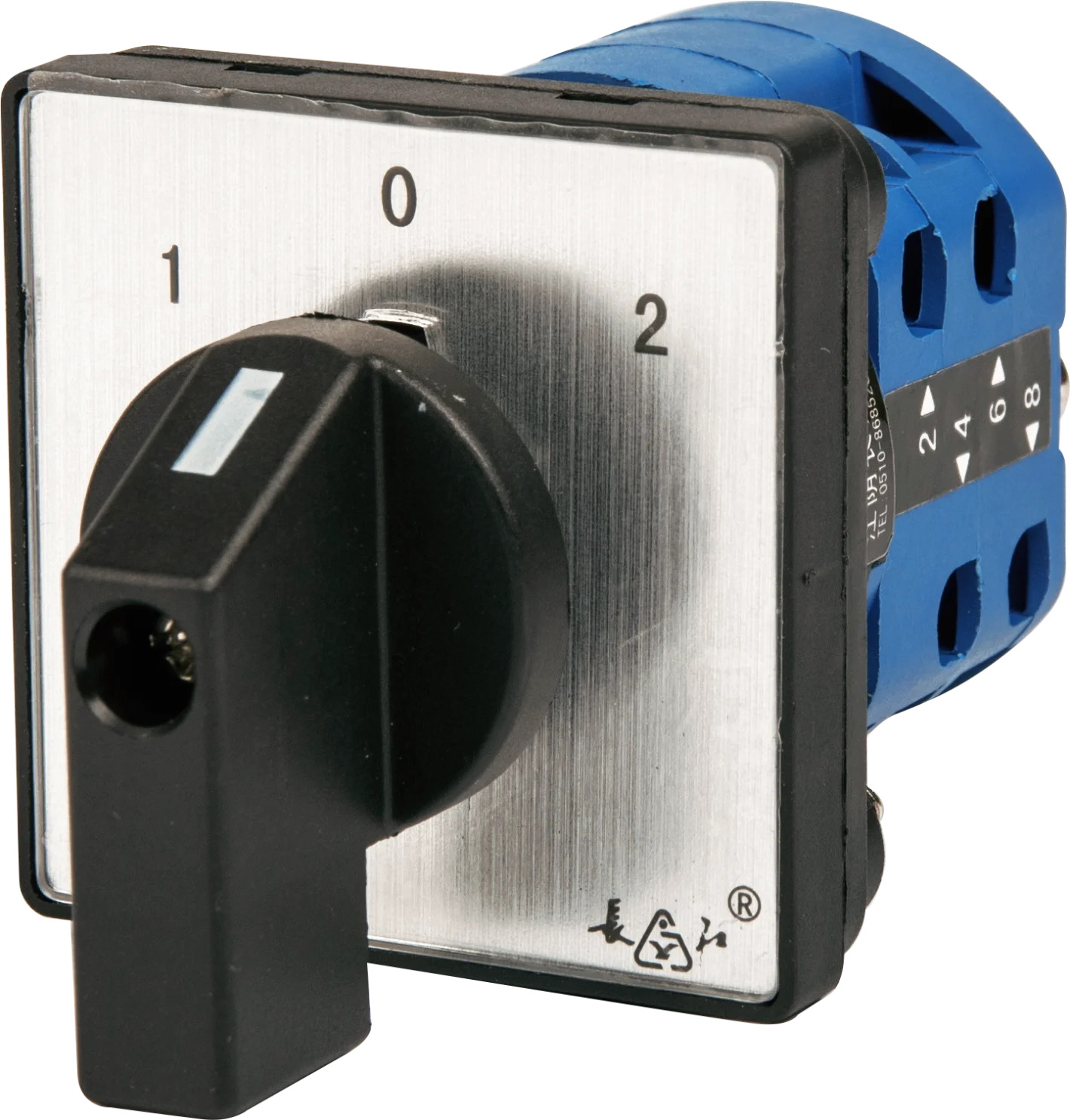

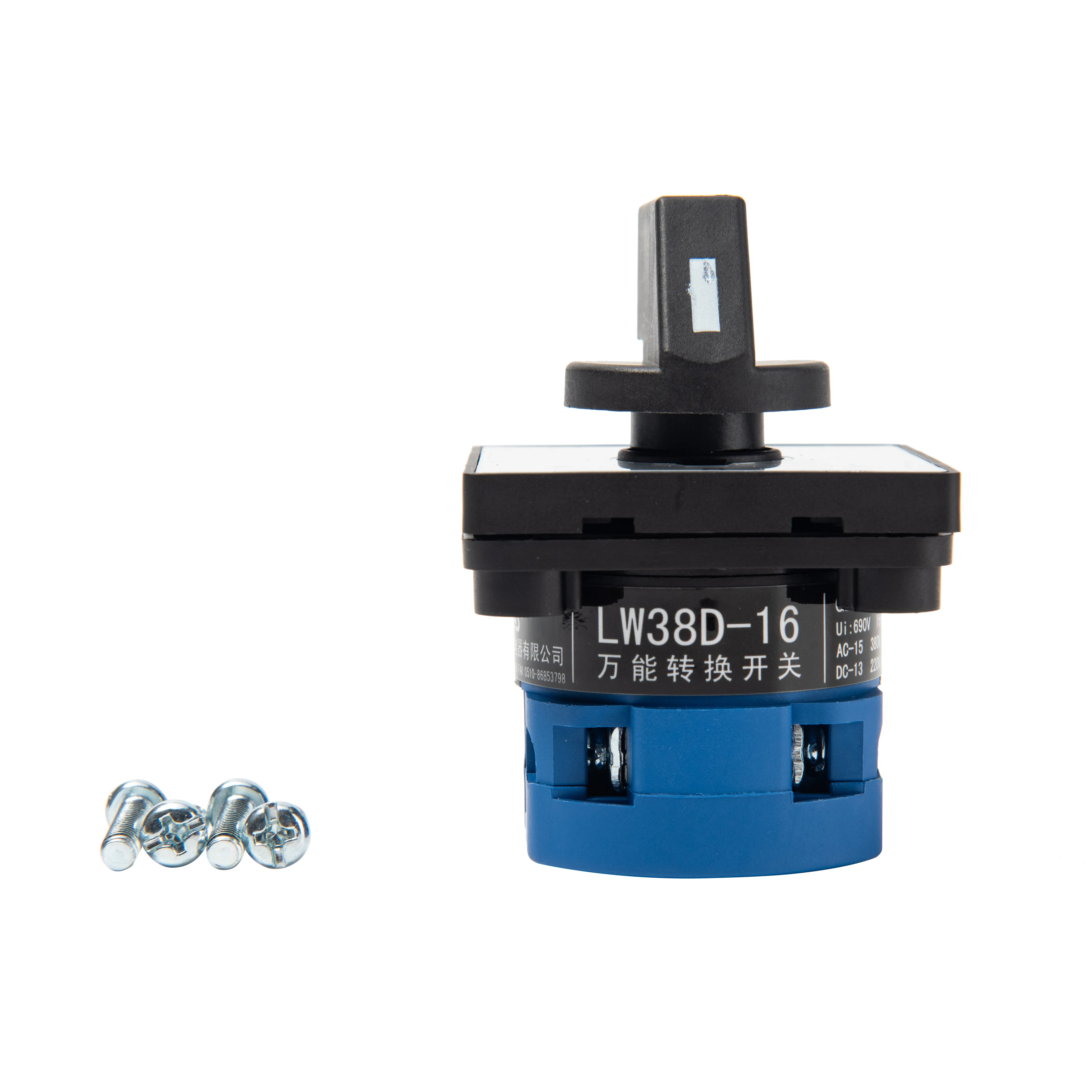

Detailed Images

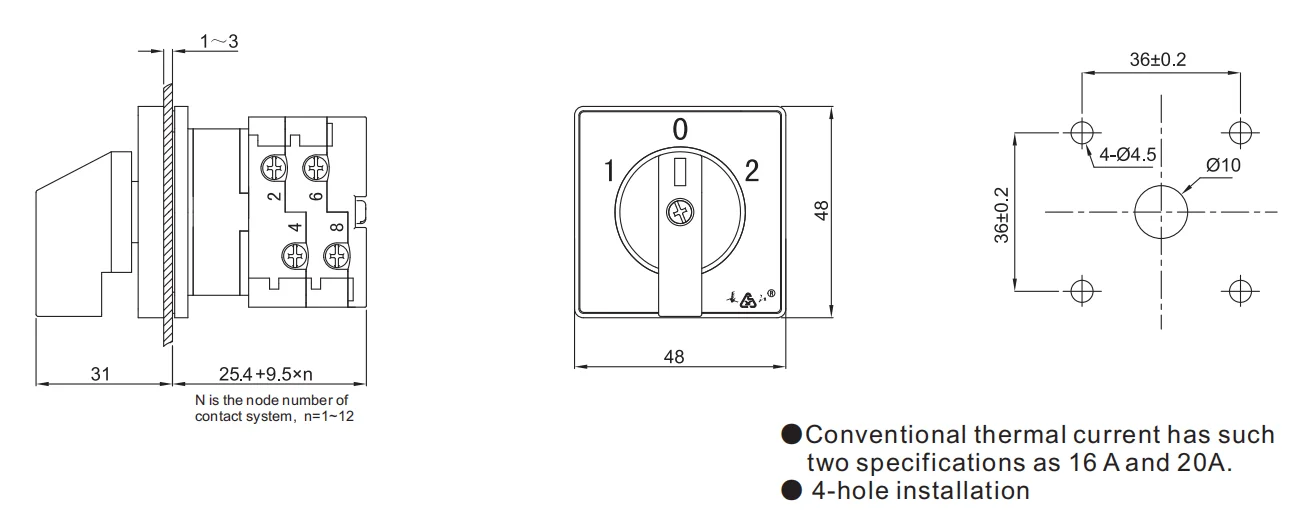

Size
Product Parameters
Type specification | LW38D-16(20) | ||||||||||
Name | Change-over Switch | ||||||||||
Products Standard | GB14048.5 | ||||||||||
Operation Condition | Altitude height | Environment temperature | Storage temperature | Relative humidity | Pollution class | Install type | |||||
≤2000m | -25℃~+55℃ | -40℃~+70℃ | ≤90% | 3 | Ⅲ | ||||||
Main technical index | common parameter | Rated insulated Voltage | 690V | ||||||||
Front panel protection degree | IP65 | ||||||||||
Withstand Voltage | 1.89KV | ||||||||||
working frequency | 50Hz | ||||||||||
Basic parameters | Stipulated hot current Ith | 16A | 20A | ||||||||
Rated working Voltage /Current | AC-15 | DC-13 | AC-15 | DC-13 | |||||||
380V/2.6A | 220V/0.27A | 380V/4A | 220V/0.6A | ||||||||
Electrical life | 200,000 times | 100,000 times | 200,000 times | 100,000 times | |||||||
Mechanical life | 300000times | ||||||||||

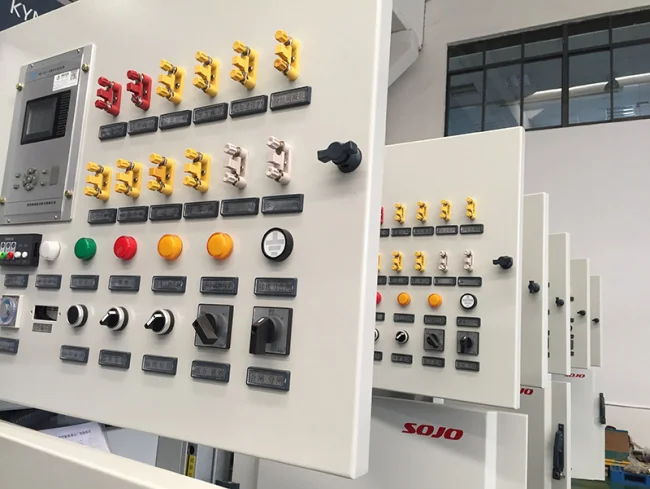

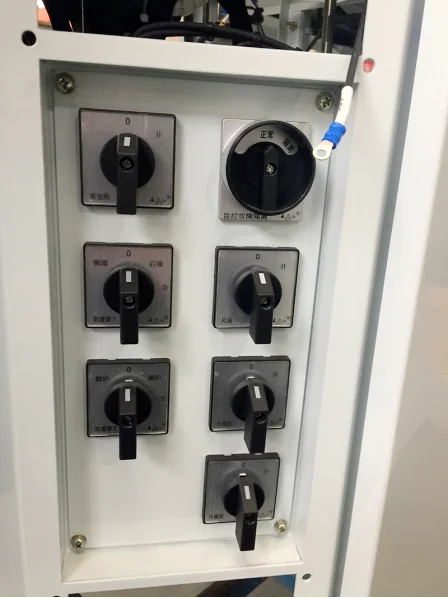

Successful Application
Related Products
Packing&Shipping
FAQ
Q: Are you trading company or manufacturer ?
A: We are factory located in Jiangyin Jiangsu Province.
Q: Does your company provide customized manufacturing?
A: We provide OEM/ODM service to our customers. Our experienced R&D team will give our customer solution in a high efficiency way.
Q: How long is your delivery time?
A: 2-4 working days for the items were in stock, 15-21days for the items out of stock.
Q: Do you provide samples ? Is it free or extra ?
A: Yes, we provide free sample for 1pcs/item, but the customers should take over the freight.
Q: What is your terms of payment ?
A: Small online orders were 100% before delivery, order amount more than $3000, 30% in advance 70% before delivery.
