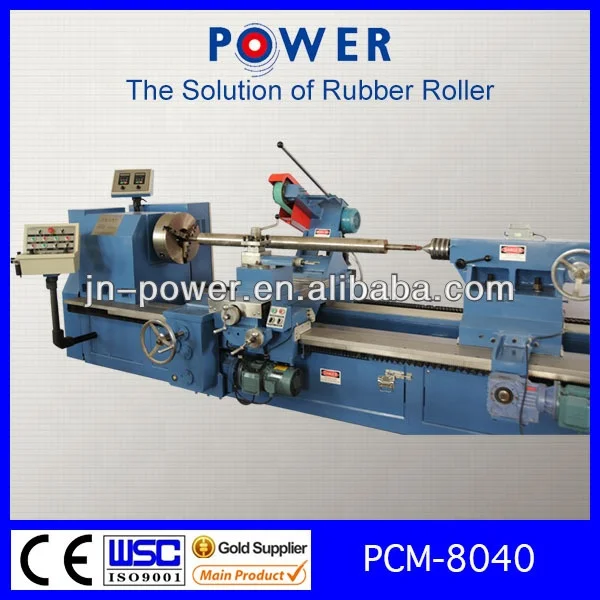

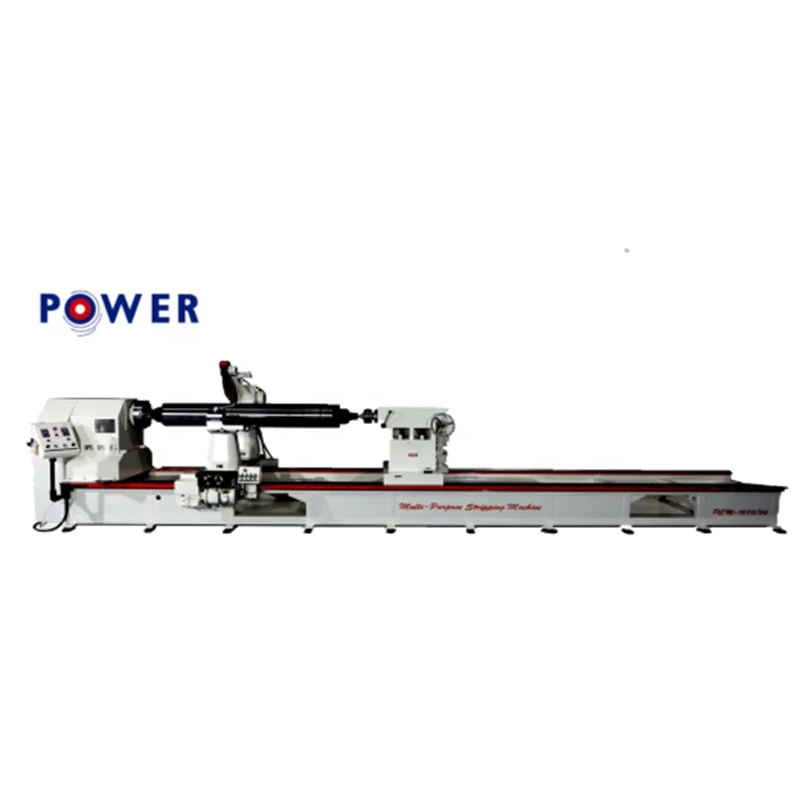

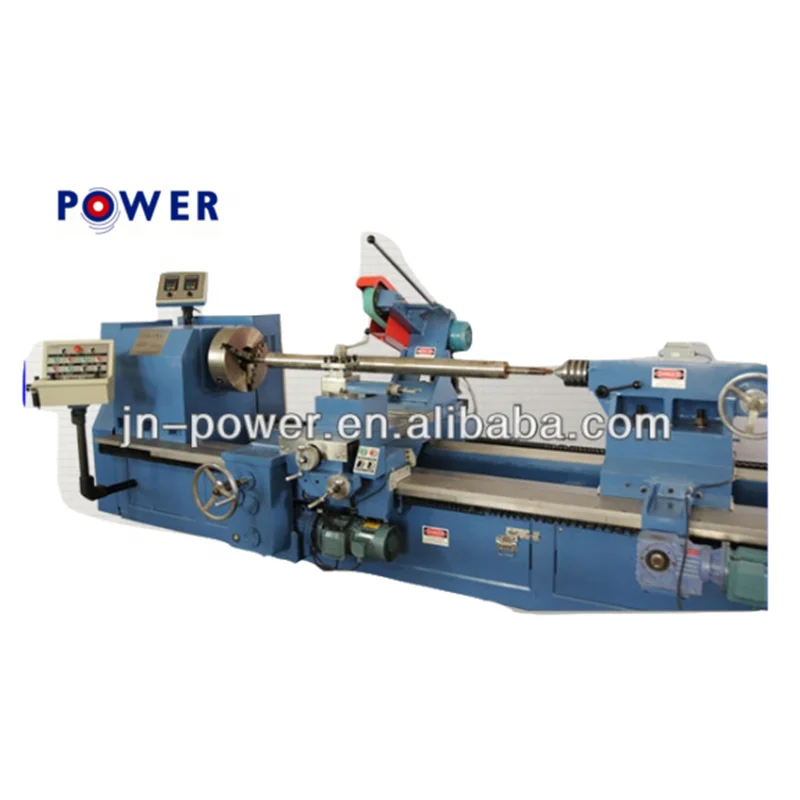

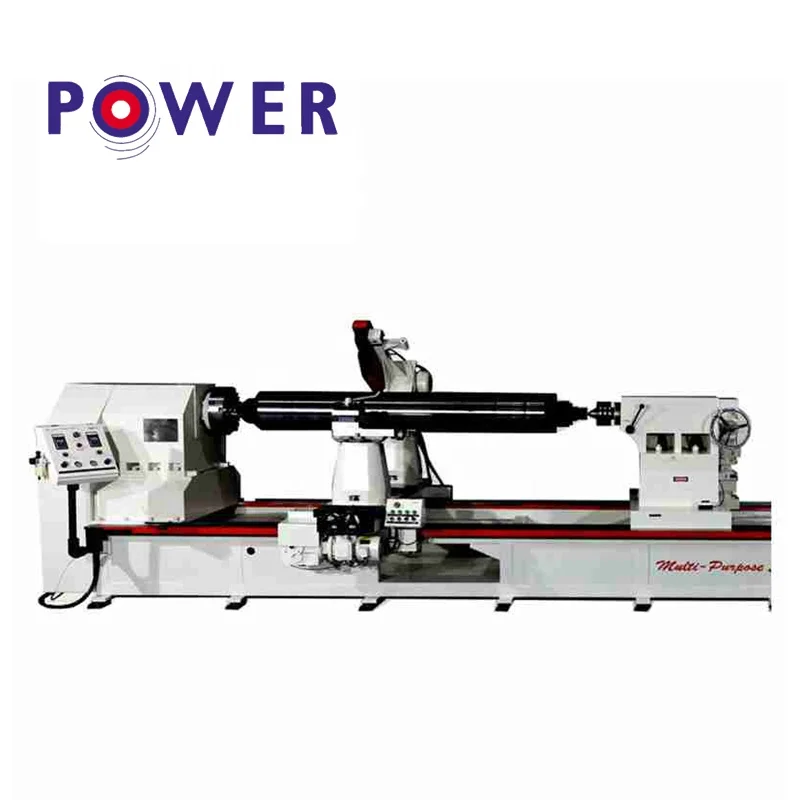

PCM 8040 Muti Purpose Rubber Roller Stripping / Sanding / Renewing / Cleaning / Recycling Machine
- Category: >>>
- Supplier: Jinan Power Roller Equipment Co. Ltd.
Share on (60819835941):
Product Overview
Description
Related Products
Product Description
1. The PCM-8040 model is suitable for renewing industrial rubber rollers.
2. Removing old rubber by special ring cutter.
3. Replacing the traditional sand-blasting and solvent washing process by advanced belt-grinding process.
4. Perfectly keeping the original dynamic balance of the roller core.
5. Giving more reliable guarantee for the bonding of the rubber and steel cores.
6. Saving costs and labors with this improved production system.
| MODEL | SPECIFICATION | MAX. DIAMETER | MAX. LENGTH | CUBAGE | POWER |
| LIGHT SCALE | PCM-4030 | 15.7" 400mm | 118" 3000mm | 197"*63"*55" 5m*1.6m*1.4m | 8.5KW |
| MEDIUM | PCM-6040 | 24" 600mm | 157.5" 4000mm | 236"*70"*59" 6m*1.7m*1.5m | 8.5KW |
| STANDARD | PCM-8040 | 31.5" 800mm | 157.5" 4000mm | 236"*71"*63" 6m*1.8m*1.6m | 11.9KW |
| HEAVY DUTY | PCM-1250 | 47.2" 1200mm | 196.9" 5000mm | 307"*79"*63" 7.8m*2.0m*1.7m | 19KW |
| LARGE SCALE | PCM-1660 | 63" 1600mm | 236.2" 6000mm | 339"*102"*71" 8.6m*2.6m*1.8m | 23KW |
PCM Multi-Purpose Stripping Machine is specially researched, developed and designed for treating old rubber rollers. PCM Multi-Purpose Stripping Machine has the advantages that: Old rubber can be quickly removed by a special ring cutter, a roller core would have a brand-new surface under the special belt grinding mode. Adhesive brushing and drying are facilitated, bonding of rubber and the roller core is ensured, which replaced the traditional sand blasting process. After the belt grinding process, the surface is not required to be cleaned by any solvent, the balance of the roller core is prevented from being damaged. Therefore, production efficiency will be improved, cost and labor will be saved. Most importantly, the bonding of the rubber and the roller core will be secured by this procedure.
Our Services
1.Installation service.
2.Maintenance service.
3.Technical support online service provided.
4.Technical files service provided.
5.On-site training service provided.
6.Spare parts replacement and repair service provided.
Certification
Our Company
About us
Jinan Power Rubber Roller Equipment Co., Ltd is a modern private enterprise embodying scientific research and production. It was set up in 1998, and now is the main base in our country for manufacturing rubber roller special machine.
Power Company is a professional producer engaged in rubber roller manufacturing equipment, with a large production scale and strong technical force. The products we provide are: Rubber Roller Builder, Rubber Roller Grinding Machine, External Cylindrical Grinder, Emery Belt Precision Machine, Fully Automatic Measuring Instrument, Grinding Head and Fitting of Equipment. More than eight products have been awarded National or Shandong Provincial level product prizes and three scientific-research achievement prizes. In 2000, our products passed the inspection by CCIB Quality Certification Center in accordance with ISO 9001 standards. By using our equipment, you will increase processing efficiency, and raise product quality. Also it can bring much economical benefit.
Power Company regards "customers first" as its principle and has been developing and producing satisfactory products for different types for customers. Janna Power Rubber Roller Equipment Co., Ltd sincerely welcomes friends at home and abroad to come here for business talks.
