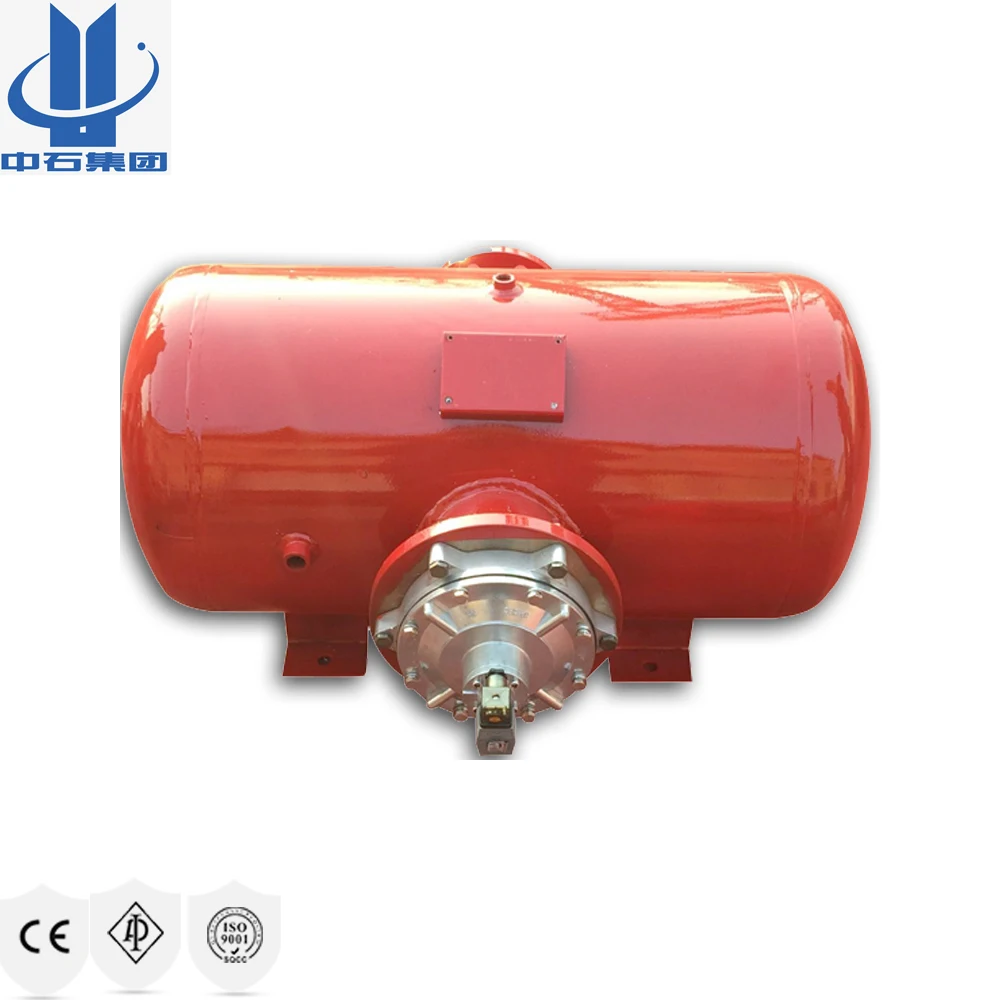

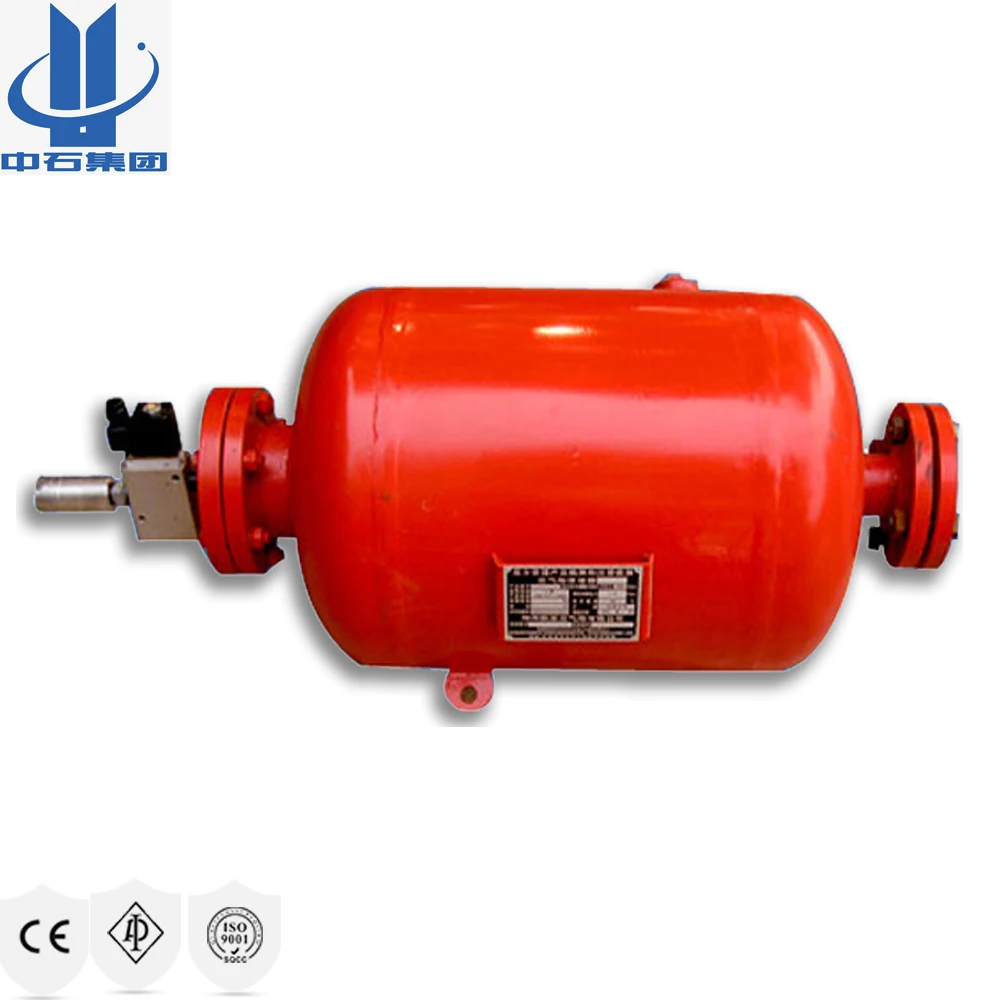

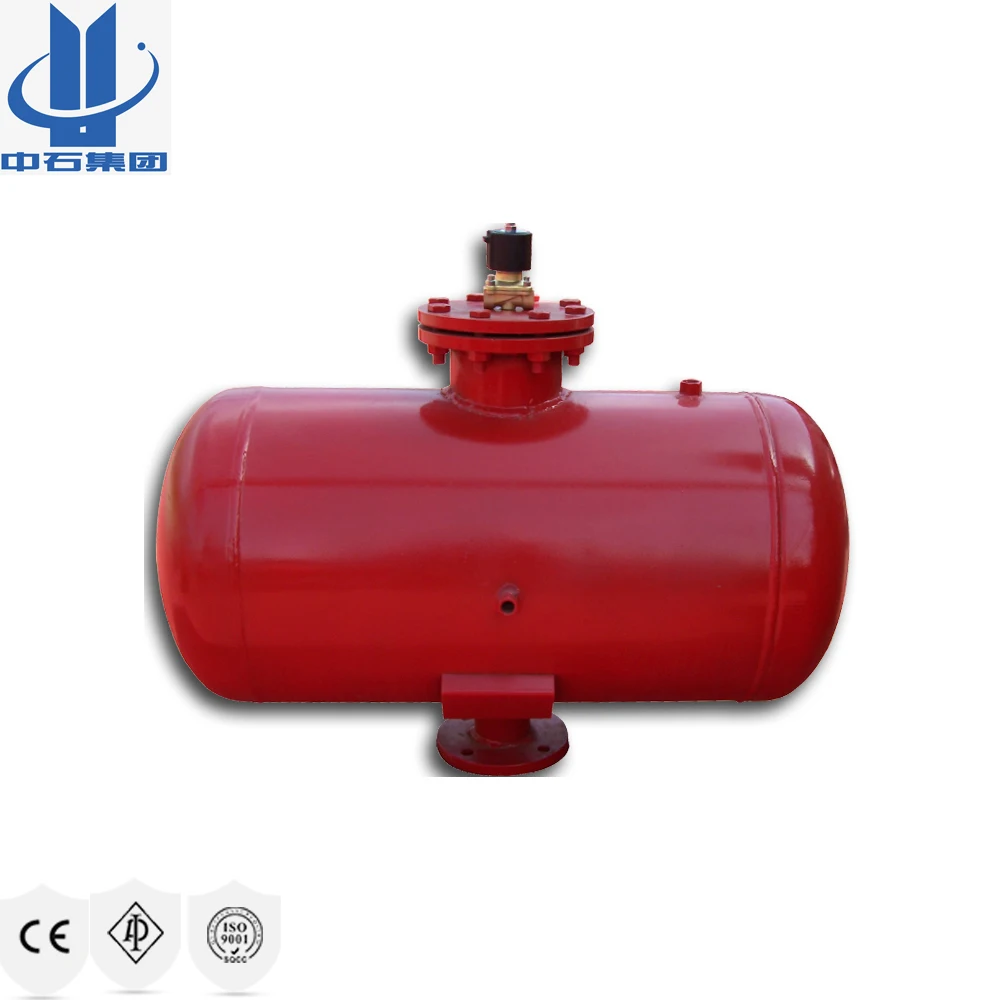

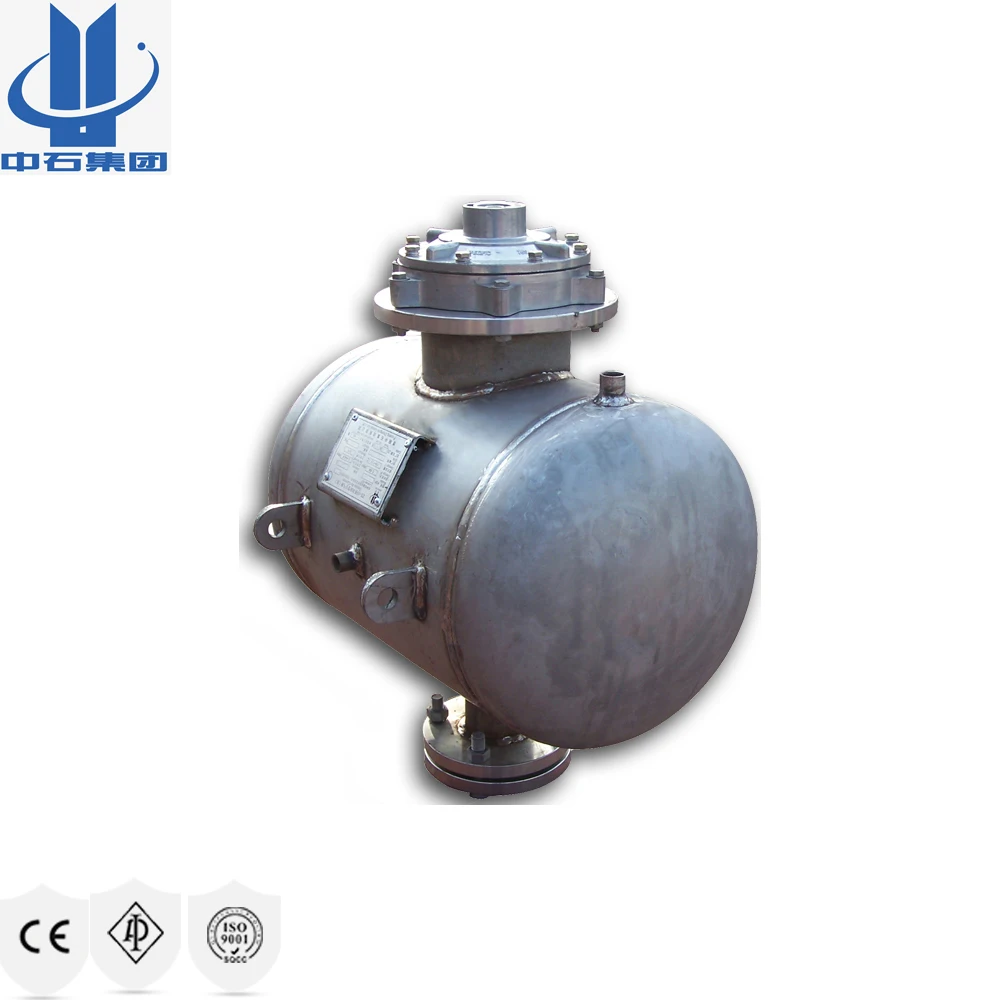

Transfer Chute De Clogging Equipment Big Force Air Cannon Air Blaster
Industry Applicable Air Cannon
1. Introduction
Air cannon or Air blaster, also known as air flow-aiding machine or bunker dredger (block clearer), is a special device for preventing and removing material arching and blocking in various types of silo, hopper, pre-heater kiln, piping crotch and draw shaft and slide slope. Air cannon, as a good flow assistant systems, it can effectively prevent the buildup of materials and solve the blocking problems in transfer chutes, storage vessels, and process equipment such as pre-heater towers and clinker coolers.
For the industrial and mining enterprises who posses the silo hopper, tube wells and draw shaft ,it replaces the means of the manually stabbed smash, wind blowing pressure, blasting explosives, machine vibration, slides and others which is old, unsafe and much expensive to help the flow. It not only reduces the labor intensity, ensures the safe production, but also has brought considerable economical efficiency for the enterprise.
The product can blast with strong impact energy, nuisance free, pollution free, environment friendly, is the most advanced, is the most advanced, most advanced, most economical, most ideal, most eco-friendly, most safe, dredge equipment.
Air cannon depends on the air flow of compressed air that squirt suddenly, the airflow dash into the blocked fault area where the scattered material is stored directly by the speed exceeding a Mach(sound velocity).The inflation shockwave that release suddenly, overcome the friction among material, make supplies of container flow again, it utilizes aerodynamic principle, use air as working fluid, based on one differential pressure device and automatically controlled fast vent valve, can change air pressure to air fluidics kinetic force penetrate, can produce strong shock power, it is a kind of clean, pollution-free, low power ideal slag-blowing equipment.
With bunker, hopper, pipes, and mine chute of the corporations, it replaces the artificial channel, pressure wind blowing, explosives are used, some old, such as mechanical vibration, skateboarding is not safe and a big broken arch help flow method, not only reduces the intensity of labor to ensure the safety in production, but also bring considerable economic benefits.
The blasting impact energy, pollution-free, pollution-free, is currently the world's most advanced, the most economical, the most ideal, the most environmental protection, the safety of arch flow equipment.
The air cannon is of simple structure, safe and convenient to handle. It has the basic characteristics such as: great shock power, safe, energy-conservation, auto control, easy to operate, no damage to storehouse, etc. It is the most ideal dredge equipment at present.
It is divided into three series A, B, C, a variety of models, and it can work normally in 1300°C after several technological transformations. It has low noise, more energy, simple operation, non-pipeline injury hopper, and other basic characteristics. It is the best break device to help arch-flow, and is the strong opponent of hopper block!

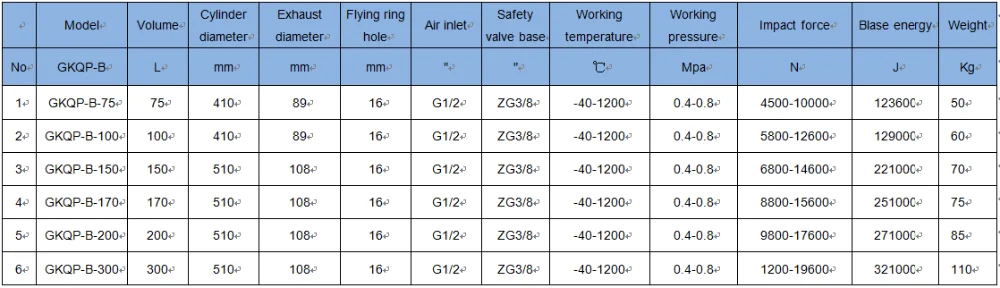

Technical Specification
Product application

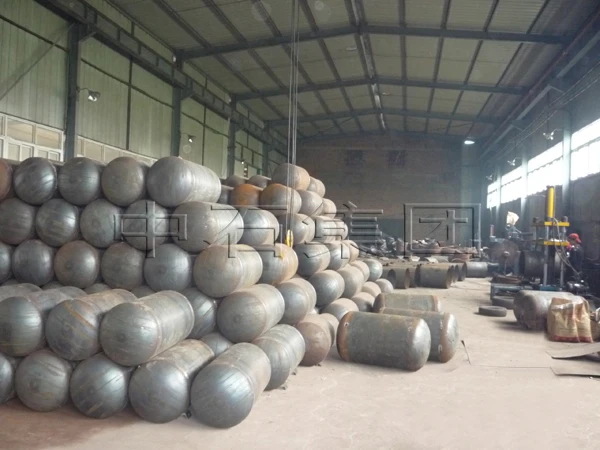

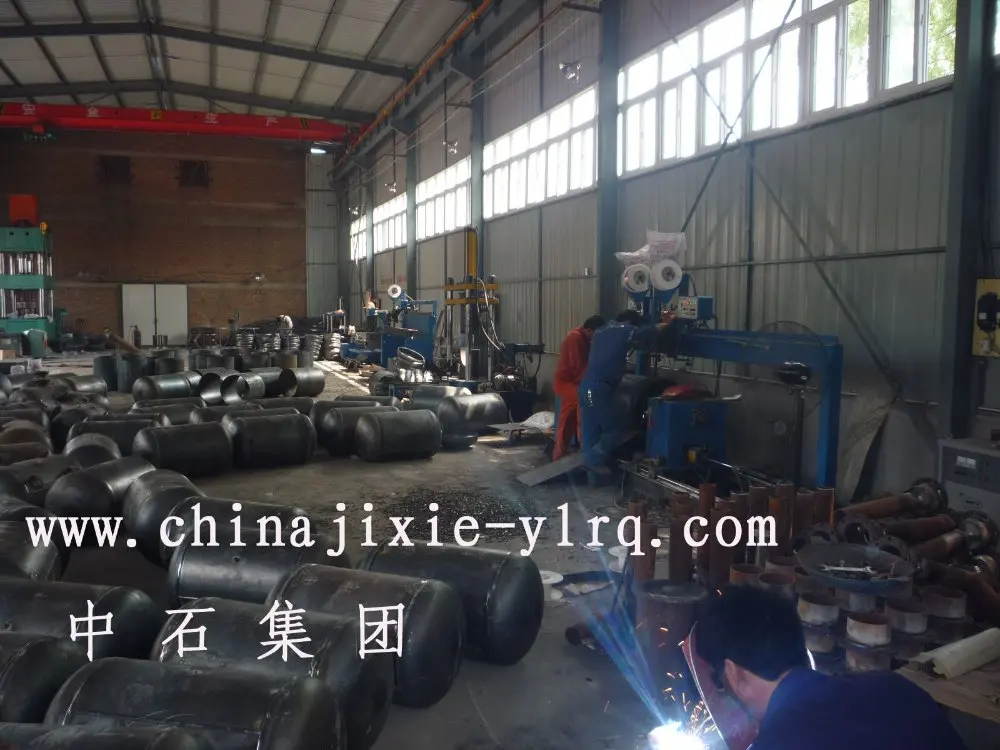

Factory Production
Composition
Cannon body: Store air. Cannon body is made of Q235-B steel plate. Mainly adopt automatic submerged arc welding and carbon dioxide arc welding for steel plate welding. After X-ray crack detection, mechanical properties test, water pressure test for strength and blasting performance test, it is qualified and safe for use.
Outrigger or rings: Fix air cannon.
Water Discharge Machine: In the course of time water and oil may be accumulated in the body. Unload the twisted wire then blocking dirt can be discharged out.
Safety valve: It is spring-loaded safety valve, whose start pressure is 0.4-0.8Mpa(users can self-adjust). If there is a reliable safety valve on the gas source, the safety valve on the cannon may be cancelled.

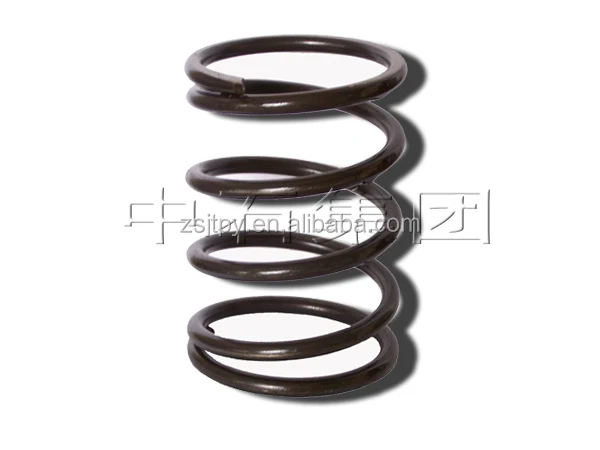

Piston: It’s made of nylon 66, and is sealed by its piston ring. There’re a number of rubber plates at the top of the piston. There is a spring at the rear of the Pistons, so that Piston’s reduction activities can buffer spring in order to prevent materials entering the Piston and cannon body.
Solenoid valve: It is the main components in air-cannon’s action which can be prepared in accordance with the user’s requirement. Remarks: air control valve and explosion-proof solenoid valve are used under ground while the effect is the same.
Cylinder: Adopt alloy steel, and is manufactured by the advanced coating technology.

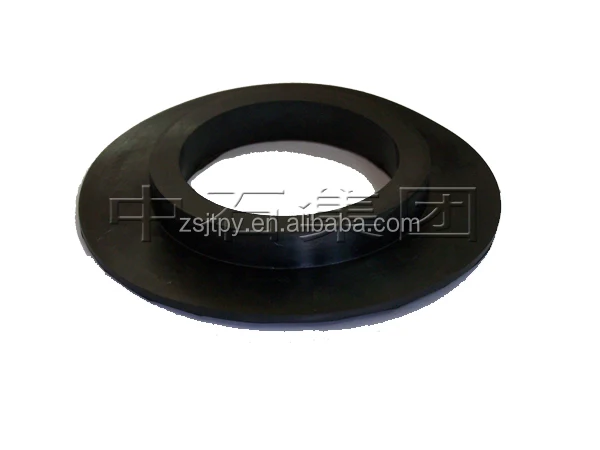

Piston Rubber Seat: Rubber seat is added to the rear piston to ensure that the compressed spring is not overloaded, to keep flexible energy of the spring.
Asbestos rubber gasket: Play the role of pressing and sealing.
Sealing surface: The cannon exhaust pipe end in the body with specialized technology and equipment for grinding, good sealing performance, preventing from leaking when store gas, energy conservation, ensures the air pressure in the cannon body so that make sure the impact effect when it’s blasting.
Air Cannon can be used for steel, concrete and wood-based hopper. It is widely used in the coal, metallurgical, chemical, thermal power, cement and other industries.

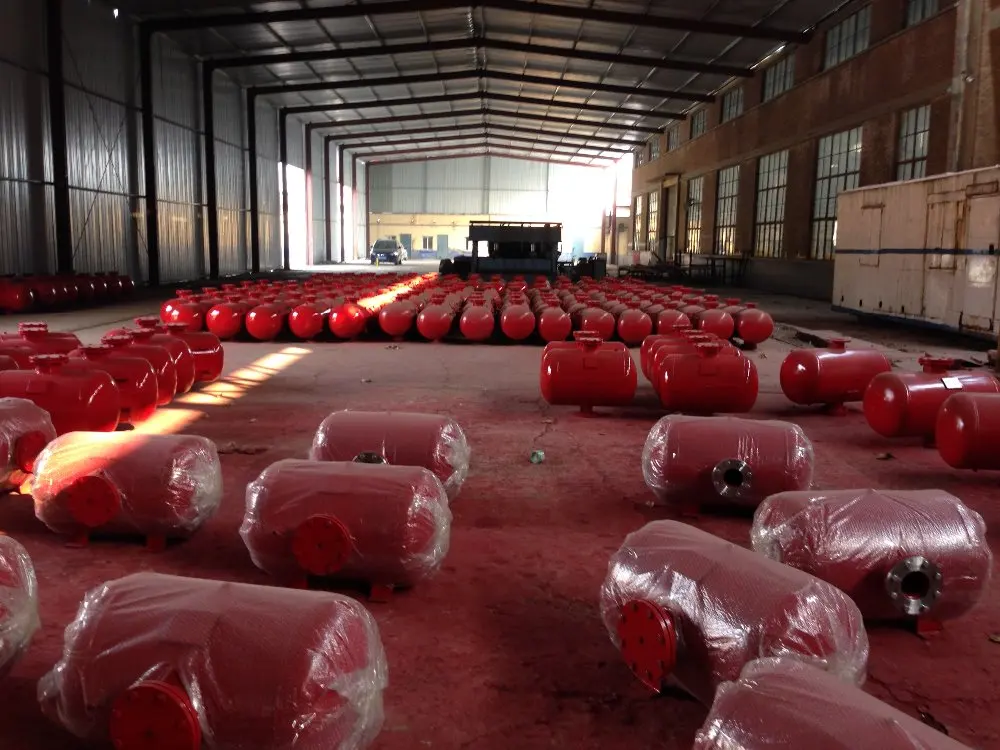

Packaging & Shipping

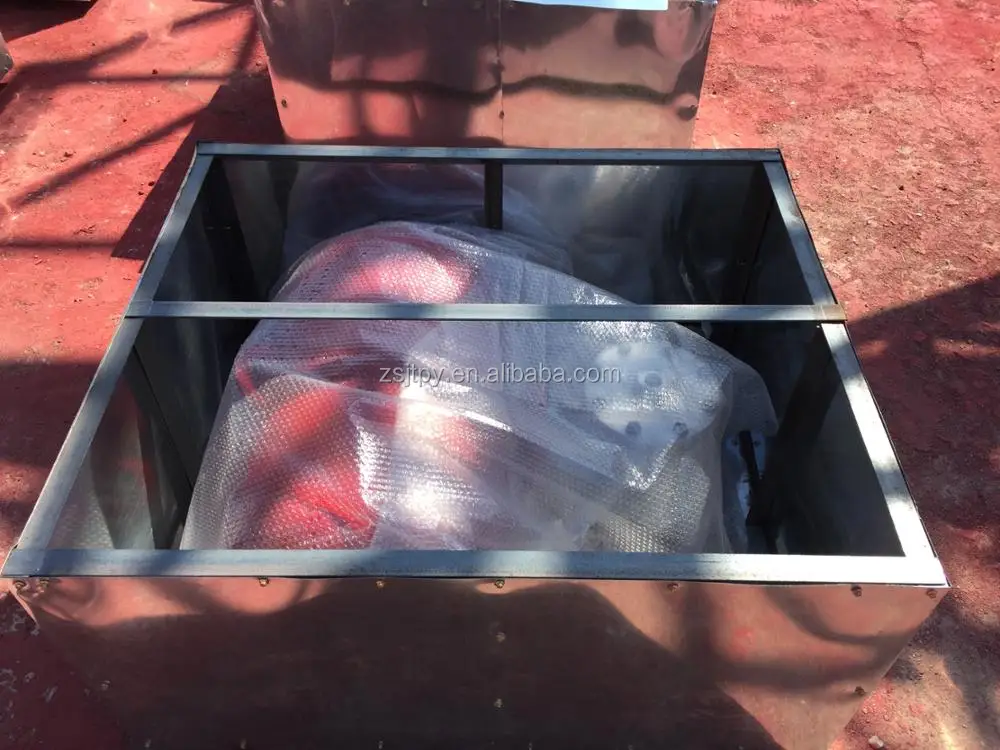

Our packing is iron case or polywood case with Standard Overseas Shipping Packing style, and also can be packed according to the requirement of the clients
Company Information
The predecessor of Henan Puyang Zhongshi Group Co. Ltd, was the 5th Machine Repairing Factory of Puyang Zhongyuan Oil field, Sinopec Corp. In 1997, after being restructured according to the modern corporate system, the factory was named Puyang Zhongshi Group Co.,Ltd.
With registered capital of 60,840,000 yuan, Puyang Zhongshi Group is composed of 9 subsidiaries, including 8 manufacturers and 1 trade company. Zhongshi Group covers an area of 200,000 sq.m, including workshop area of 50,000 sq.m. Various kinds of production equipment values 38,600,000 yuan. It has a strong mechanical processing capability.
Our leading products are pumping unit, tubing pump & sucker rod pump, cementing accessories, down-hole tools, wellhead (X-mas tree), drilling solid control series, pressure vessel ,camping house, air cannon, belt feeder and so on. They are mainly supplied to Central Asia, Southeast Asia, Africa and Middle East and many other countries.
Zhongshi Group has been the Tier One internet service provider of Sinopec. We passed ISO9001 quality management system certification and got approved to use API monograms on its oil machineries. So far, we have attained API 5CT, API 10D, API 11AX, API 11E and more are applying for.
With strong technical backup, reliable product quality, advanced marketing regime and good service system, this company wins popularity and recognition of vast consumers home and abroad.
We would like to faithfully cooperate with friends from all circles with classic products and service to achieve common development.
