TAL 3U E Automatic Self contained Vacuum Hopper Loaders with Sight Glass
TAL-3U-E Automatic Self-contained Vacuum Hopper Loaders with Sight Glass
TAL-3U-E Automatic Self-contained Vacuum Hopper Loaders with Sight Glass
TAL-3U-E Automatic Self-contained Vacuum Hopper Loaders with Sight Glass
TAL-3U-E Automatic Self-contained Vacuum Hopper Loaders with Sight Glass
TAL-3U-E Automatic Self-contained Vacuum Hopper Loaders with Sight Glass

TAL 3U E Automatic Self contained Vacuum Hopper Loaders with Sight Glass

Share on (60819845859):


Price:RUB 56,739.73

Quantity:


Product Overview

Description

Product Description

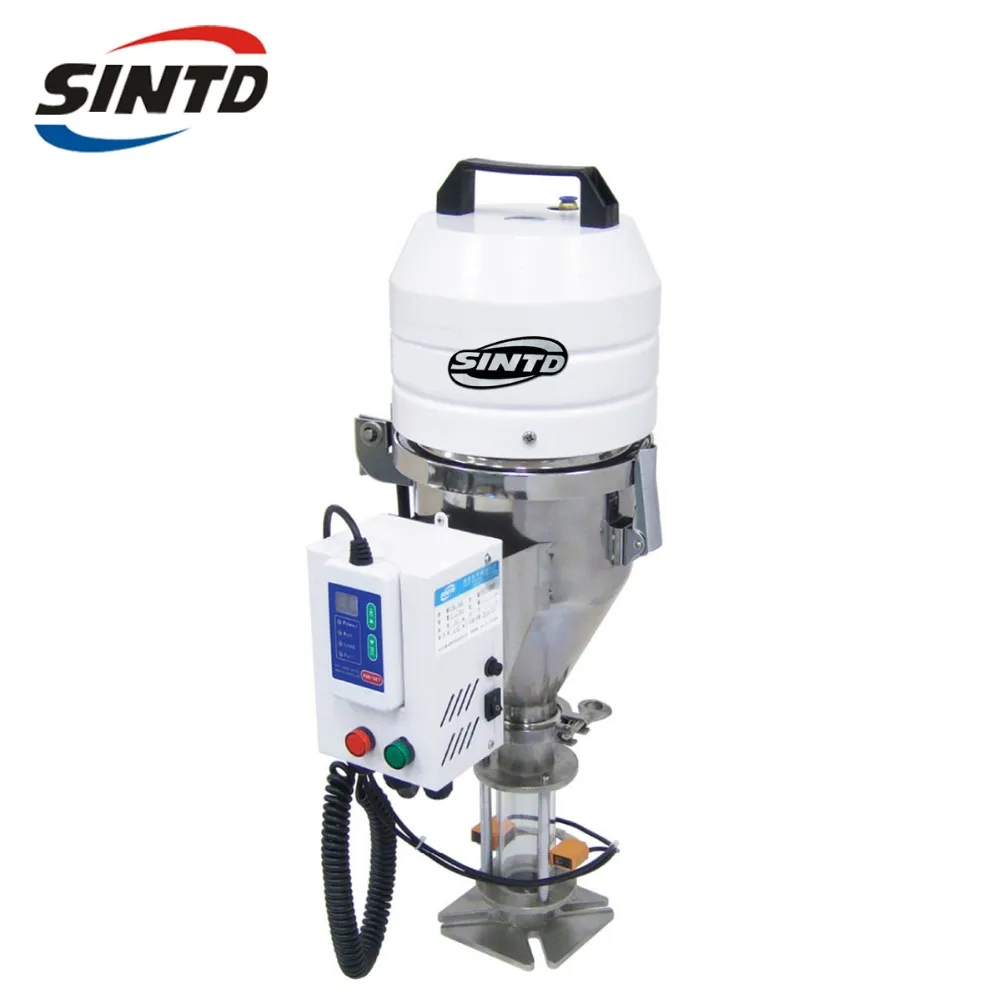

TAL-3U-E Self-contained Stainless Steel Vacuum Hopper Loader with Sight Glass



                            Euro design with stainless steel hoper to keep material from pollutions, in addition, it has an attractive and polished apperarance, and a sound proof motor cover to reduce noise level. And it is convenient to move. Remote operation becomes simple and convenient by using a detachable control panel.





Main Features:

                                                                      - Specifications-

1. Stainless steel construction

2. Sound reduction motor and cover reduces operating noise.

3. 115 Volts, carbon brush type, .55 H.P. 2 stage.

4. Motor is oveload protected.

5. Soft start function standard controlled by pendant.

6. Material shortrage alarm. Buzzer & flashing red light.

7. 12 ft. 115 volt grounded line cord with plug

8. Hopper capacity: 4.5 lbs.

9. Dimensions: 26" high x 12" wide x 16" deep

10. Weight: 25 lbs.

11. Rohs compliant

Detailed Images

Euro Self-contained vacuum Hopper Loader



                            With more than twenty years experience and the spirit of innovation and pursuing for excellence, we have been developing various top quality hopper loaders for conveying all kinds of plastic materials. They maximum conveying capacity of those machines is up to 2000kg/hr. Stainless steel hopper and high efficiency vacuum blower are adopted for all those machines. They are also equipped with motor overload relay and material shortage alarm. Those hopper loaders are light-weighted and reliable, and also they are featured with superior suction power, easy installation and convenient operation.



Specification:


Model No.
Conveying Capacity
Hopper Capacity
Conveying Distance
Inlet O.D.
H.P
Dimensions
(h*w*d)
TAL-1.5U
450 lb
3.5 lbs.
20 ft.
1-1/2"
.55
21" x 11" x 13"
TAL-3U-E
450 lb
4.5 lbs.
20 ft.
1-1/2"
.55
26" x 12" x 16"
TAL-6U
660 lb
8.5 lbs.
20 ft.
1-1/2"
1.5
23" x 12" x 18"
TAL-12U
900 lb
17 lbs.
20 ft.
1-1/2"
1.5
25-1/5" x 15" x 21"
TPV-38U-C
Proportional dual feed valve. Mounts directly onto loader inlet tube.
Certifications
Packing & Delivery
Packaging
Size
330(L) * 270(W) * 530(H)
Weight
10kg



Packaging Details
The normal package is carton package (Size: L*W*H). Package as customer requested.
