JB 800P/1100P Air Jet & UV Conveyer Belt Dryer

Share on (60819855658):


Price:

Quantity:


Product Overview

Description



Product Description

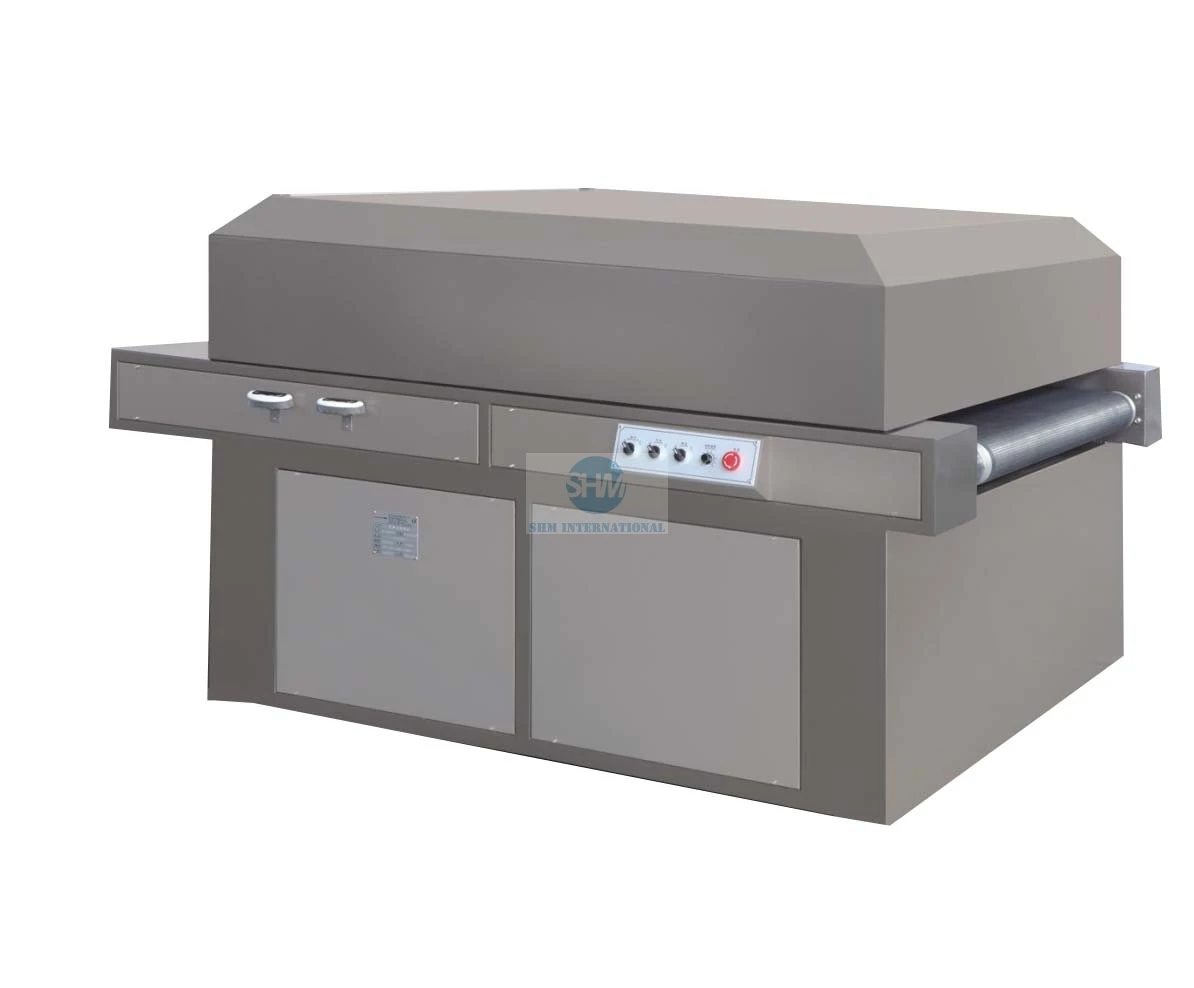

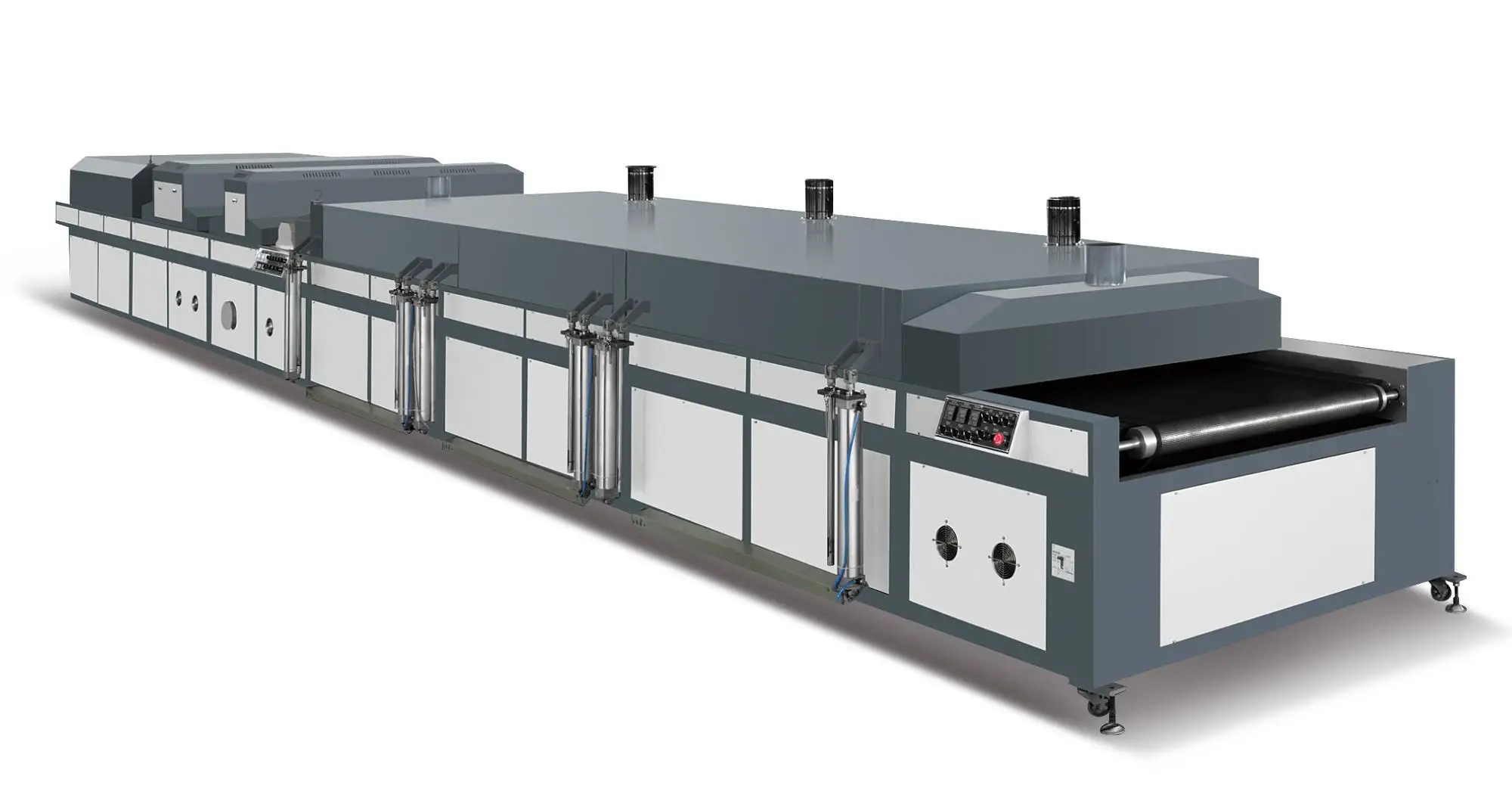

JB-800P/1100P Air-Jet & UV Conveyer Belt Dryer
1. Multi-section free combination design, according to different printing, the user can choose different ink.
2. Three hot air units, one UV unit and one cooling unit.
3. Cycle pipe line makes sure the hot air high active and steady.
4. Cooling unit keep blowing the cold air blast through the high pressure blower, cooling the printing quickly.
5. Frequency control, Teflon convey belt, thermo-stability, rub resistance, radiation hardened insure the machine working life.
6. Automatic tensioning and correcting unit insure the delivery stable and operation easy.


Cooling Unit
1. Equiped with flat conveyor dryer or UV machine which is used to cool the pritnig after dryer.
2. Can offer three cooling method, water cooling, air condition and wind cooling.
3. Need connect power independently, with frequency conversion conveyor belt
4. Keep blowing the cold air blast through the high pressure blower, cooling the paper fleetly, so that the thin paper can be deliveryed smoothly.


Specification


Model
JB-800P
JB-1100P
Speed
60m/min
60m/min
Conveyor motor power
0.75kw
0.75kw
Effective solidify width
800mm
1100mm
Max temperature (Hot air unit)
150℃
150℃
IR lamp power (Hot air unit)
2kw x 9 pcs x 3 units
2kw x 9 pcs x 3 units
Cycle fan power (Hot air unit)
1.1kw x 2 pcs x 3 units
1.1kw x 2 pcs x 3 units
UV lamp power (UV unit)
8.8kw x 2 pcs x 3 units
8.8kw x 2 pcs x 3 units
Radiating fan power (UV unit)
0.75kw x 2
0.75kw x 2
Absorption fan power (UV unit)
0.75kw
0.75kw
Air condition power (Cooling unit)
0.75kw x 2
0.75kw x 2
Air blower power
0.85kw
0.85kw
Absorption fan power of feeder
0.55kw
0.55kw
Weight
2300kg
2600kg
Dimension
11100x1730x1650mm
11100x1950x1650mm


Model
Water cooling
Air condition
Wind cooling
Speed
60m/min
60m/min
60m/min
Conveyor motor power
200w
200w
200w
Min temperature
15℃
20℃
24℃
Fan power
1.1kw
0.85kw
0.85kw
Weight
900kg
800kg
700kg
Dimension
2100x240x1330mm


Our Team & Partner




Packing




FAQ


1.Q : What about the price of the machine?
A:Pls contact with our sales manager to get quotation or pls send mail to us to get more information.

2.Q:How long is the warranty of the machines ?And other Service ?
A: Warranty is 12 months after the machines arrive.
Our engineer can provide service overseas if you need.
And we also provide installation and operation training.

3. Q : How about your delivery time ?
A:The delivery time is within 30-60 days depend on the different type or machine. Pls contact with us to learn more.

4.Q:What`s the price term and payment method?
A:We usually use FOB, CIF and CFR.
Payment method : 100 % T/T (30% deposit + 70% before shipment ) or other payment method.
