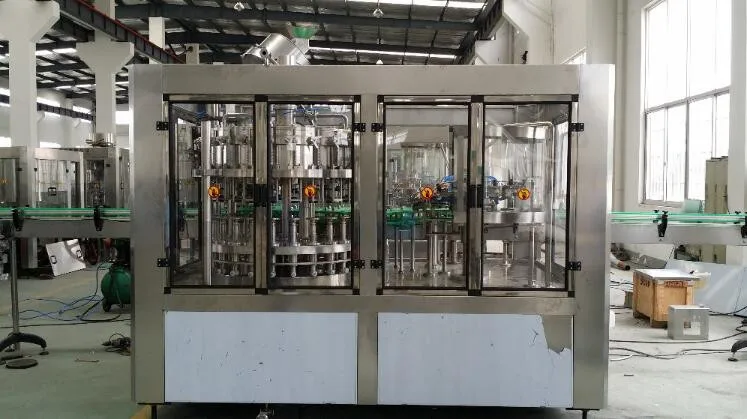

Glass Bottle Beer Washing Filling Crown Capping Machine

Automatic beer bottle washing filling capping machine is used to fill carbonated (energy) drink, soda, soft drink, beer into glass bottle etc.

The filling machine is customize basing on the different production capacity per hour, bottle types and caps. The filling nozzle, bottle carry system are totally different.

The complete solution of carbonated drink production line, including:
1, Water treatment system
2, Carbonated drink processing machine
3, Carbonated drink filling system
4, Glass bottled carbonated drink packing machine
5, Empty glass bottle de-palletizer
6, Option: anti-foaming system which is for beer filling

Model	BGF12-12-4	BGF18-18-6	BGF24-24-8
Production capacity(500ml)	1000-1200	2000-3000	4000-5000
Total power(kw)	1.5	1.5	3.75
Weight(kg)	2000	2400	3000
Dimension(mm)	1700x1100x2300mm	1830x1320x2300mm	1950x1580x2500mm

Main Features

Machine structure: monoblock filling machine & isobaric filling method;
Filling valve: have the second vacuum;
Sealing part: we have the patent for the sealing parts;
Bearing sets: there is double sealing between the table and the bearing set to avoid corrosion;
Control system: apply arm controller;
Lubrication system: PLC controlled lubrication;

Certifications

Detailed Images

Machine Parts

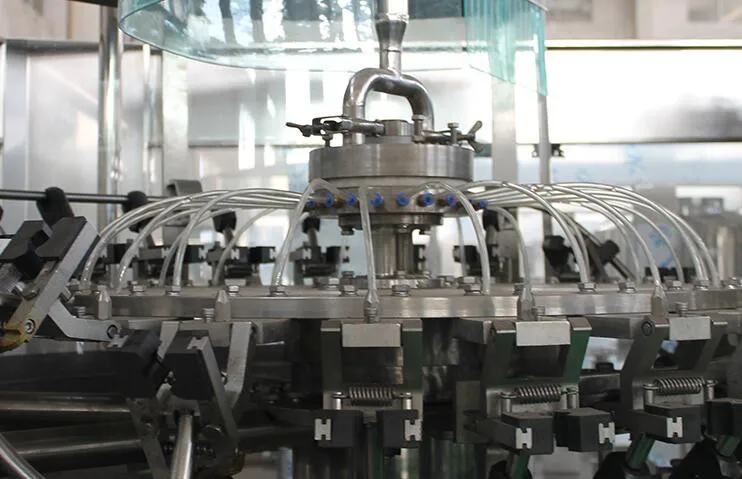

Washing part

Rotatory bottle-rinsing machine has the functions of not opening the valve and rinsing without bottle, which is working from bottle entrance,bottle transportation,bottle clipping,bottle turning around with synchronously rinsing inside of the bottle to water-dropping and exit have the functions of not opening the valve and rinsing without bottles.

Machine Parts

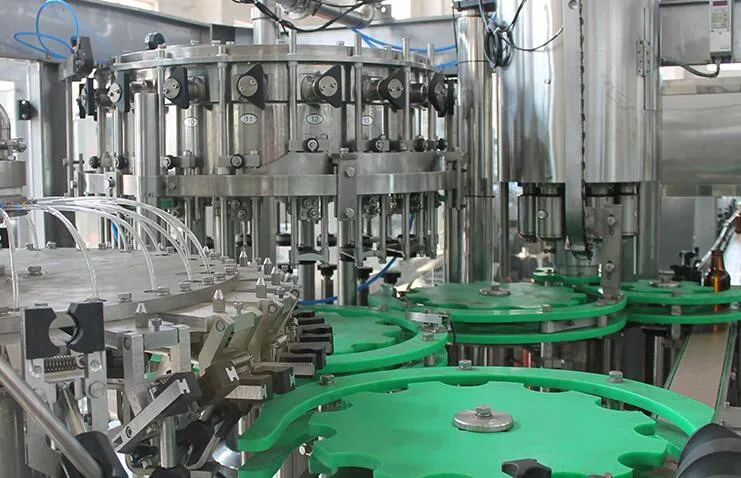

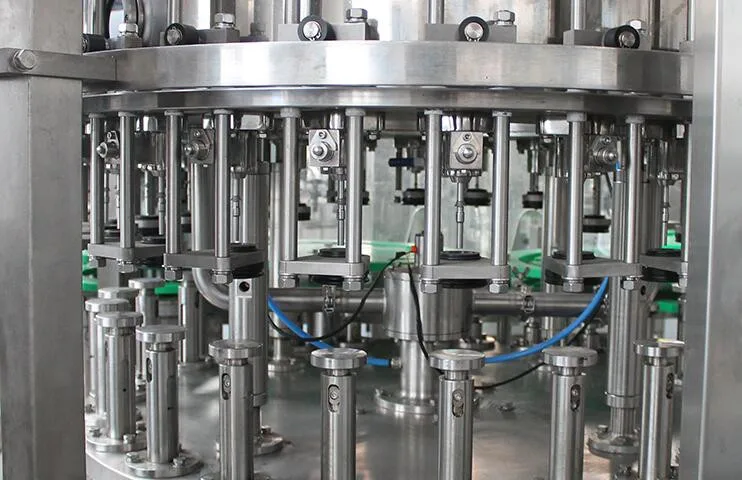

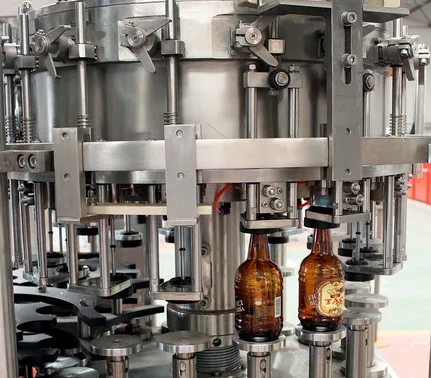

Filling part

This parts adopt the balance pressure filling. It willl need second vacuum for anti-foaming. If having different can types, please make sure all the can diameters are the same.

Machine Parts

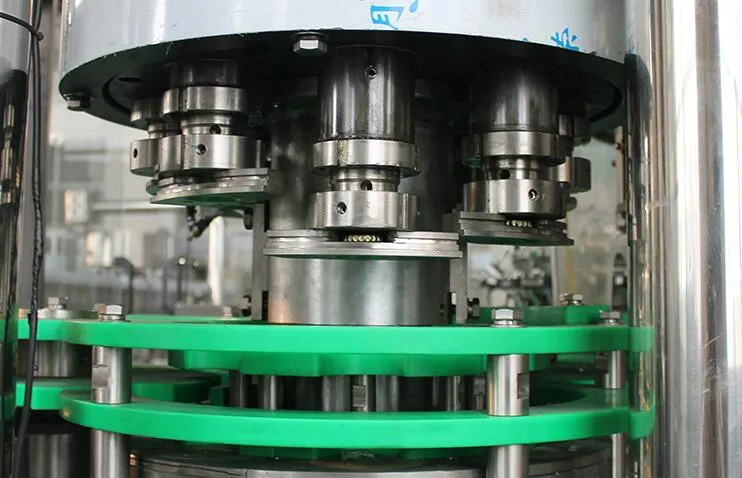

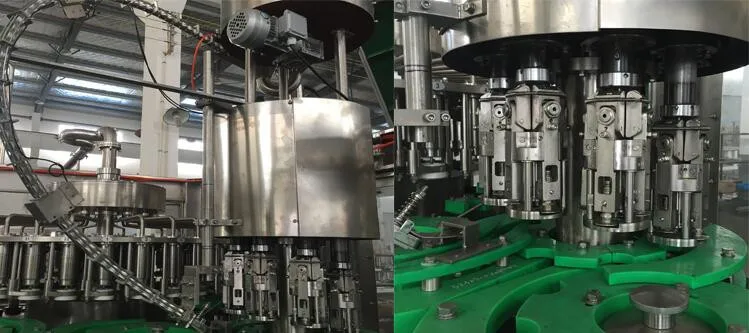

Sealing part

This is the new design of the capping part. The capping part is the whole system and running more stable which our engineer apply the patent. The bushed inside the cam is adopted IGUS brand which can freely maintain.

Machine Parts

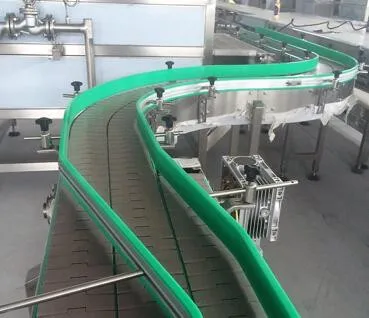

Conveyor:

Energy saving. High efficient. Adapt to customer factory layout
Special lubrication system, keep products clean, health, safety
Extended service life
Electric eyes design keep whole line running safety and quickly
Overload protection mechanism to effectively ensure the safety of the machine

Our Service

Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

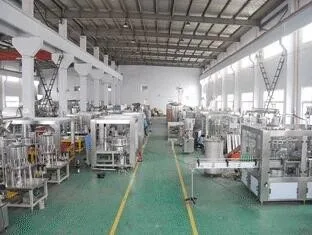

* View our Factory.

After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.

Packing & Delivery

Packaging
Size	2800 (L) * 2200(W) * 2100(D)
Weight	3.0T
Packaging Details	The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.

Related Products

Conveyor

91.8% Response Rate

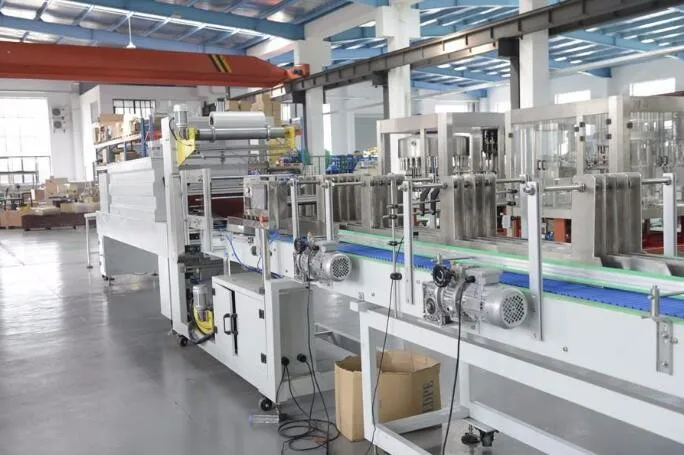

Linear shrink packing machine

91.8% Response Rate

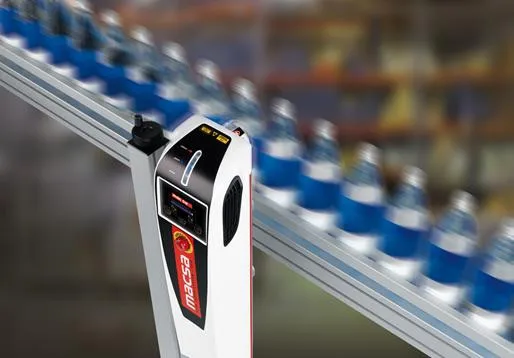

Laser printer
