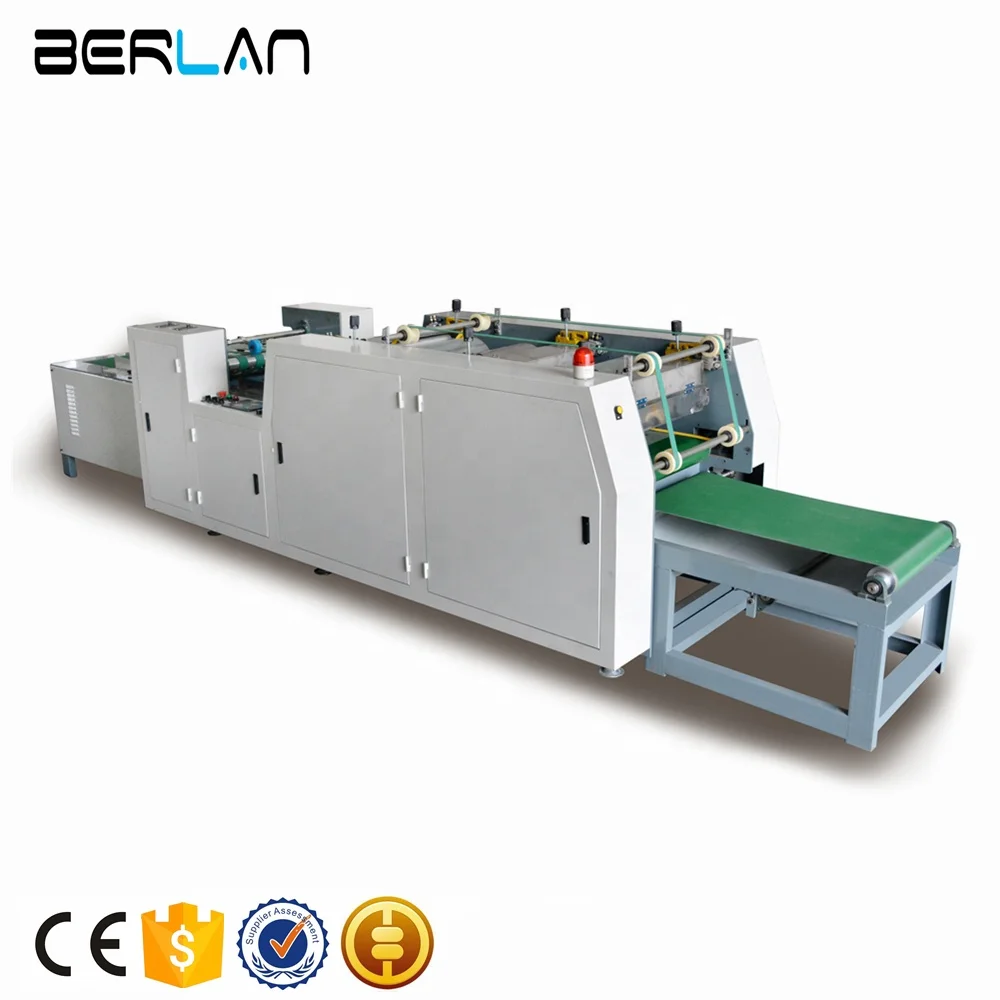

2 Colors SBY-A-500 Automatic Paper Bag Printing Press

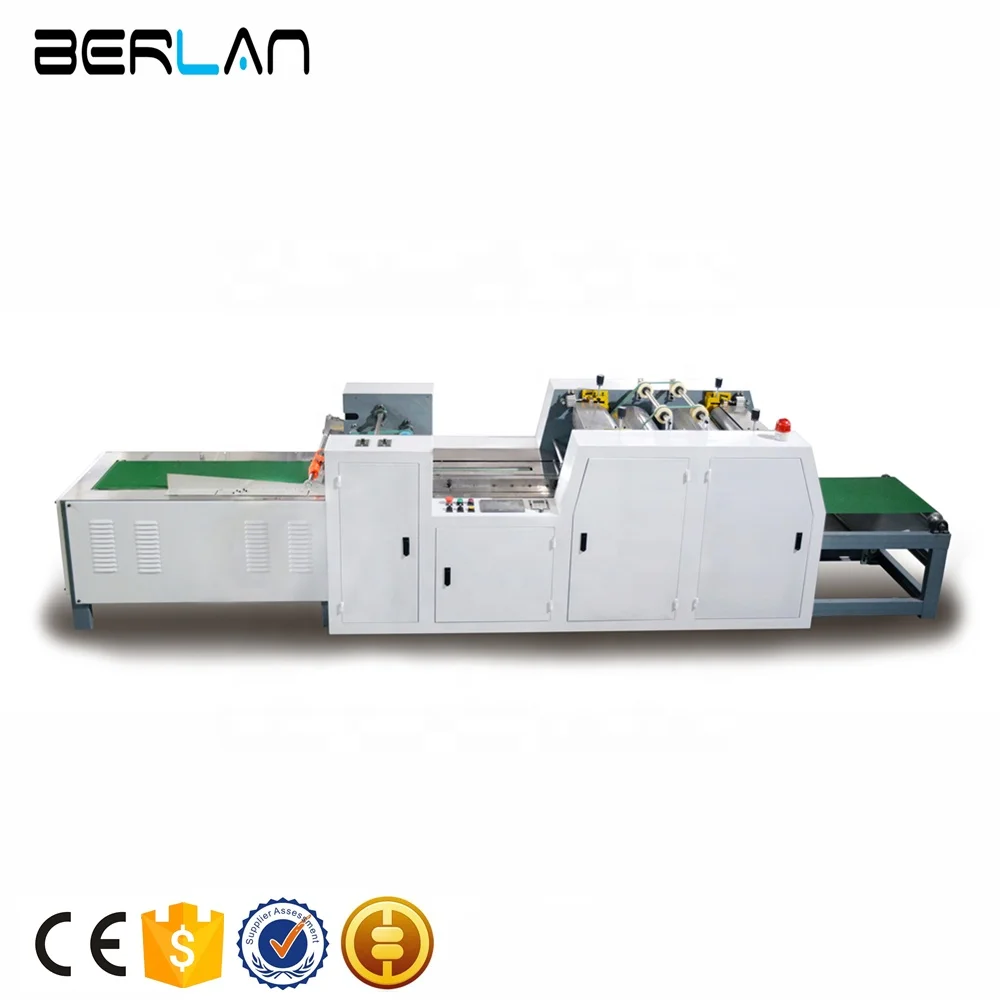

2 Colors SBY-A-500 Automatic Paper Bag Printing Press

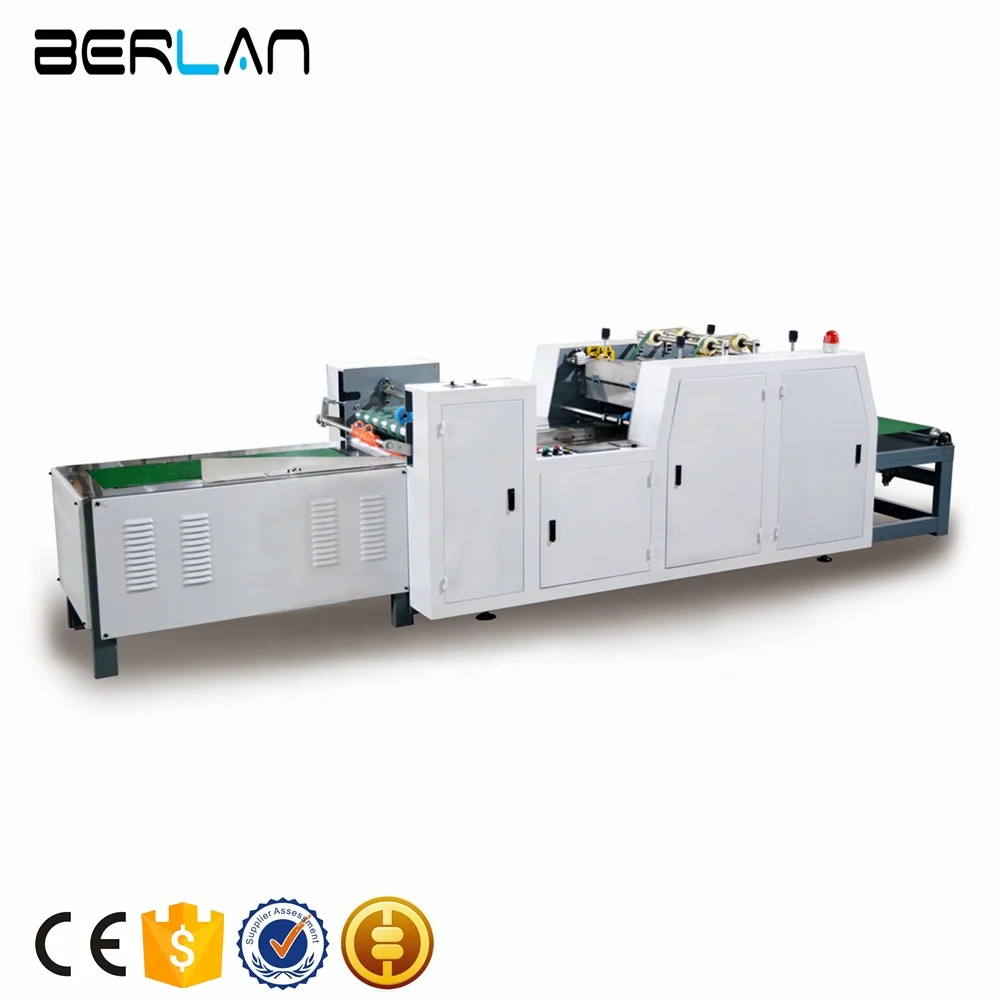

2 Colors SBY-A-500 Automatic Paper Bag Printing Press

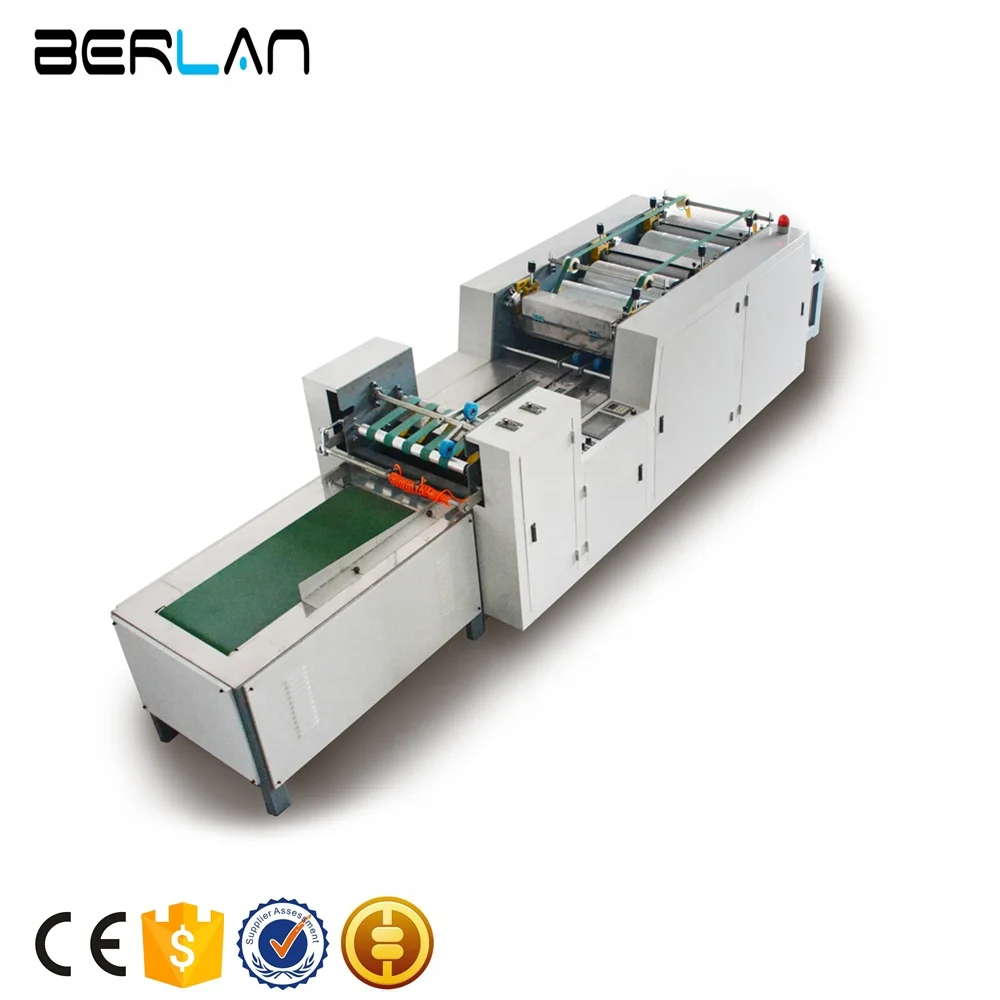

2 Colors SBY-A-500 Automatic Paper Bag Printing Press

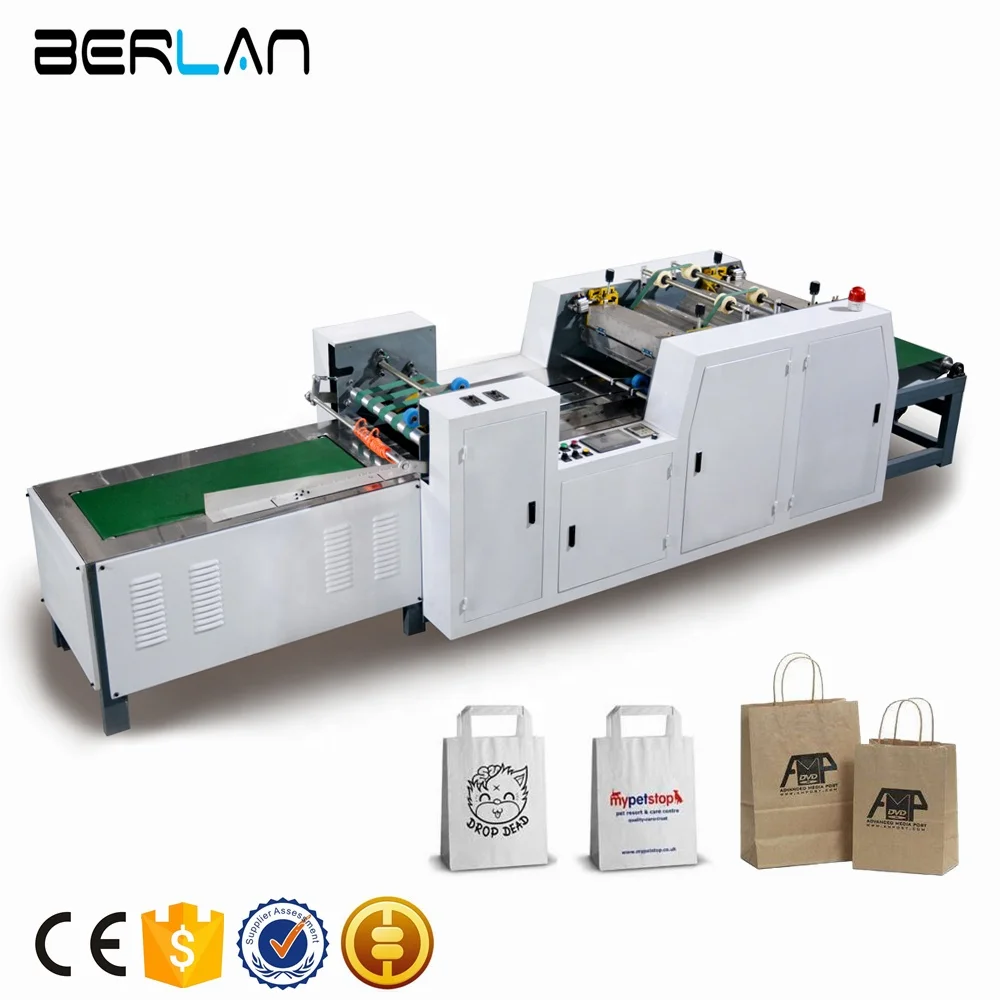

2 Colors SBY-A-500 Automatic Paper Bag Printing Press
2 Colors SBY-A-500 Automatic Paper Bag Printing Press

2 Colors SBY A 500 Automatic Paper Bag Printing Press

Share on (60819870926):


Price:

Quantity:


Product Overview

Description


Product Description
\t
PRODUCT NAME
\t
SBY-A-500 Automatic Feeding Single Sheet Paper Bag Printing Machine
\t
USAGE
\t
This Machine Suit For Print Paper Bag With Handle Loop And Without Handle Loop.
Feature&Parameter

1.Machine Structure Material

Adopt 10mm Steel Plate To Make Machine Structure.Steel Plate Is Process By Laser Machine,Make Machine Structure High Precision.
Highly Improve Printing Precision And Reduce Machine Noise.

2.Full Auto Feeder Table. Can Loading 100cm Length Bag Stack

There have a photocell eye to detect bag, When bag move to downside of mechanical hand. Convey belt will stop ,then machine hand to do feeding.
There have position location plate in side of work table ,can help fix bag well on convey belt.

3.Mechanical Hand To Do Feeding

Adopt mechanical hand to feed paper bag ,then send bag to transitional unit.

4.Whole Machine Is Synchronous Control By PLC System.

5.Transitional Correct Unit & Printing Entrance

When bag be feed by mechanical hand and send to transitional part,sending claw will hold bag and move to printing entrance,Deviation correct roller will correct deviation and make bag in flat sending direction.
There is a Electronic Photocell eye on entrance(New type photocell eye can check Black Color Bag.) ,when bag come ,it will send sign to printing cylinder to start printing.

6.Ink Circular System

Anilox Roller + Rubber Roller + Ink Circular Pump+Air Compressor,automatic circular ink,make ink always clean ,have a colorful printing effect.

220 Mesh anilox roller. it can transfer ink equably ,especially when you print 2mm size words on material. Anyway,It save Printing Ink.
Shore Hardness 90 Oilproof Rubber Roller,Oilproof character make it long service life.

7.  4CM Thickness Special Customize Gear.

Our gear is customize ,4cm thickness , make machine work much more steady , fast , with low noise, create a good environment for your worker.

\t
Model
\t
SBY-A-500-2
\t
SBY-A-500-3
\t
Print Color
\t
2Colors
\t
3Colors
\t
Material Width
\t
150(mm)-450(mm)
\t
150(mm)-450(mm)
\t
Material Length
\t
200(mm)-500(mm)
\t
200(mm)-500(mm)
\t
Max.Effective Printing Width
\t
450(mm)
\t
450(mm)
\t
Max.Effective Printing Length
\t
500(mm)
\t
500(mm)
\t
Print Cylinder Diameter(mm)
\t
300(mm)
\t
300(mm)
\t
Print Speed
\t
30-60pcs/min
\t
30-60pcs/min
\t
Total Power
\t
2.5KW
\t
3KW
\t
Printing Plate Thickness
\t
2.84-5(mm)
\t
2.84-5(mm)
\t
Machine Demension(mm)
\t
L4200×W1200×H1200
\t
L4700×W1200×H1200
\t
Machine Weight(mm)
\t
1200Kgs
\t
1400Kgs
Our Workshop
Packing & Delivery
\t

*The normal package is fumigated wooden box.

*Machine will cover with PE water proof film to prevent moisture from the ocean.

*Gear and Bearing will paint with lubricating oil. all guide roller will paint with antirust oil.
Our Certifications


CE Certificate

Our Service

Warranty

* 1 year warranty
* Any part of electronic ,if it's not cause by man-made reasons,we will ship you a free new one.
* If beyond warranty,we offer free repair service,Clients need undertake ship cost

After-Sales Service
* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
*In Vietnam,Malaysia.Philippines.Indonesia. We have local engineer ,but client please undertake travelling expenses for them.

FAQ

Q: Are you trading company or manufacturer ?

A: We are factory. We have engineer in Vietnam, Indonesia ,Malaysia&Philippines.

Q: How long is your delivery time?

A: Generally it is 30-40 days after getting deposit.

Q: What is your terms of payment ?

A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before delivery.
