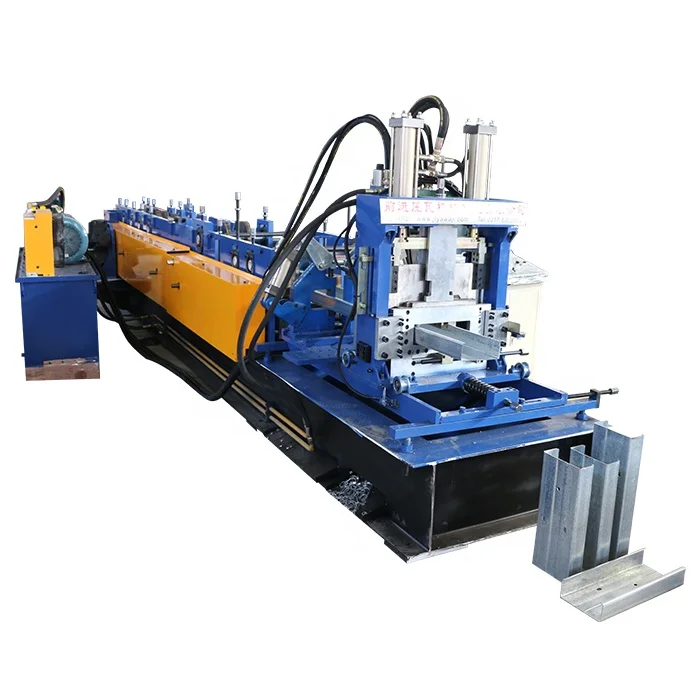

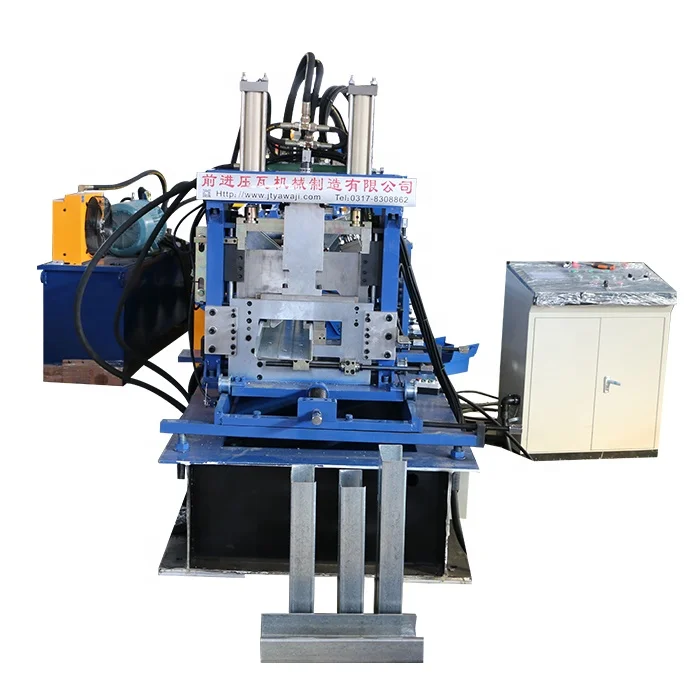

prefab houses c channel making machine/ steel C Z purlin roll forming machine for Building Material
- Category: >>>
- Supplier: Hebei Forward Science And Technology Co. Ltd.
Share on (60819879048):
Product Overview
Description
prefab houses c channel making machine/ steel C Z purlin roll forming machine for Building Material
Roll Forming Machine Specs | |
Guiding Rollers | Two units 45# forging steel with treatment |
Leveling Rollers | Up 2 down 3, 45# forging steel with treatment |

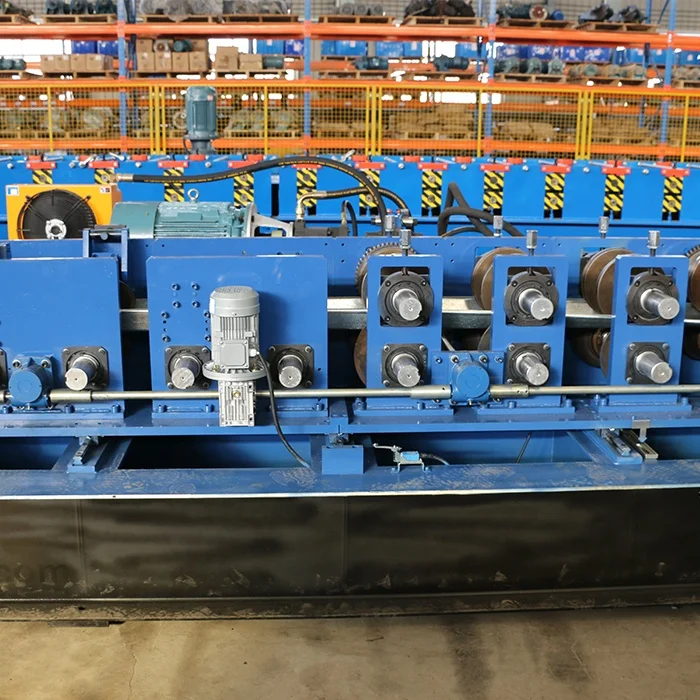

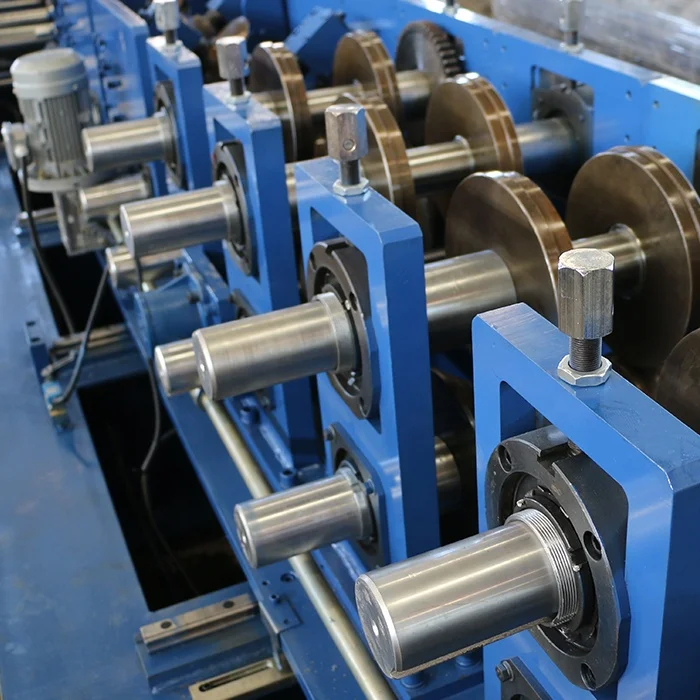

Roller station | 13 forming units |
Under Frame | 350H-beam, Welded structure |
Sidewall Thickness | 18mm 45# Steel Plate |
Sidewall Connect Bar | 25mm |
Shaft diameter(Solid) | 70mm-0.01~-0.03(with key-way) |
Shaft material(Hard) | High grade 45# steel,heated and quenched cylindrical grinding, |
Roller material(Hard) | High grade GCr15 bearing steel,heated and quenched |
Roller Surface | hard chrome coated 0.05mm |
Bearing Type | Standard 6210 |
Screw&Bolt | Self-made |
Transmission Chain | |
Motor Power | 11 KW(Lichao,Shanghai) |
Forming Speed | 12-15m/min |
Hydraulic Punching Device | |
Hole size | 15mm |

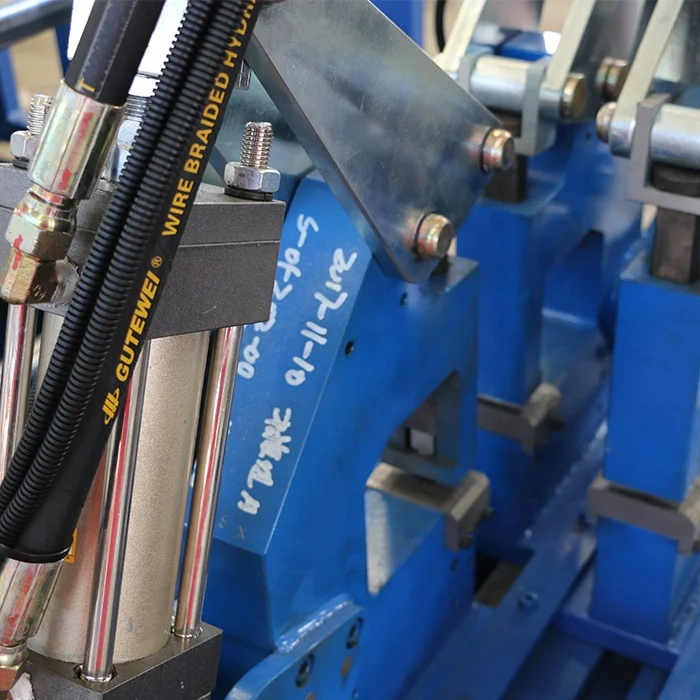

Hydraulic Cutting Device Specs | |
Main Structure | Welded Structural Steel |
Steel Plate | 18mm A3 Steel |
Cutting type | Hydraulic Operation,Stop to post and post to cut |
Cylinder Quantity | One unit |
Pump power | 5.5KW,25 Mpa Hydraulic Pressure |
Cutting die | Cr12Mov, Quenched processed |
Automatic Computer Control System | |
Length tolerance | 10m+/-1.5mm |
PLC System | Delta PLC Program |
Length Controller | Omron,Japan |
Operation | Touch-Win Screen,Jiangsu |
Inverter | Delta,Taiwan |
Voltage Standard | 220V/3Phases/60Hz |
3 Ton Manual Uncoiler Link-connect expanding system | |
Coil Inner-diameter | 480-510mm |
Coil Outer-diameter | Max. 1000mm |
Load Capacity | Max. 3 Tons |
Coil Width | Max. 650mm |
Operation Flow
- Main Components:
Item | Name | Qty |
1 | 5T Manual Decoiler | 1 |
2 | Feeding platform with hand cutting system | 1 |
3 | Main forming system | 1 |
4 | Hydraulic cutting system | 1 |
5 | Hydraulic pump station | 1 |
6 | Electrical motor | 1 |
7 | PLC control system | 1 |
8 | Touch screen operation | 1 |
9 | Finished products receive table | 1 |
10 | Safety shield(optional) | 1 |
11 | Hydraulic decoiler(optional) | 1 |
12 | Automatic stacker(optional) | 1 |
Production Flow
Trade Shows
Company Information
Packaging & Shipping
Sale Terms
- Payment Method
30% as deposit ,balance payment after inspection while before delivery.
- Production Period
30 days after the 30% deposit.
- Packing Method
Nude packing in the 40 feet container ,fixed well with oil rope, control cabinet and all the accessories with waterproof.
- After-sell Service
In correct operation & maintaining, the machine is guaranteed for one year since leaving our factory excludes the electric elements.
- Installation
If installation is needed, the seller will dispatch a technician to the buyer’s factory abroad to assist regulating the machine with charge free. The buyer should assist the seller to get the Chinese technician's visa and should pay for the roundtrip air ticket and the local accommodation.If installation is needed, the buyer shall make the following preparation before arrival of technicians.
Position the machine in the buyer’s factory.
Prepare necessary electric wiring.
Prepare material of trial running.
Provide labors for assistance and installation during installation.
